99offroadrngr's build up / evolution

I sold my JDM, as Korey calls it, in 2007 and looked around for a truck and ended up buying my 1999 ranger with 58k with the off road package. I never planned on doing a single thing to this truck but then i found RF and got the never ending mod bug/sickness that most, if not all of us on here get.

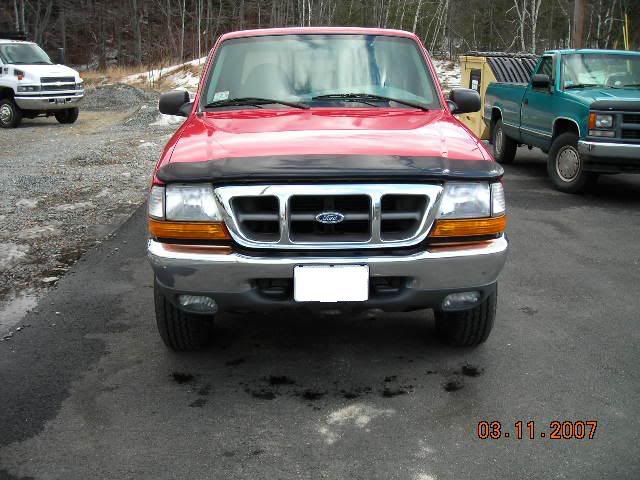

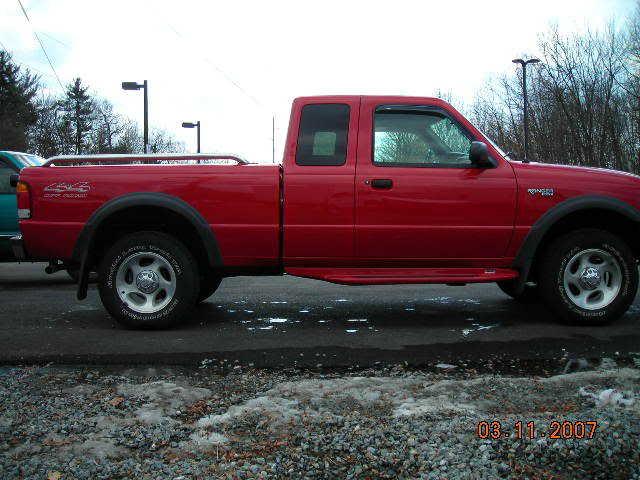

Day 1:
Name:  RangerFront.jpg
Views: 39
Size:  55.1 KB
Name:  RangerSide.jpg
Views: 35
Size:  51.3 KB

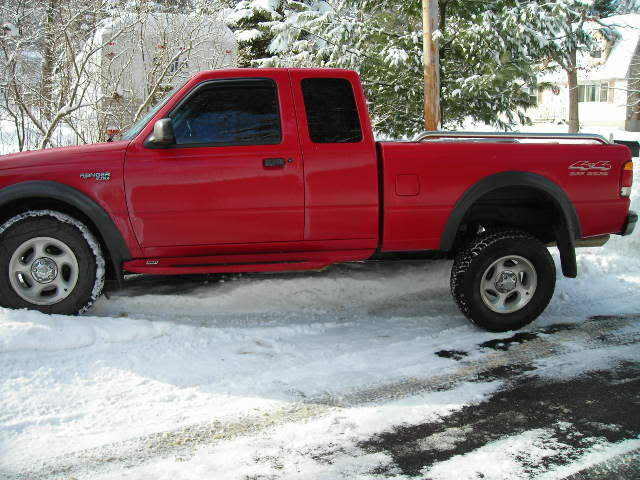

i got a bad habit of doing burnouts when i first got my truck so i bought a set of 265/75/16 (equivilant to 31s) all terrains
Name:  Snow2.jpg
Views: 37
Size:  56.1 KB

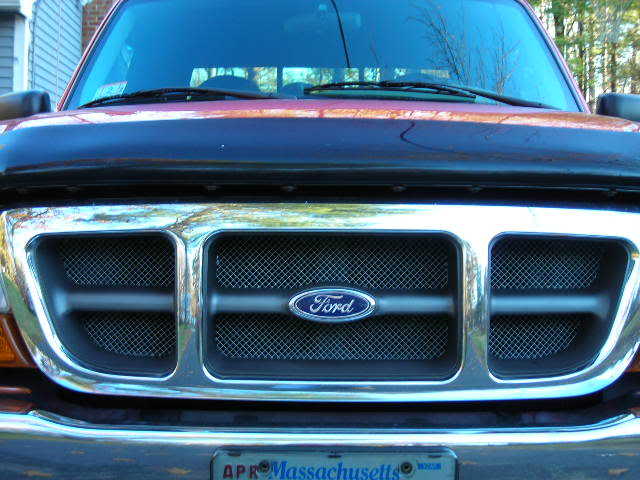

Did first real "mod", the cheap mesh behind the grille.
Name:  Grill2.jpg
Views: 34
Size:  51.7 KB

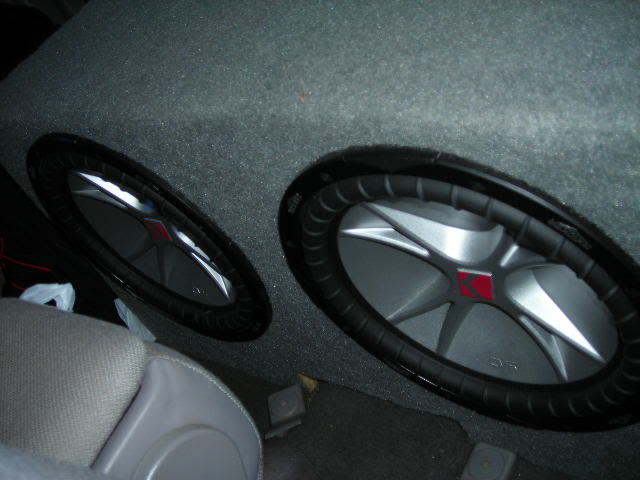

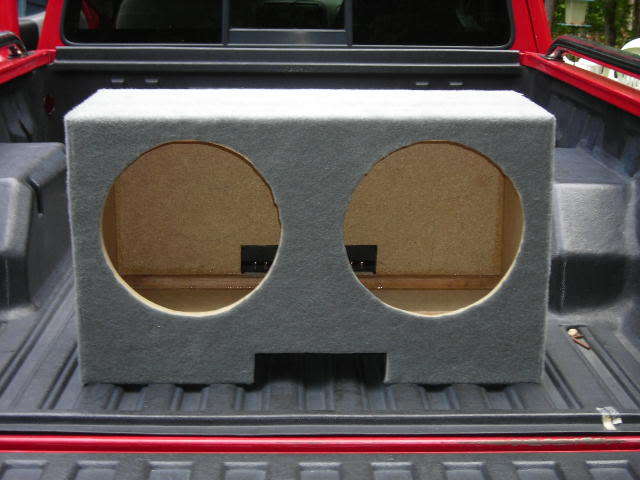

With the help of a friend, we built a subwoofer enclosure. Nothing special and it was both of our first times trying to make something like this but it served its purpose and actually sounded well. The cut-out on the bottom is for the "hump" on the floor of our trucks....subs are gone now though
Name:  Box3.jpg
Views: 37
Size:  40.6 KB
Name:  Kicker3.jpg
Views: 38
Size:  37.3 KB

Painted my radio bezel to match the truck....that rubbery coating is a b!tch to get off!
Name:  Dash1.jpg
Views: 87
Size:  50.0 KB

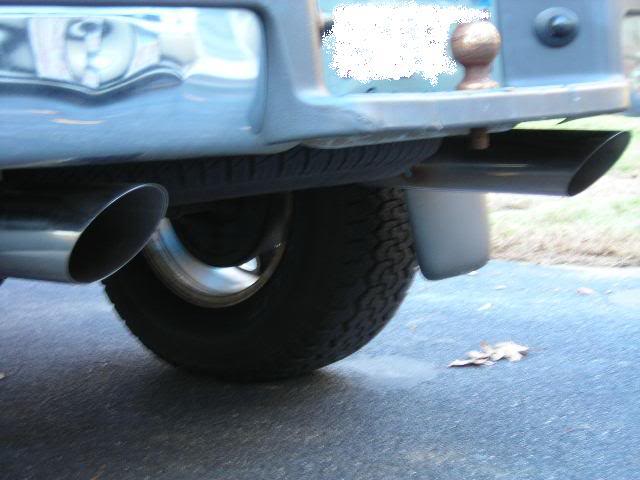

got a flowmaster exhaust with dual tips out the back. Now its chopped off and dumped with no tips because of the body lift.
Name:  Exhaust1.jpg
Views: 38
Size:  37.1 KB

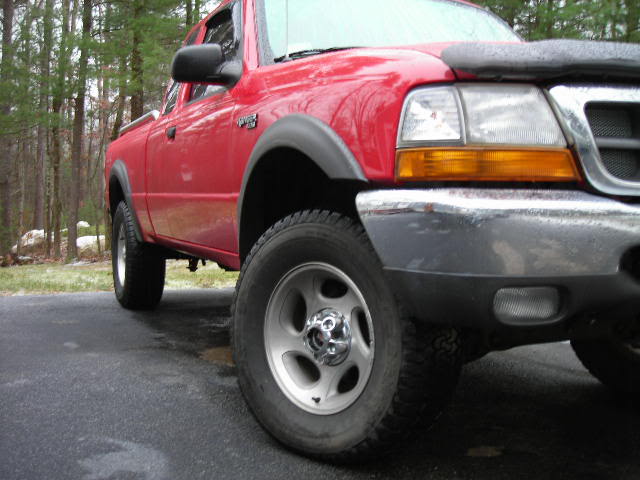

First time down a trail i blew out the PVH hubs that come stock on the truck....garbage so i made the best investment of buying a set of AVM/Rugged Ridge manual locking hubs....til today, they work great
Name:  Hubs3.jpg
Views: 71
Size:  50.7 KB

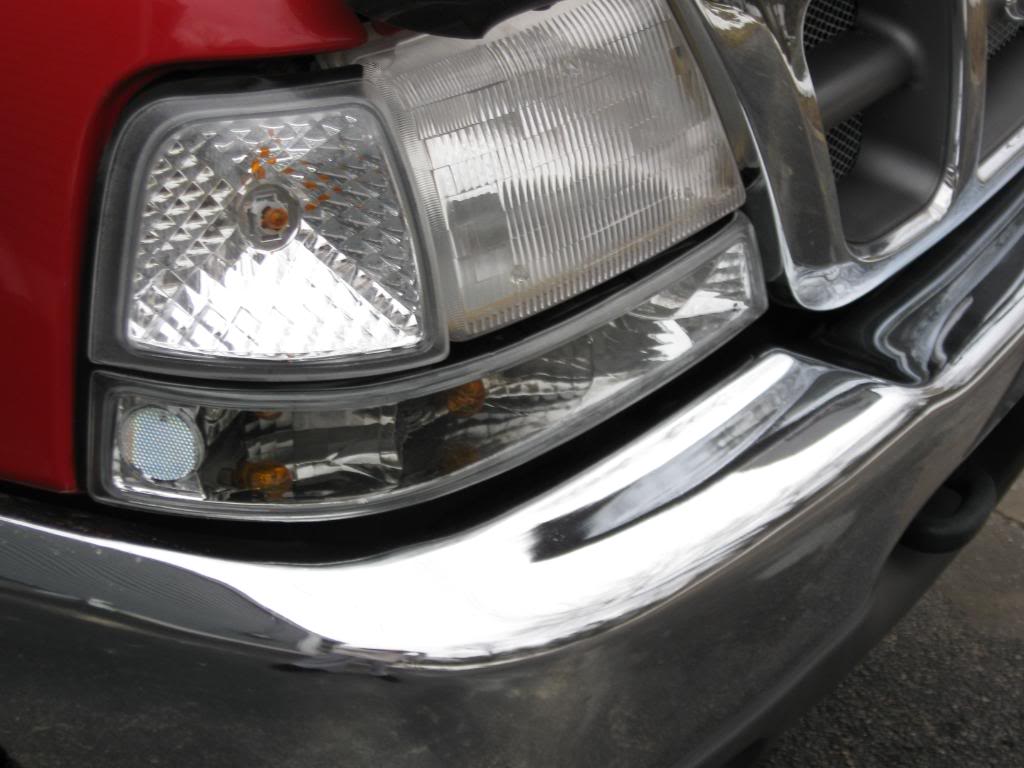

Picked up a set of clear corners
Name:  IMG_0109.jpg
Views: 37
Size:  87.7 KB

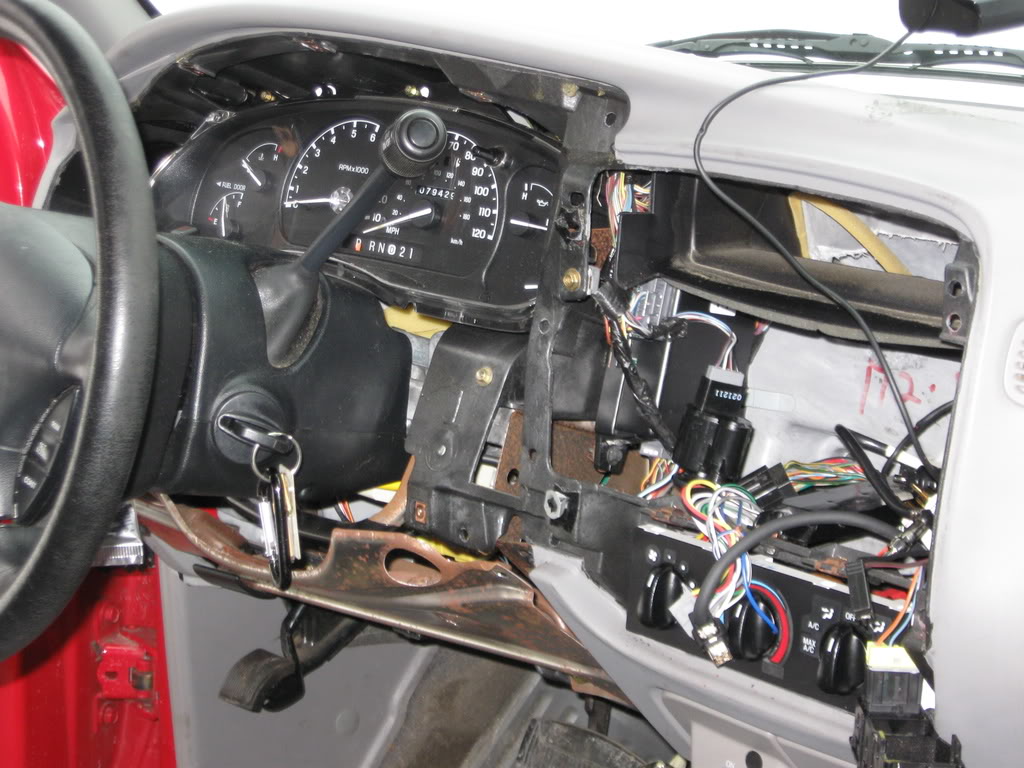

That LED conversion of the gauge cluster had me nervous and i never wanted to deal with taking the dash apart but i ended up giving in and beginning.
Name:  IMG_0006.jpg
Views: 40
Size:  138.3 KB

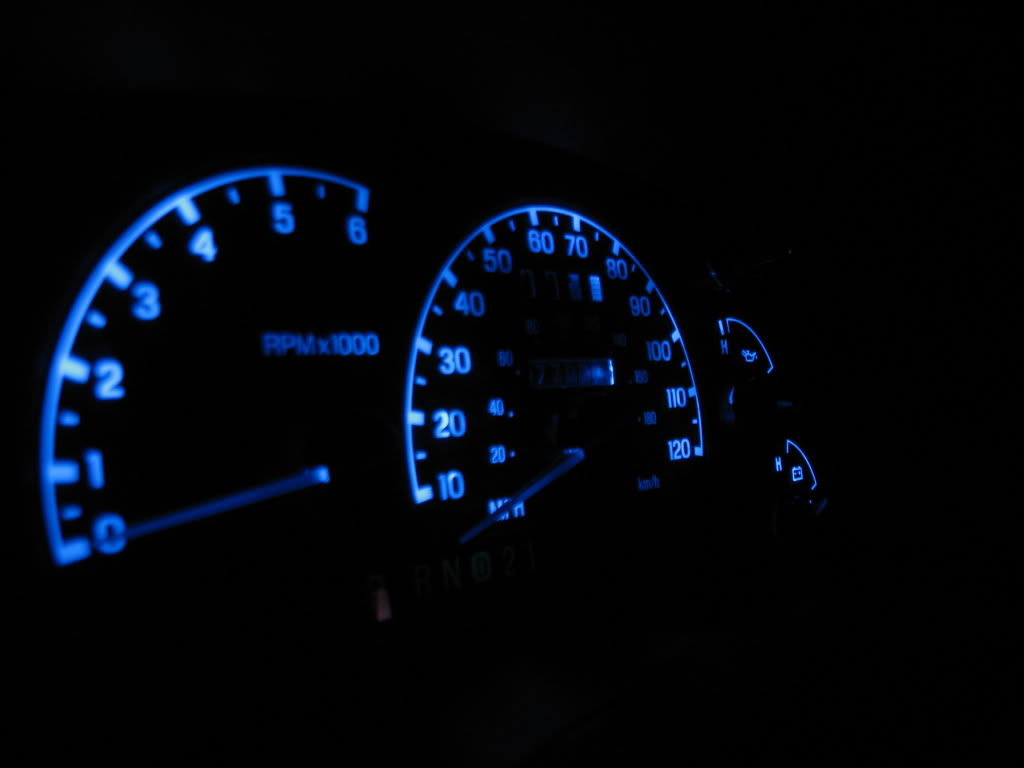

Done with stock cluster:
Name:  IMG_0011.jpg
Views: 32
Size:  36.1 KB

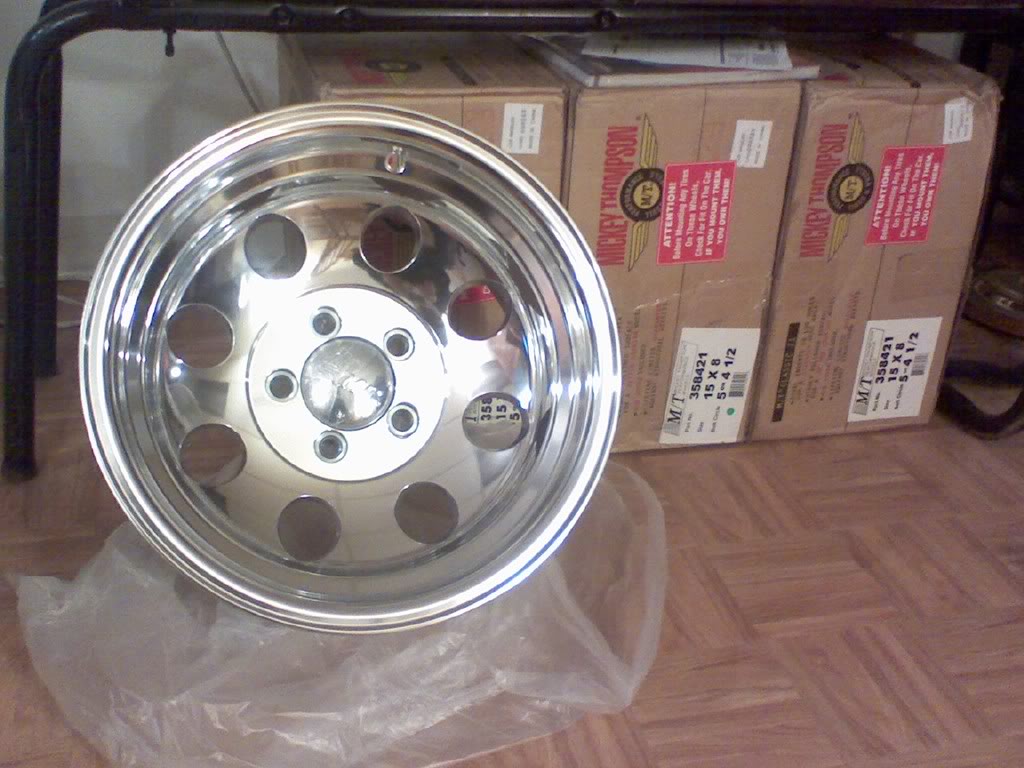

got sick of the stock wheels so i bought a set of Mickey Thompson Classic II 15" wheels
Name:  Rims.jpg
Views: 48
Size:  112.5 KB

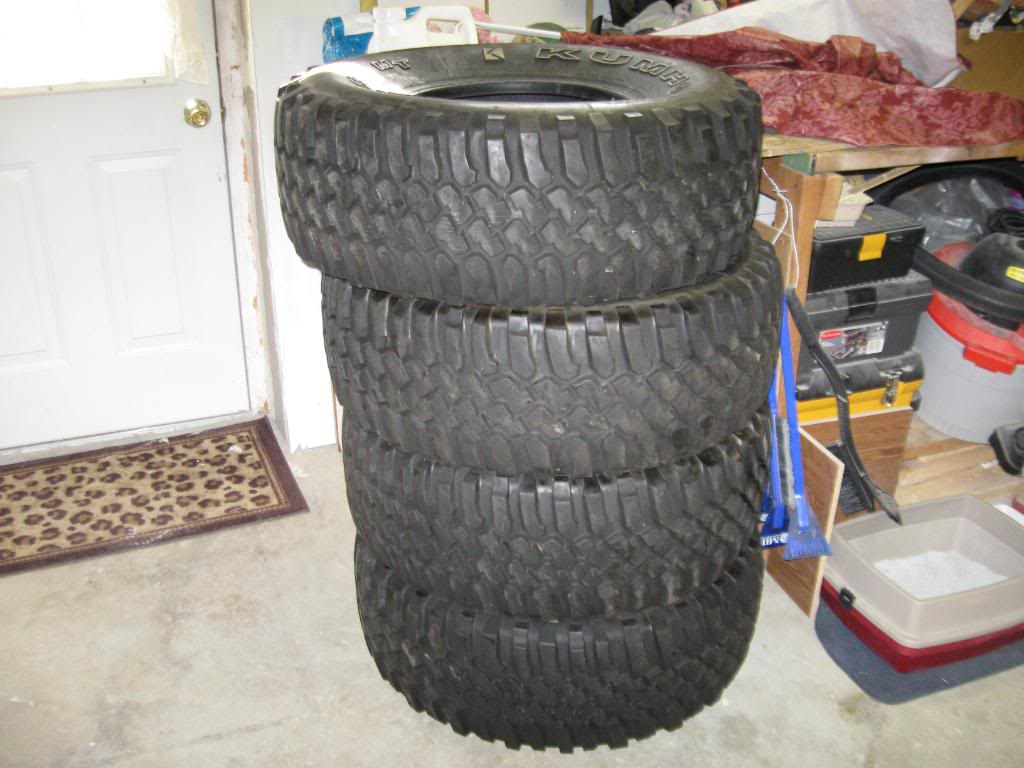

Found a set of 33x12.5x15 Kumho M/Ts for a deal i couldn't pass up at all on craigslist so i bought them....basically brand new
Name:  IMG_0012.jpg
Views: 32
Size:  94.7 KB

I obviously couldn't fit those tires stock so that meant it was time for the body lift to be purchased. Thanks to W1CKY for helping me with it.

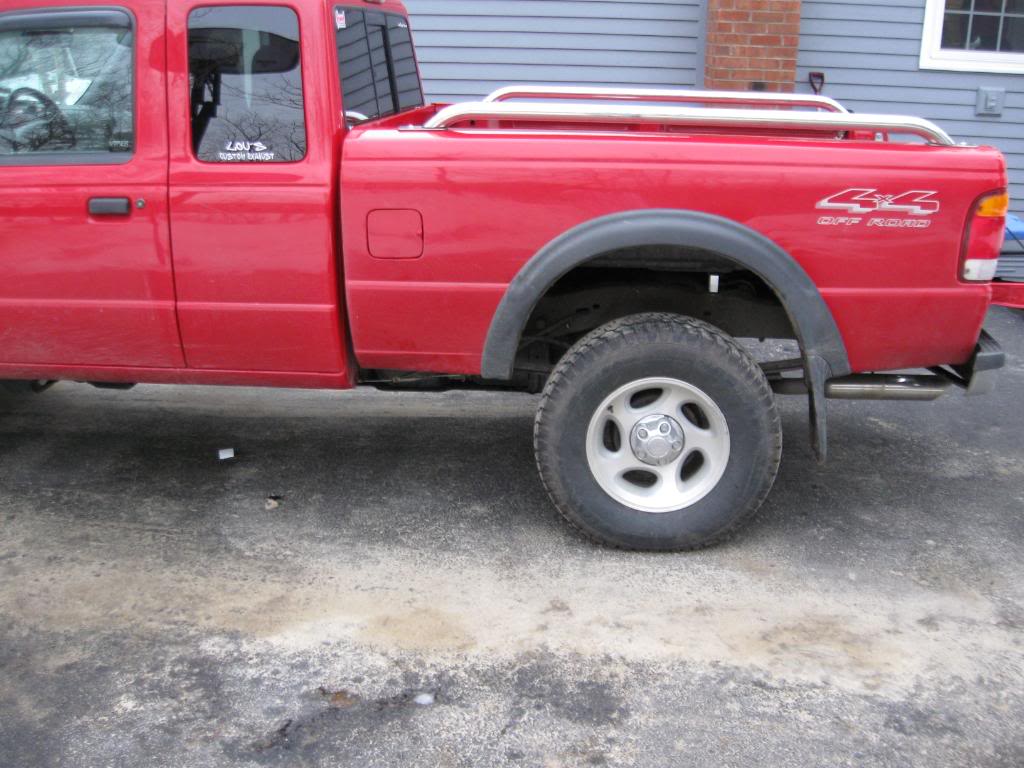

Bed done:
Name:  IMG_0025.jpg
Views: 32
Size:  109.8 KB

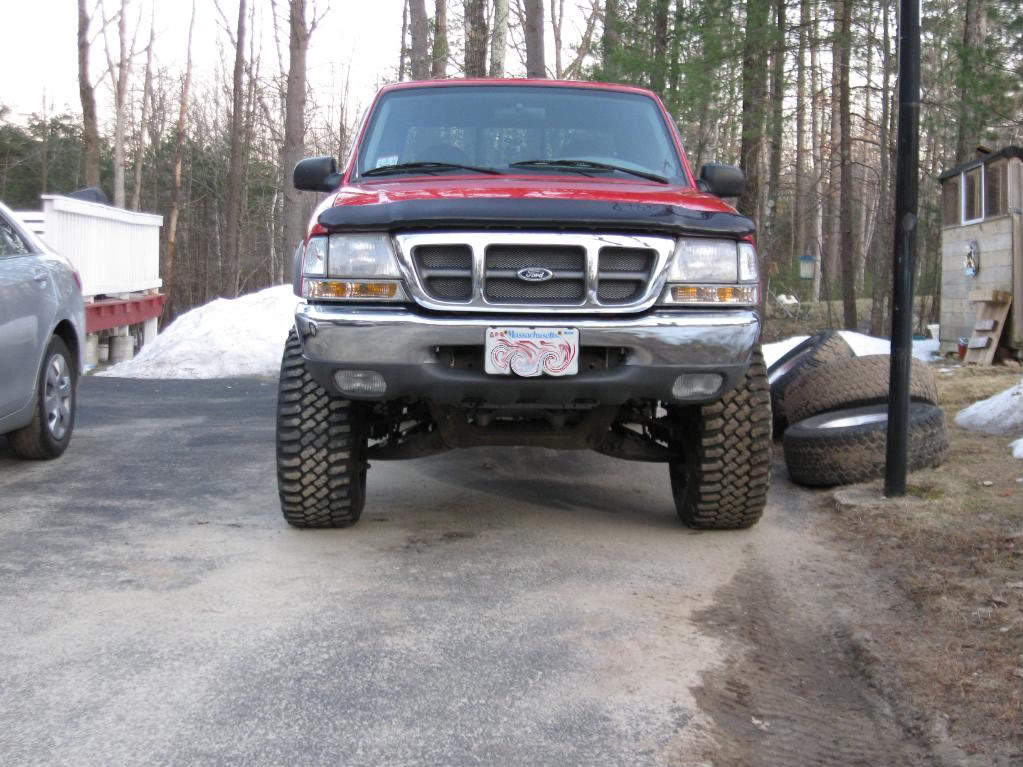

Truck done with 33s mounted:
Name:  IMG_0040.jpg
Views: 30
Size:  151.1 KB

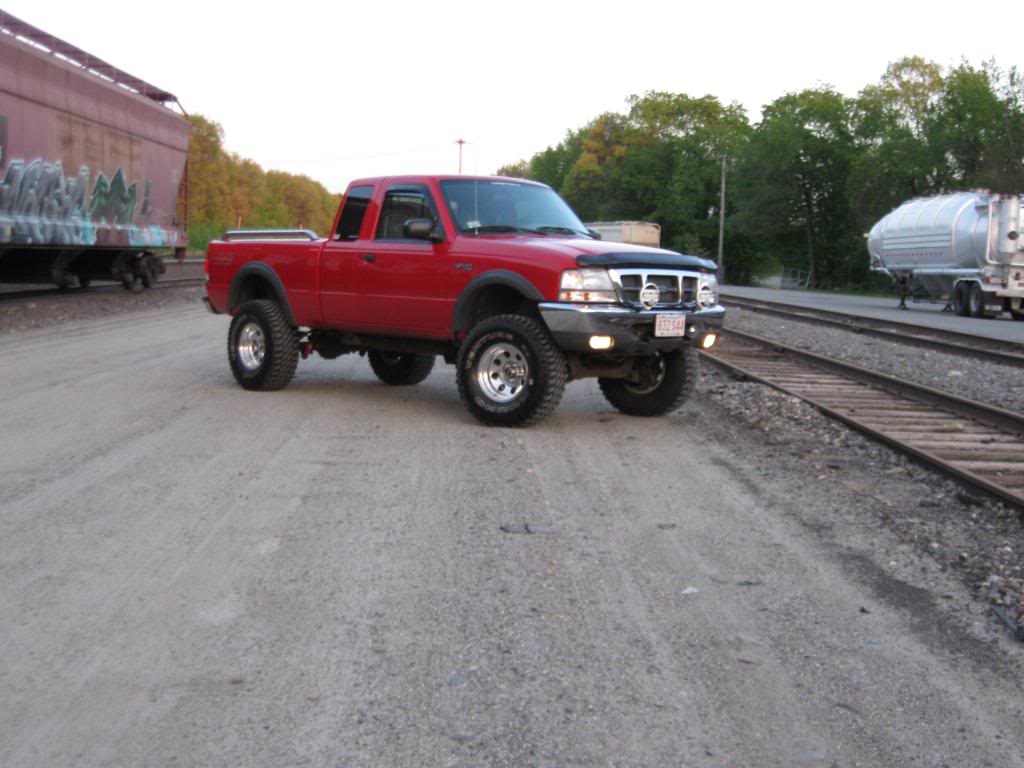

bought a set of hella 500s
Name:  IMG_0185.jpg
Views: 34
Size:  94.8 KB

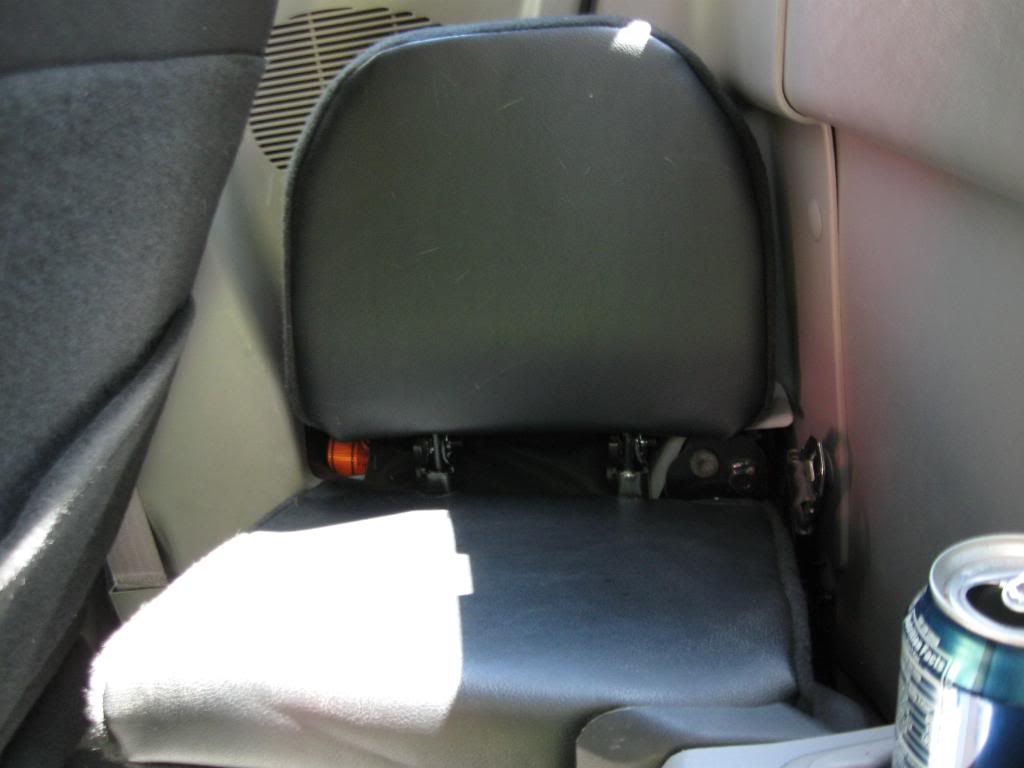

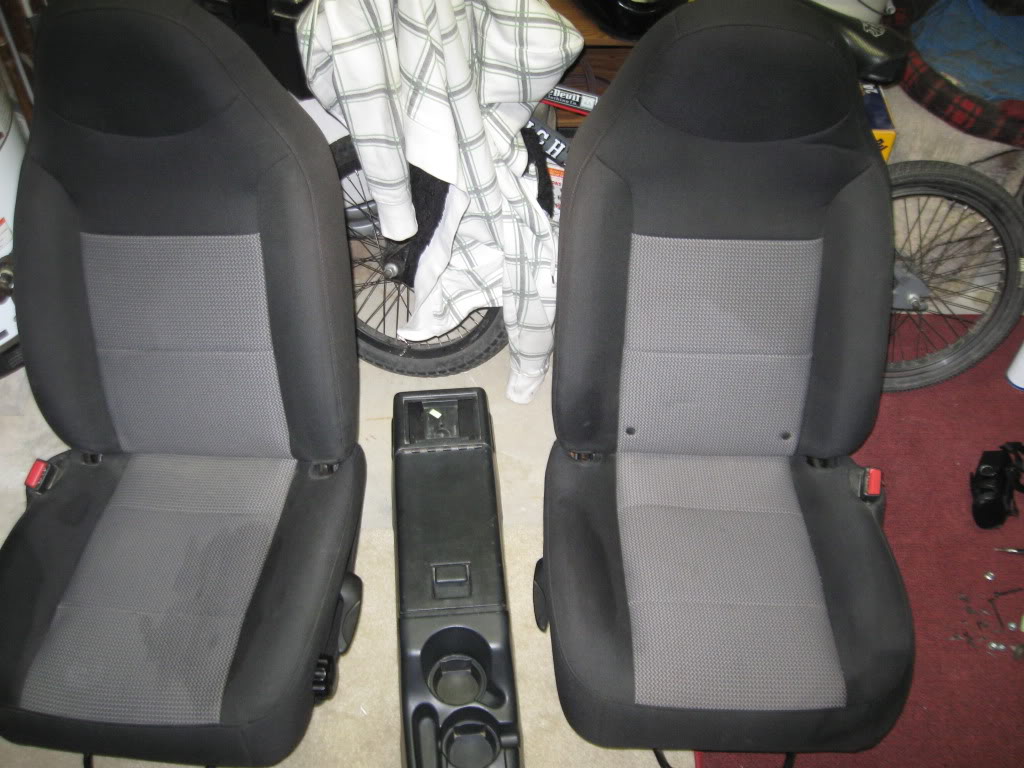

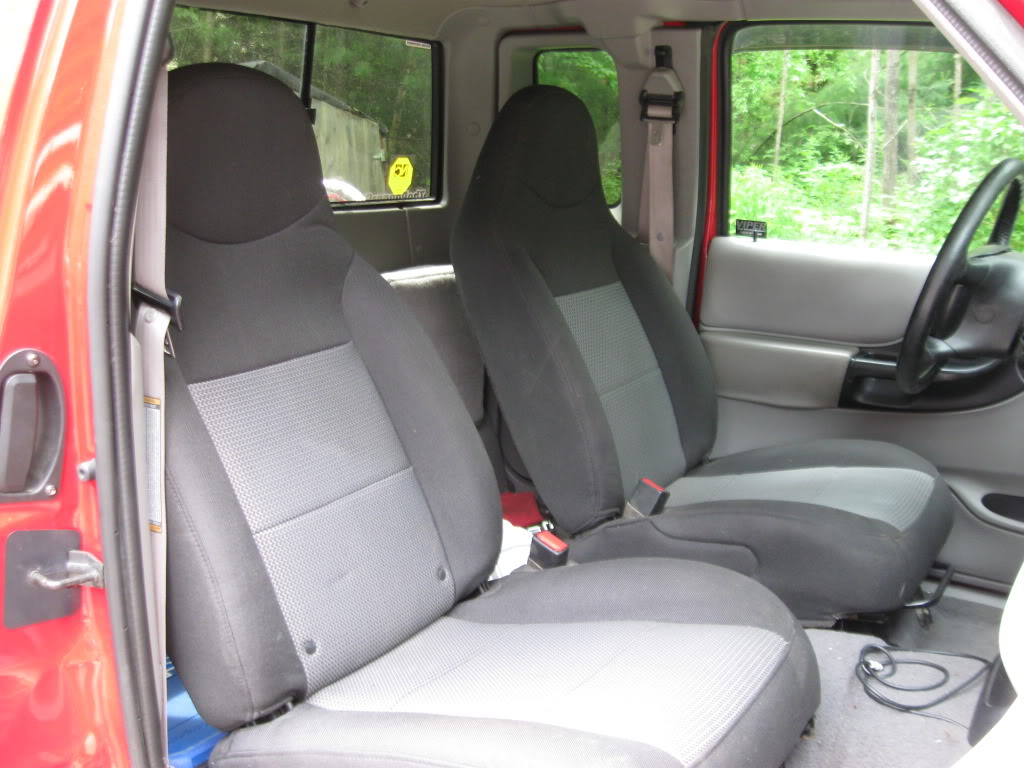

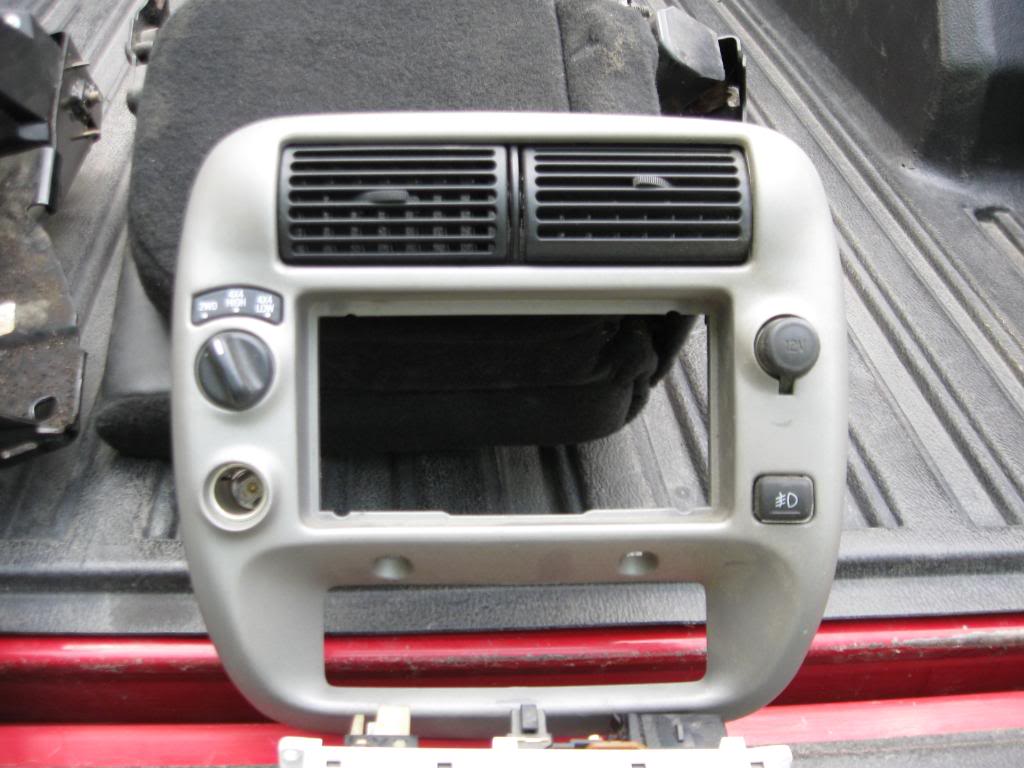

There was a truck at the junkyard that was only the cab left...bed was gone, frame was gone, front end was basically gone and i couldn't tell what it was but i casually went to it one day and found it was an Fx4 ranger. Inside were black with grey insert bucket seats and center console (armrest was missing) along with black vinyl rear jumpseats and a silver radio bezel....I couldn't leave them there so i pulled them myself.
Name:  IMG_0301.jpg
Views: 32
Size:  129.8 KB
Name:  IMG_0303.jpg
Views: 31
Size:  127.2 KB
Name:  IMG_0315.jpg
Views: 33
Size:  91.4 KB
Name:  IMG_0319.jpg
Views: 35
Size:  54.4 KB

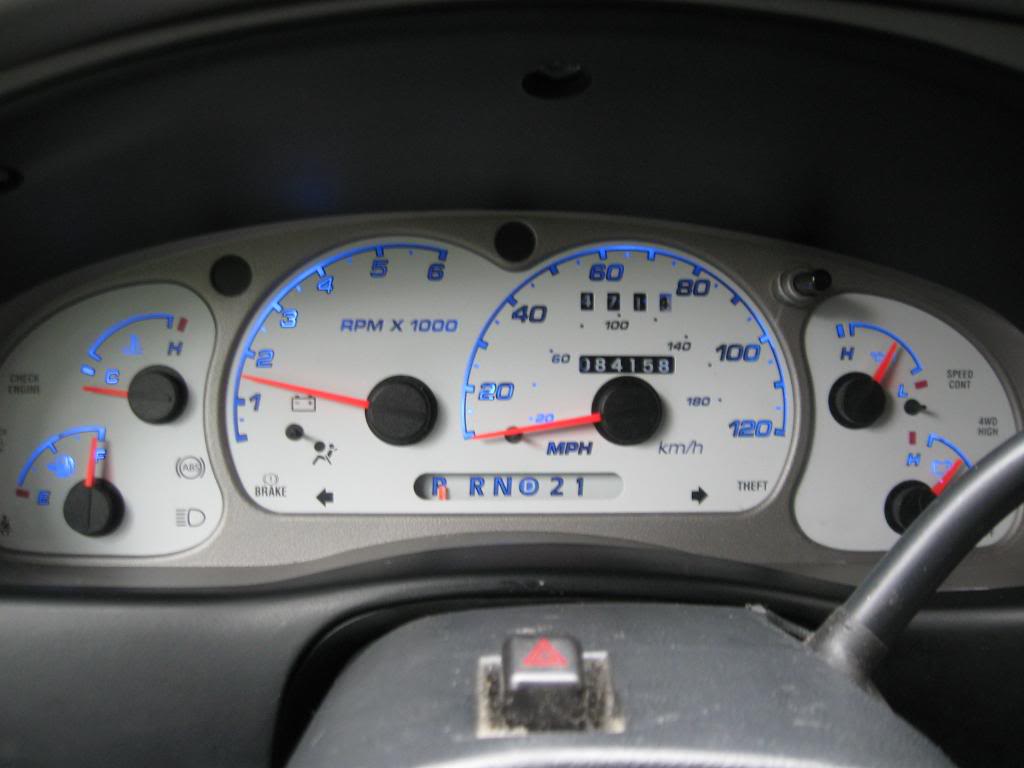

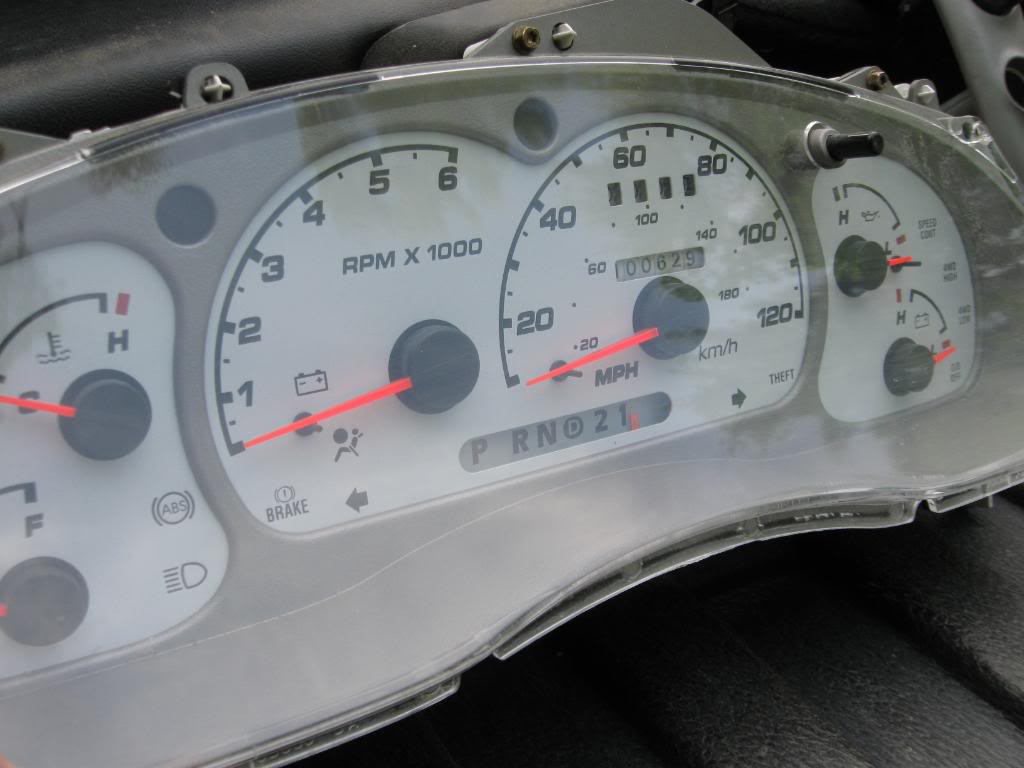

also found an explorer sport with white-faced gauge cluster so i couldn't leave that either
Name:  IMG_0316.jpg
Views: 35
Size:  68.6 KB
Name:  IMG_0326.jpg
Views: 47
Size:  57.5 KB

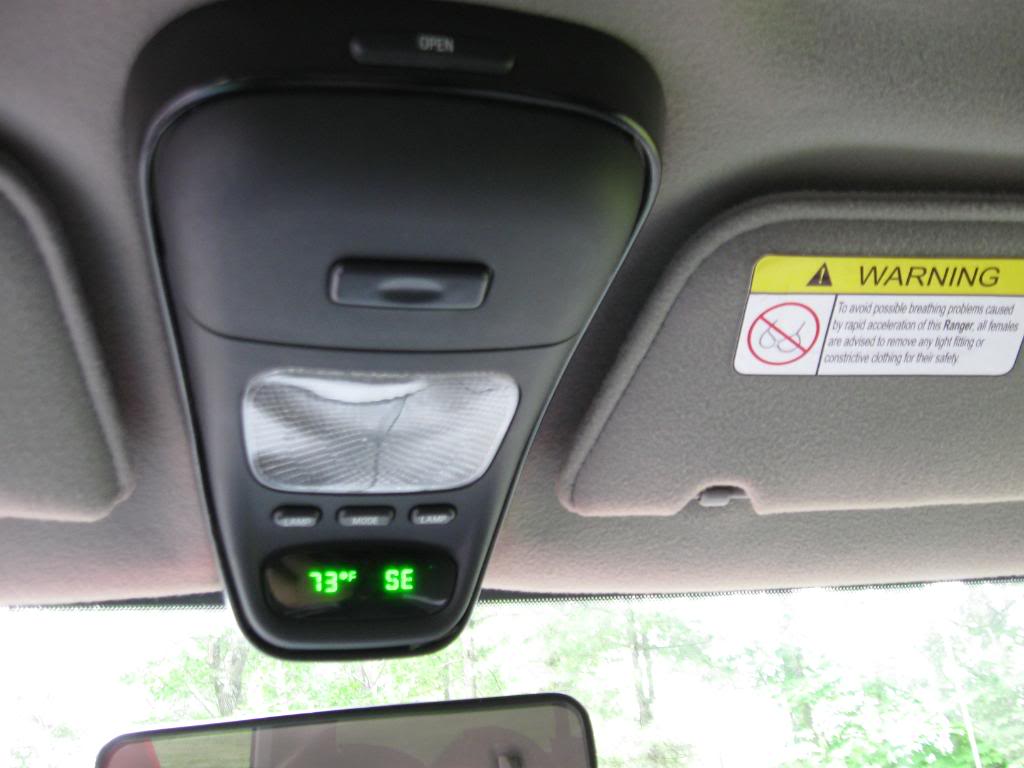

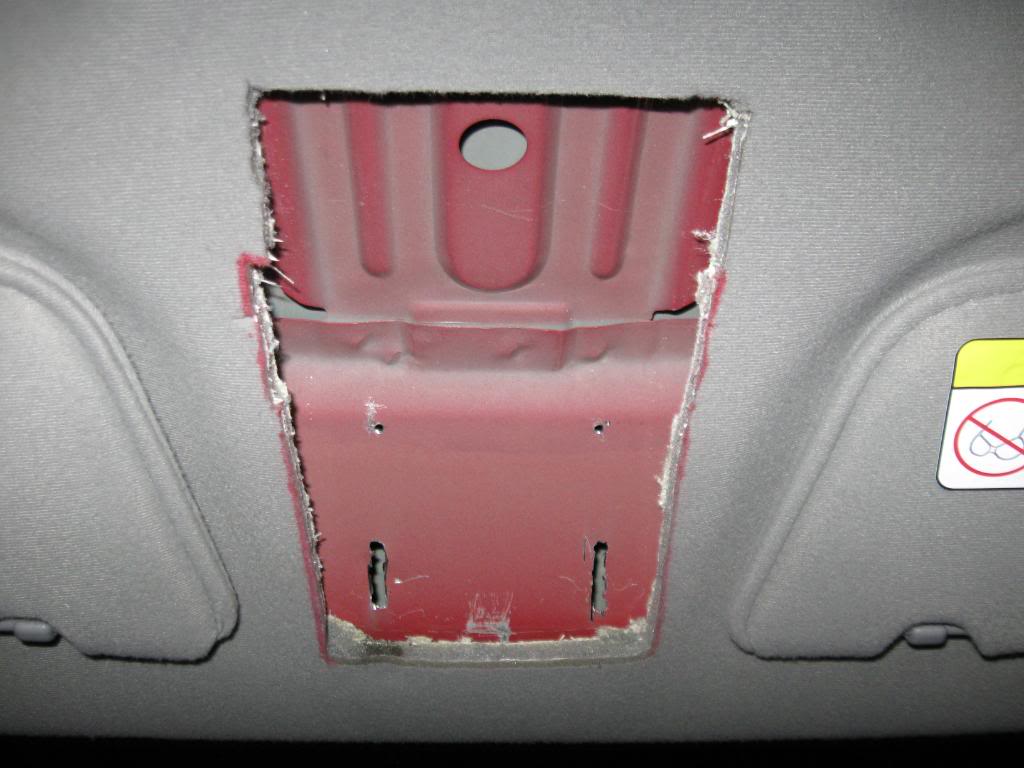

What the the hell is an OHC? did some research and there were many explorers at the junkyard so i pulled one. Thanks to the how-to written by the long gone and banned Marcus, I got rolling on the project. It was pretty iffy cutting the headliner but it went well.
Name:  IMG_0190.jpg
Views: 35
Size:  81.5 KB
Name:  IMG_0325.jpg
Views: 30
Size:  68.7 KB
(got 5hp for that sticker on visor btw)

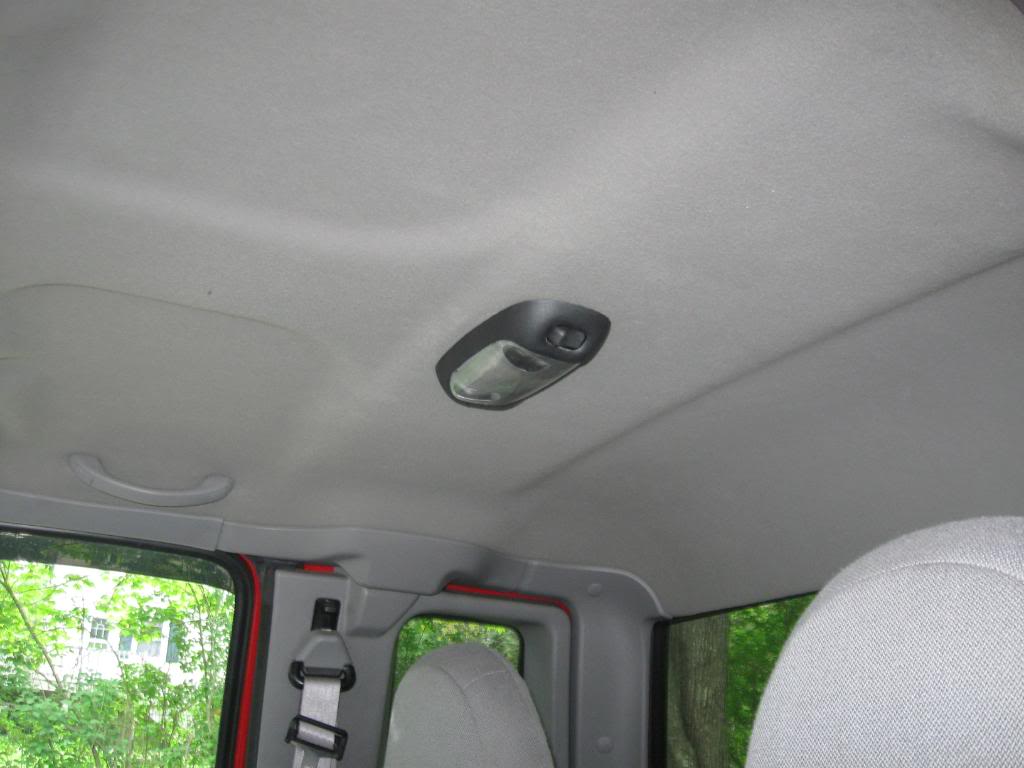

Also did the played out mustang/taurus domelight mod
Name:  IMG_0187.jpg
Views: 36
Size:  66.8 KB

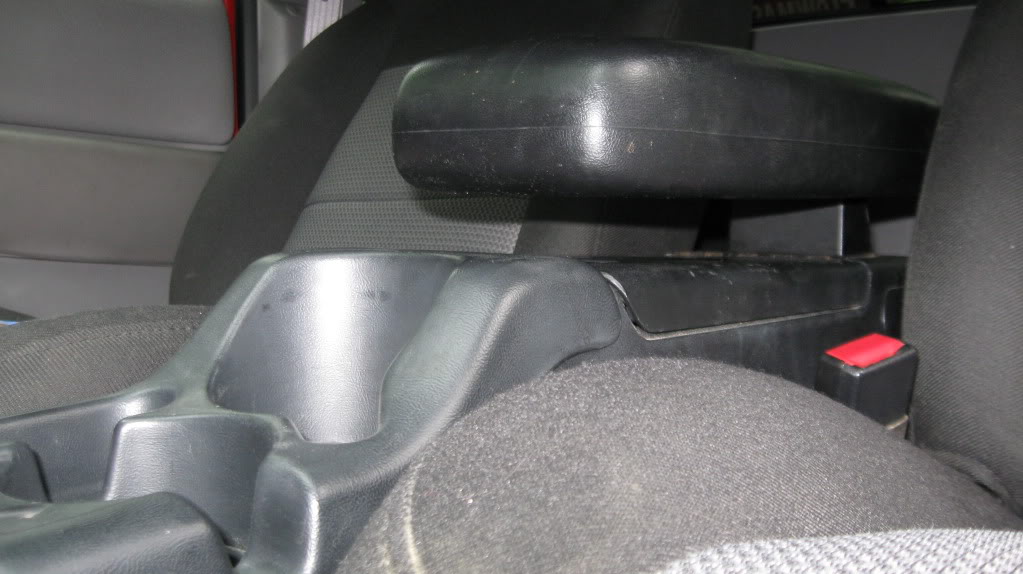

finally found an armrest for my center console. Thanks Matt (seed60) for trading for my hellas.
Name:  IMG_0367.jpg
Views: 68
Size:  93.3 KB

Also heard about "redding out" tail lights which have amber on them so they're all red. Thanks to Crazymikey, wherever you may be, for helping me via PM before doing it.

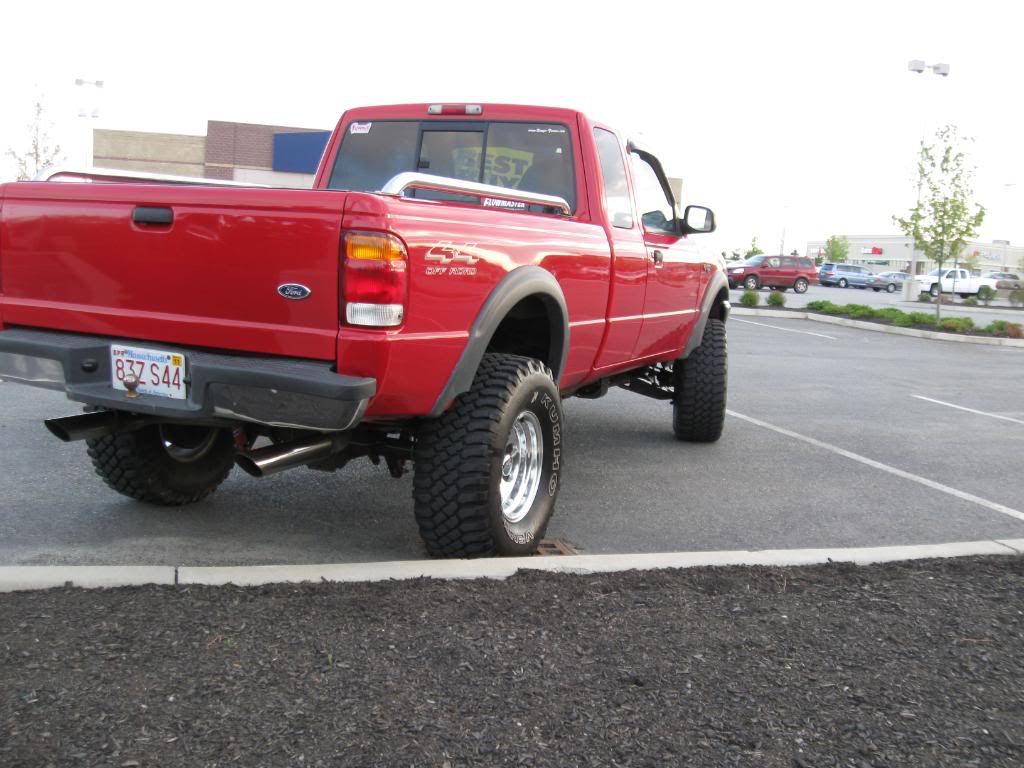

Before:
Name:  IMG_0165.jpg
Views: 35
Size:  108.4 KB

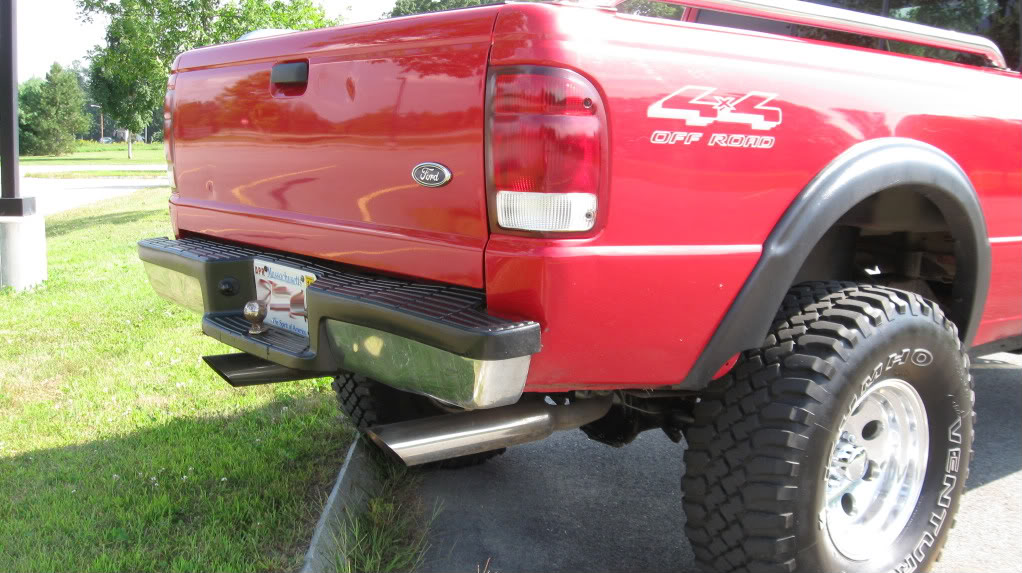

After:
Name:  IMG_0462-1.jpg
Views: 34
Size:  138.2 KB

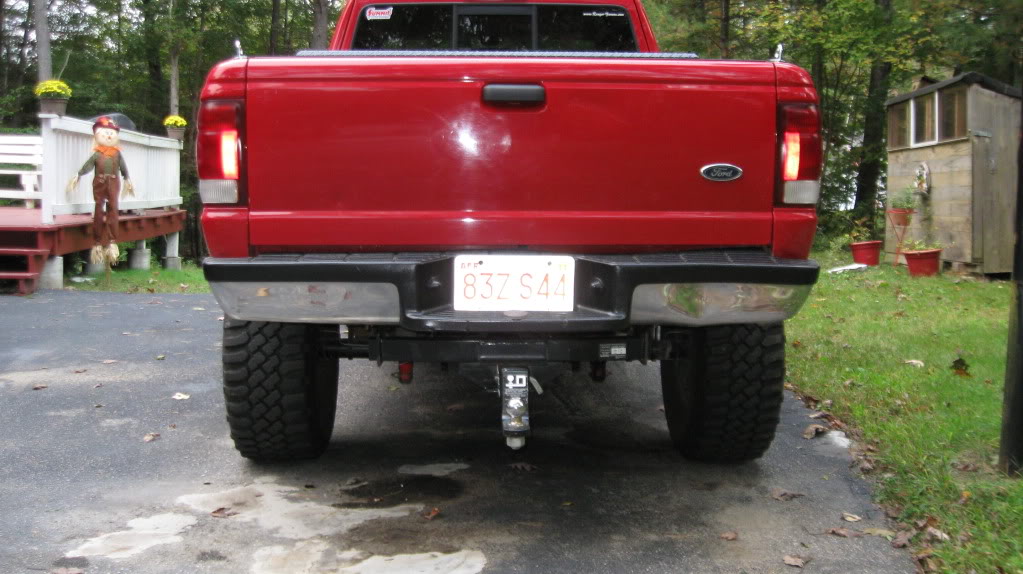

Finally got a rear hitch on the truck
Name:  IMG_0581.jpg
Views: 34
Size:  124.8 KB

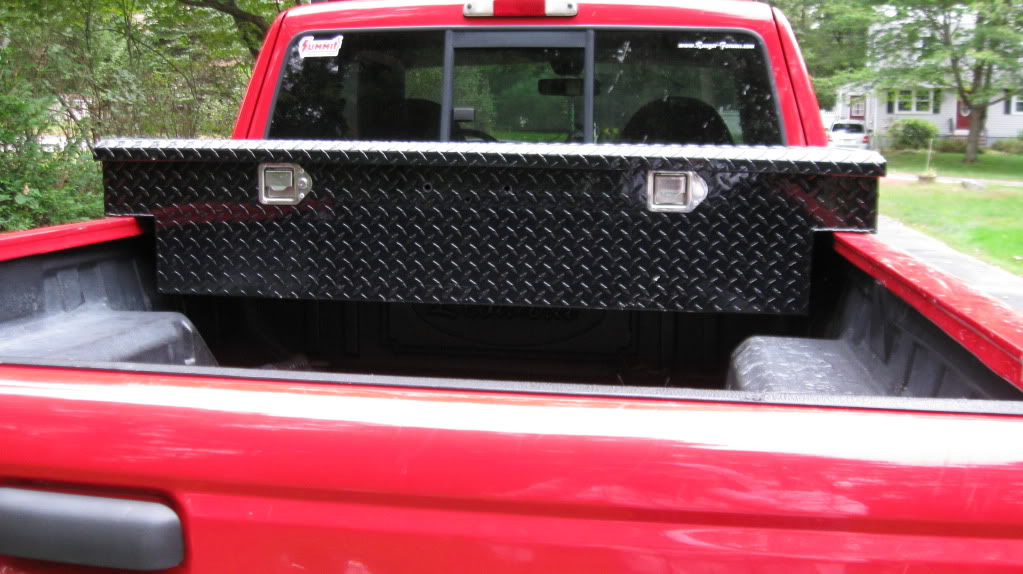

Needed and wanted more storage so i bought a toolbox off of someone on here, drove to his house and picked it up.
Name:  IMG_0556.jpg
Views: 33
Size:  123.7 KB

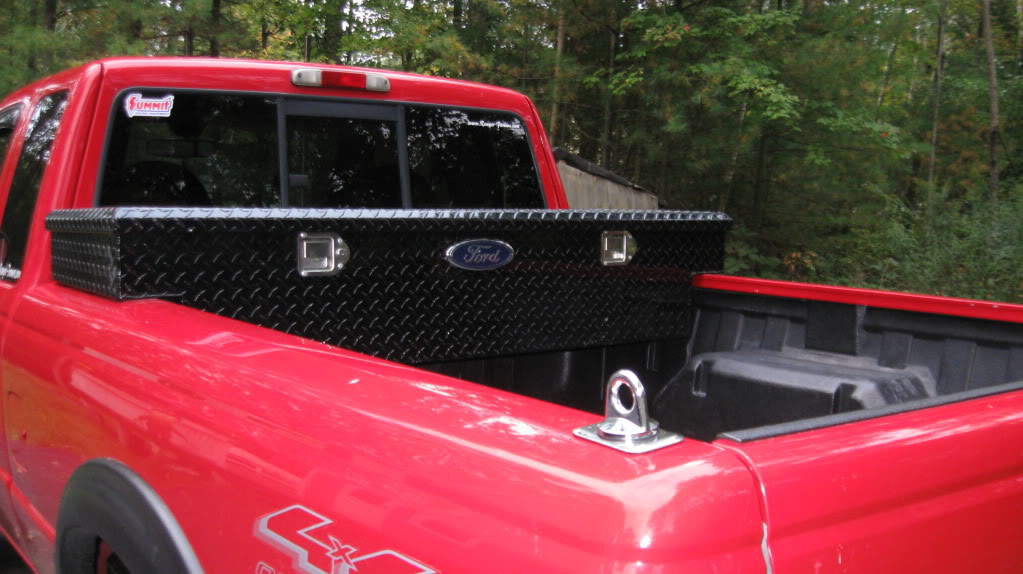

The toolbox had two holes in the middle that were left when the original emblem was taken off so i came up with the idea of putting a ford oval over it...worked out great!
Name:  IMG_0579.jpg
Views: 30
Size:  114.5 KB

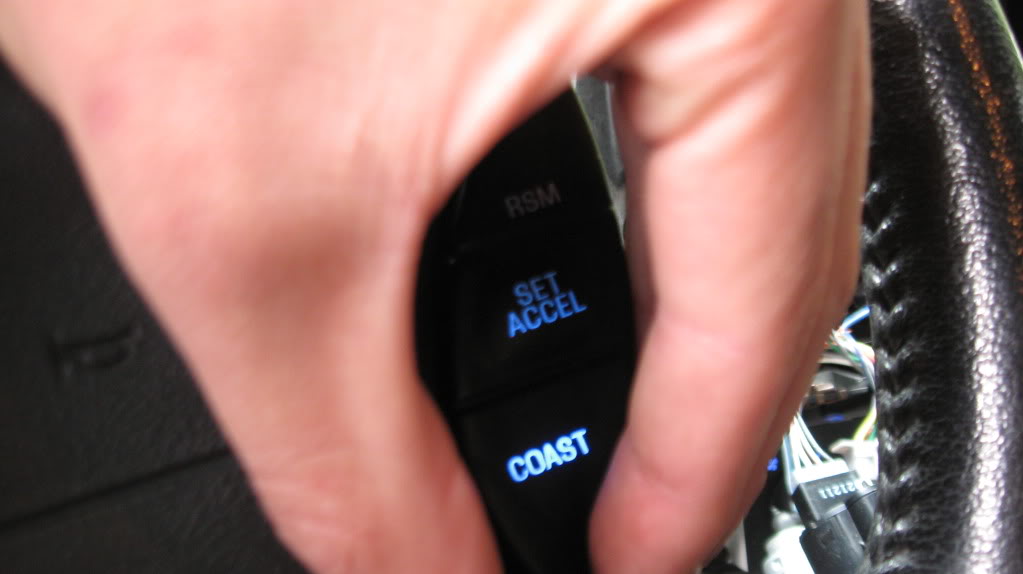

always wondered why the heck the cruise pods never lit up on some 98-00s so i did a bit of research and found out some weren't pre-wired for it, well they were but the connections were never finished so i finished them.
....LED sucked but its brighter now but no recent pics lol
Name:  IMG_0633.jpg
Views: 29
Size:  60.6 KB

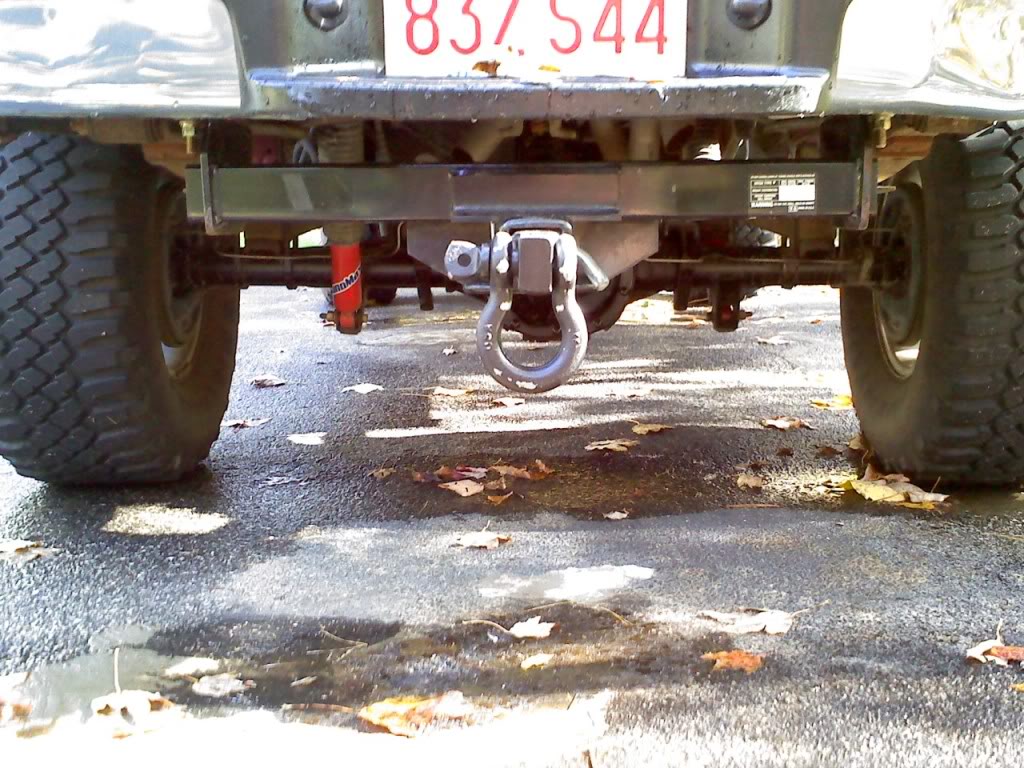

bought a slide-in receiver with clevis that gets used when i get stuck lol....thanks Trevor!
Name:  1007091505.jpg
Views: 34
Size:  173.9 KB

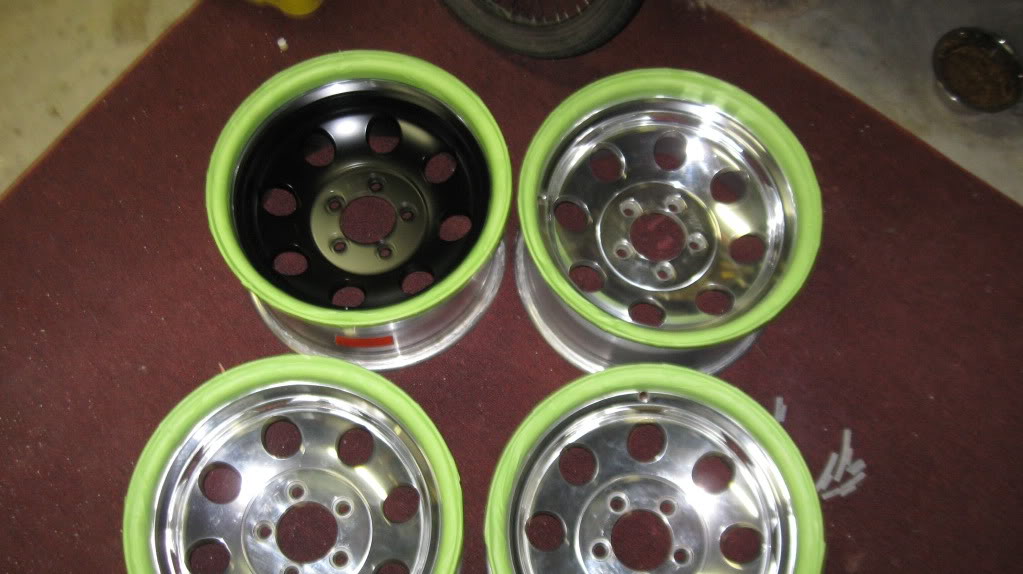

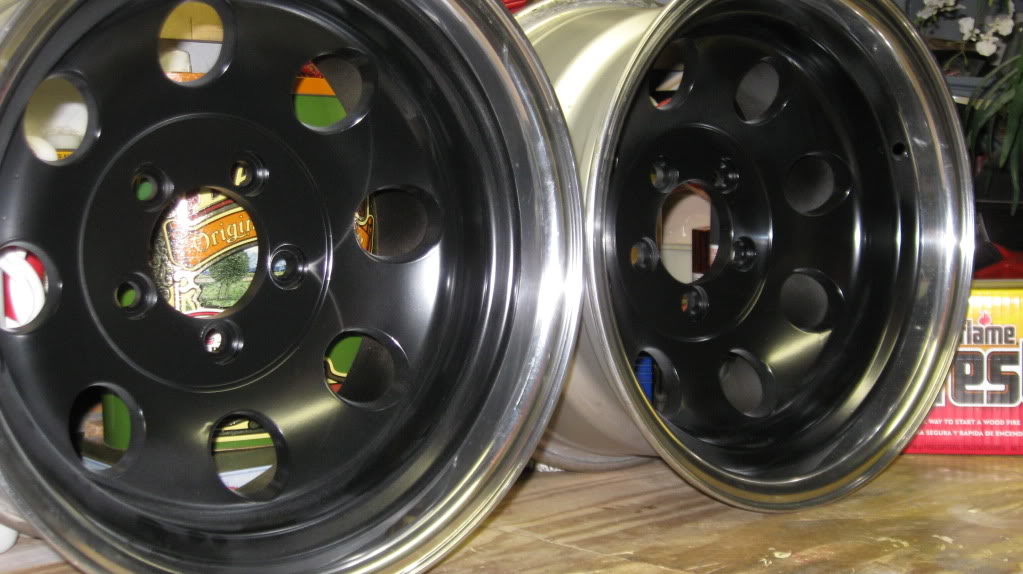

at one point i became jealous of HozII's dsg centered/polished lip classic IIs so i asked him a few questions and began work on my own.
Name:  IMG_0685.jpg
Views: 32
Size:  99.5 KB
Name:  IMG_0687.jpg
Views: 33
Size:  103.4 KB
Name:  IMG_0748.jpg
Views: 32
Size:  141.9 KB

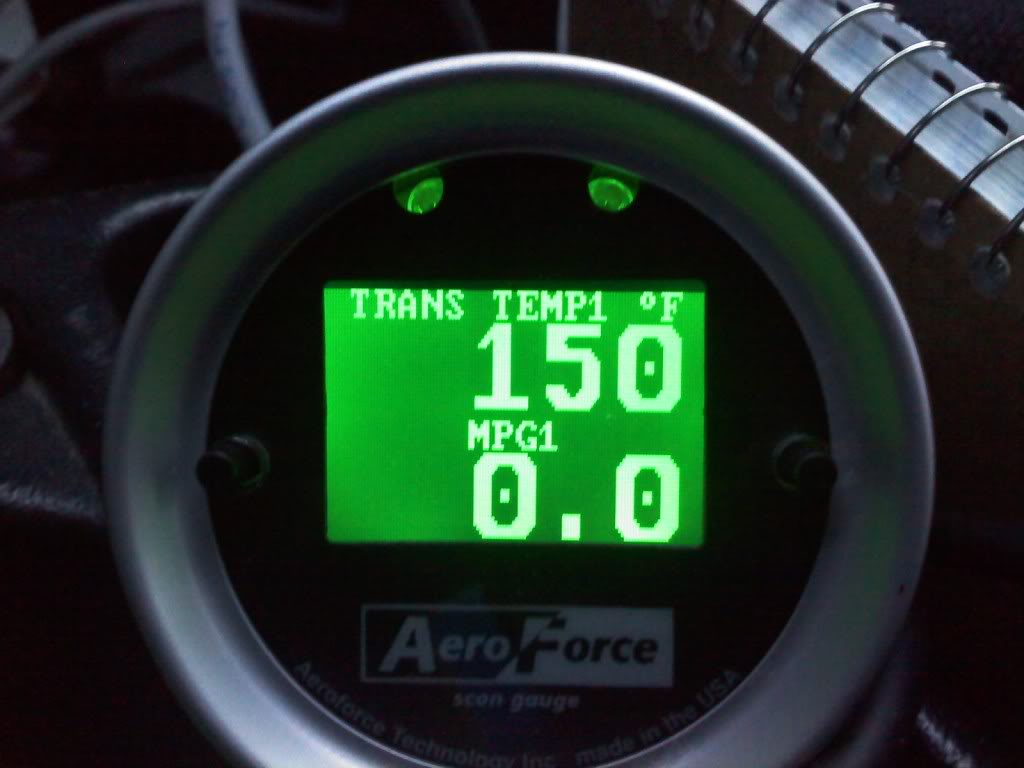

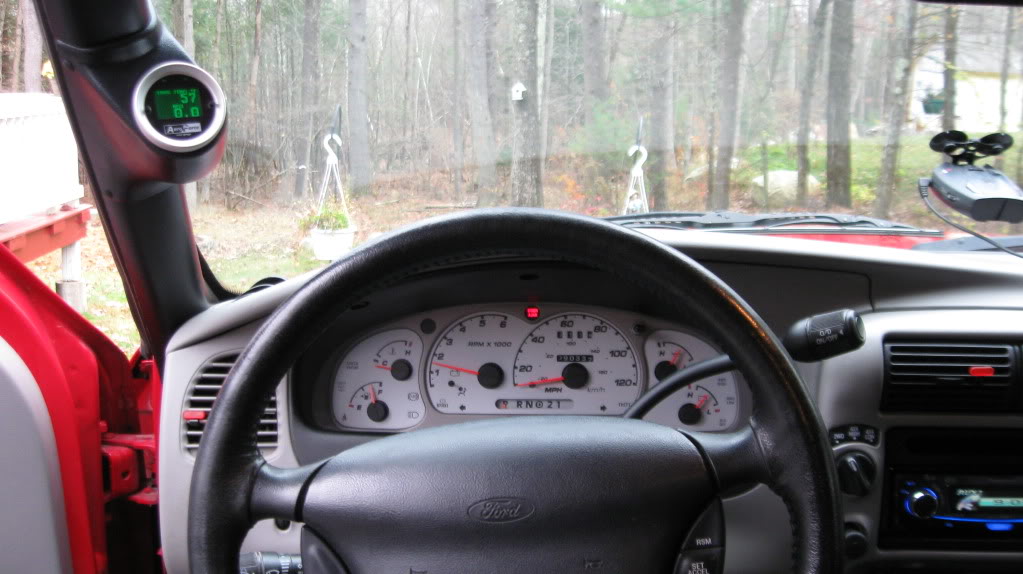

Always wanted a scangauge but never bought one because they're too bulky and I don't like places where i've seen most mounted. Thanks Korey for showing me the Aeroforce, much cleaner installation than the scangauge II's (in my opinion).
Name:  1102091601.jpg
Views: 33
Size:  58.2 KB
Name:  IMG_0708.jpg
Views: 45
Size:  106.5 KB

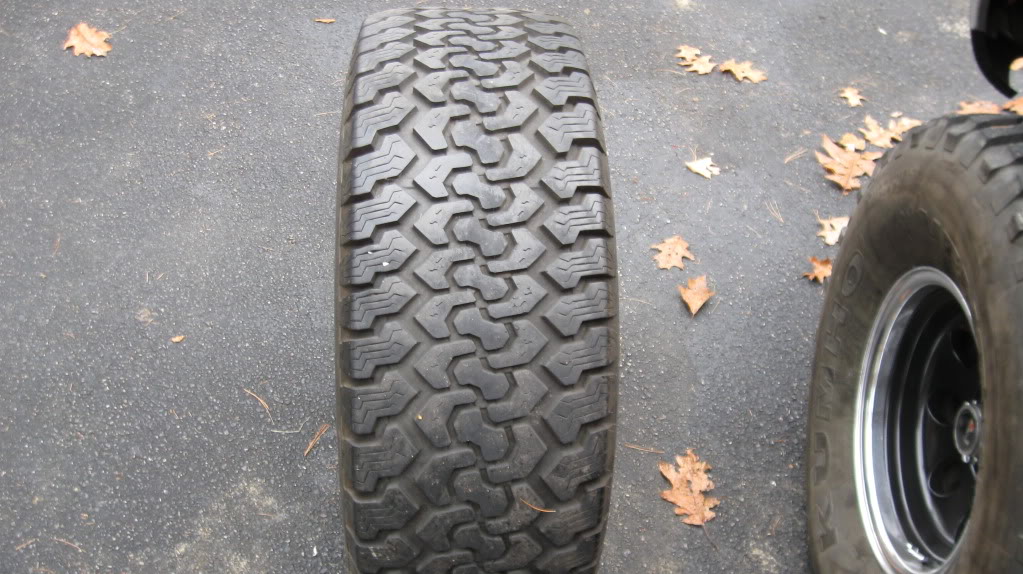

picked up a 33x12.5x15 all terrain for a spare (20 bucks) and still has the "new tire" markings on it...what a steal!
Name:  IMG_0711.jpg
Views: 34
Size:  146.5 KB

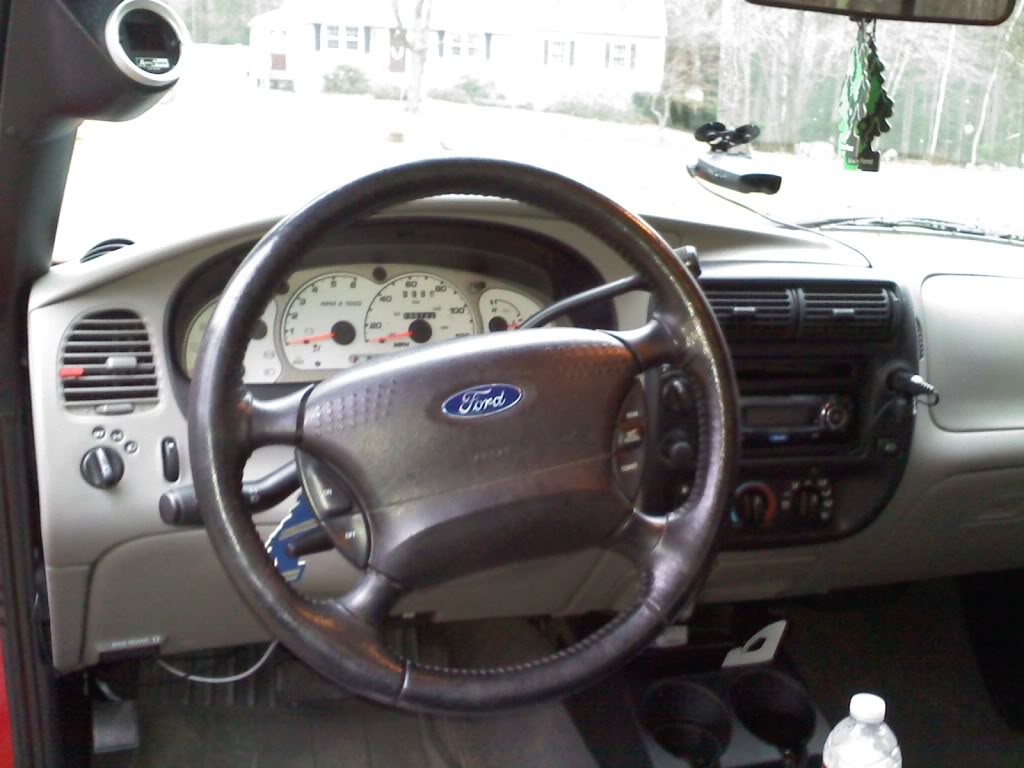

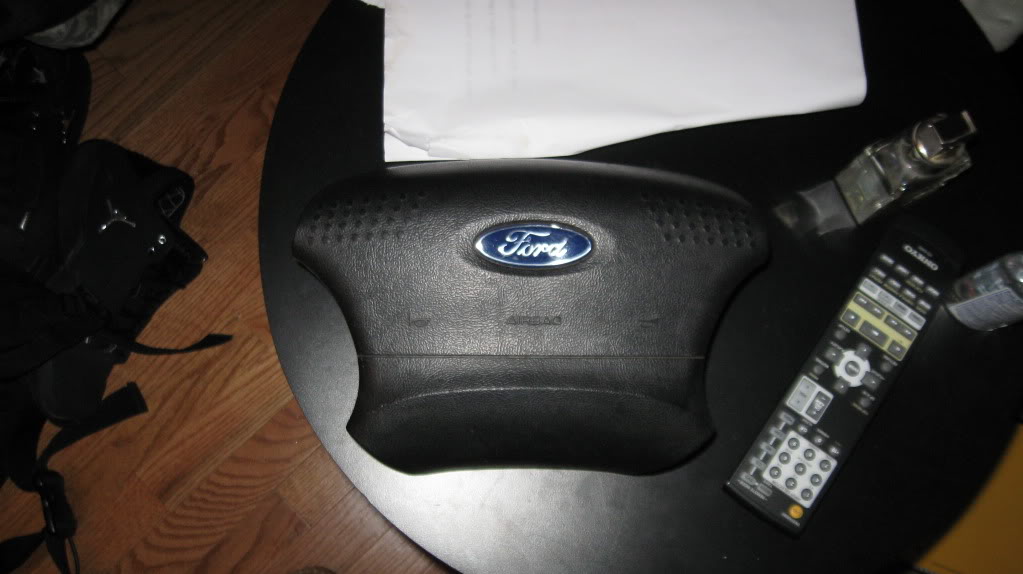

Always liked the look of the 01-03 airbags, yes airbags so i found one on craigslist for 20 bucks
Name:  IMG_0733.jpg
Views: 32
Size:  78.1 KB
Name:  1113091520.jpg
Views: 44
Size:  83.1 KB

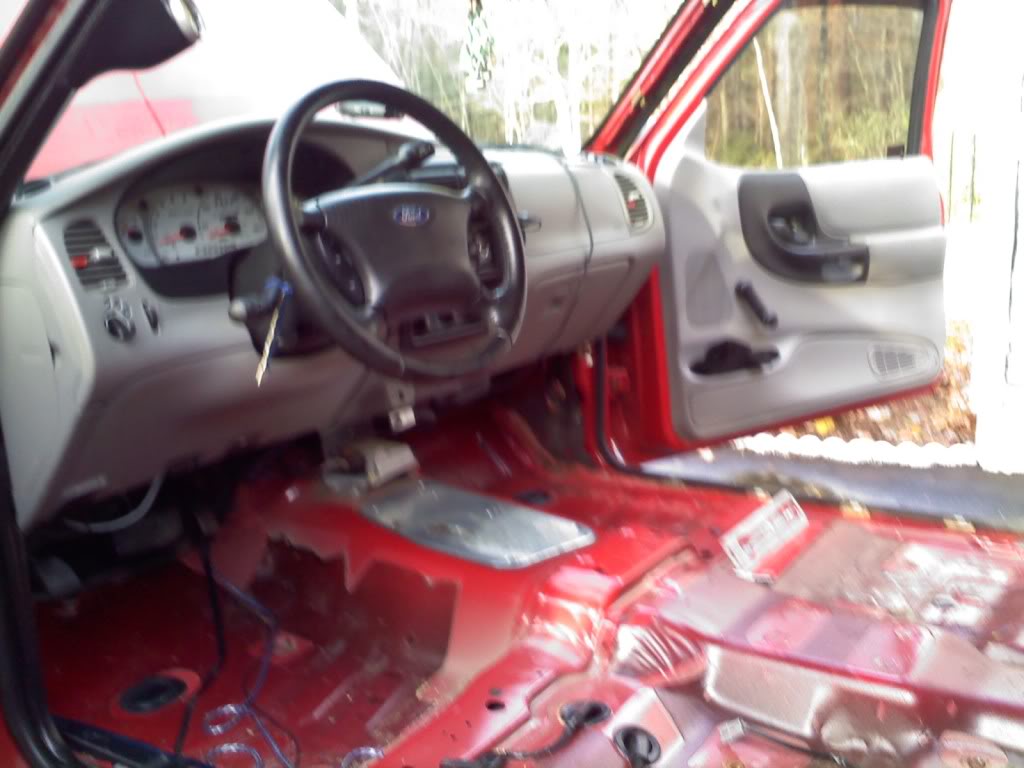

My truck had a water leak somewhere so i was told to water test it. Wtf is water testing? i found out what it meant and required all of the interior to come out but it was well worth it...found out the location of the leak
Name:  1115091411.jpg
Views: 32
Size:  81.5 KB

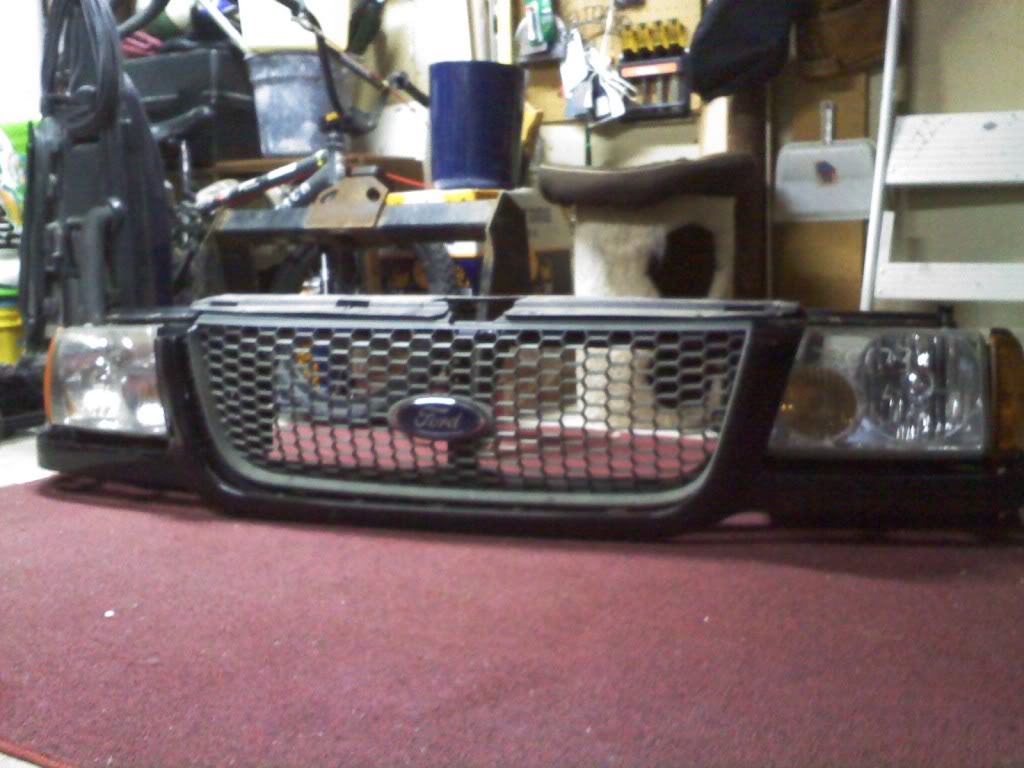

I always loved the look of the 01-03 XLTs. After about a year of contemplating the swap, I started to collect the parts.
Name:  1229091809.jpg
Views: 51
Size:  87.3 KB

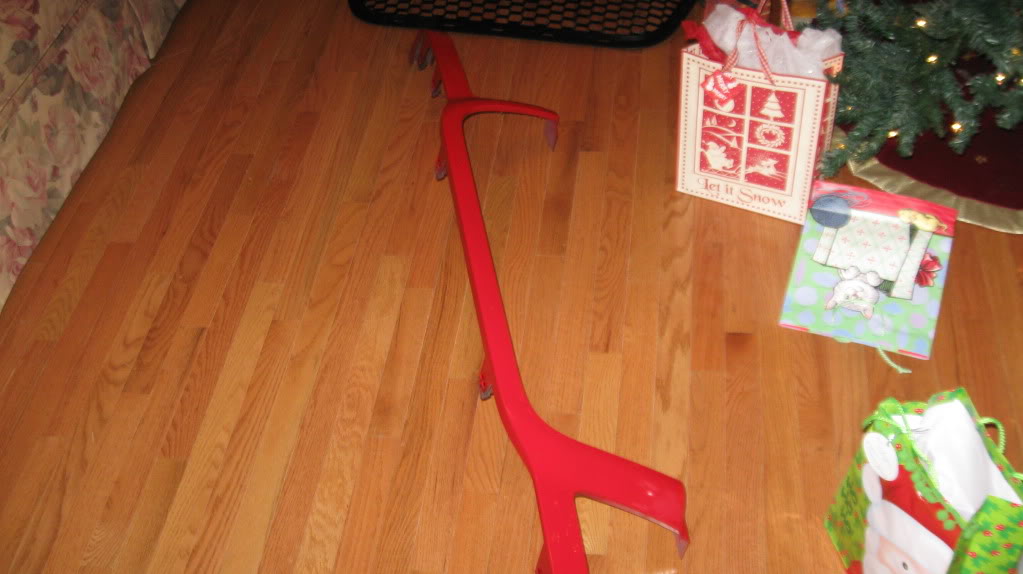

Sanded/prepped the grille shell and sprayed it with vermillion red
Name:  IMG_0014-1.jpg
Views: 32
Size:  88.1 KB

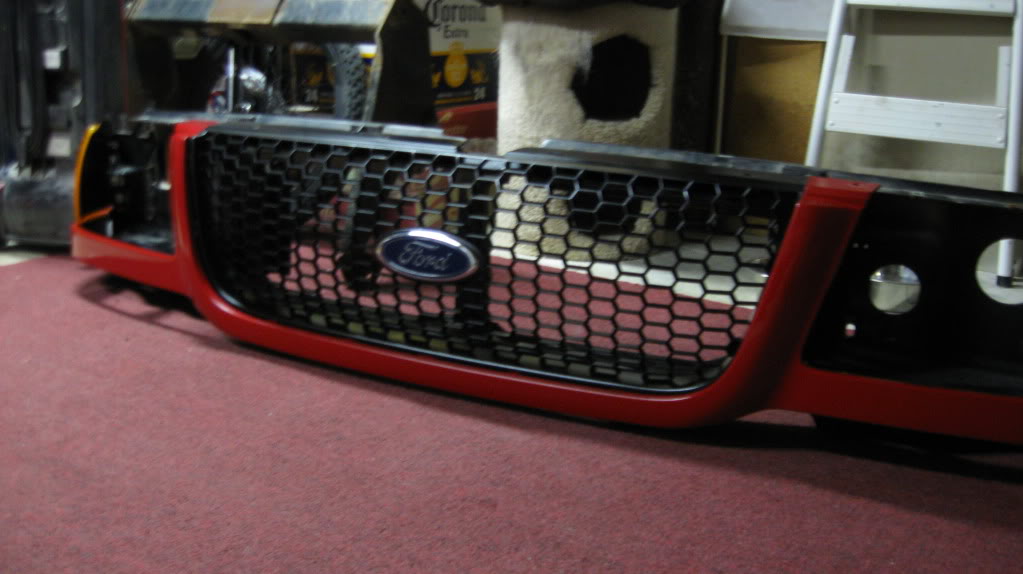

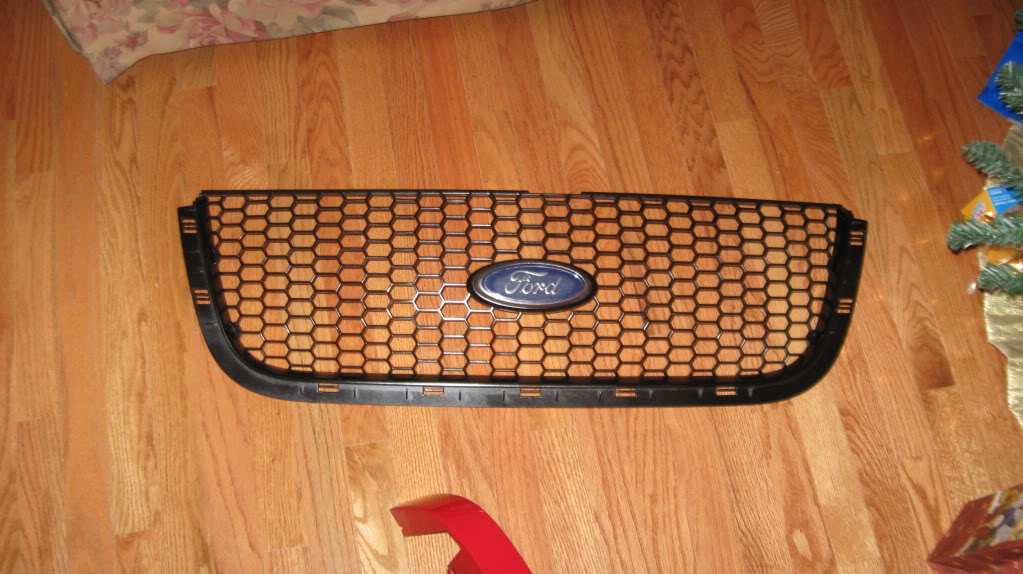

Sprayed the honeycomb black because faded grey looks like ****
Name:  IMG_0015-1.jpg
Views: 42
Size:  129.7 KB
Name:  IMG_0023-1.jpg
Views: 33
Size:  79.9 KB

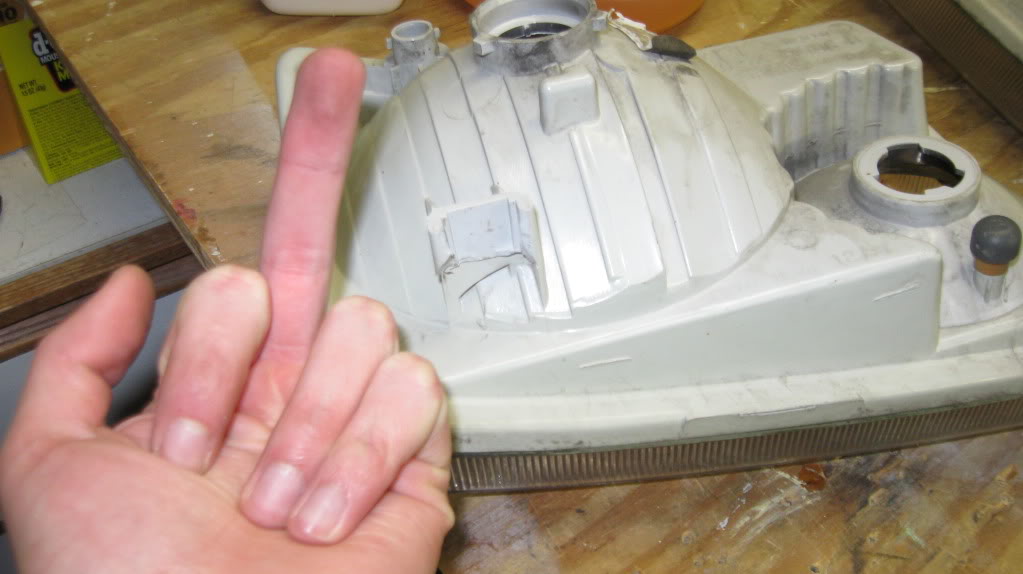

found out the headlights were broken, here is one of them.
Name:  IMG_0012-1.jpg
Views: 33
Size:  73.3 KB

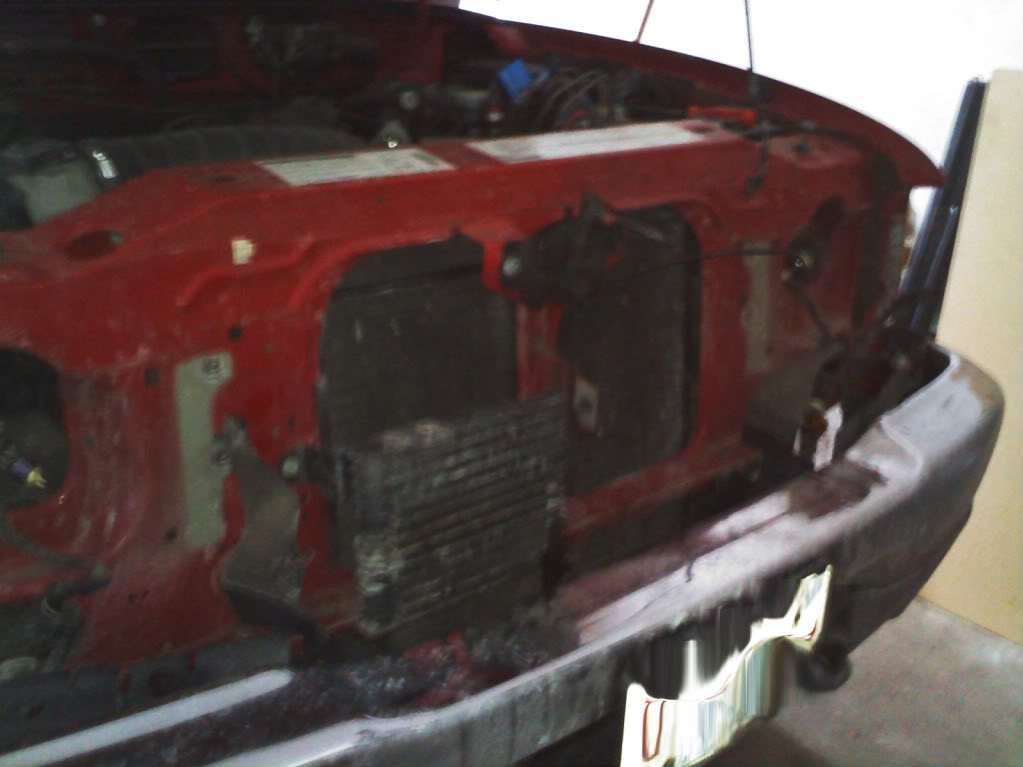

swap has begun!
Name:  0105001431.jpg
Views: 34
Size:  71.5 KB

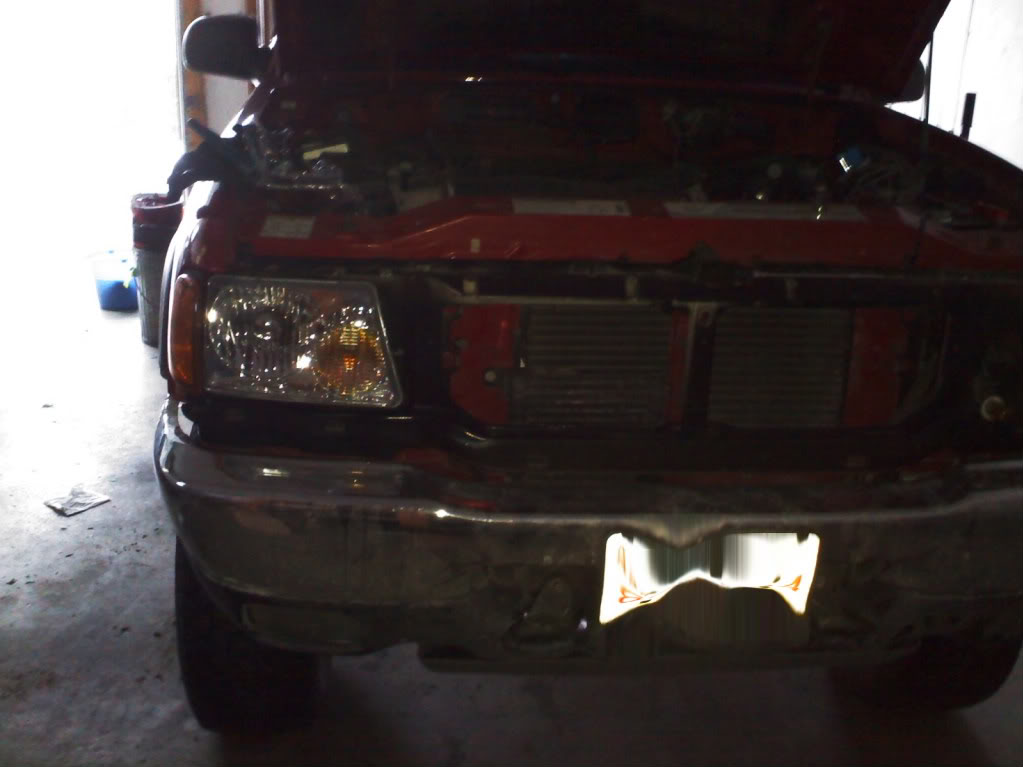

03 header panel is on
Name:  0105001545.jpg
Views: 47
Size:  66.4 KB

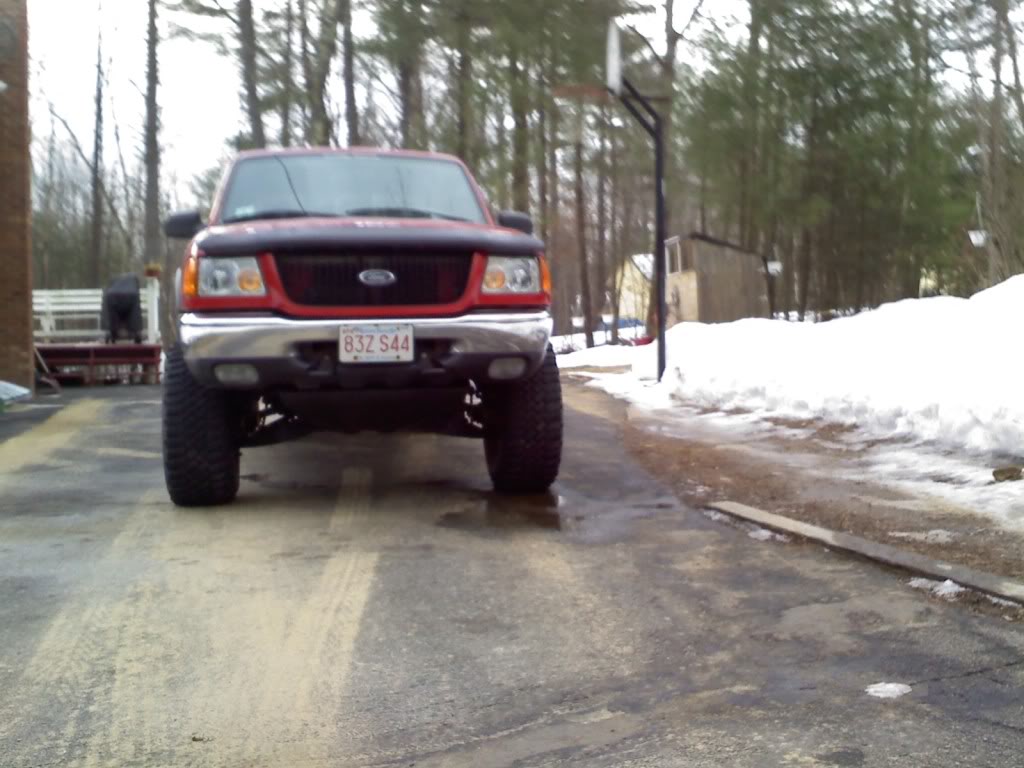

Done! Ran the 99 hood for a while, same as the bumper/valence and fogs.

Name:  0115001507a.jpg
Views: 30
Size:  100.7 KB

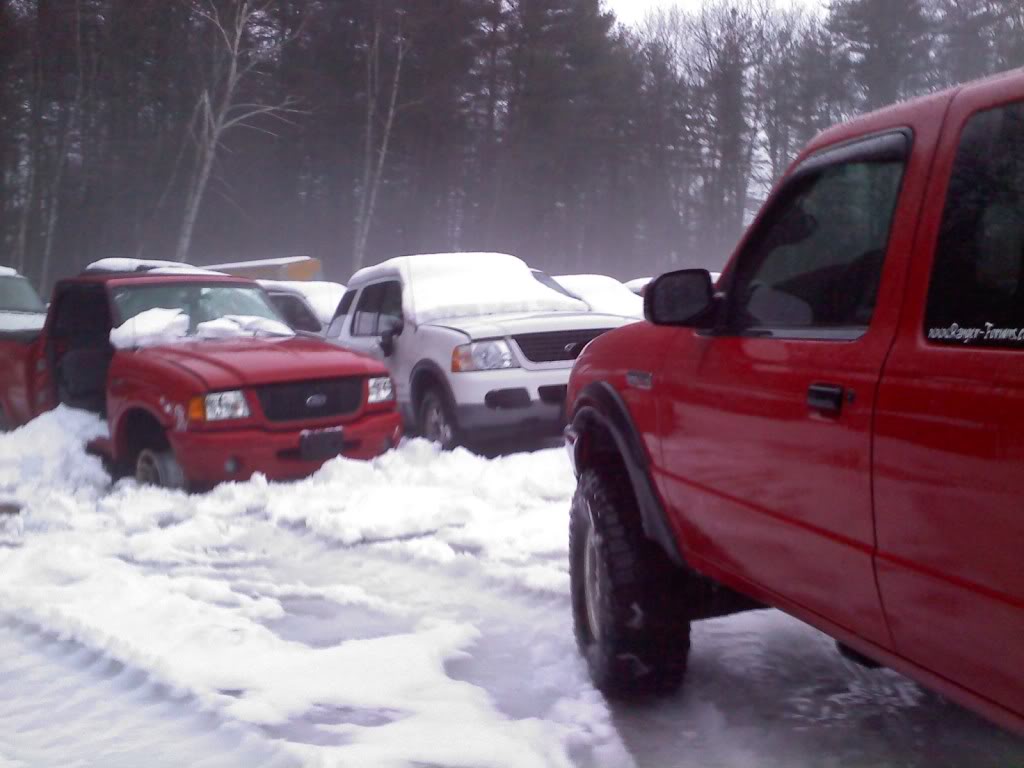

Thanks to Scrambler82 for telling me about this edge! Powerdome donor and even the same color as my truck!
Name:  0125001616.jpg
Views: 31
Size:  76.2 KB

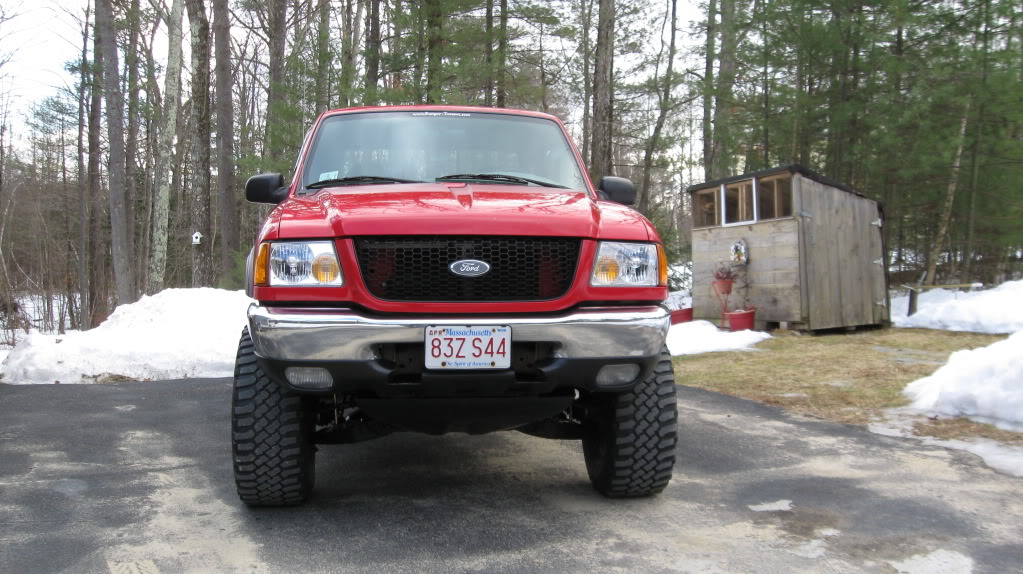

Powerdome on!
Name:  IMG_0040-1.jpg
Views: 33
Size:  162.3 KB

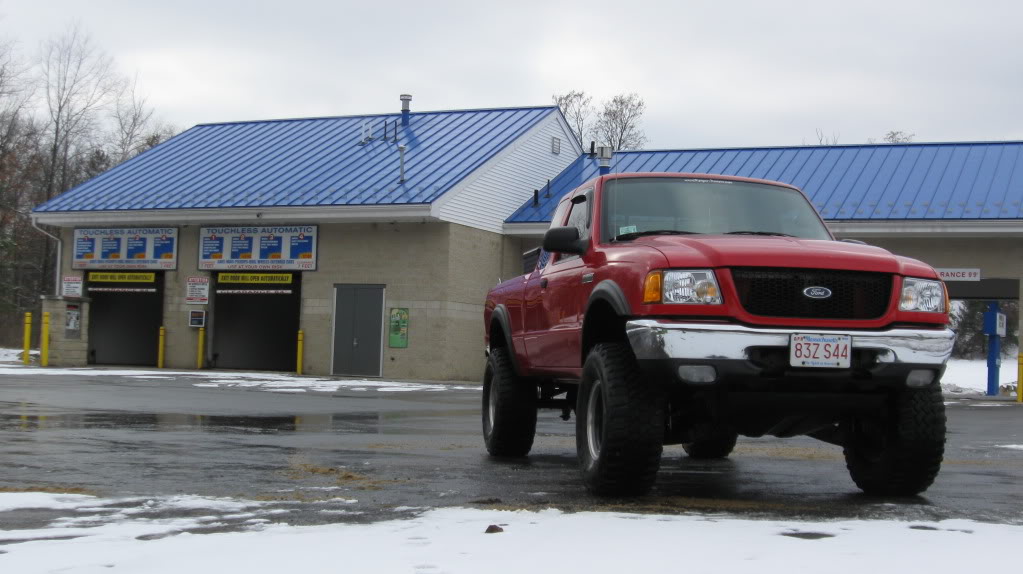

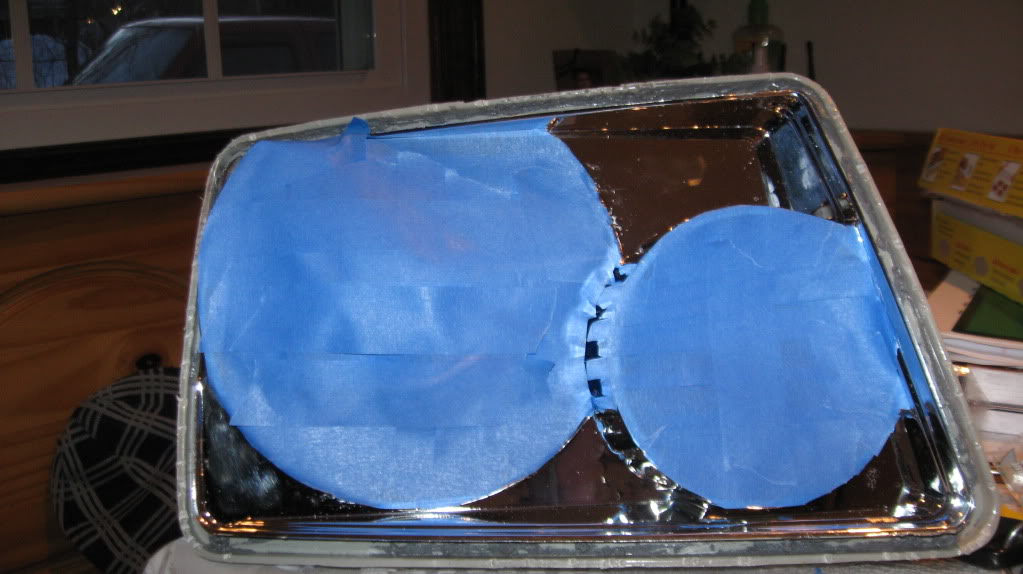

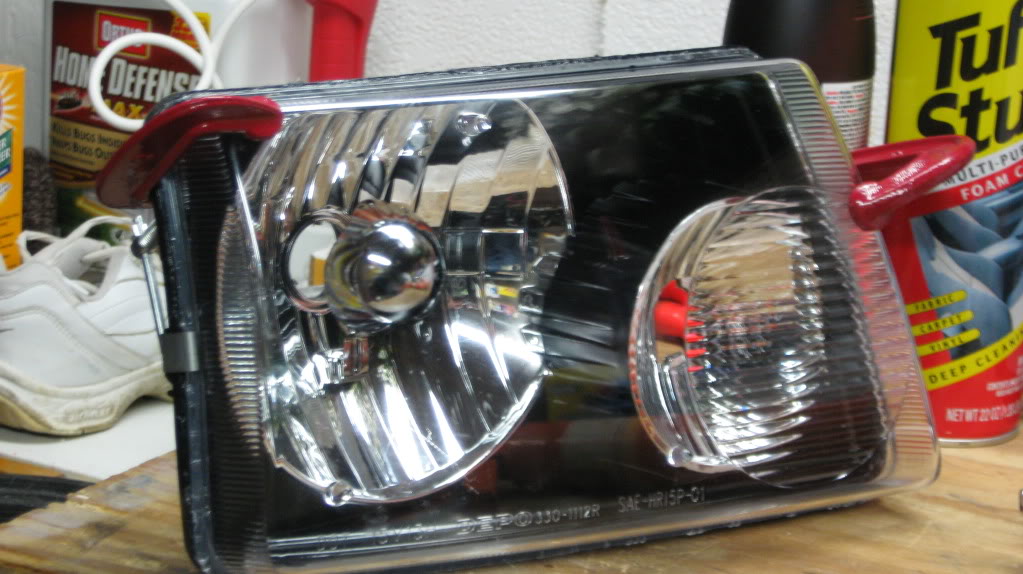

As you can see in this picture on the passenger side headlight, the "Shield" that goes over the headlight bulb FELL OFF (damn certifit headlights) so this only meant one thing had to be done.
Name:  IMG_0059.jpg
Views: 29
Size:  101.0 KB

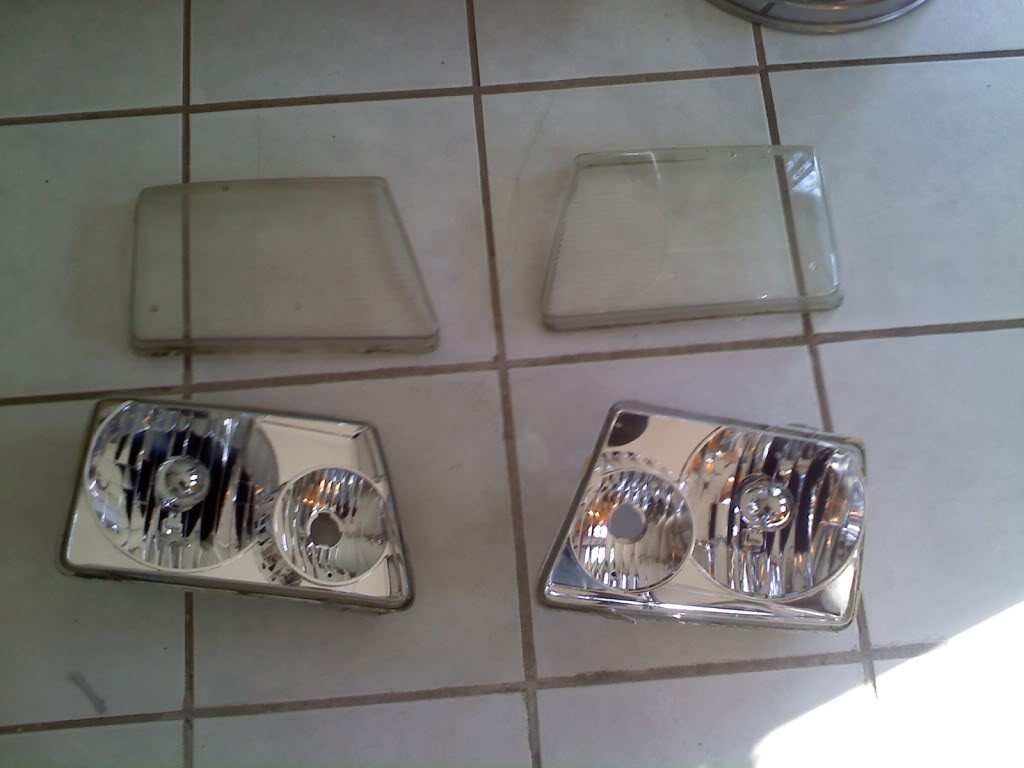

lol wut?
Name:  0204001305.jpg
Views: 34
Size:  61.2 KB
Name:  IMG_0067.jpg
Views: 32
Size:  91.6 KB
Name:  IMG_0070.jpg
Views: 34
Size:  117.2 KB

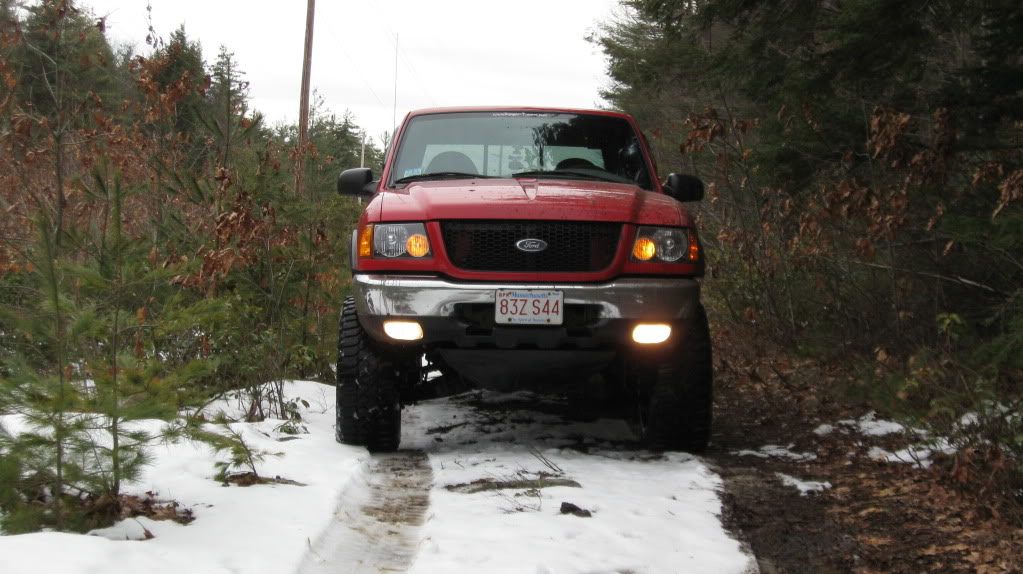

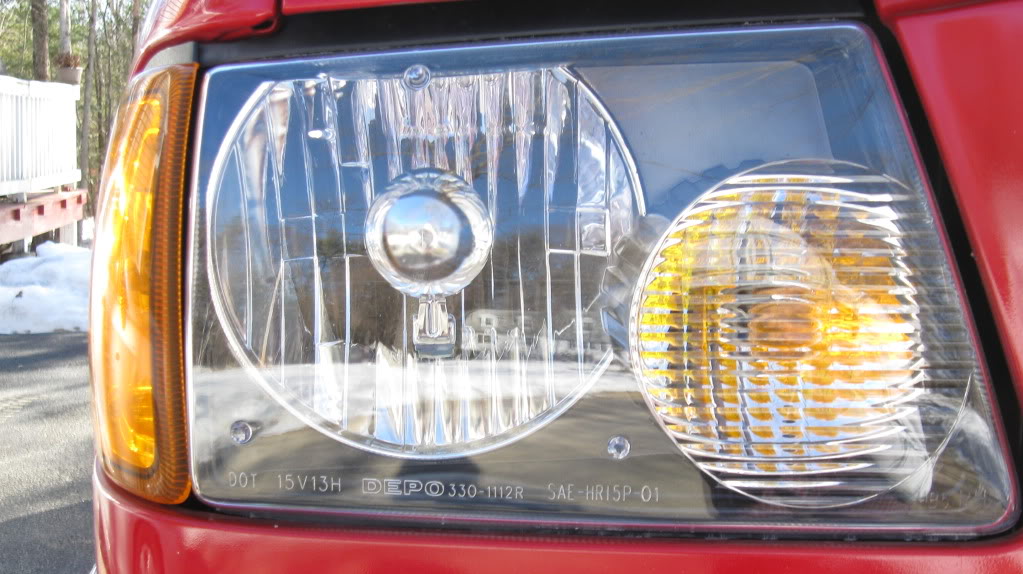

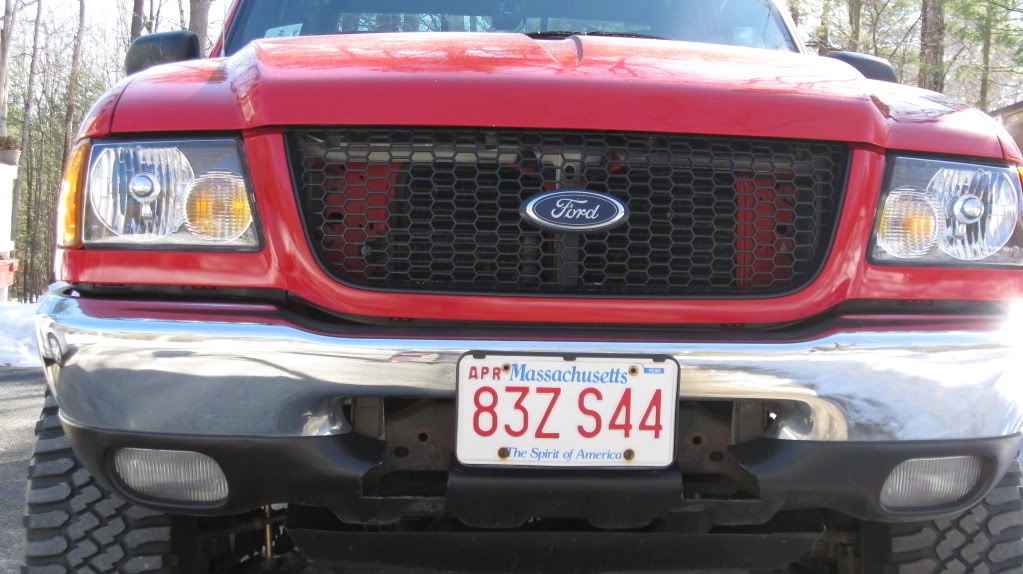

Headlight mod done!
Name:  IMG_0073.jpg
Views: 33
Size:  132.5 KB
Name:  IMG_0072.jpg
Views: 31
Size:  124.1 KB
Name:  IMG_0104.jpg
Views: 31
Size:  126.7 KB

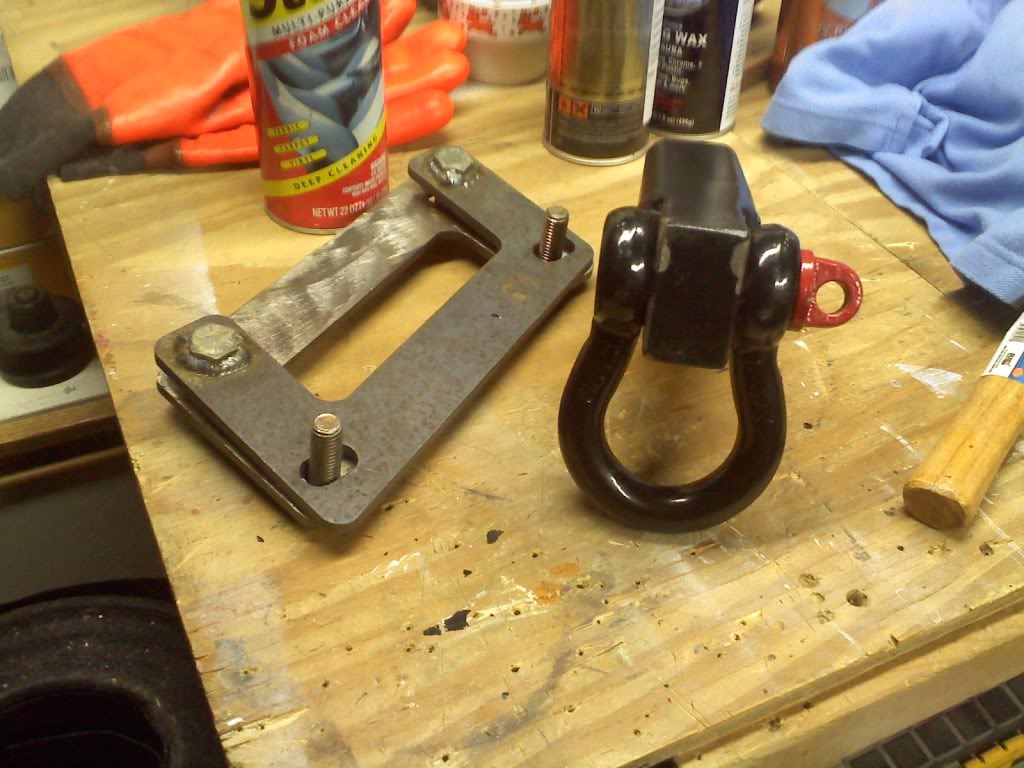

Had plans of a front hitch so i bought another one of the receiver/clevis combo from Trevor. They're made really well and beefy. Again Thanks Trev!
Name:  0213001753.jpg
Views: 30
Size:  110.2 KB
...oh and beefier BL front bumper brackets made by Trevor too

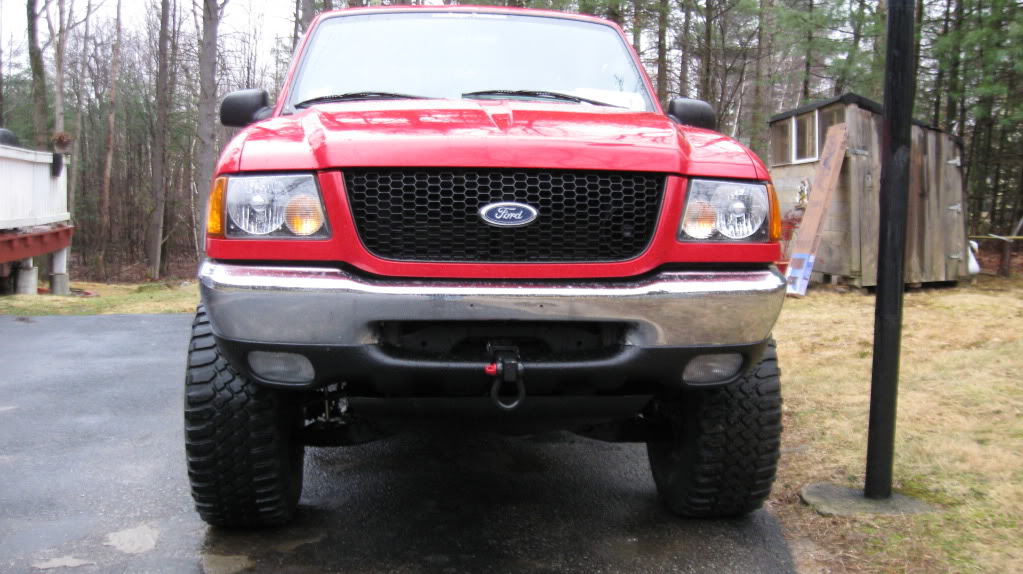

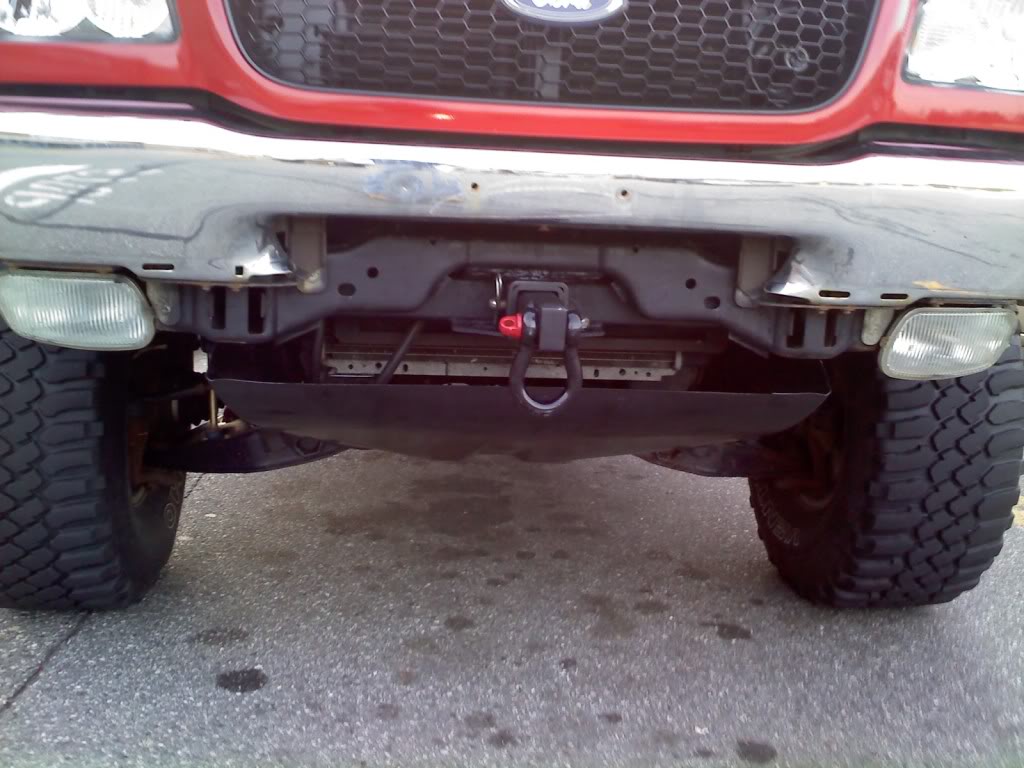

Front Hitch welded on. Thanks Andrew (although you as well as Marcus are banned LOL)
Name:  0320001803.jpg
Views: 31
Size:  107.4 KB
Name:  IMG_0142-1.jpg
Views: 33
Size:  133.5 KB

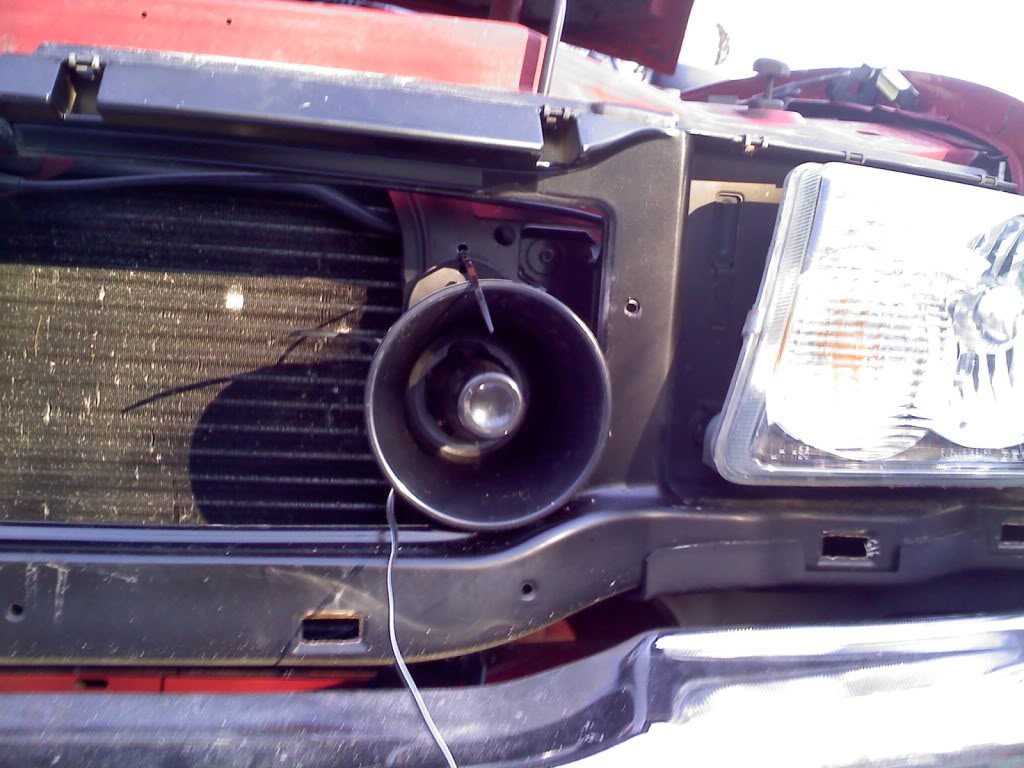

Bought a PA
Name:  0310001557.jpg
Views: 32
Size:  107.2 KB

just for kicks.....the picture that started the LWG thread LMAO
Name:  0330001218.jpg
Views: 31
Size:  88.0 KB

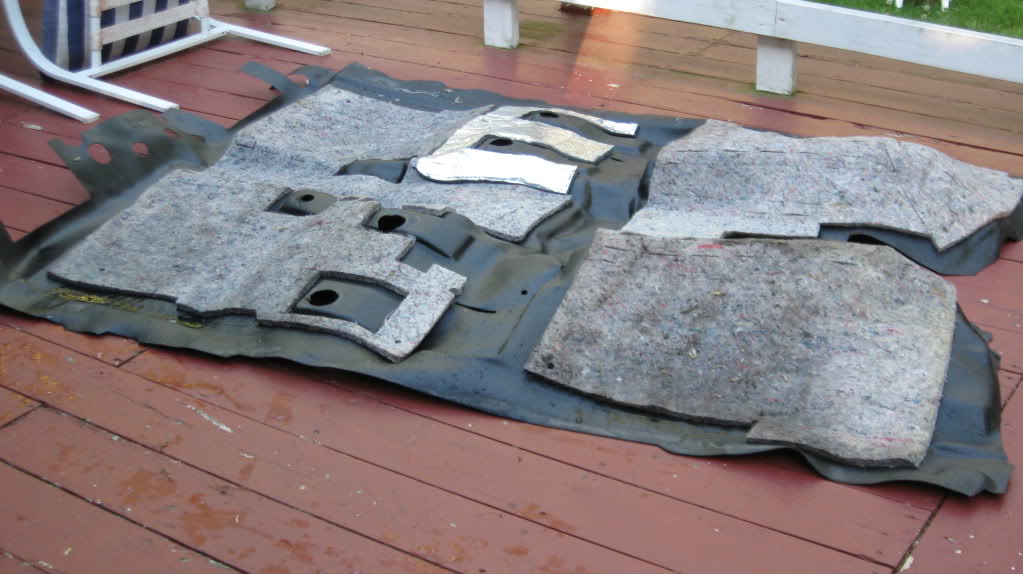

scored a free vinyl floor FTW
Name:  IMG_0305.jpg
Views: 40
Size:  114.6 KB

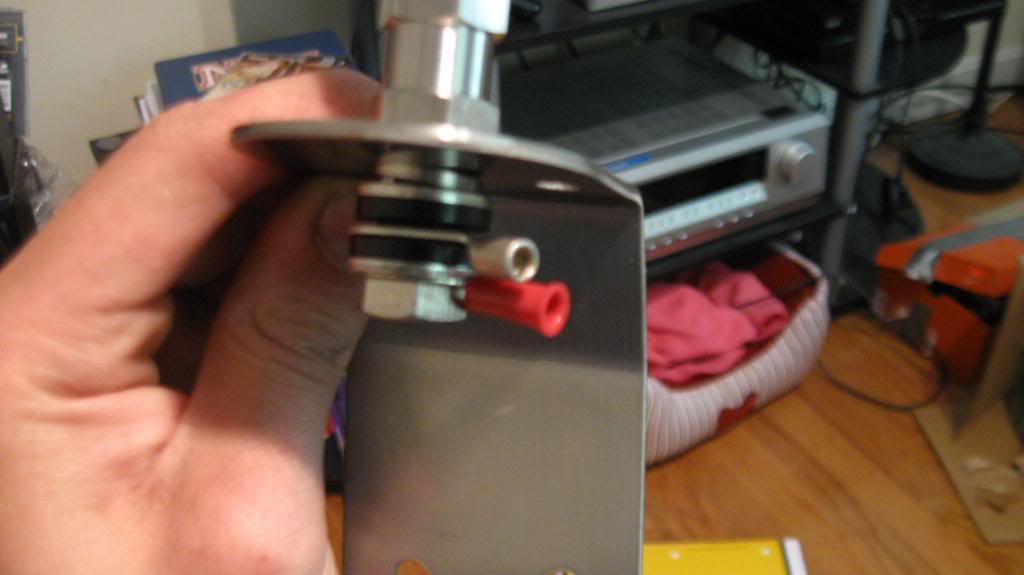

got a sweet box in the mail that made me LOL with this inside.
Name:  IMG_0288.jpg
Views: 29
Size:  47.3 KB
Name:  0503001908.jpg
Views: 30
Size:  81.3 KB

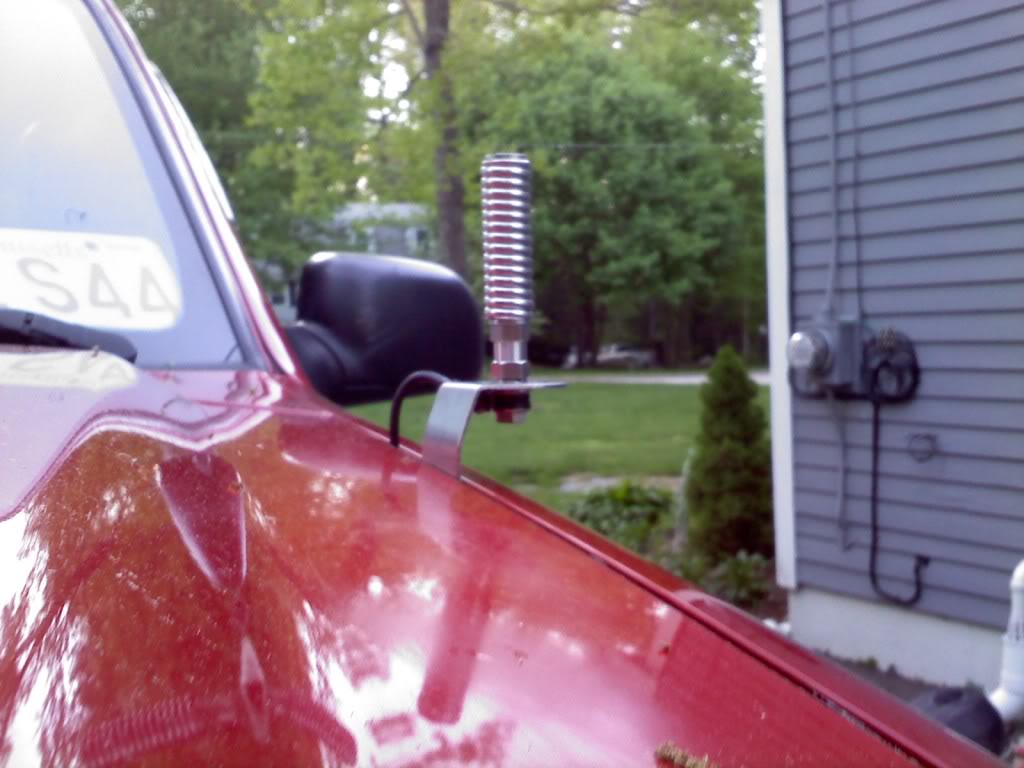

CB antenna fender mount, coax and spring. Thanks Shane!!

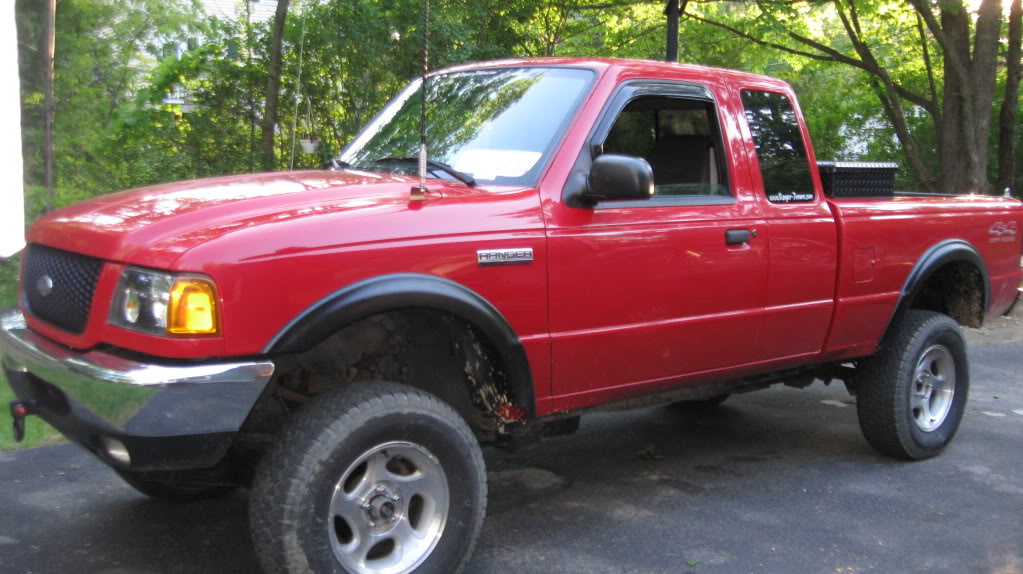

4' firestik antenna mounted
Name:  IMG_0306-1.jpg
Views: 64
Size:  132.5 KB

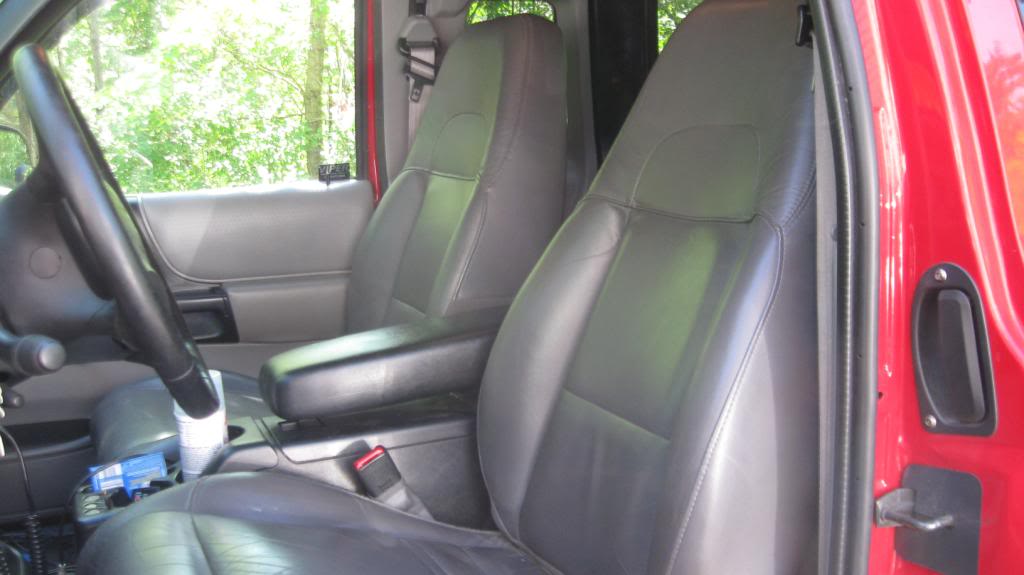

Got a set of leather, powered explorer seats
Name:  IMG_0295.jpg
Views: 35
Size:  66.7 KB

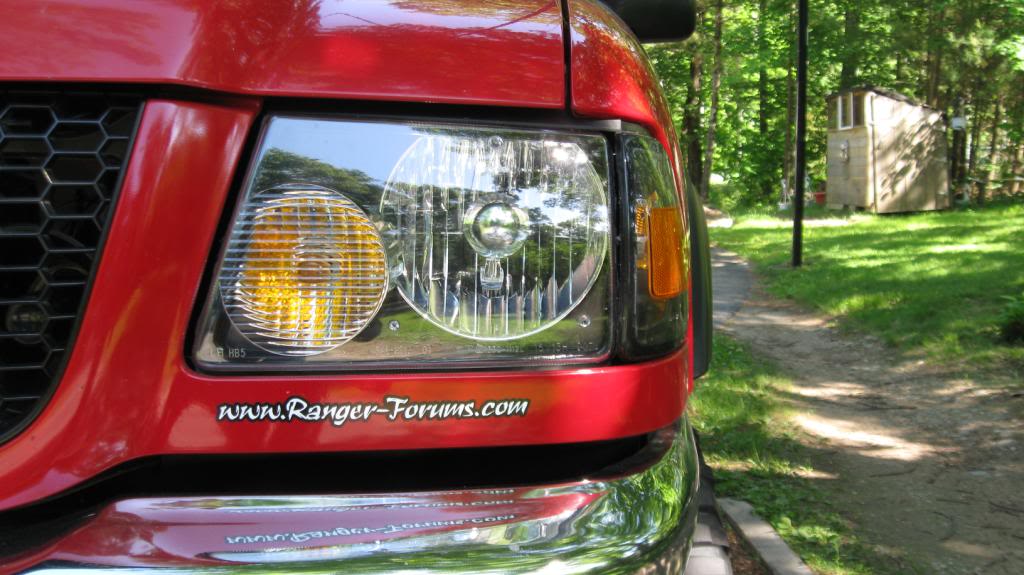

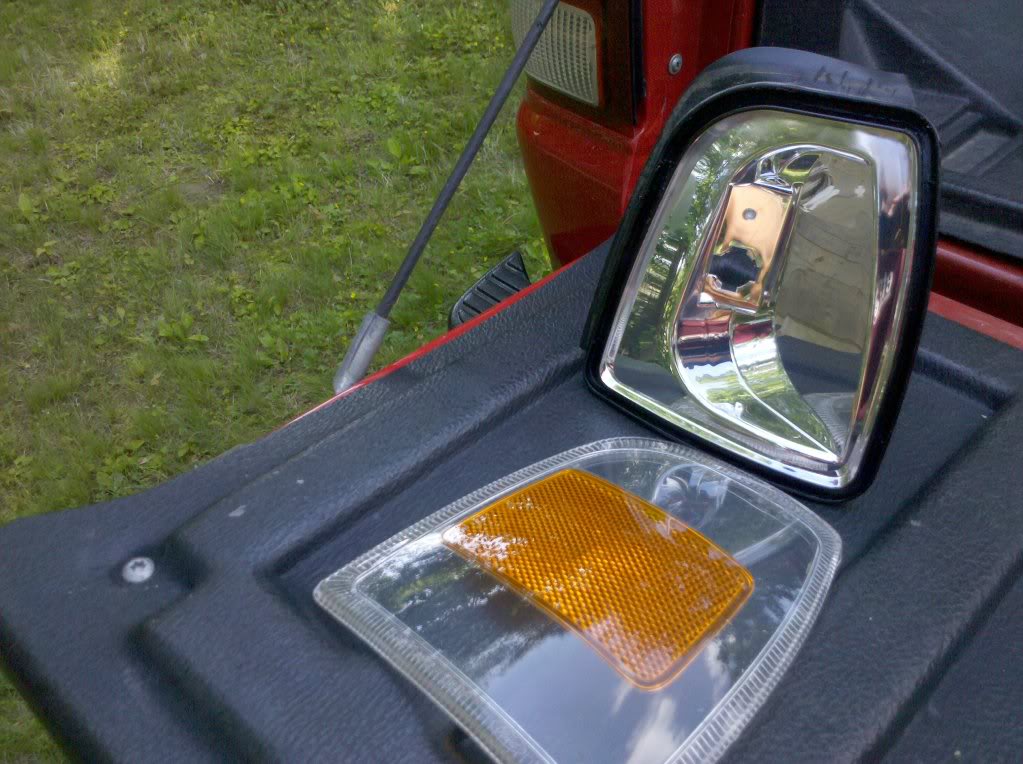

I had to get some 06 corners and mod them to match the headlights haha
Name:  1eeb8299.jpg
Views: 32
Size:  153.4 KB
Name:  IMG_0310-1.jpg
Views: 27
Size:  108.6 KB

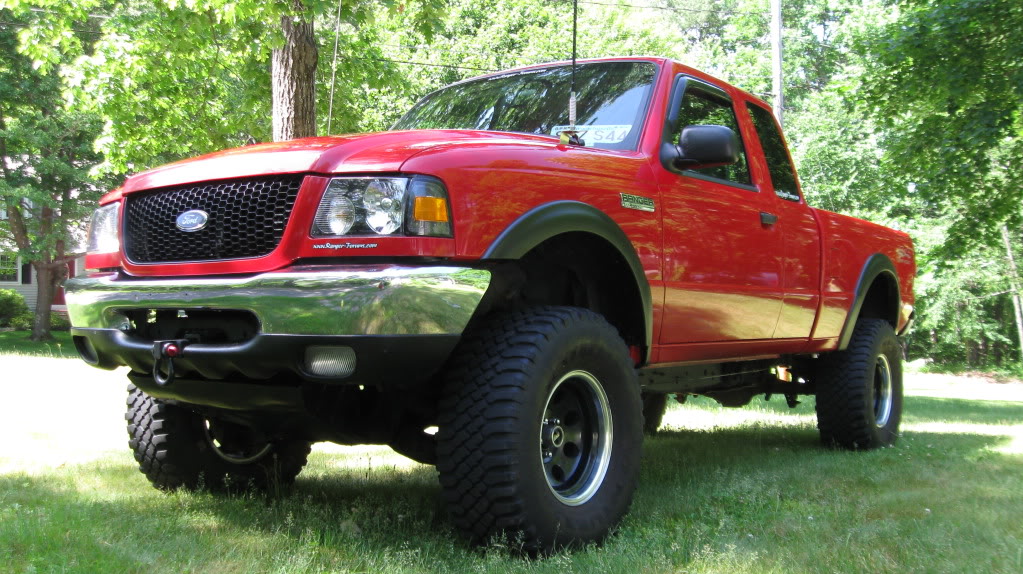

how the truck sat on June 1st
Name:  IMG_0318-1.jpg
Views: 31
Size:  205.4 KB

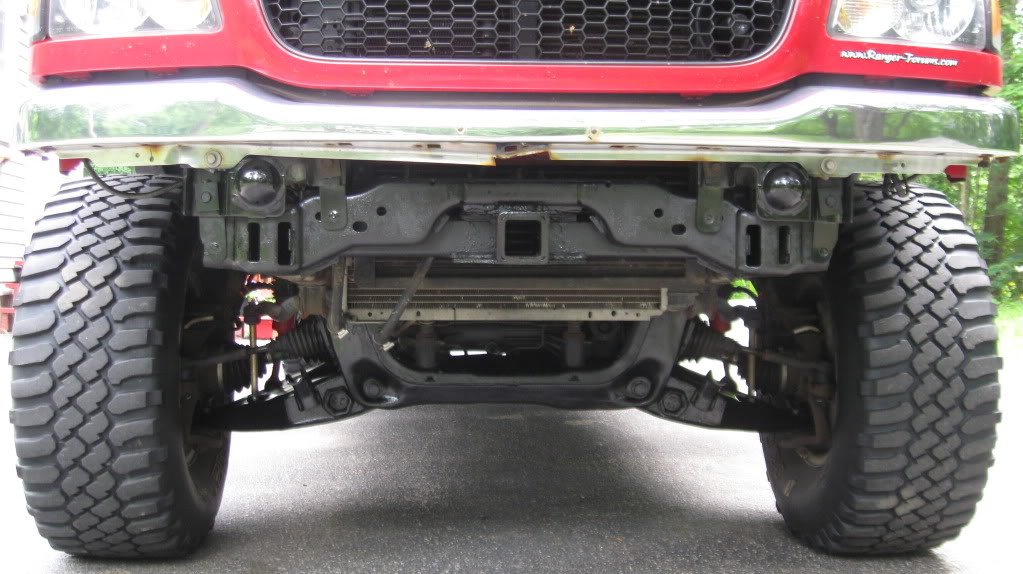

I went to pick up a rear axle from buckgnarly and also came home with this 01-03 bumper...small dent on it but i don't care u can barely notice it. Thanks Carl!
Name:  IMG_0424-1.jpg
Views: 47
Size:  122.8 KB

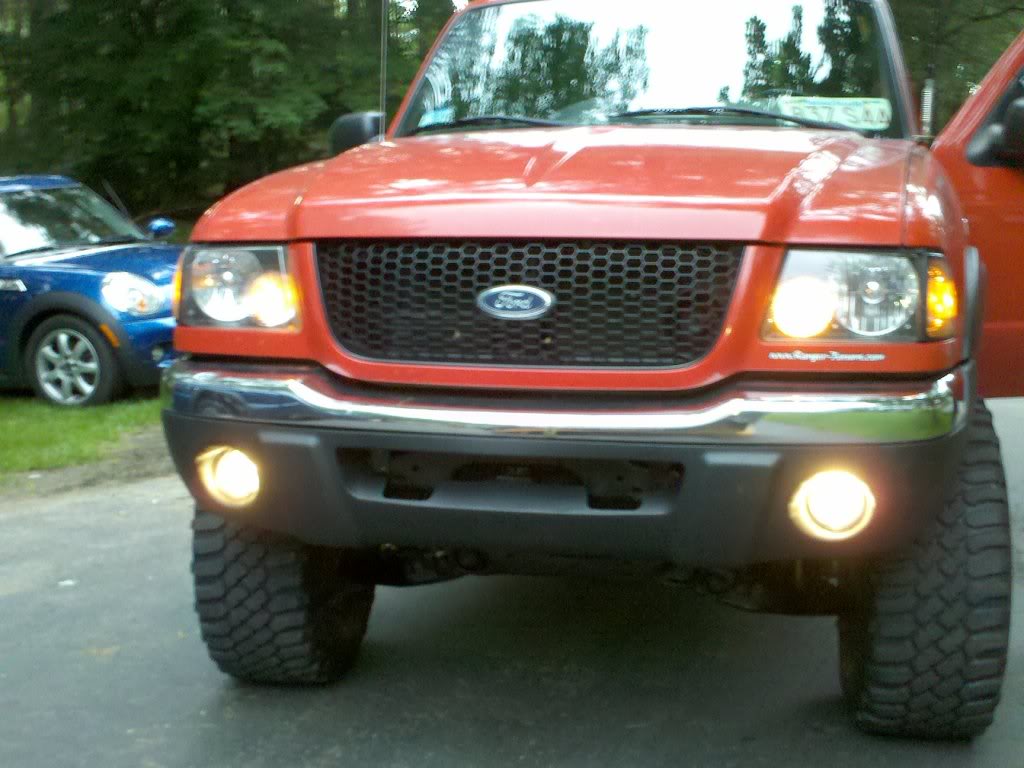

crappy pic, but i sold my 99 bumper/valence/fog combo and the next day i went out to buy a valence and fogs....still had to trim for front hitch
Name:  356bcdf3.jpg
Views: 31
Size:  122.7 KB

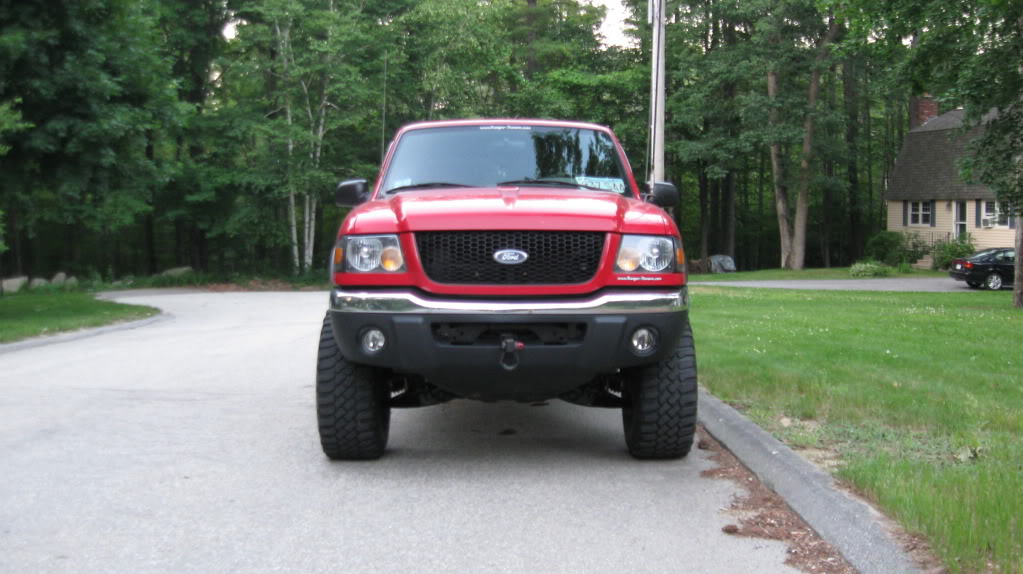

Trimmed for hitch
Name:  IMG_0432.jpg
Views: 28
Size:  115.1 KB

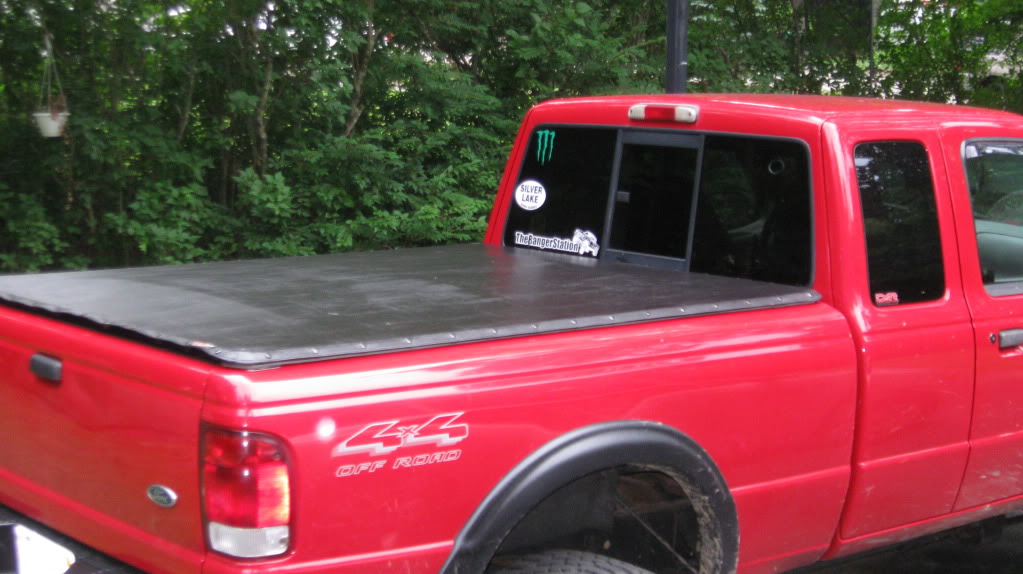

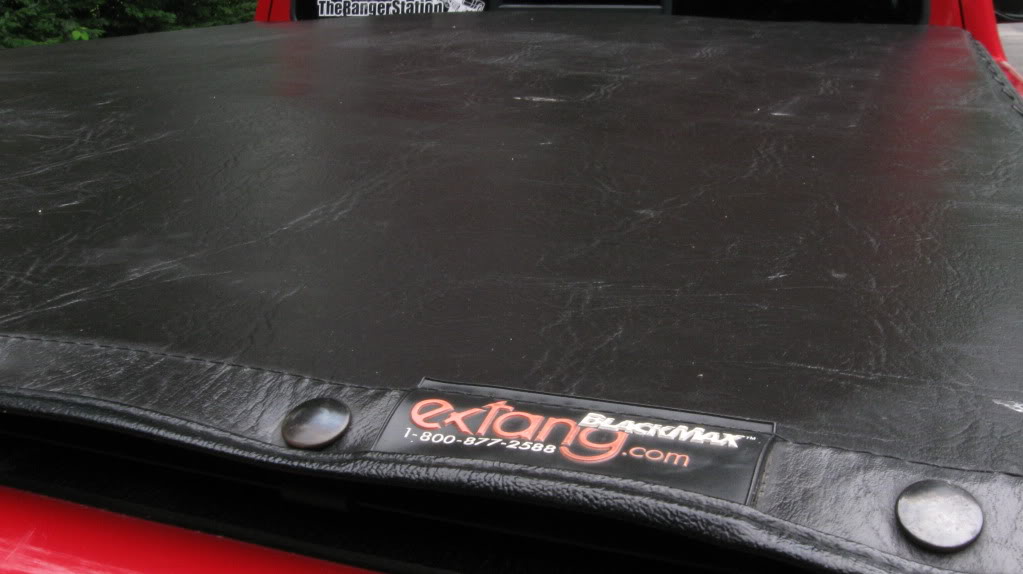

Got rid of the toolbox and picked up this 2 month old extang for a sweet deal, yes its the snap style but its serving its purpose and i love the look
Name:  IMG_0442-1.jpg
Views: 30
Size:  79.2 KB
Name:  IMG_0440-1.jpg
Views: 28
Size:  122.0 KB

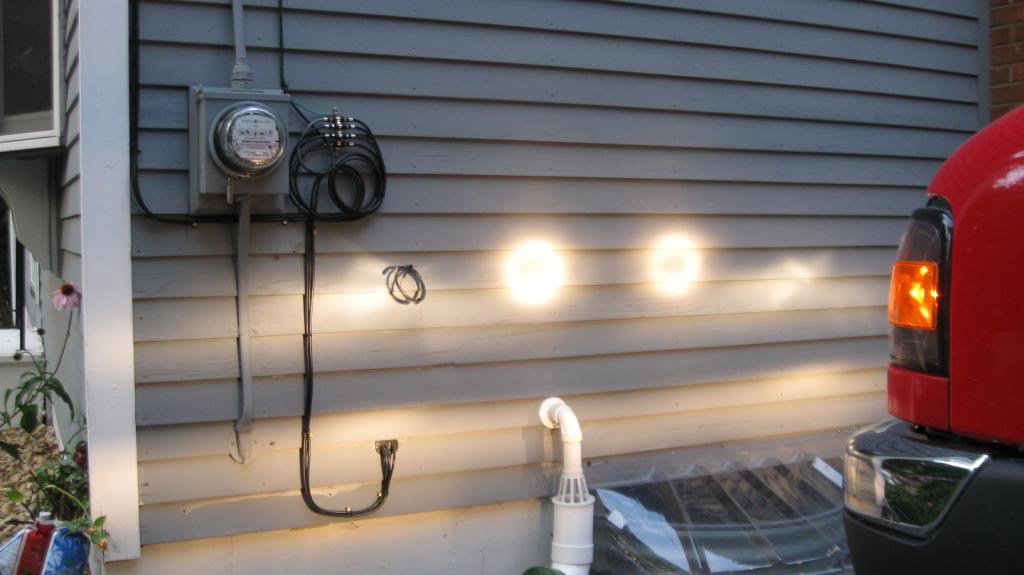

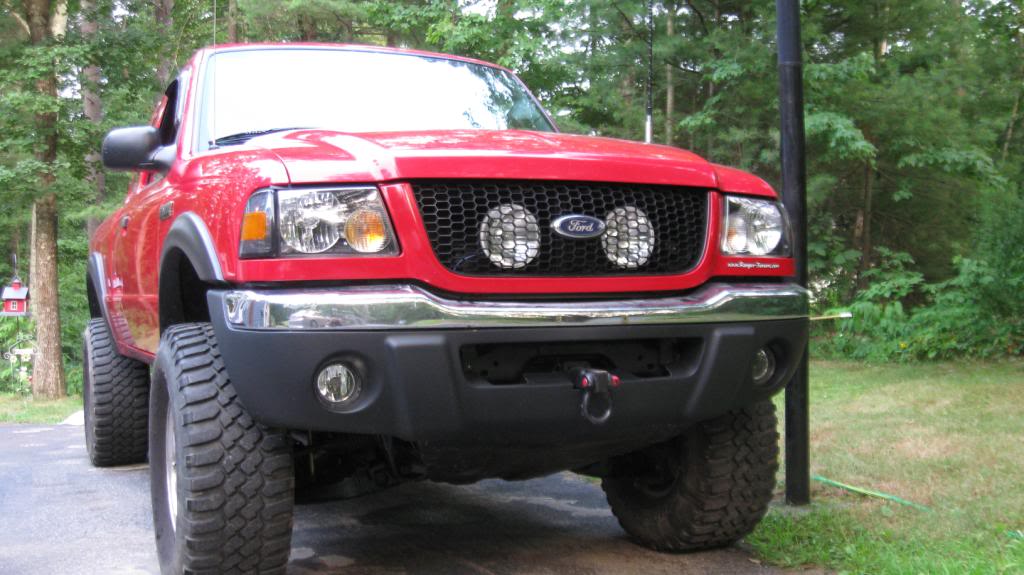

got another set of hellas, mounted them behind grille on the header panel. lewkz gud
Name:  IMG_0452.jpg
Views: 29
Size:  101.7 KB
Name:  IMG_0450.jpg
Views: 28
Size:  61.1 KB

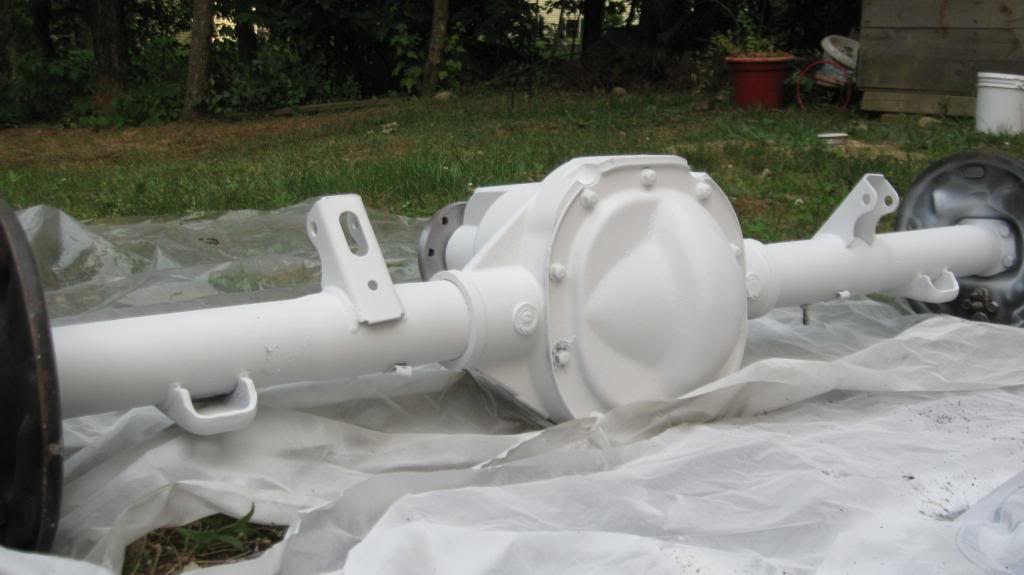

....and currently what im working on....8.8 all primed up but its now painted flat black. Needs outer seals and i need to put in the trac loc (which will soon be rebuilt)
Name:  IMG_0448-1.jpg
Views: 30
Size:  61.0 KB

Thanks to Justin, Korey, Shane, Trevor, Zach (Beard and Stone) and anyone else i may have missed who has helped me since I joined R/F and to Rick for keeping the site running smooth as it always has.
Also, it has been great meeting the members I have met in person, all great people

...There will be more to come.
