Icon10 5R55E Temp Sending Unit

Is there a port in the 5R55E tranny to install a oil temperature unit?

Rog
Reply With Quote
  #2
Old 04-30-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
yes on the drivers side by the trans range sensor, its an 11mm head on a pipe plug

use teflon tape and dont overtighten it
Reply With Quote
  #3
Old 04-30-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Rogue River, OR.
Posts: 10
Thank you, I appreciate it.
Rog
Reply With Quote
  #4
Old 05-02-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I'd like to see this when its done
Reply With Quote
  #5
Old 05-03-2010
swickwake's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
sending unit on my 5r55e
Attached Thumbnails
5R55E Temp Sending Unit-imag0192.jpg
Reply With Quote
  #6
Old 05-03-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
hmmm i wounder if the 5r44e has the same plug ive been wanting to install a trans temp gauge?
Reply With Quote
  #7
Old 05-03-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
it does
Reply With Quote
  #8
Old 05-03-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I"ve been wanting to see a trans temp guage on a 5r55e trans. How do you have your guage mounted?
Reply With Quote
  #9
Old 05-06-2010
swickwake's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373

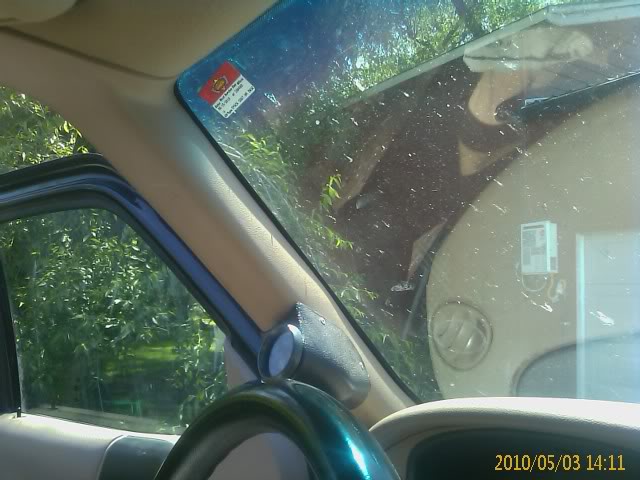

Name:  IMAGE_236.jpg
Views: 51
Size:  53.9 KB

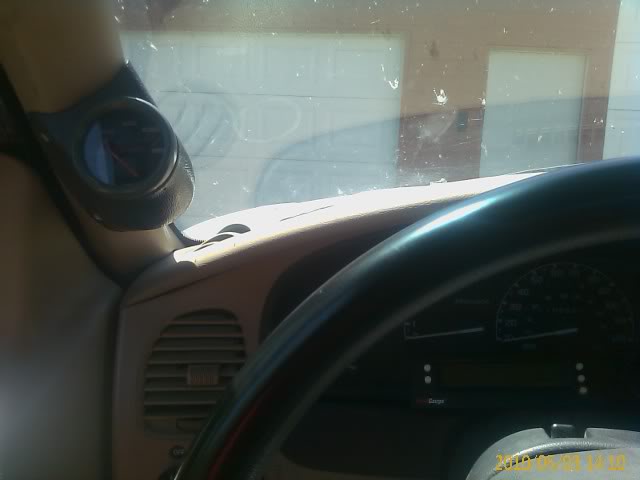

Name:  IMAGE_234.jpg
Views: 51
Size:  23.4 KB
Reply With Quote
  #10
Old 05-06-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
So to do this I would need?

This is the guage I'm gonna get
Auto Meter 4949 - Auto Meter Ultra-Lite II Analog Gauges - Overview - SummitRacing.com

What do i need for a sending unit?
Reply With Quote
  #11
Old 05-06-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Rogue River, OR.
Posts: 10
Icon10

Quote:
Originally Posted by Ford04Ranger4.0 View Post
So to do this I would need?

This is the guage I'm gonna get
Auto Meter 4949 - Auto Meter Ultra-Lite II Analog Gauges - Overview - SummitRacing.com

What do i need for a sending unit?
I used a "ProSport" gauge and if I recall correctly it came with a sensor for the tranny. What I like about ProSport is that it is black face. The dial is black until you power it up jmho

Google ProSport and take a look. I'm running several of their gauges.
Rog
Reply With Quote
  #12
Old 05-06-2010
Member

Join Date: Apr 2010
Location: wenatche, wa
Posts: 14
would someone mind posting up a how to on this. id be very interested in puttin one of these in but dont know where to start
Reply With Quote
  #13
Old 05-06-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Rogue River, OR.
Posts: 10
How to what? Install a gauge, the pod, the sensor? Please clarify.

Rog
Reply With Quote
  #14
Old 05-06-2010
Member

Join Date: Apr 2010
Location: wenatche, wa
Posts: 14
all of it, the sensor in the tranny, where to run the wires, how to install the gauge housing, how to make it all work. i want a tranny temp gauge but dont want to pay some shop to do it so i want to know if this is something i can do on my own.

thanks
Reply With Quote
  #15
Old 05-06-2010
Crunchy's Avatar
Member

Join Date: Oct 2007
Location: Hull, Quebec
Posts: 486
If you can't figure it out from my thread...pay someone to do it.

https://www.ranger-forums.com/f15/tr...stalled-71183/
Reply With Quote
  #16
Old 05-06-2010
Southern Dreamz's Avatar
Member

Join Date: Jun 2008
Location: Jupiter, Florida
Posts: 152
will this work on any ranger tranny? How do you figure what model tranny is there? mine is a 05 4.0L 4x4 Auto. guess I'll have to climb under there and see if I have the port.
Reply With Quote
  #17
Old 05-06-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Think this will be my next mod, I like the ultra series II for guages cause it changes color day to night. So any temp reading sending unit will fit in the plug hole, im guessing?
Reply With Quote
  #18
Old 05-06-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
Quote:
Originally Posted by Southern Dreamz View Post
will this work on any ranger tranny? How do you figure what model tranny is there? mine is a 05 4.0L 4x4 Auto. guess I'll have to climb under there and see if I have the port.
Ford Ranger Automatic Transmission Identification

your truck has a 5R55E
Reply With Quote
  #19
Old 05-06-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Rogue River, OR.
Posts: 10
Icon10

Follow Crunchy"s outline and if you want to add a Pod order one on line and do so.
Good luck

Rog
Reply With Quote
  #20
Old 05-07-2010
Southern Dreamz's Avatar
Member

Join Date: Jun 2008
Location: Jupiter, Florida
Posts: 152
Quote:
Originally Posted by silverfox View Post
Awesome!! Thanks!
Reply With Quote
  #21
Old 05-08-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Somebody should do a step by step on this mod and put it in the how to...
