  #51
Old 03-09-2008
04 EDGE
Unregistered User

Posts: n/a
depends brian on weather i am homeless or not next month
Reply With Quote
  #52
Old 03-09-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
i really don't think she would kick you out, and if she does, you can stay at my apt or something.
Reply With Quote
  #53
Old 03-09-2008
deathbypsi's Avatar
Member

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Dam,sorry about your possible problem Mark! Hope it works out for you....you know my stance!!

On the up side thing of all the work that could get done on your truck Dan if dad moved in with you!
Reply With Quote
  #54
Old 03-10-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by 5speedin2.3 View Post
lol yeah, i plan to be running 35's by the middle of summer, i can't wait.

oh and the d30 uses the single piston calipers, and the front of my truck has dual piston calipers right now, im sure thats going to suck a little.

oh well it will be worth it.
not realy,mine with 35's stopped very nicely,i was impressed with the way the jeep brakes performed.
Reply With Quote
  #55
Old 03-10-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
done yet?
Reply With Quote
  #56
Old 03-10-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by mazda98 View Post
not realy,mine with 35's stopped very nicely,i was impressed with the way the jeep brakes performed.
i cant wait to see what 3/4 ton brakes can do
Reply With Quote
  #57
Old 03-10-2008
2002FX4's Avatar
Member

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Quote:
Originally Posted by 5speedin2.3 View Post
lol yeah, i plan to be running 35's by the middle of summer, i can't wait.

oh and the d30 uses the single piston calipers, and the front of my truck has dual piston calipers right now, im sure thats going to suck a little.

oh well it will be worth it.
I have single piston's up front, but coupled with drilled rotors and I can stop pretty damn fast. Just something to look into..
Reply With Quote
  #58
Old 03-10-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by 99ranger4x4 View Post
done yet?
no, the rear axle is done.

i still have to get an axle shaft then im going to start on the d30.
its prob going to be the middle of spring before i even start, unless i fall into some money.
Reply With Quote
  #59
Old 03-10-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by mazda98 View Post
not realy,mine with 35's stopped very nicely,i was impressed with the way the jeep brakes performed.
thats good to hear.

the guy gave me rotors and everything with the axles, both sets of rotors look fairly new, same with the pads and calipers.
Reply With Quote
  #60
Old 03-10-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by deathbypsi View Post
On the up side thing of all the work that could get done on your truck Dan if dad moved in with you!
lol, to bad im not even aloud to work on the inside of my truck in the parking lot.

i still do, but im sure the manager would ***** at me if he seen it.
Reply With Quote
  #61
Old 03-11-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12

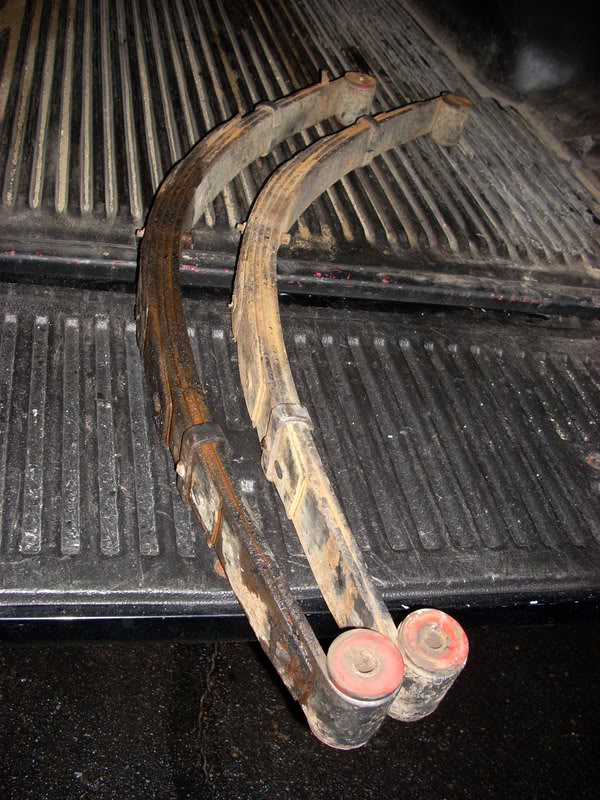

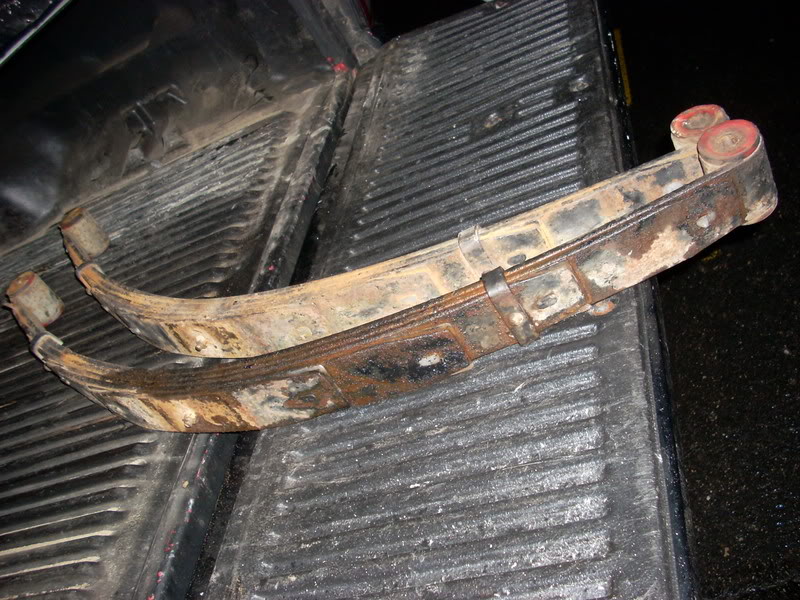

picked up the leafs tonight from the same person i got the axles from. (thanks scott)

i was told they are 4-4.5" lift leafs.

Name:  DSCN0566.jpg
Views: 21
Size:  156.2 KB
Name:  DSCN0567.jpg
Views: 20
Size:  160.1 KB
Reply With Quote
  #62
Old 03-11-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
now all i have to get an a tj axle shaft, ubolts, shackles and a few other odd n ends.
Reply With Quote
  #63
Old 03-12-2008
Member

Join Date: Jun 2005
Posts: 148
Lookin' good. I assume you're going to leave the axles spring under?
Reply With Quote
  #64
Old 03-12-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
The YJ leafs might not be upto the job for holding a ranger. I know Rockranger from EF had to make a hybrid pack out of yj and ranger leafs for his truck.
Reply With Quote
  #65
Old 03-12-2008
04 EDGE
Unregistered User

Posts: n/a
these are not stock YJ springs and look very strong. if they sag then i'll address that when the time comes.

i dought these will have any problems holding the front of his truck up.
Reply With Quote
  #66
Old 03-12-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by redranger4.0 View Post
The YJ leafs might not be upto the job for holding a ranger. I know Rockranger from EF had to make a hybrid pack out of yj and ranger leafs for his truck.
the leafs are 4.5" RE leafs, i think they should be fine, my truck only has the little 2.5L, i don't see the front being much heavier then the front a 4.0 jeep.


seeing as no one wants to answer questions i ask in pm's ill just ask here.

what is the advantage of having the shackles in the rear on the front axle, ive asked a few people that have done a sas and they never respond, how rude huh?
Reply With Quote
  #67
Old 03-12-2008
Member

Join Date: Jun 2005
Posts: 148
Quote:
Originally Posted by 5speedin2.3 View Post
what is the advantage of having the shackles in the rear on the front axle....
Better ride quality and better approach angle.
Reply With Quote
  #68
Old 03-12-2008
shadyluke's Avatar
Member

Join Date: Mar 2005
Location: West Grove, PA
Posts: 2,077
Quote:
Originally Posted by 5speedin2.3 View Post
the leafs are 4.5" RE leafs, i think they should be fine, my truck only has the little 2.5L, i don't see the front being much heavier then the front a 4.0 jeep.


seeing as no one wants to answer questions i ask in pm's ill just ask here.

what is the advantage of having the shackles in the rear on the front axle, ive asked a few people that have done a sas and they never respond, how rude huh?
If they are from the RE 4.5" YJ kit they are only 4" springs. Both the 4" and 4.5" RE kits use the same springs. The extra .5" comes from extended shakles in the 4.5" kit....RE springs are supposed to not sag as bad or as fast. I think you made out really well. My 4.10 D30 cost me $150.
Reply With Quote
  #69
Old 03-12-2008
Member

Join Date: Apr 2006
Location: Paulding , GA.
Posts: 1,435
hey daniel did you driveshaft flange bolt right up since you went from the 7.5 to the 8.8 and also did the brakes lines swap over to since it is a bigger drum
Reply With Quote
  #70
Old 03-12-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by LayingFrame89 View Post
hey daniel did you driveshaft flange bolt right up since you went from the 7.5 to the 8.8 and also did the brakes lines swap over to since it is a bigger drum
yeah, i just used the brake lines from the 7.5 and yes the drive shaft bolted right to it.

glad i didn't have to make new lines haha.
Reply With Quote
  #71
Old 03-12-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by shadyluke View Post
If they are from the RE 4.5" YJ kit they are only 4" springs. Both the 4" and 4.5" RE kits use the same springs. The extra .5" comes from extended shakles in the 4.5" kit....RE springs are supposed to not sag as bad or as fast. I think you made out really well. My 4.10 D30 cost me $150.
i got both axles and the leafs for $120.

i might grab the rear leafs but he said the one is bent and im not sure they would even work on the rear of my truck.
Reply With Quote
  #72
Old 03-12-2008
5speedin2.3's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
Quote:
Originally Posted by zainyD View Post
Better ride quality and better approach angle.
my dad wants to know why they didn't do this from the factory then, he thinks its going to move differently when it flexes.
Reply With Quote
  #73
Old 03-13-2008
Member

Join Date: Jun 2005
Posts: 148
He is correct, with the shackles forward the axle will move forward slightly when it flexes, with the shackles in the rear the axle moves back slightly on flex.

Why did Jeep put the shackles in the front instead of the rear? Your guess is as good as mine. Chevy set up their axles with the shackle in the rear, Jeep had them in the front so who knows. I do see a lot of people doing shackle reversals and their are kits to make the change.
Reply With Quote
  #74
Old 03-13-2008
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Quote:
Originally Posted by zainyD View Post
Better ride quality and better approach angle.
I don't see it helping approach angles, because the spring mount will be as low as the shackle was.
Reply With Quote
  #75
Old 03-13-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by casfz1 View Post
I don't see it helping approach angles, because the spring mount will be as low as the shackle was.


With the shackle in the back the spring would mount about 3-4 inches higher up in the front.
Reply With Quote
