  #226
Old 08-26-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 01RangerEdge View Post
That looks so good.

Outside of your engine work have you done anything else to the truck?
Thanks!

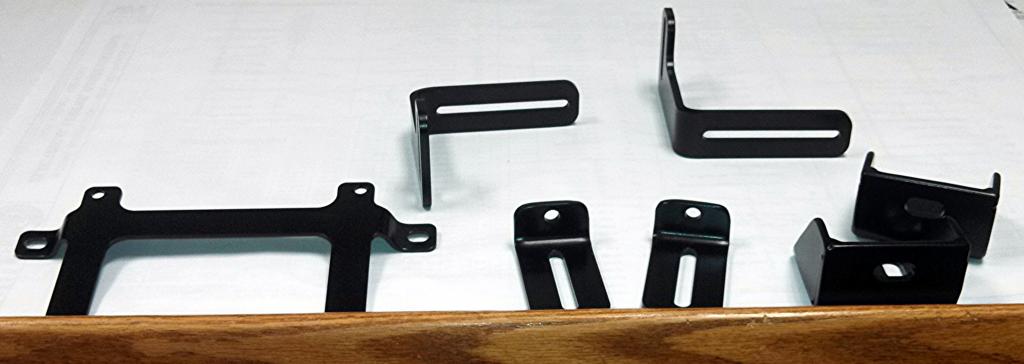

Well a few weeks ago I picked up my bumper brackets, light brackets & my spark plug wire separators from the powdercoater.

Everything is my nice satin black color (20% gloss).

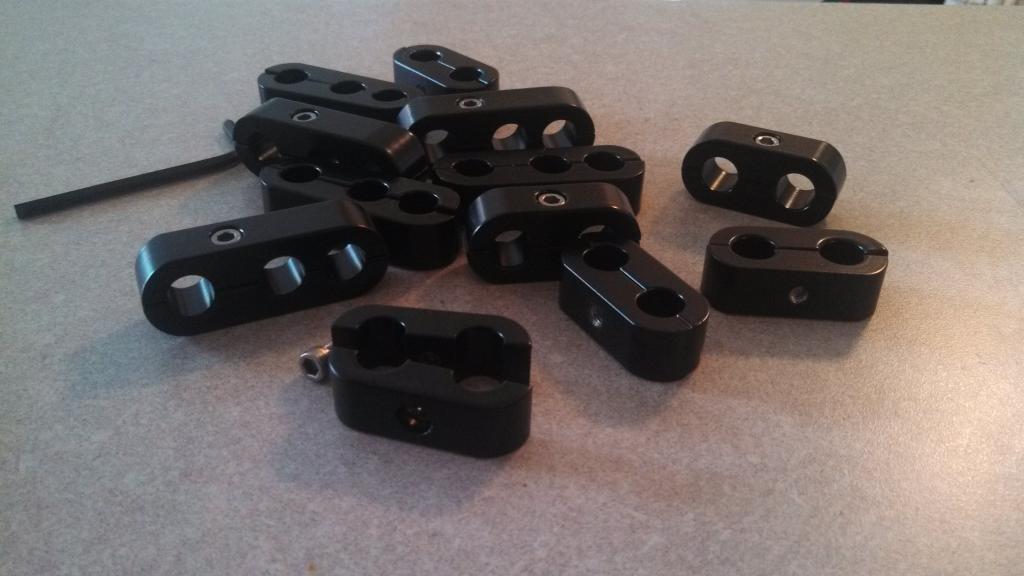

All of these wire separators used to be the standard bright billet aluminum (DUI Billet Aluminum Wire Loom) - but I wasn't having that! lol

I figured since I needed all the brackets powdercoated anyways, I might as well get around to finally getting the separators coated & installed at the same time.


Attached Thumbnails
Project Budget Buster-img_20130807_174535_840_zpsdf38817a.jpg   Project Budget Buster-img_20130808_043836_409_zpsf9ec069d.jpg
Reply With Quote
  #227
Old 08-26-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235

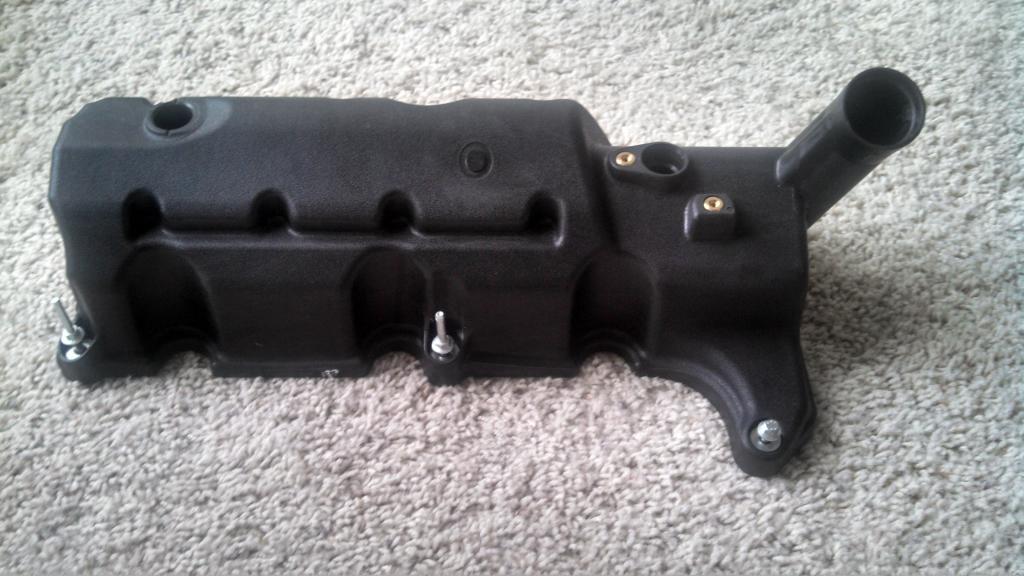

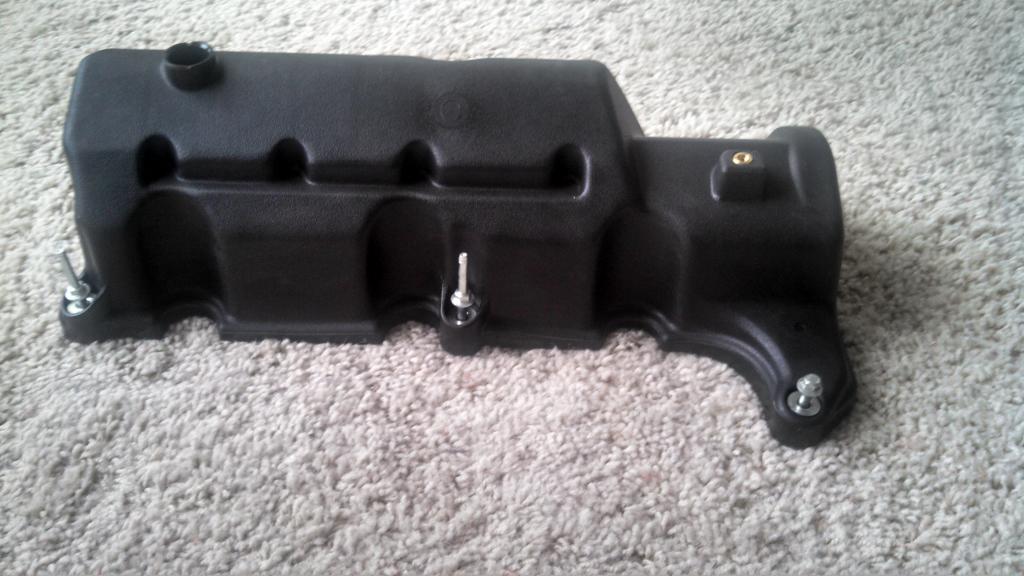

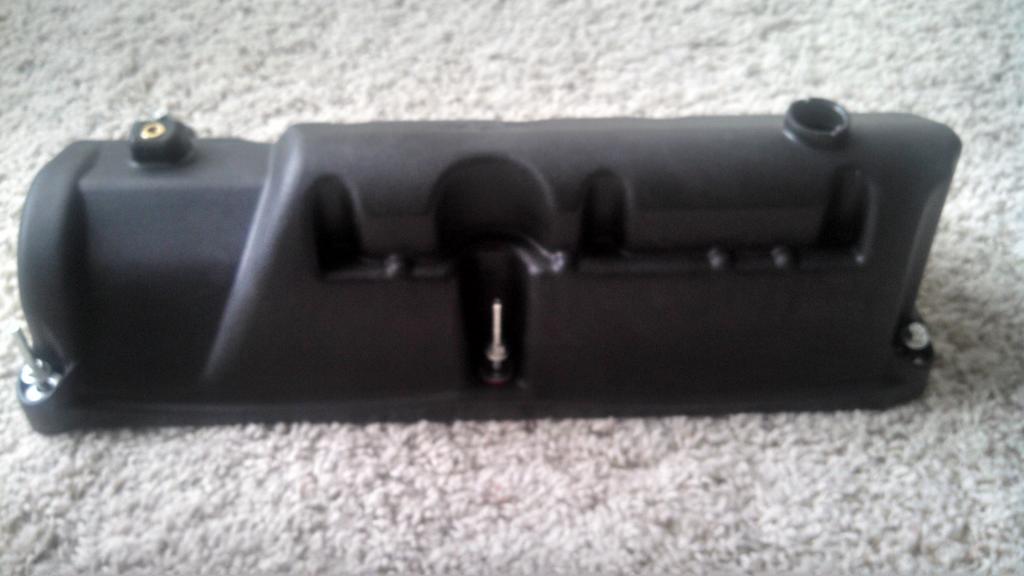

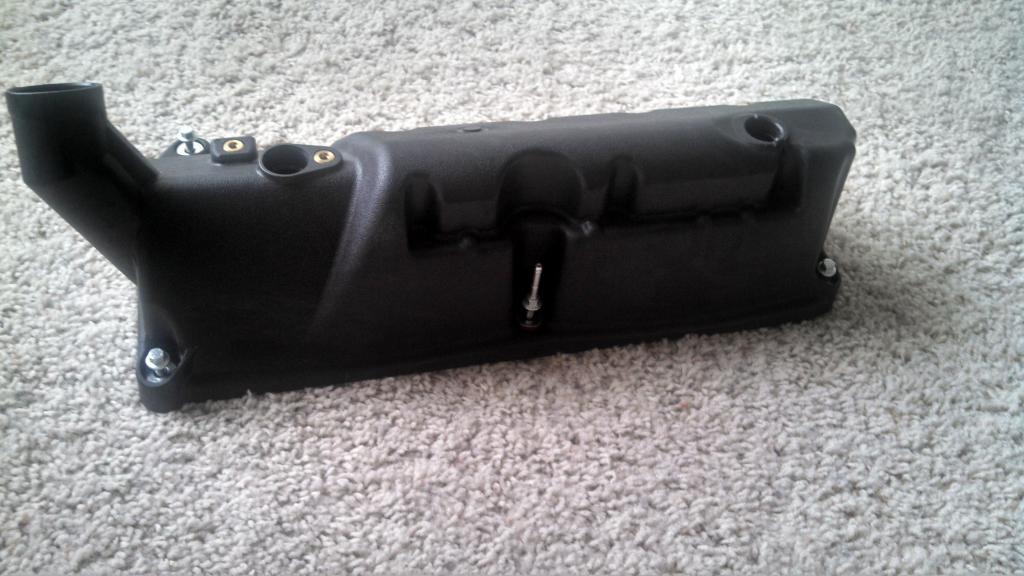

Although it's related to the supercharger install - I purchased some 2010 4.0 Mustang valve covers in an effort to move the oil fill cap to the drivers side - allowing for a 'direct shot' to the throttle body with my intake.

At the time it was only a punt as to whether they would even work or not - but I found out Saturday that they do.

They only needed some rather minor modifications to the PCV valve & crankcase ventilation system.

2010 Mustang 4.0 SOHC:
Part #7H2Z-6582-A = Valve Cover - Driver Side
Part #7H2Z-6582-B = Valve Cover - Passenger Side




Attached Thumbnails
Project Budget Buster-img_20130809_182731_534_zpse0514168-1.jpg   Project Budget Buster-img_20130809_182743_009_zps1914f69a-1.jpg   Project Budget Buster-img_20130809_182658_281_zps71c408ba-1.jpg   Project Budget Buster-img_20130809_182709_535_zps1a9fdff7-1.jpg
Reply With Quote
  #228
Old 08-26-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235

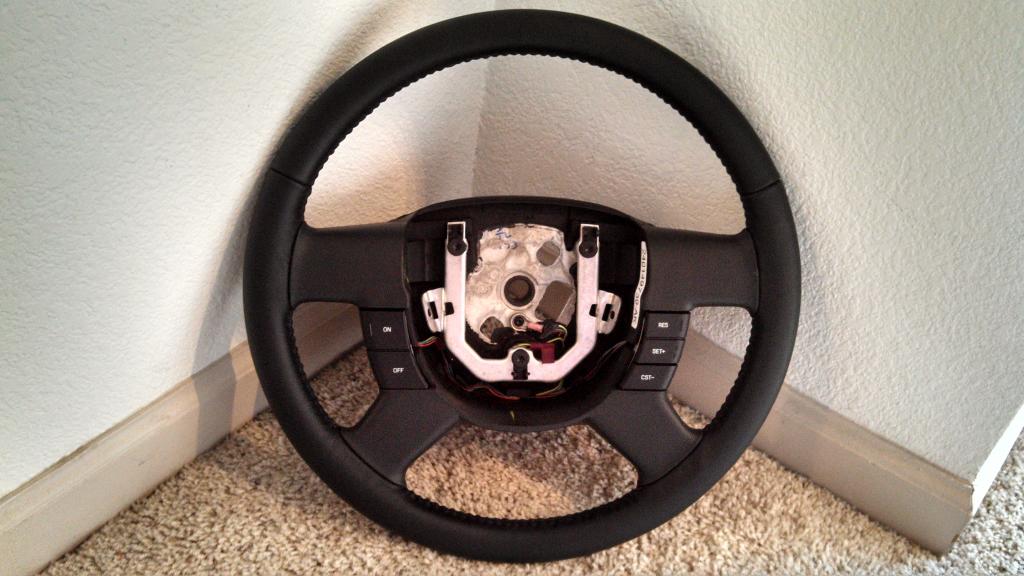

The other week I got a little 'bored' & I found out that you can swap the 2004-2006 style steering wheel onto my 2003, I figured why not. It was something I haven't done yet! :D

I absolutely despised those damn cruise 'pods' on my 2003 wheel.

Just in case some people are part number type guys (like me). Here are the official Ford part numbers for some of the swap components:

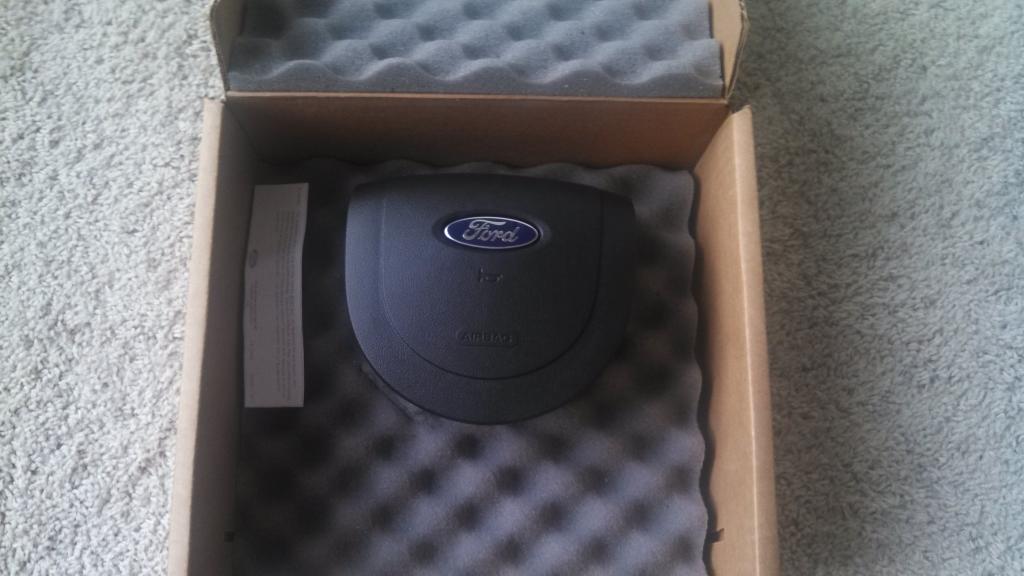

2004-2006 OEM airbag setup: 4L5Z-10043B13-AAA
2004-2006 Steering wheel complete w/ cruise buttons (Upgraded Black Leather): 6L5Z-3600-AA



Attached Thumbnails
Project Budget Buster-img_20130817_160206_043_zps3fe67c6e.jpg   Project Budget Buster-img_20130820_173954_084_zps51cc89a0.jpg
Reply With Quote
  #229
Old 08-26-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
nice! are you running the stock pulley on the supercharger?
Reply With Quote
  #230
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 99offroadrngr View Post
nice! are you running the stock pulley on the supercharger?
Nope. I went with the 2.8" setup.
Reply With Quote
  #231
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235

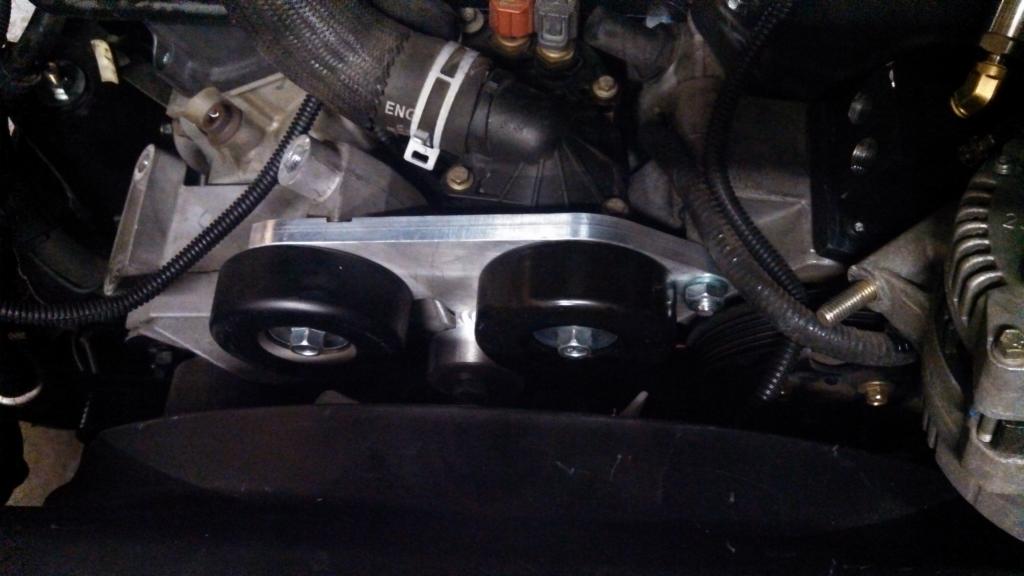

Dual Pulley Setup:

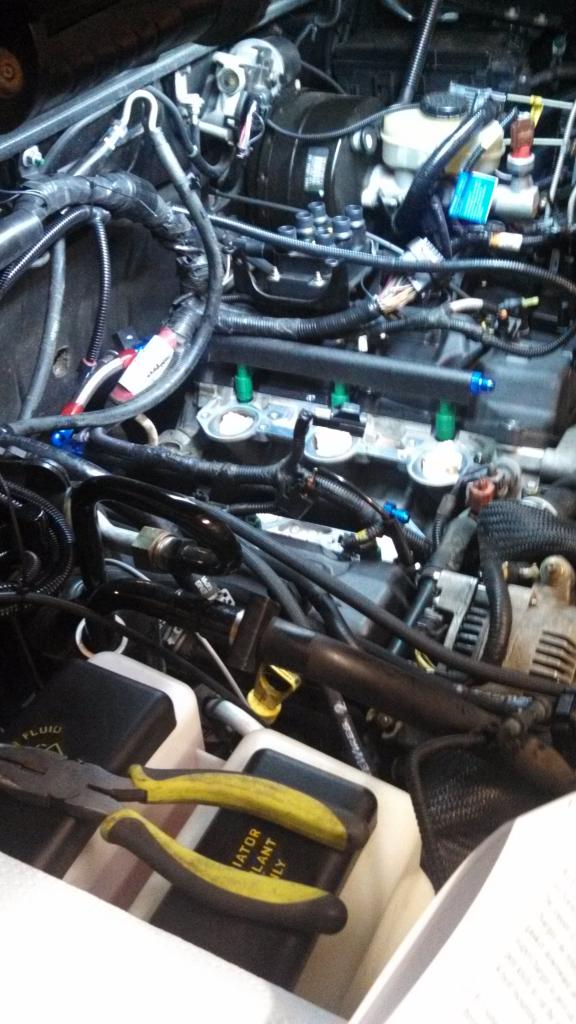

Upgraded Fuel Rails & the Bosch 42lb/hr Injectors (aka - Green Giants):


Boost Sensor & IAT Sensor:
Attached Thumbnails
Project Budget Buster-img_20130826_050032_738_zps3f3fce04.jpg   Project Budget Buster-img_20130824_085714_088_zpscce68d65.jpg   Project Budget Buster-img_20130824_111438_369_zps502f0942.jpg

Last edited by logan03CO; 08-27-2013 at 07:08 AM.
Reply With Quote
  #232
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235

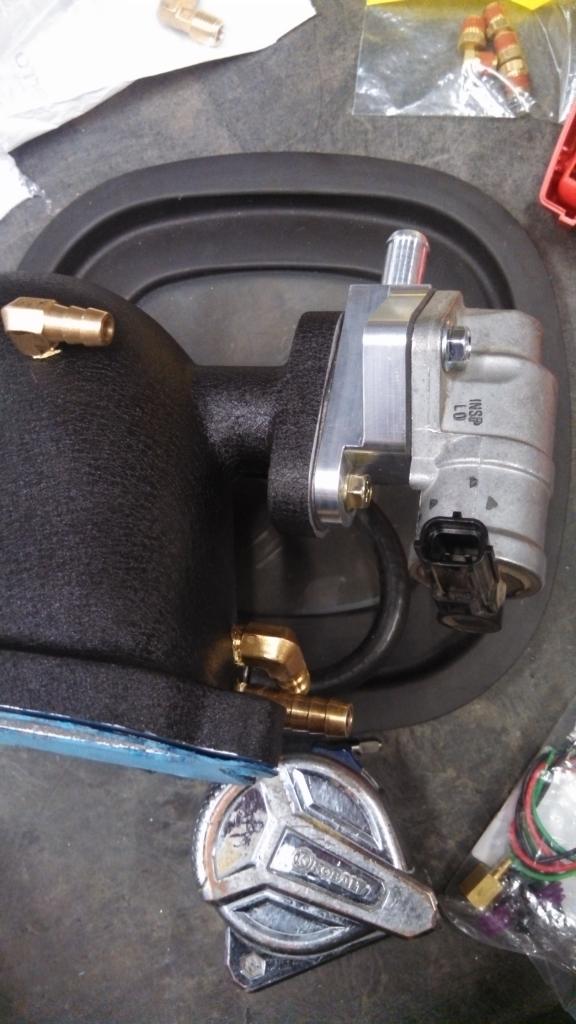

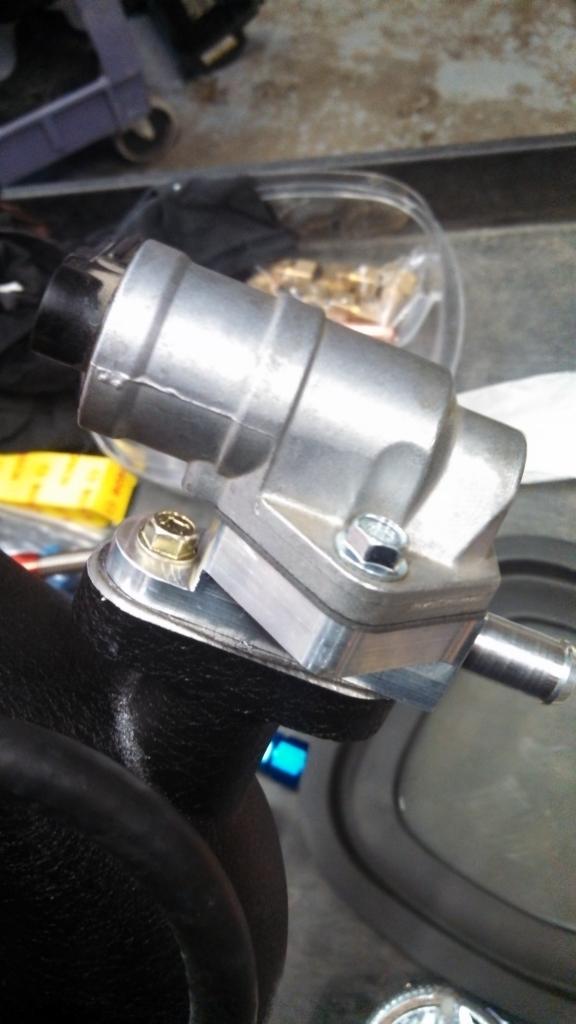

Here are some of the details as to how I mounted my idle air control valve.

Unlike the factory throttle body housing, my 75mm Accufab throttle body doesn't have provisions for the factory IAC mounting setup.

However, my 2003 doesn't have an EGR system, so I was able to find a nice machined aluminum IAC relocation system that actually uses the former EGR port on the M90 supercharger intake (IAC Relocation - Cobra Engineering)

I was going to have to block-off the EGR port anyway, so I figured I might as well use it for the new location of the IAC. Besides rewiring the factory connection, all I have to do is route a line from the intake tube (pre-throttle body) to the port on the IAC adapter & it should work like the factory setup.


Attached Thumbnails
Project Budget Buster-img_20130824_162357_120_zpse1aaa226.jpg   Project Budget Buster-img_20130824_162410_969_zpse244af6f.jpg
Reply With Quote
  #233
Old 08-27-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
So is it done yet?!
Reply With Quote
  #234
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by Mcleary316 View Post
So is it done yet?!
Nah...Some of those pictures make it look further along than it really was.


A decent list of general 'housekeeping' type items still need to be finished.

Working on the 'custom' mounting brackets for the throttle & cruise setup. I also need to make one for the miscellaneous items that were secured by the valve covers.

I've also grabbed the couple AN fitting adapters this morning that were stopping the entire fuel side from being wrapped up.

Then I still have to deal with the intake system itself & all the vacuum lines that attached to it.

Still have to mount the nozzle in the air intake & route the tubing for the water/methanol injection system.

Also have random wiring I need to modify/cleanup.

I do have my handheld tuner & laptop here with me - so I'm hopeful that tonight I'll be able to at least fire it up - worst case it will be in the morning tomorrow.

If I was a betting man - I would take 'the over' & assume the 1st key turn will be tomorrow.

Last edited by logan03CO; 08-27-2013 at 11:58 AM.
Reply With Quote
  #235
Old 08-27-2013
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looks awesome. What kind of numbers are you expecting?
Reply With Quote
  #236
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by seed60 View Post
Looks awesome. What kind of numbers are you expecting?
Thanks man!

As far an numbers go, I'm not really looking for a 'razors edge' type increase or anything given the fact I'm double lifted & running 35's.

It was an interesting learning experience no matter what. Plus, it also confirms that I'm addicted to it!

My tuner is anticipating a drivetrain loss as high as 33%-44% due to my setup & tires. But no matter what - it will be a healthy increase over what it's got now!

Most people with a supercharger state they fall right about 210-225hp to the wheels for people with a 'normal' tire setup - meaning approximately 260-270ish @ the crank (assuming a 20% drivetrain loss).

After a quick evaluation of my setup, my tuner is thinking I will land right about 300-320hp at the crank (depending on final boost levels since I'm at 5,000' above sea level). Then I'll take an ***-whooping due to my tires when it comes to the wheel horsepower number. LOL
Reply With Quote
  #237
Old 08-27-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
looks really good so far. I hate you because I just bought another M90 after work today. I'm sticking with the 3.16" pulley for the sake of my transmission though lol
Reply With Quote
  #238
Old 08-27-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 99offroadrngr View Post
looks really good so far. I hate you because I just bought another M90 after work today. I'm sticking with the 3.16" pulley for the sake of my transmission though lol
Thanks!

Yeah, feel free to blame me - I can take it!

Tonight's Update:

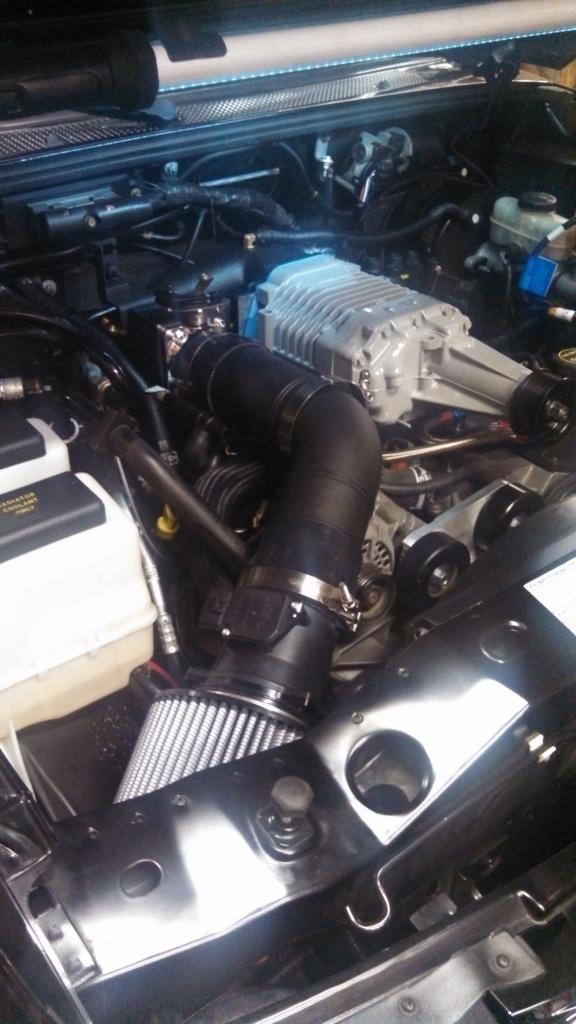

We have the air intake mocked in place right now. Everything is looking perfect. Nice straight shot into the throttle body with only a single 45* fitting to tuck the filter in the lower corner. I'm using the alternator bolt as a mounting place to secure it.

I think it provides a nice clean install.

We still need to finish routing the vacuum lines that attached to the intake.

Still have to mount the nozzle in the air intake & route the tubing for the water/methanol injection system.

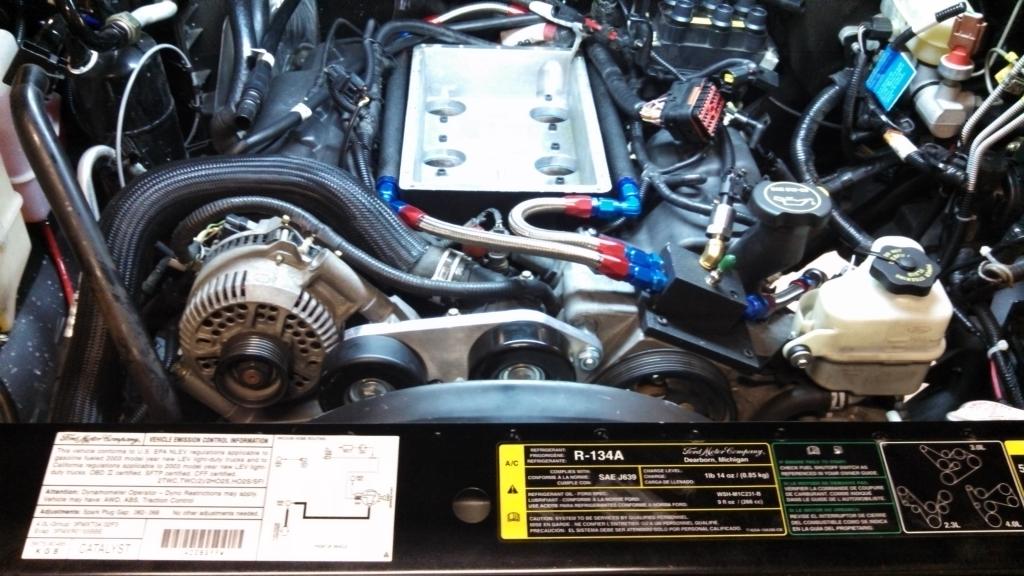

Finished fuel line routing:

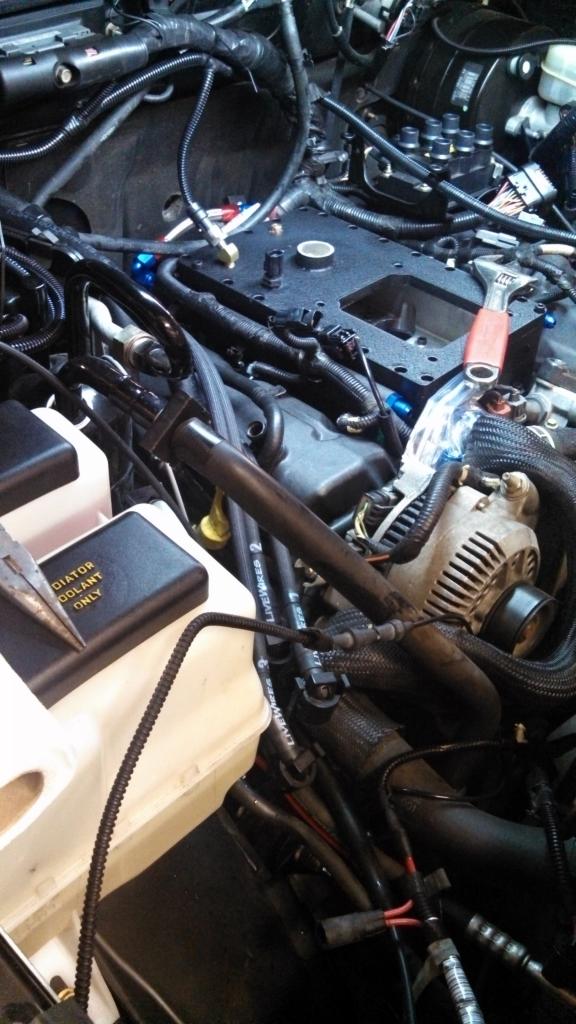

Final mounting of the supercharger, throttle body setup w/ first mockup of the air intake tube:
Attached Thumbnails
Project Budget Buster-img_20130827_111829_150_zps8351f89f.jpg   Project Budget Buster-img_20130827_170155_735_zpsc6c468b5.jpg
Reply With Quote
  #239
Old 08-27-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Are you changing your exhaust setup as well? True duals maybe?
Reply With Quote
  #240
Old 08-28-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 01RangerEdge View Post
Are you changing your exhaust setup as well? True duals maybe?
I might mess with it down the road, but I haven't looked into it much - I'm pretty happy with the JBA headers & Magnaflow catback setup.

It seems pretty 'tight' down there, I'm not sure how much it would really help overall (I'd assume a person would still want to have an x pipe or something anyway).

Plus, I would have to make sure I can still pass the 'lovely' emission requirements here.

Last edited by logan03CO; 08-28-2013 at 06:47 AM.
Reply With Quote
  #241
Old 08-28-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235

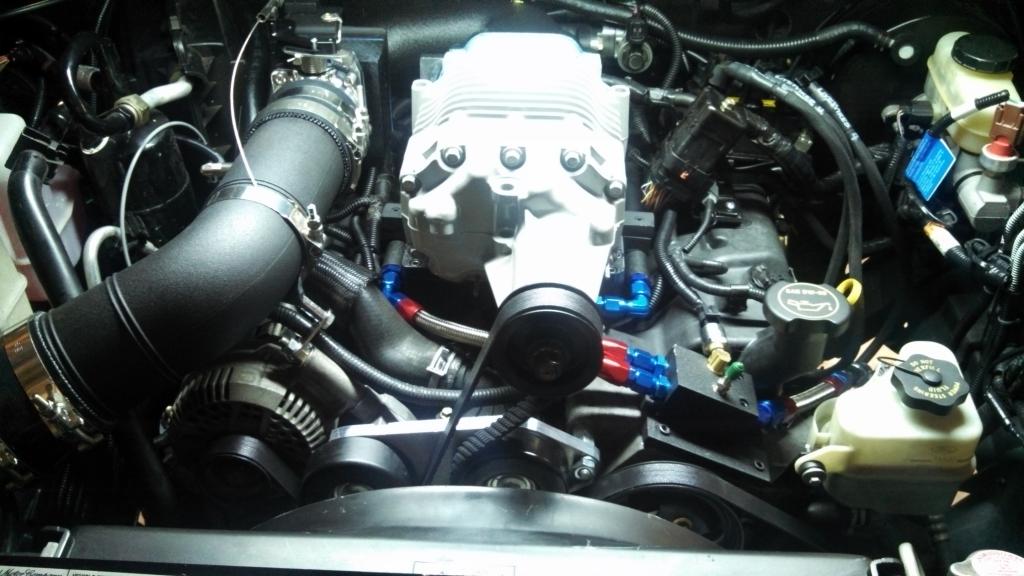

We are getting close to that 1st turn of the key....

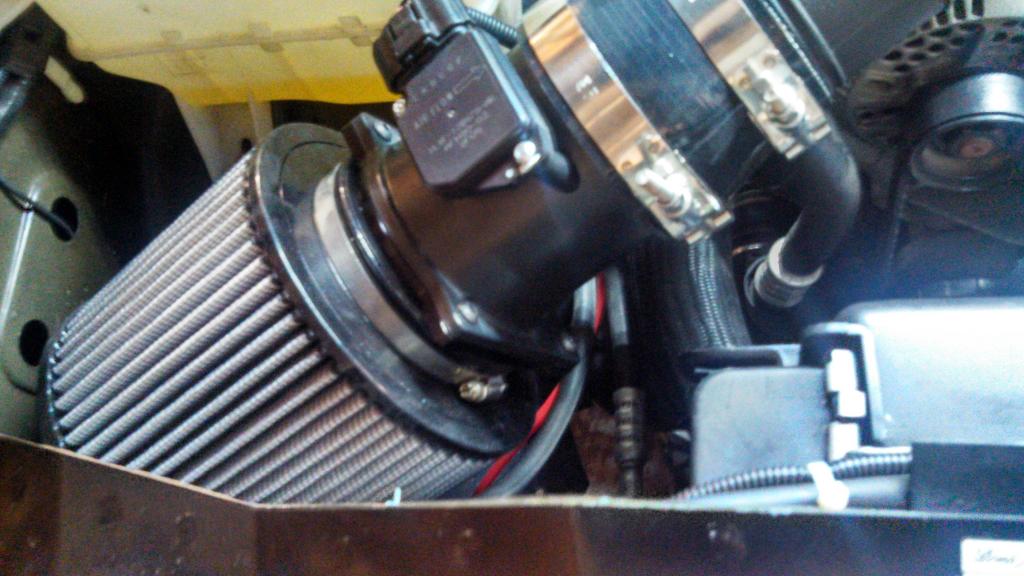

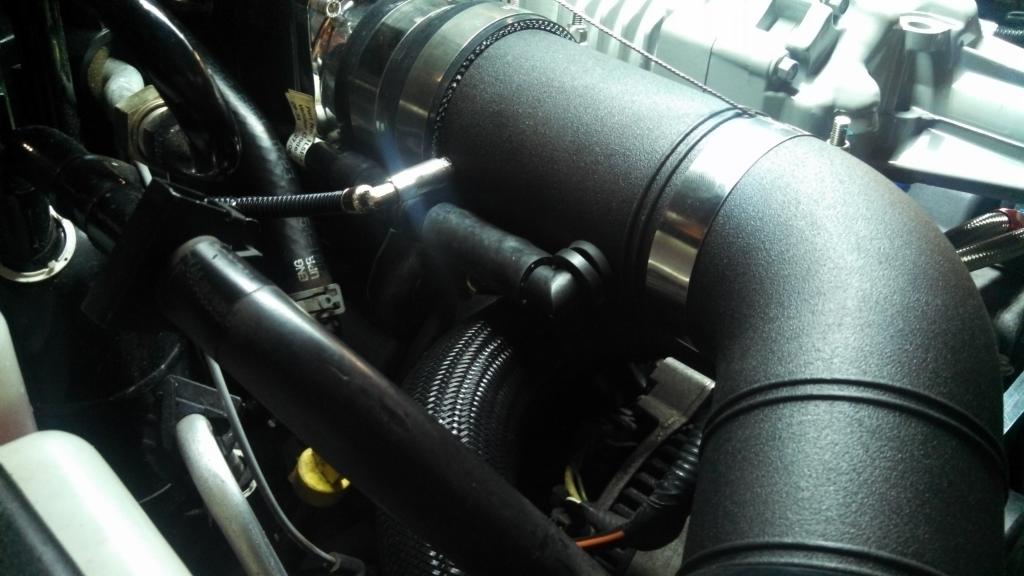

The Gatorback belt is on, the injection nozzle is mounted & the intake is fully installed.

As you can see, we have left the cruise control cable long until we know the shorter version will work correctly. After a short road test to verify - we should be able to trim the excess cable off.

We are grabbing the correct size allen wrench as I type - then we can install those plug wire separators.

After a final check of all the fittings, we should be good to install the custom tune & see if it will run (good enough for me to drive it to the dyno session in a few weeks).



Attached Thumbnails
Project Budget Buster-img_20130828_095542_547_zps66357d42.jpg   Project Budget Buster-img_20130828_095604_483_zps14de95bd.jpg   Project Budget Buster-img_20130828_095814_494_zpsc3b453a6.jpg
Reply With Quote
  #242
Old 08-28-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Are you going to build a shroud for the intake? Do you plan to do a ram air setup as well?
Reply With Quote
  #243
Old 08-28-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 01RangerEdge View Post
Are you going to build a shroud for the intake? Do you plan to do a ram air setup as well?
Nope, wasn't planning on it....didn't look into the shroud idea much though.
Reply With Quote
  #244
Old 08-28-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Well, it's alive!!

No leaks & everything checks out fine!

After I loaded the base tune from Don LaSota, it started right up & without any issues.

The light road test went well - good increase in acceleration (especially given my 35's), more importantly no 'check engine lights' or anything.

I'll be taking it very easy until I can have my tuning session - I just want to get it home & into the garage until my appointment.
Reply With Quote
  #245
Old 08-28-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Yessss can't wait for some vids after the tune
Reply With Quote
  #246
Old 08-28-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Well that was fast! How hard was the install overall?
Reply With Quote
  #247
Old 08-29-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Well after the drive home (about 35 miles) there are some 'bugs' that need to be worked out (to be expected I guess).

I have a 'rattle' at partial throttle during acceleration @ random RPM's (often at 2,000) - I'm hoping it's just something to do with the throttle cable modifications we did, but I have a feeling it could be pinging (I suck at sounds).

So I'm at a stop & I start accelerating, then once it's starts - it's almost 100% repeatable though. Light pressure on the pedal & it's makes the rattle - the second I let off, it stops. Also, the sound is loud - like I'd bet it can easily be heard outside of the truck. I stuck my head out the window while driving in town, and I could hear it clearly.

I'll have to check exactly when it makes the noise - but I have a feeling it's only doing it when under load, so I'm starting to believe it's pinging (any thoughts?).

Which I guess isn't a horrible thing since it's going for a complete custom tune in a couple weeks & I won't have to drive it much at all between now & then. He should be able to clear everything up.


Also, I found out I have my meth injection coming on way, way, wayyyy too early.

My low fluid warning light came on after like 10 miles of driving. So by the time I got home, I used about 2/3rds of the stock windshield washer fluid reservoirs worth of 'Boost Juice' - which runs $8/Gallon!

Luckily, it's a simple adjustment as to when the injection starts flowing (based on MAF voltage). Again, the tuner should be able to dial this all in for me - but I'm changing the activation voltage to be higher for starters.


Quote:
Originally Posted by Mcleary316 View Post
Well that was fast! How hard was the install overall?
The install wasn't bad at all for what it was. If a person was just installing the base kit 'as-is' from RPCaster it's a rather simple setup. By design, you’re not changing very much.

On the other hand, my version of the install was a little more 'in-depth', and required a fair amount of research on components (prior to the install) & fabrication of some custom items.


I'll be honest; the kit from Ron needed more modifications that I would have anticipated. Some were known to me (and understandable) - since we were upgrading/modifying his kit, but other things that we left 100% alone (like the dual pulley kit) needed some 'massaging' as well.

Nothing crazy or too in-depth, but if people are thinking even the base kit is a simple 'socket set only' install - it isn't.

We had to widen holes on mounting brackets to get them to fit correctly, file a bunch of pieces down, pipe dope was all over the place, & there was a fair amount of metal shaving & oil still in the fuel rails & fuel distribution block (from his pipe threading). Some of the aluminum machining looked rather 'rough' (mostly the non-visible side, but still). Luckily we were checking for these things & cleaned everything up as we went.

Like I said, it wasn't anything crazy & it's a good lesson to expect the unexpected when doing any type of install.

Overall, it's a solid 'time tested' kit.

Last edited by logan03CO; 08-29-2013 at 06:47 AM.
Reply With Quote
  #248
Old 08-29-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by logan03CO View Post

I'll be honest; the kit from Ron needed more modifications that I would have anticipated. Some were known to me (and understandable) - since we were upgrading/modifying his kit, but other things that we left 100% alone (like the dual pulley kit) needed some 'massaging' as well.

Nothing crazy or too in-depth, but if people are thinking even the base kit is a simple 'socket set only' install - it isn't.

We had to widen holes on mounting brackets to get them to fit correctly, file a bunch of pieces down, pipe dope was all over the place, & there was a fair amount of metal shaving & oil still in the fuel rails & fuel distribution block (from his pipe threading). Some of the aluminum machining looked rather 'rough' (mostly the non-visible side, but still). Luckily we were checking for these things & cleaned everything up as we went.

Like I said, it wasn't anything crazy & it's a good lesson to expect the unexpected when doing any type of install.

Overall, it's a solid 'time tested' kit.
now to me, thats expected. definitely not something i wanted to read lol. now im thinking of leaving mine alone haha
Reply With Quote
  #249
Old 08-29-2013
logan03CO's Avatar
Member

Thread Starter
iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Quote:
Originally Posted by 99offroadrngr View Post
now to me, thats expected. definitely not something i wanted to read lol. now im thinking of leaving mine alone haha
Nah - It wasn't anything crazy.

Just minor 'adjustments'.

I chalked it up to the fact these aren't mass produced kits made by a machine over & over. So they aren't all exactly the same, every time.
Reply With Quote
  #250
Old 08-29-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
You are going to love that sound when it lights up. Love it

Looks great man! Nice work too.
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
project: budget trash trailer build SVT01RANGER Project Logs 4 12-15-2011 03:05 PM
New welder, cheap truck, and low budget t0x1k Fabrication & Tool Tech 18 09-17-2008 08:06 PM
Budget Ranger Build... 964X4 4.0L OHV & SOHC V6 Tech 4 09-15-2008 11:17 AM
Best budget amp? jtslmn720 Audio & Video Tech 10 01-07-2006 10:36 PM
Semi-Budget system is in! jrodhotrod Audio & Video Tech 15 09-13-2005 06:07 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 08:58 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
