2008's lower ride height, need to get to the bottom of this - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


Suspension Tech General discussion of suspension for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by zabeard View Post
the only thing that could have changed was the index on the keys that slide on the torsion bars. that is the only thing that i know of that can control the height. also this could be applied to the lower control arms, like where the hex is indexed.

Also anyone have pictures of the body mounts? did they change? like the thickness of the bushings?

Yea...that's my guess as well. Alot like how chevy has different colored keys depending on how a model is loaded. Where ford has differnet bars and the same keys, chevy has the same bars and different keys. I'm starting to vote keys. Hmm......i have a feeling somebody with an RCD should sell Keith their old stock keys...and see what happens.....

Marie....let's put stock 07 and old keys in your truck!
Reply With Quote
  #27
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Keith.....do you happen to have a pic of your stock keys from your superlift install? If we can get a shot of a stock '08 key, i'll pull one of my keys out and compare the bar's hex index.
Reply With Quote
  #28
Old 09-03-2008
DisturbedESV's Avatar
Member

Join Date: Apr 2008
Location: Seattle, WA
Posts: 3,115
Shane this thread makes me want that lift anymore... I've decided the leveling kit just won't cut it...
Reply With Quote
  #29
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
what 'leveling' kit are you talking about? crank the torsion bars? lol.
Reply With Quote
  #30
Old 09-03-2008
DisturbedESV's Avatar
Member

Join Date: Apr 2008
Location: Seattle, WA
Posts: 3,115
Eh.... go big or go home... I'm not touching it until all the pieces are ready to go
Reply With Quote
  #31
Old 09-03-2008
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
yeah zach, thats actually what im thinking. its as if ford clocked the bars back some to lower the ride height. that has to be what they did...
Reply With Quote
  #32
Old 09-03-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Name:  DSC_0024.jpg
Views: 162
Size:  66.5 KB

I know this is a bit off topic but are these center caps the same as the 2004 ones I have? I would love to buy something thats the same but not chrome. Yeah I know I can paint mine but just wondering.
Reply With Quote
  #33
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Jp7 View Post


I know this is a bit off topic but are these center caps the same as the 2004 ones I have? I would love to buy something thats the same but not chrome. Yeah I know I can paint mine but just wondering.
Those caps have been used for years and years on rangers....since like 98ish. In '07 when they introduced two new wheels....one of them(as pictured on 07sport's truck) were painted silver, matching the wheels.
Reply With Quote
  #34
Old 09-03-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
I'd like to know the height of a stock 4X4 98-07 front end, for comparisons sake.
Reply With Quote
  #35
Old 09-03-2008
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
Yes they are the same. I was wondering about the bars... It doesn't make since that they would put the softest bars in the front with the stiffest ones in the rear. I have an 05 Edge, 3.0 V6 5 speed, regular cab. I would go ahead and assume that the 3.0 is the heaviest of all of the ranger engines since the 2.3/2.5s are aluminum headed 4 cyl. engines, the 4.0's are aluminum headed and have plastic upper and lower intakes, and the 3.0s are all cast iron, except for the intakes. So is anybody sure that the Fs are indeed softer than B's, which are indeed softer than 1s? Also, how hard is it to change the bars??? Do you have to have an unloading tool? Or do you just undo the shocks and adjusting bolts? Would I see any lift switching over to a B or 1 bar verses my F bars, or will it just make my ride stiffer?
Reply With Quote
  #36
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
1 > B > F

Bars(spring rates) are chosen based upon options, accesories, truck weight, engine, etc. like i've never seen a reg cab with B bars. MOST xcabs 2wd's are F bars. MOST xcabs 4x4 are B's. Fx4's are 1's. Those are generalizations of course...i'm not positive on them exactly. 1 bars are harsher/firmer ride....and they keep the 'lift' by not sagging as much as a lower grade bar over time. I think GatorBlue92 upgraded his 2wd edge reg cab to #1's. We have threads on removal of torsion bars. you do not need the special tool....a big c-clamp works just fine....you can do it with the wheels still on...just front end suspended from the frame on jackstands.
Reply With Quote
  #37
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by ManEHawke View Post
I'd like to know the height of a stock 4X4 98-07 front end, for comparisons sake.
It's so dang variable....cranks, saggyness, tire size, etc.

What tire size does your FX4 have?

I know the regualr XLT 4x4's for '08 came with 235/75r15's...same size as stock 07 and older 2wd edges.
Reply With Quote
  #38
Old 09-03-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
I have 255/70/16 which is a 30.1" tall tire.
The XLT's come up to like 28.9" tall.

Stock (before crank) I sat around 33.25" up front. If I had 28.9" tire It would be aprox 32.65"
If I had 31's (BFG AT is 30.8) it would be ~33.6", If I had 32's (31.8) It would sit ~34.1"
All that would be if I left the bars untouched.

Now we can add 1.25" due to my crank to all those on how it would be if I had each size.
I am at 34.5" up front btw with 5 turns.

I know its variable, I just wanted to know how much lower these heights are to 07 and back owners, in real world numbers.
Reply With Quote
  #39
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
for what it's worth, mine stock on 245/75r16's was in the 34.5" range. I gotta dig up pics from when i first did my torsion crank like 4 years ago. lol. That's to the bottom on the flare.
Reply With Quote
  #40
Old 10-12-2008
Roddy's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: Canada
Posts: 1,332
Hmm i just decided to read back through this, and i am starting to think that yes it must be that the factory keys were re-indexed for 2008.

Im interested in getting a set from an 07' or older model, and seeing if i can gain anymore lift up front.

I just got a set of 265/75/16's and would like a little more height up front.

Im going to talk to the dealer and see if i can get a set, otherwise i might just order some after market keys (i wont be doing any insane cranking, i got 1.25" out of the factory keys, so if i can get another 3/4" with early model or after market keys, then ill be happy.)
Reply With Quote
  #41
Old 10-12-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
Start a new thread, I'd love to see pics of those on your truck.
Reply With Quote
  #42
Old 10-12-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
woah my truck was being discussed... :-D by the way I swear those rims were rare, they were optional when I bought the truck, originally it had the other type (have to look in the brochure) so yeah I found out my ranger has F bars... are they really that bad?
Reply With Quote
  #43
Old 10-13-2008
Roddy's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: Canada
Posts: 1,332
Quote:
Originally Posted by ManEHawke View Post
Start a new thread, I'd love to see pics of those on your truck.
All i have right now is my iPhone for pix and the quality sucks. I really want to straighten out the lift (tbars and shackles) before i post pics.

I should be able to borrow a camera in a week or so.

I can tell you this up front, after all the research and homework, im not really happy with the results.
Reply With Quote
  #44
Old 10-13-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I'd love to take marie's truck and my truck apart to compare keys....or possibly get keys from a jy and throw 'em on hers. see if that's where they did the change. Highly likely in my mind.
Reply With Quote
  #45
Old 10-14-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327

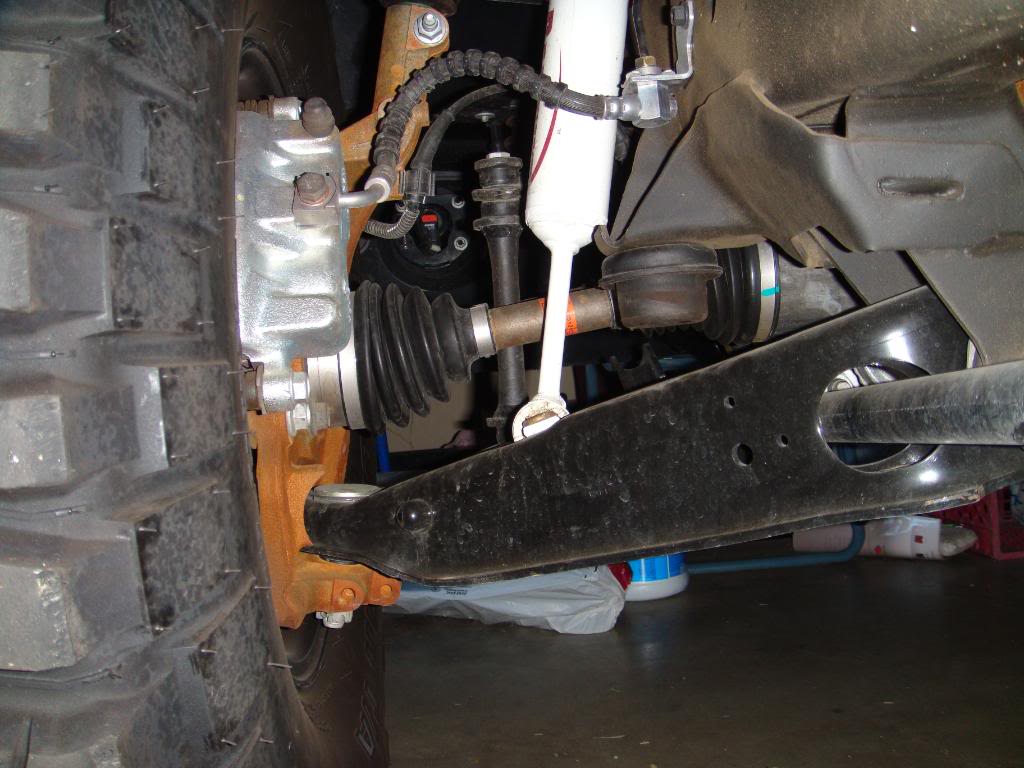

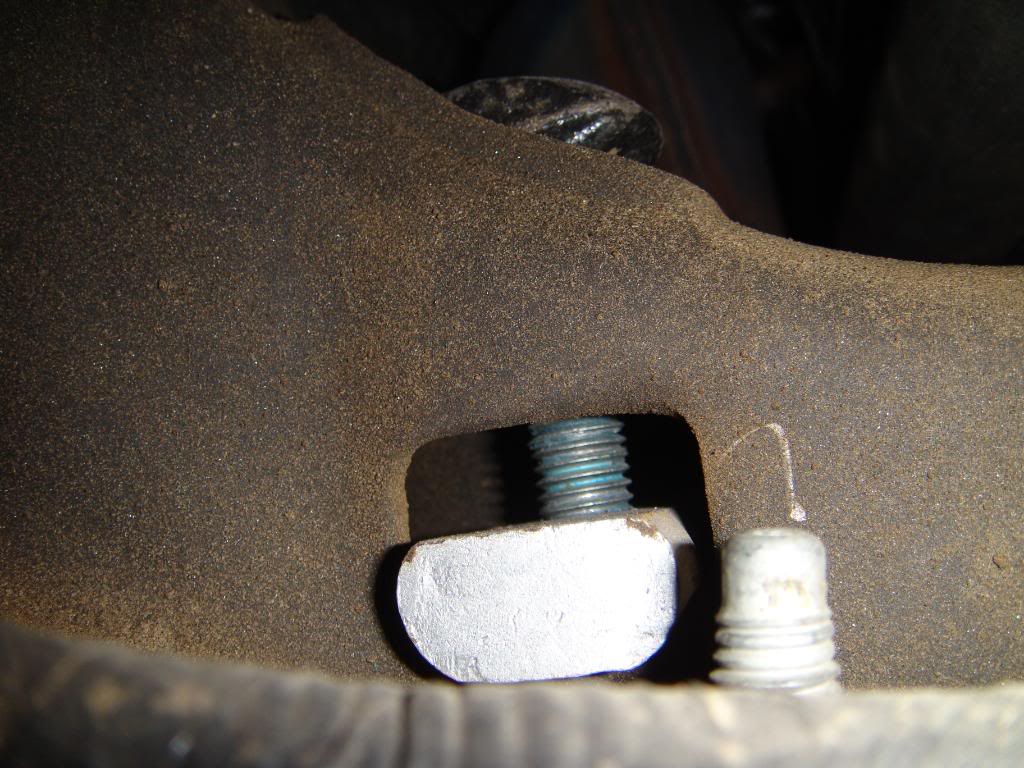

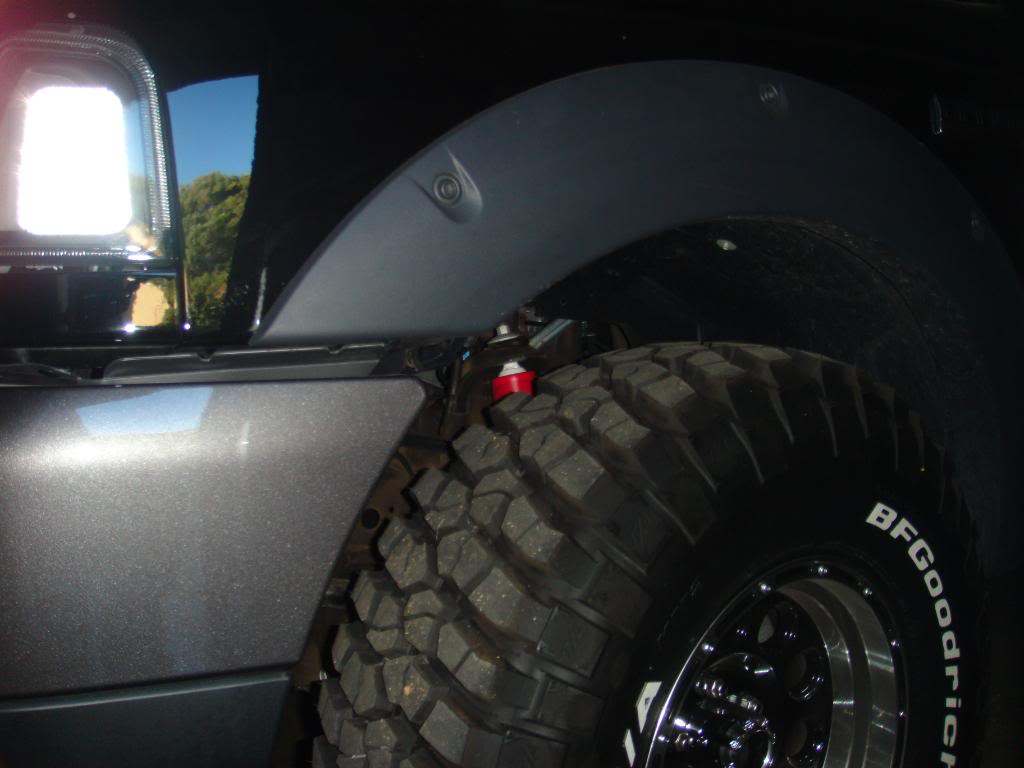

Most likely. Here is my truck with maxed B bars.
I really wouldn't want to crank more, I think the angles are still fine.

Name:  DSC00788.jpg
Views: 161
Size:  134.7 KB
Name:  DSC00790.jpg
Views: 160
Size:  106.2 KB
Name:  DSC00791.jpg
Views: 159
Size:  66.1 KB
Reply With Quote
  #46
Old 03-29-2009
Sixt9coug's Avatar
Member
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
Sorry to bring up an old thread, but im curious. Was there aver a definative answer on this? My 09 Sport sits pretty darn close to where my 04 XLT sat. Both 2wd, both had 235/75 15s. (not stock on the XLT, but it had them when it was wrecked).

I test drove several Edge's and Sports prior to buying this one and they felt like they sat higher than mine does. Id like to get it a touch higher in the front, but i dont want to crank the bars and stiffen up the ride or kill tires. If there is an OEM part that can be tossed on there that would be awesome. The truck rides better than my XLT did, and i have BBKK for the suspension code.
Reply With Quote
  #47
Old 03-29-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
soon....i'll pull a torsion key off an Orange '08 and compare it to a '98 key.
Reply With Quote
  #48
Old 03-29-2009
Sixt9coug's Avatar
Member
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
awesome. keep us updated. It would be nice to toss a Ford torsion key on the truck and keep it stock enough to fly under the radar
Reply With Quote
  #49
Old 03-30-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I've compared my truck to Marie's truck several times. And i've definately narrowed it down to two things...

Torsion keys.

and

Lower Control Arm(orientation of the hex hole for the torsion bar.) I think they may have clocked that a few degrees to create a lower ride height.




IF it's the torsion keys, I'd love to have her truck up to 'proper' height for a bodylifted 98-07 ranger by swapping to older model keys AND 2.5" blocks. I'd definately replace those 1.5" blocks.
Reply With Quote
  #50
Old 03-30-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Sixt9coug View Post
Sorry to bring up an old thread, but im curious. Was there aver a definative answer on this? My 09 Sport sits pretty darn close to where my 04 XLT sat. Both 2wd, both had 235/75 15s. (not stock on the XLT, but it had them when it was wrecked).

I test drove several Edge's and Sports prior to buying this one and they felt like they sat higher than mine does. Id like to get it a touch higher in the front, but i dont want to crank the bars and stiffen up the ride or kill tires. If there is an OEM part that can be tossed on there that would be awesome. The truck rides better than my XLT did, and i have BBKK for the suspension code.
Both your old trucks are 2wd...

I know the '04 was coil sprung. And I know the '09 2.3L 2wd Sports are coil sprung...

Is your '09 4.0 2wd Sport a coil sprung or torsion sprung?
Reply With Quote
