2008's lower ride height, need to get to the bottom of this

Hey guys, so im well aware that the 2008 ranger/b4000 4x4's ride about an inch lower all around than previous years. (18mm according to the manufacturer)

Now we have hammered out that in the rear our trucks sit lower due to smaller blocks... 1.25" compared to 2-2.5" on previous years.

NOw what i dont understand is what is making the FRONT of our trucks lower?
I cranked my T-bars ALL the way and gained 1.25".... but after having a friend just buy an 06, and parking side by site, i am sitting exactly level in the front with his stock 06, with no Tbar crank.

What component is limiting the height on the front of our 08's!?

Thanks

Rod
Reply With Quote
  #2
Old 08-22-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
i was wondering this myself...

it might just be that upper and lower control arms are just positioned slight higher making the truck lower. all parts are interchangeable (thus the lift kits all fit) so thats the only thing I could come up with.
Reply With Quote
  #3
Old 08-22-2008
bucky919's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Minot, ND
Posts: 1,943
I think they used softer T-bars on the new ones. If you want to raise it more you will have to buy stiffer Torsion Bars. Do a search for the parts #'s
Reply With Quote
  #4
Old 08-22-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by bucky919 View Post
I think they used softer T-bars on the new ones. If you want to raise it more you will have to buy stiffer Torsion Bars. Do a search for the parts #'s
nope. thats not it, i have #1 bars and still sit lower than 06 and previous
Reply With Quote
  #5
Old 08-22-2008
Roddy's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: Canada
Posts: 1,332
Yeah thats not it at all. Nothing to do with the torsion bars, i have b-bars, and my friends 06' mentioned above also has b-bars.
Reply With Quote
  #6
Old 08-22-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
POST PICS OF YOUR FRONT END!!! like underneeth, that lower crossmemeber. Take your wheels off, take your disc's off and show us your knuckles Take pics of your control arms. Takes pics of your everything involving front end.



I have a sneaking suspicion that possibly Ford changed the knuckes. Ya'll only getting 1.5" or so out of cranking is the same amount a 07 and older got. Torsion bars are ruled out.

I'd like to find out too. DisturbedESV's truck is insanely low...i honestly had no clue it was a 4x4 til i saw the stickers!
Reply With Quote
  #7
Old 08-22-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
its wierd though cause even after installing the superlift, my truck is lower than older trucks with the superlift. t-bars almost maxed out too.
Reply With Quote
  #8
Old 08-22-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
your lca's are flat even after install....



That kinda rules out knuckles....but i still have a feeling knuckles or possibly front crossmemeber in conjunction with the torsion bar key brackets. Take pics of those too. I'm talking.......no 56k in that thread...tons of pics so everybody can compare.
Reply With Quote
  #9
Old 08-22-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
I've compared mine with 07 and 06 FX4's non LVII, and even before tbar crank and block swap the difference was minor.

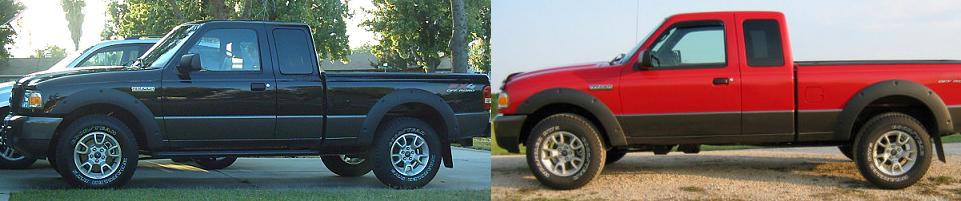

there I am on the left stock with factory 1.25 block, and there's a red 07 FX4 on the right.

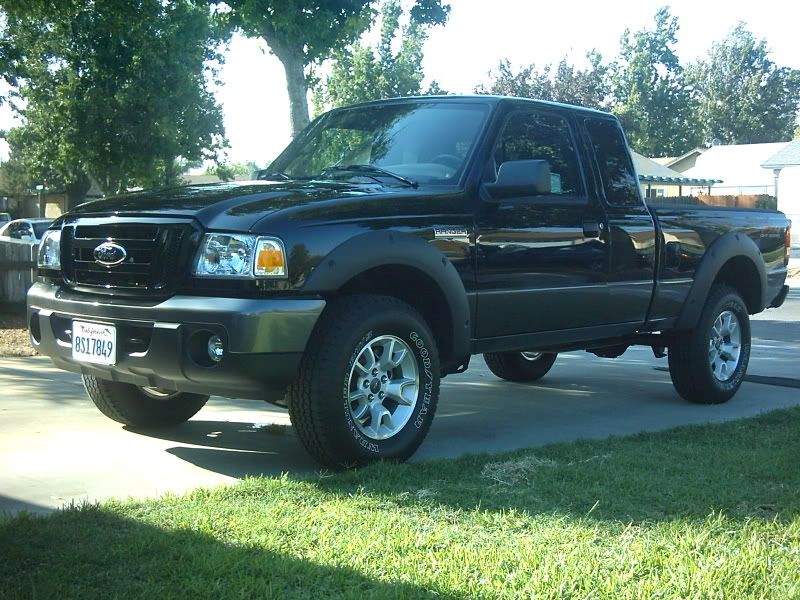

After 5 turns, and 2.5 block here I am (I have B bars btw)


According to the service manual Ford has on PTS website, there are no changes. So its a mystery why a crank doesn't render much gain on some 08 trucks.
Attached Thumbnails
2008's lower ride height, need to get to the bottom of this-0708comparison.jpg
Reply With Quote
  #10
Old 08-22-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703

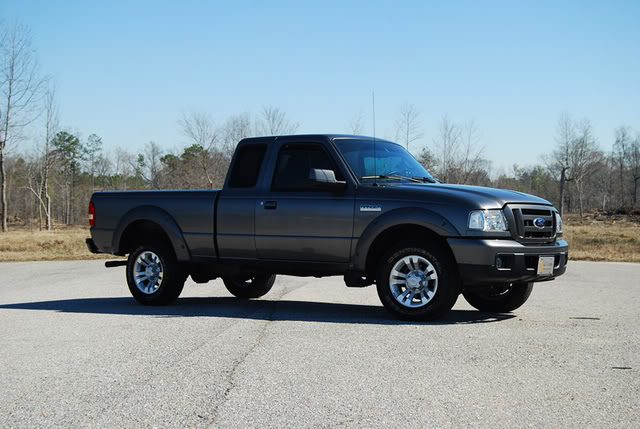

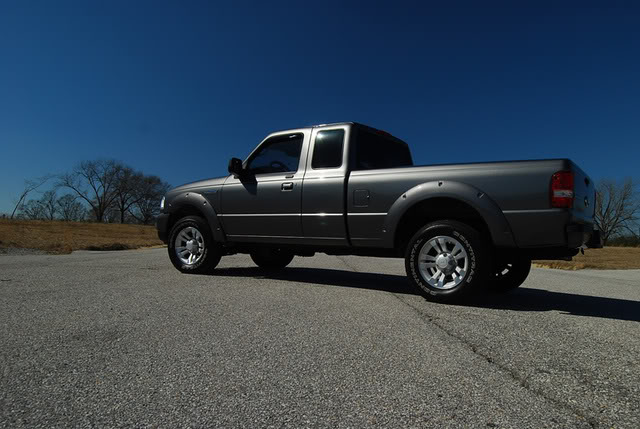

I wish mine was lower I like that lower stance on them...

Name:  DSC_0024.jpg
Views: 279
Size:  66.5 KB

Name:  DSC_0013.jpg
Views: 277
Size:  65.6 KB
Reply With Quote
  #11
Old 08-22-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257

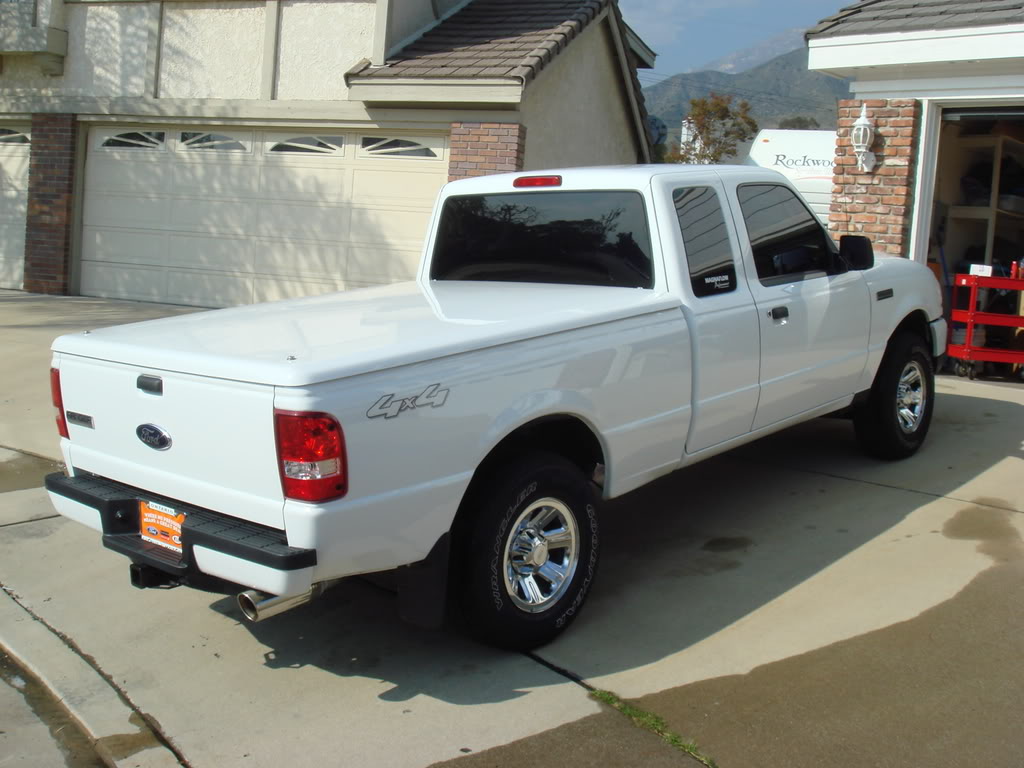

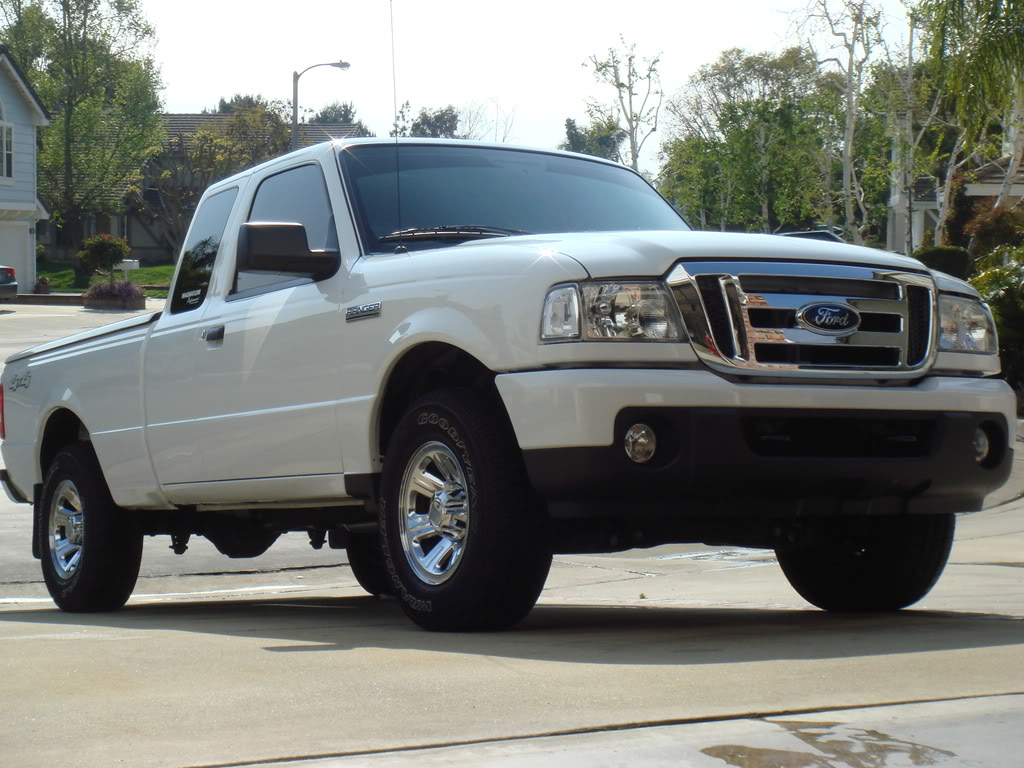

This looks way lower than the the '07 sport!

Name:  DSC00428.jpg
Views: 279
Size:  134.3 KB

Name:  DSC00432.jpg
Views: 277
Size:  104.8 KB
Reply With Quote
  #12
Old 08-22-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
wanna trade? lol


j/k... I just need 31"s and mine would look just right...

* I wonder if the 08's ride better since they have softer bars...
Reply With Quote
  #13
Old 08-22-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
my truck rode pretty harsh when it was stock. i have the #1 bars though
Reply With Quote
  #14
Old 08-22-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
Quote:
Originally Posted by 07SPORT View Post
wanna trade? lol


j/k... I just need 31"s and mine would look just right...

* I wonder if the 08's ride better since they have softer bars...
From what I've seen XLT and Sport 4X4 ext cab trucks have 1 bars, and all 08 FX4's I've seen have B bars.
Mine rode like a cadillac stock, no joke.
Reply With Quote
  #15
Old 09-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
pics? gettin' to the bottom please...


'08's are significanly lower than the 06's and 07's....
Reply With Quote
  #16
Old 09-02-2008
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
maybe the front end is indexed differently. the bars are in a different static position?
Reply With Quote
  #17
Old 09-02-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
how can we find out what bars we have???
Reply With Quote
  #18
Old 09-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Door panel tag, under 'SPR'. Stock, mine is BBKK. Others, 11CC. First set is front spring rate, second set if rear spring rate.
Reply With Quote
  #19
Old 09-03-2008
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
So which bars are stiffer? 1's or B's???
Reply With Quote
  #20
Old 09-03-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
1s
Reply With Quote
  #21
Old 09-03-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
the only thing that could have changed was the index on the keys that slide on the torsion bars. that is the only thing that i know of that can control the height. also this could be applied to the lower control arms, like where the hex is indexed.

Also anyone have pictures of the body mounts? did they change? like the thickness of the bushings?
Reply With Quote
  #22
Old 09-03-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
jesus i think my 99 2wd is higher than that white 07 sport posted earlier.
Reply With Quote
  #23
Old 09-03-2008
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
I looked earlier, and I have a code of FFCC. My buddy has an 03 FX4 Level 2 and his is 11CC. So... 1s are the stiffest, but are Fs stiffer than Bs or visa versa???
Reply With Quote
  #24
Old 09-03-2008
swamper06's Avatar
Member

Join Date: May 2007
Location: McAdoo, PA
Posts: 735
What rear spring code give the most lift? And on a side note maybe the new rangers come with a 1" body drop haha.
Reply With Quote
  #25
Old 09-03-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by 05prerunner View Post
I looked earlier, and I have a code of FFCC. My buddy has an 03 FX4 Level 2 and his is 11CC. So... 1s are the stiffest, but are Fs stiffer than Bs or visa versa???
F is softer than B I think.

C is the heavy duty (to package?) leafsprings... this off the top of my head, I could be wrong.

My code is 11CC and I have the towing package.
Reply With Quote
