  #301
Old 10-04-2009
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
im pretty sure the t-bars will not be any different than coilovers when it comes to adjustment issues... its all in the control arms and the the height your sitting at when swapping over, you'll have the same adjustments with the coilovers (preloads using spanner wrenches) as you did with the t-bars..

however I could be wrong, just a thought
  #302
Old 10-04-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
When doing a front end alignment on a torsion bar truck, you install alignment cams in the upper control arm bolts and adjust camber/caster with these alignment cams. i have lined up trucks with maxed t-bars by using these cams and been able to get it back to spec without a problem. Your Ford dealer is feeding you a line of crap telling you they had to turn your torsion bars down THAT much to correct camber. i have never seen an SLA torsion bar vehicle (even superlifted) be out of spec enough where i have had to de-crank the bars to get it in spec.

as for the coil overs, if they are set up within factory ride height spec, either for a stock suspension or a superlifted one, there is no reason camber cannot be set correctly after the coils have settled
  #303
Old 10-04-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Why would it be any different than the SL setup ?

All that is being replaced is the Shock/T-Bar setup, the lift should be as the SL Kit and all adjustments.
  #304
Old 10-04-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by ranger View Post
800lbs springs suck. Trust me i ran them for a year and a half till my coilovers broke. Even with weight up front the truck will be way to harsh of a ride.
did the 800 lbs springs have anything to do with your shocks breaking? a year and a half isnt that long, unless you beatt he crap out of them lol

well, im gonna try and exchange my new 800's for 750's. hopefully ORW will be cool and trade me lol
  #305
Old 10-05-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by 08XLT4x4 View Post
did the 800 lbs springs have anything to do with your shocks breaking? a year and a half isnt that long, unless you beatt he crap out of them lol

well, im gonna try and exchange my new 800's for 750's. hopefully ORW will be cool and trade me lol
Maybe.. i had them cranked about half way down the coilover. a couple days before they broke, maybe about a week i was camping, and doing stupied stuff i nthe ranger.. jumping it etc.. so im sure that had to do with it...

But the 800lb coils were way to stiff... way way to stiff.
  #306
Old 10-05-2009
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by RangerNVS View Post
Mark because the tire places around here suck....and I'm sorry I don't believe that is correct....
See below...

Quote:
Originally Posted by Toreador4x4 View Post
When doing a front end alignment on a torsion bar truck, you install alignment cams in the upper control arm bolts and adjust camber/caster with these alignment cams. i have lined up trucks with maxed t-bars by using these cams and been able to get it back to spec without a problem. Your Ford dealer is feeding you a line of crap telling you they had to turn your torsion bars down THAT much to correct camber. i have never seen an SLA torsion bar vehicle (even superlifted) be out of spec enough where i have had to de-crank the bars to get it in spec.

as for the coil overs, if they are set up within factory ride height spec, either for a stock suspension or a superlifted one, there is no reason camber cannot be set correctly after the coils have settled
I don't get how you can say this is wrong NVS. Think about it like this.

Take the Suspension out of this for a minute... (so no coilover or Torsion Bar). The Control Arms are still going to move in a given travel arcing path, perpendicular to the truck, based strictly on the Arms.

And depending on the where tire is sits level with the ground on that Control Arm path will control where in that path is deemed "Aligned". The adjustments for this alignment are done on the Control Arms, not the T-Bars (or Coilovers).

So therefore, once you have ride height setup on the Coilovers or T-Bars, it's just a matter re-doing your alignment.
  #307
Old 10-05-2009
shadow905's Avatar
Member
Thread Starter
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
sorry i havent updated. start watching yalls front doorsteps/mailboxes this week and next week!


p.s.- i wont be on here for the next couple days so if yall have any questions or need anything, text me(for those that have my number) or just email me [email protected].
  #308
Old 10-05-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
Quote:
Originally Posted by ranger View Post
Maybe.. i had them cranked about half way down the coilover. a couple days before they broke, maybe about a week i was camping, and doing stupied stuff i nthe ranger.. jumping it etc.. so im sure that had to do with it...

But the 800lb coils were way to stiff... way way to stiff.
So what your saying is go with the 750s?? I eventually plan on getting a bumper and winch so will 750s be enough?
  #309
Old 10-05-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Quote:
Originally Posted by Off-roadranger04 View Post
So what your saying is go with the 750s?? I eventually plan on getting a bumper and winch so will 750s be enough?

If you dont want to not have any suspension give get the 800's. I had them, and im telling yall now its really really really stiff. Way to stiff. The whole truck will vibrate and shake and the suspension will not compress at all really. speed bumps sucked.
  #310
Old 10-05-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Quote:
Originally Posted by ranger View Post
If you dont want to not have any suspension give get the 800's. I had them, and im telling yall now its really really really stiff. Way to stiff. The whole truck will vibrate and shake and the suspension will not compress at all really. speed bumps sucked.
So basically if you go with 800's your wasting your mone yand totally bunking the swap in the first place, might as well keep the tbars....mine are 650s cuz im 2wd
  #311
Old 10-05-2009
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
Matt, ok that makes total sense to me, and thank you for explaining it so my slow brain can understand it. BUT.......like I had said before with MOOG upper control arms, you no long have the adjustments that were available with the stock "FORD" control arms. I believe it was the passanger side. I've upgraded to these arms, which no long have those bolt adjustments. So when you do, or have someone do the alignment on the truck where are adjustments made? Like I had stated before: is the "adjustments" only made with the shims that go inbetween the control arm bushings and the frame?

Thank you again for explaining it.
  #312
Old 10-06-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by shadow905 View Post
sorry i havent updated. start watching yalls front doorsteps/mailboxes this week and next week!
SWEET!
  #313
Old 10-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by RangerNVS View Post
Matt, ok that makes total sense to me, and thank you for explaining it so my slow brain can understand it. BUT.......like I had said before with MOOG upper control arms, you no long have the adjustments that were available with the stock "FORD" control arms. I believe it was the passanger side. I've upgraded to these arms, which no long have those bolt adjustments. So when you do, or have someone do the alignment on the truck where are adjustments made? Like I had stated before: is the "adjustments" only made with the shims that go inbetween the control arm bushings and the frame?

Thank you again for explaining it.
You do know that only adjusted caster on the passenger side right? Ford did that because several places have crowned roads, this allowed the shop to add or subtract caster to allow the truck to drive down the road without pulling in the crown of the road.

You can still adjust camber which is the tilt in and out on the upper or lower arms to make the tire straight up and down at ride height. Caster on IFS rigs is pretty much set as is. It doesnt need changed and shouldnt change in the cycle of the suspension like a solid axle truck.
  #314
Old 10-06-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
without the two piece arm, you can still adjust caster my moving one cam out and the other in FYI
  #315
Old 10-06-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780


Can I say more ????!!!!?!?!?
  #316
Old 10-06-2009
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
After sitting here last night re-reading everything, I realized how DENSE my head must be...LOL thank you guys again for explaining it....must be my "sometimers disease" catching up with me.
  #317
Old 10-06-2009
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by shadow905 View Post
sorry i havent updated. start watching yalls front doorsteps/mailboxes this week and next week!


p.s.- i wont be on here for the next couple days so if yall have any questions or need anything, text me(for those that have my number) or just email me [email protected].
Woop woop!
  #318
Old 10-07-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by Scrambler82 View Post


Can I say more ????!!!!?!?!?
did you get it?!?! lol

who got their kit? im still waiting... patiently...
  #319
Old 10-07-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by 08XLT4x4 View Post
did you get it?!?! lol

who got their kit? im still waiting... patiently...
No !

I am still waiting but I was trying to be funny with Jacob's statement "shipments have been made ".

Here's hopping we get them sooner than later.

luck,
  #320
Old 10-07-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825

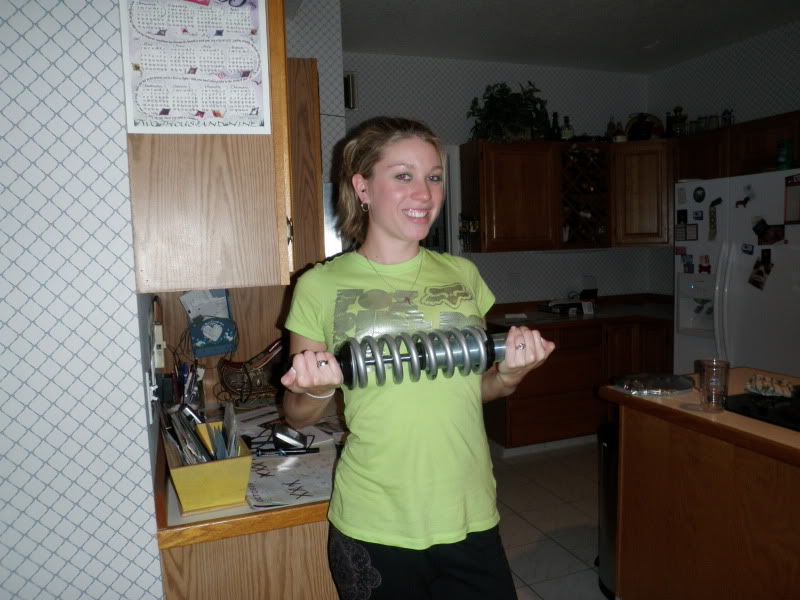

Name:  PA070130.jpg
Views: 56
Size:  97.3 KB
  #321
Old 10-08-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by mlw20lu View Post
yes!!! nice
  #322
Old 10-08-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
^^ Sweet!!
  #323
Old 10-08-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
sweet is right. but i wish i had my brackets too good weekend to install these bad boys
  #324
Old 10-09-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by mlw20lu View Post
sweet is right. but i wish i had my brackets too good weekend to install these bad boys
...dont we all. I really want to get this done sometime this year lol
  #325
Old 10-09-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by mlw20lu View Post
MOAR PLEASE!
