8-Cylinder Tech If you are one of the few with a V8 engine in your Ranger, or if you dream of a Ranger with a V8 engine, this is the sub-forum for you.

Reply

LinkBack Thread Tools Search this Thread
  #151
Old 12-03-2010
Poorboy's Avatar
Member

Join Date: Sep 2010
Location: Gadsden
Posts: 10
Sorry

Last edited by Poorboy; 12-03-2010 at 11:20 PM. Reason: I guess I should just kept quite
Reply With Quote
  #152
Old 12-03-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
Alright man. Well I appreciate the advice. Really.
But why come on someones thread and just start critizing there work or decisions before you even tell them "nice job" or what have you.
I havent cheaped on anything.
Obviously the damage wasn't too bad because before I even told Remmy what I wanted done he looked at the motor in person and said it can honed, no problem. He builds race motors for all the local short track guys and mud drag guys. I was reffered to him by multiple people. I think it's in good hands and everything will be fine.
Link to the bolt kit I ordered.
Milodon 83010 - Milodon Complete Engine Bolt Kits - Overview - SummitRacing.com
Reply With Quote
  #153
Old 12-06-2010
BlackRanger04's Avatar
Member
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by JRacer View Post
Using all new bolts, can't remember the brand name i went with. Not gunna use ARP though, I'm not changing anything in the bottom end so I won't need them.
How am i wasting money?
It's gunna be a rebuilt motor.
It's being done at a very reliable shop that's been around for about 15 years and they've always done quality work.
Plus I don't have the money for a boar. Stupid college...

Edit: Also talked to Remmy (motor guy) today and we're gunna do an adjustable timing set and adjust it 3* for better low end power to coincide with the 1.7 rockers. Only $95 and no labor cost. Can't beat that :)
Not gunna use ARP bolts??? Why not do it right the first time?
If you don't have the money because of college then you should wait until you can do it right. It will just end up costing you more money in the long run. That's just my 2 cents.
Reply With Quote
  #154
Old 12-06-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
I'm barely even mocking up the motor. There is no sense in spending the extra money.
If i was changing the cam or doing some serious bottom end work i would definately use ARP's but that would be overkill for my application.

And Donald, it's cool. Sorry for losing my cool.
Reply With Quote
  #155
Old 12-24-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
block is back at home, gunna see if a couple f my buddies can come over today and help me put it on the stand. they did a fantastic job with it!!! i'll post pics once i get it on the stand.
Reply With Quote
  #156
Old 12-24-2010
Member

Join Date: Dec 2010
Location: Columbia Falls, Montana
Posts: 38
Engine must of had low miles on it. 302s usally have too much ridge in the front cylinders to hone. 1.7 rockers is a good way of getting a little more spunk without changing the cam. Look forward to some pictures.
Reply With Quote
  #157
Old 12-24-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085

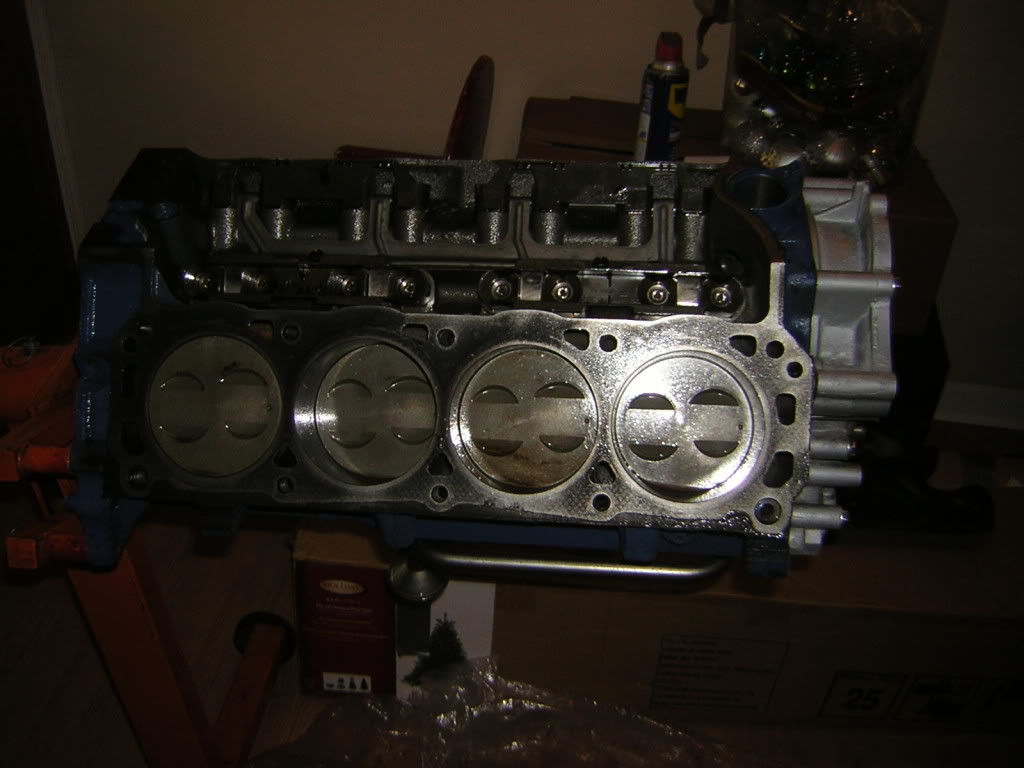

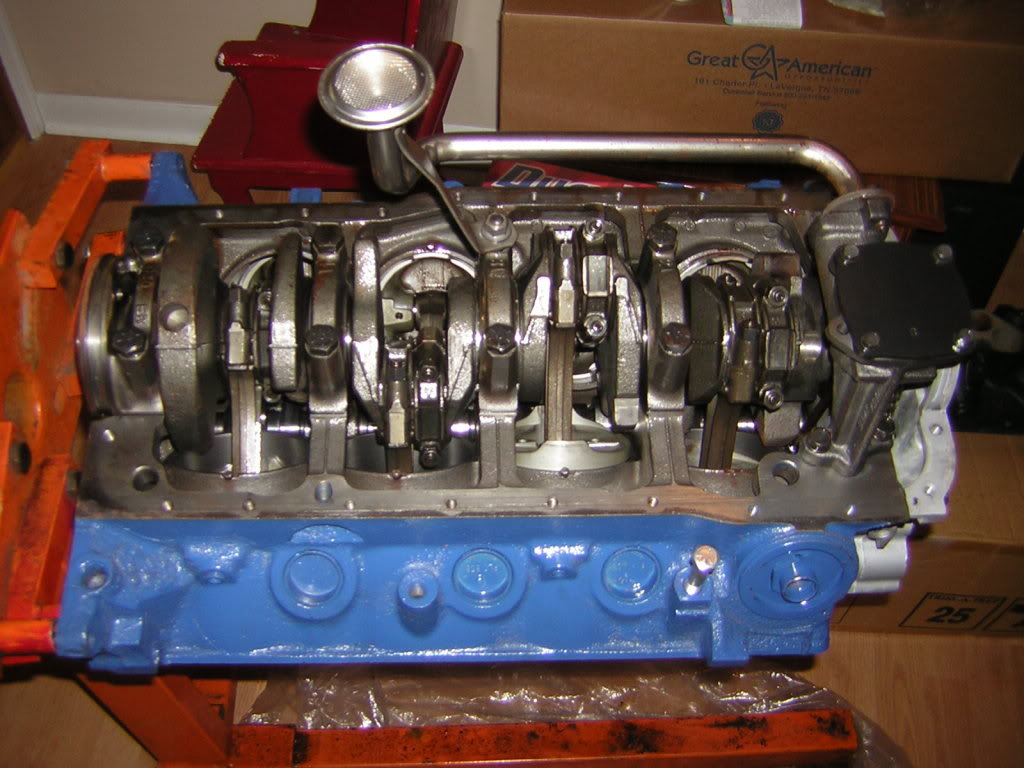

The guy I bought it from claimed it had 130 on it. But anyhow on to the pics, Merry Christmas also

Name:  Motorandparts004.jpg
Views: 2
Size:  79.6 KB
Name:  Motorandparts006.jpg
Views: 2
Size:  114.0 KB
Name:  Motorandparts007.jpg
Views: 2
Size:  118.7 KB
Name:  Motorandparts008.jpg
Views: 2
Size:  109.9 KB

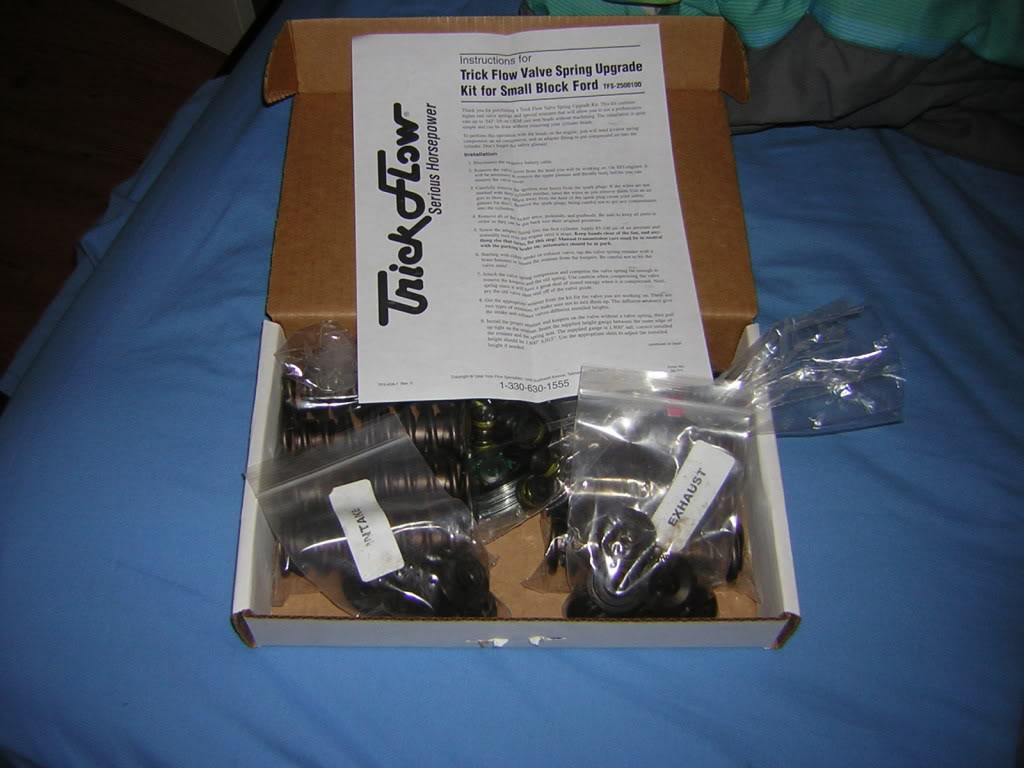

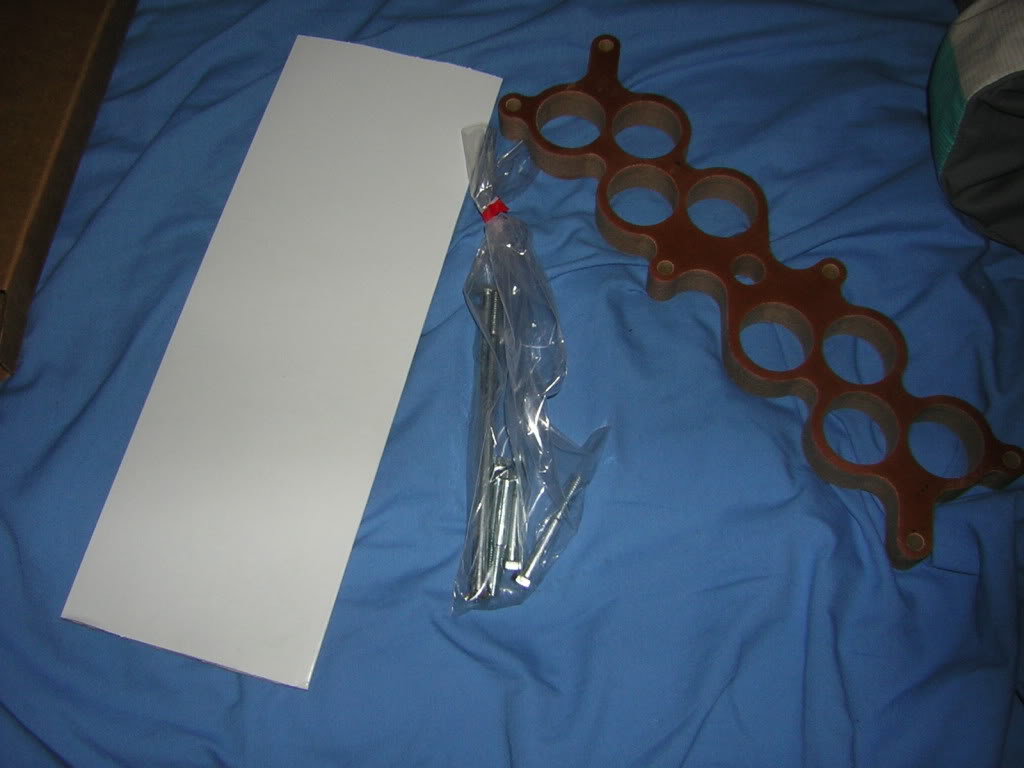

And some new parts:
Name:  Motorandparts002.jpg
Views: 2
Size:  86.8 KB
Name:  Motorandparts001.jpg
Views: 2
Size:  64.5 KB
Name:  DSCN4352.jpg
Views: 2
Size:  87.5 KB

Waiting on my bolt kit from summit. It is on backorder now so no telling when i'll get it. In the meantime i'm gunna save up some $$ and get a new oil pan w/o the low oil sensor and get the head work done.
Reply With Quote
  #158
Old 12-24-2010
Member

Join Date: Dec 2010
Location: Columbia Falls, Montana
Posts: 38

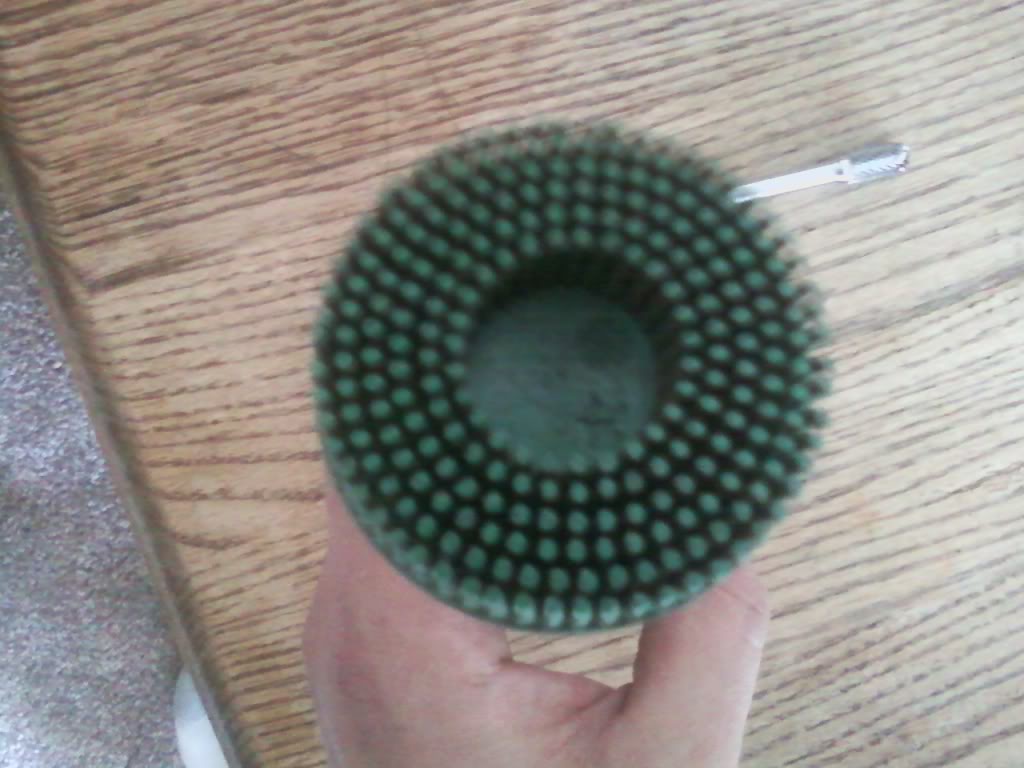

Don't like how the oil filter area got painted, but besides that it looks really good. If you have a die grinder, look for a 3m cleaning tool thats made of hard plastic that has a bunch of fingers on it. should be like a 2 inch disc. Looks like this Name:  gaskettool1.jpg
Views: 2
Size:  80.0 KB Works great for cleaning gasket areas and such. Definately gonna make you happy. I have an interesting engine build I will post for ya, cause it shows how with a set of heads and a intake and carb you can have over 400hp. Oh yeah and headers, but you almost have to have them with a ranger swap anyways.
Reply With Quote
  #159
Old 12-25-2010
Bird76Mojo's Avatar
Member
iTrader: (2)

Join Date: Dec 2009
Location: Central, IL.
Posts: 1,264
Those gasket removing discs (post above me) work GREAT. Although, they can and will remove metal. I'd NEVER use one on any head surface. I love em though. They make removing leftover gasket material a sinch.



GB :)
Reply With Quote
  #160
Old 12-25-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
I wasnt sure about the paint on the oil filter area either. I'll end up getting some fine grit sand paper and removing it before i put the remote oil filter mount on there. I use emery cloth on my gasket surfaces. Always have and it works awesome. There gunna resurface the bottom of the heads for me though so i dont have to worry about that.
Reply With Quote
  #161
Old 12-25-2010
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
this looks just like my build lol
Reply With Quote
  #162
Old 12-25-2010
Member

Join Date: Dec 2010
Location: Columbia Falls, Montana
Posts: 38
Here is the article for ya I mentioned earlier. 400 HP 302 ci AFR 165 cc(Stock Cam)
Reply With Quote
  #163
Old 12-26-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
It pretty much is Mark. lol
I looked at your whole thread for ideas and what not.
Just hope when i finish i don't have a gremlin like you did. Did you ever get that sorted out btw?
Reply With Quote
  #164
Old 12-26-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
Quote:
Originally Posted by JFIVE View Post
Here is the article for ya I mentioned earlier. 400 HP 302 ci AFR 165 cc(Stock Cam)
Nice! Heads are lots $$$$ though. Plus i'm not building a hot rod here, just giving it some more power so i can turn some heads and some 38's.
Reply With Quote
  #165
Old 12-26-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
looks good man!
Reply With Quote
  #166
Old 12-26-2010
Member

Join Date: Dec 2010
Location: Columbia Falls, Montana
Posts: 38
Quote:
Originally Posted by JRacer View Post
Nice! Heads are lots $$$$ though. Plus i'm not building a hot rod here, just giving it some more power so i can turn some heads and some 38's.
Still thought I should share. 38s are pretty big, so all said and done, you might want to rethink the potential of a set of heads and a few tricks. Allready got one. One thing is you don't have to use those heads persay, you could even use some RHS cast irons or something that will flow. Those stock heads are quite restrictive. Good look on the build anyways, and I will probubly try to show you things that I have come across over the years. I have had a V8 swap on the brain for 11 years now.
Reply With Quote
  #167
Old 12-26-2010
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
lol I'm gunna gear 5.13's when it's time for the 38's anyways. I need to finish this first though. :)
Reply With Quote
  #168
Old 01-01-2011
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
Cam Position Sensor, is this the black piece with a gear on the end of it, drops down into the bottom end of the motor, and it sits beside the thermostat housing?

And thanks for all the compliments everyone! :)
Reply With Quote
  #169
Old 01-02-2011
Member

Join Date: Apr 2010
Location: Rapid City, SD
Posts: 78
More or less. The CPS is technically just the sensor bolted to the top of that. I believe the rest of it is called the cam synchro.
Reply With Quote
  #170
Old 01-02-2011
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
And I need the special tool to put it back in correctly, right?
Reply With Quote
  #171
Old 01-02-2011
Member

Join Date: Apr 2010
Location: Rapid City, SD
Posts: 78
Yup. The tool installs in place of the CPS on top of the synchro, and aligns it correctly. You set the engine to TDC on cylinder 1's compression stroke to install it.

I don't remember the tool being very expensive, but you will probably have to order it. There are two different ones, so make sure whether you have the two wire or three wire sensor.

I think i got mine from Amazon.com , and its made by OTC
Reply With Quote
  #172
Old 01-02-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Ford CMP alignment tool part numbers:

303-562 – 96~98 5.0L Explorer (3-wire HE)
303-630 – 99~01 5.0L Explorer (2-wire VRS)


OTC part numbers (OTC is the company that manufactures the Ford tools above):

6469 – 96~98 5.0L Explorer (3-wire HE)
6470 – 99~01 5.0L Explorer (2-wire VRS)
Reply With Quote
  #173
Old 01-04-2011
JRacer's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
Thanks Bob and Chris, It's like $30. I don't have to order it, I'm gunna get it off the Matco truck, he has 2 of them, so one is prolly the 3 wire and 1 is prolly the 2 wire. I just wanted to make sure it was the right tool and i'm glad i asked b/c i wouldn't have known if i needed the 3 or 2 wire.
Reply With Quote
  #174
Old 01-05-2011
Member

Join Date: Apr 2010
Location: Rapid City, SD
Posts: 78
The easy way to tell by looking at the tools is that the 3 wire has a half circle on the bottom for aligning the synchro, while the 2 wire has a 7/8th circle or so.

Also, I hate to disagree with bob, but I've gotten a CPS from a 1998 explorer that was a 2 wire. I seem to remember 98 being a year with three different 5.0 variations depending on build date though, so it probably changes during the model year.

Chris
Reply With Quote
  #175
Old 01-05-2011
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Quote:
Originally Posted by a77cj7 View Post
Also, I hate to disagree with bob, but I've gotten a CPS from a 1998 explorer that was a 2 wire. I seem to remember 98 being a year with three different 5.0 variations depending on build date though, so it probably changes during the model year.
FWIW, the year split that I gave is from Ford Technical Service Bulletin 02-22-1 and the EVTM also says that the 98 5.0 has a 3-wire. If there is any doubt, it's easy enough to do a physical check of the sensor before ordering the tool.
Reply With Quote
