  #76
Old 10-16-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by mlw20lu View Post
Best way to remove fan/clutch? btw its trashed so done care if it gets busted more
The nut that hols the clutch to the water pump shaft is standard RH thread so it unscrews CCW when viewed from the front. The hard part is holding the pulley while trying to turn the nut. When installed on an engine with a complete accessory drive, sometimes there is enough resistance from the belt to allow the nut to be loosened. I find that a sharp rap or two from a brass hammer on the wrench usually helps.

Without the accessory belt to provide some resistance to the pulley, it can be difficult. There are aftermarket tools by KD or OTC made just for this purpose or you might be able to use an open end wrench on the nut and a strap wrench on the WP pulley. IIRC, the nut is 36mm.
Reply With Quote
  #77
Old 10-16-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
sweet thanks!
Reply With Quote
  #78
Old 10-17-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Got to work on it more last night. Ill have pics up in a bit. Tore down all to the long block. My bro in law reccomended I change out the springs not only to go with the B-cam but just because since im gonna have the heads apart anyway and its such a moving component. Im pretty sure I agree. Any suggestions on what kind?

Since im cleaning everything up too, whats the best kind of parts wash? simple green of course but im cleaning all the bolts, brackets, u name it its getting cleaned, painted, chromed or whatever. I figured id get one of those big rubbermaid toy/storage bins and just put everything in there soak it and scrub it. bolts and screws are all indiviually bagged so ill just wash them in there bags.

Upate on the parts. the comany is sending out the alternator and ac compressor asap and they are going to either find the fuelrail/ injectors and harness through that yard or locate them in another. so thats a sweet deal there.
Reply With Quote
  #79
Old 10-17-2009
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
For valve springs I really like the Trick Flow upgrade kit for the GT-40 heads. It comes with the upgraded springs that will handle up to .542 overall valve lifts, new seals, retainers, and keepers. Also if your going to be running a pedastal mount rocker arm, make sure they are tightened and spaced out properly. Comp cams has a good instruction sheet on how to do this on there website. The pedastal mounts are non adjustable besides with shims, and if they are improperly set up they won't provide the needed lifter preload of .020 to .060.
Reply With Quote
  #80
Old 10-17-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Thanks Rob. Yea, my gf got me the Proform Pedestal mount 1.6's for Christmas, there acutally sittin on the counter in the kitchen. Ill look into those springs for sure.

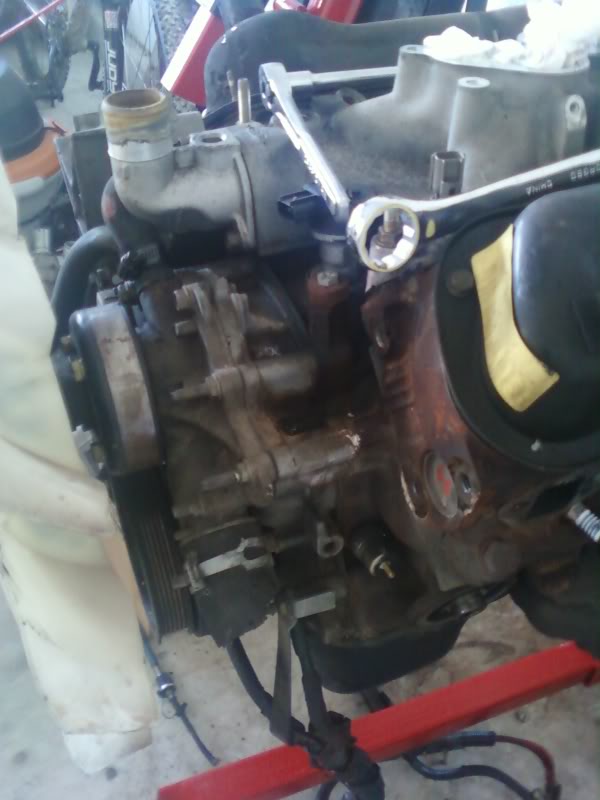

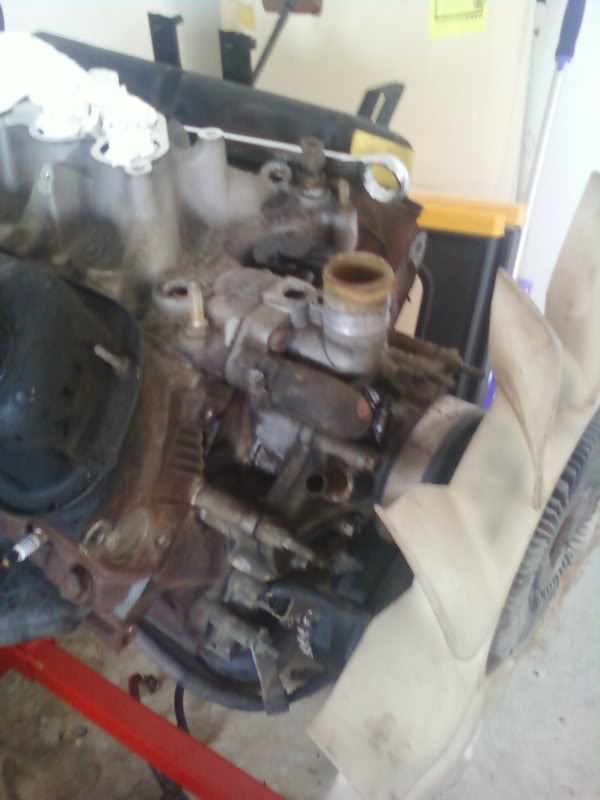

start
Name:  SSPX0647.jpg
Views: 2
Size:  49.7 KB

Name:  SSPX0650.jpg
Views: 2
Size:  41.4 KB

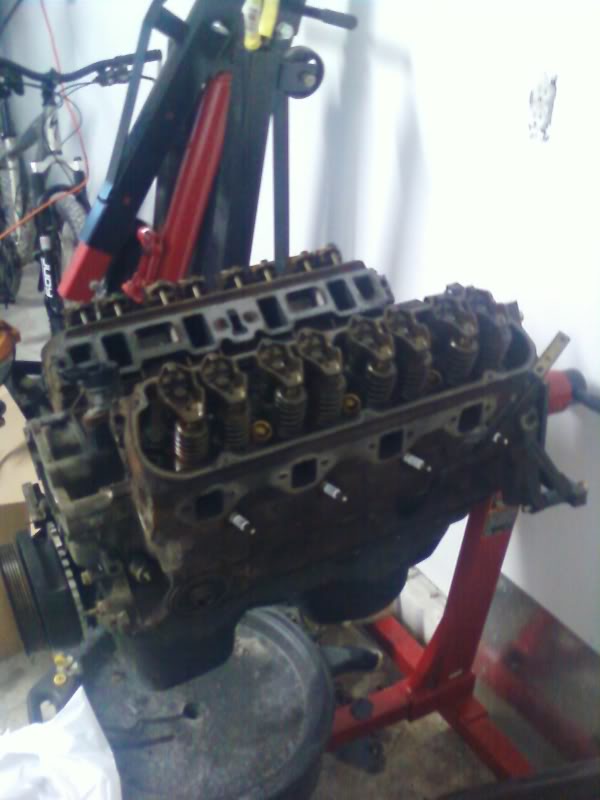

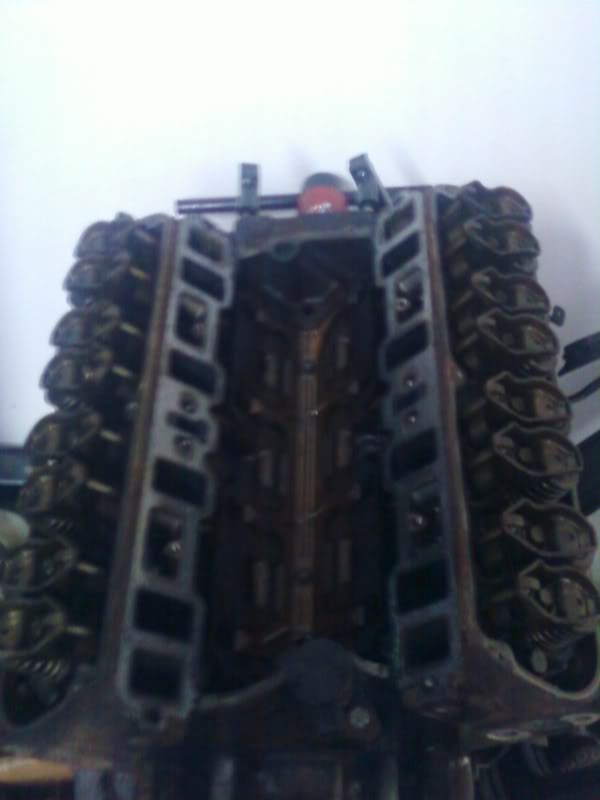

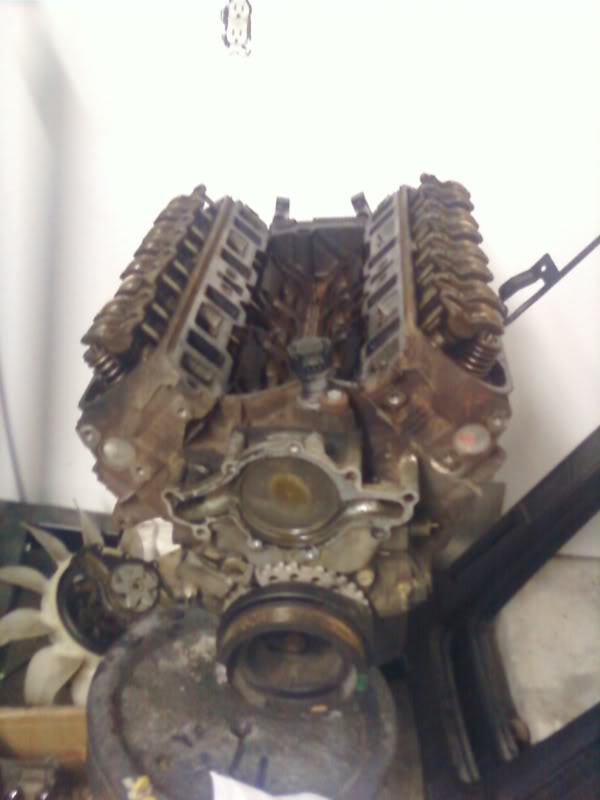

finished for the day
Name:  SSPX0651.jpg
Views: 2
Size:  39.0 KB

Name:  SSPX0652.jpg
Views: 2
Size:  45.9 KB

Name:  SSPX0653.jpg
Views: 3
Size:  30.9 KB

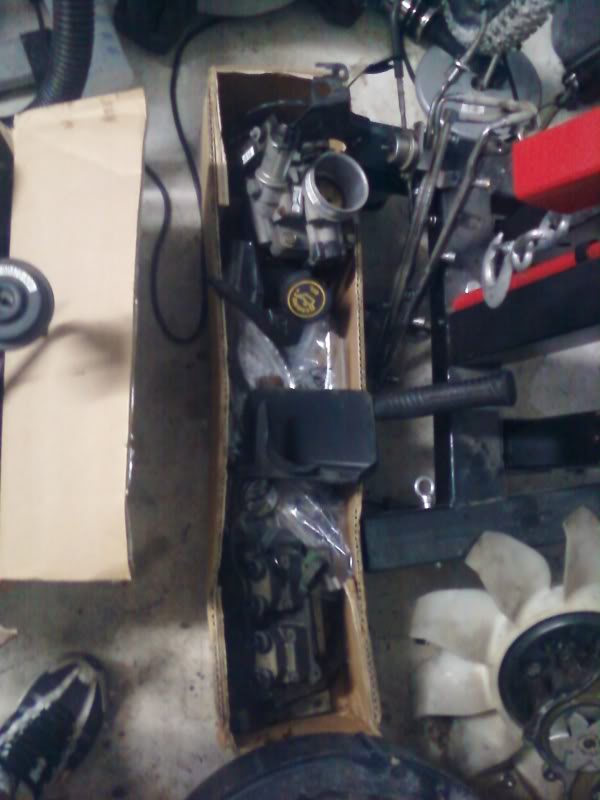

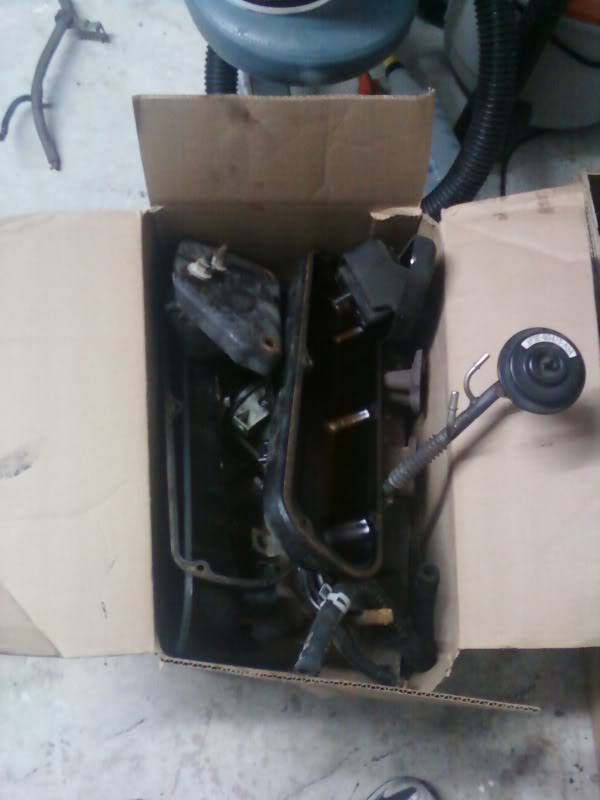

Box o stuff getting bit bigger
Name:  SSPX0654.jpg
Views: 2
Size:  49.6 KB
Name:  SSPX0655.jpg
Views: 2
Size:  38.9 KB

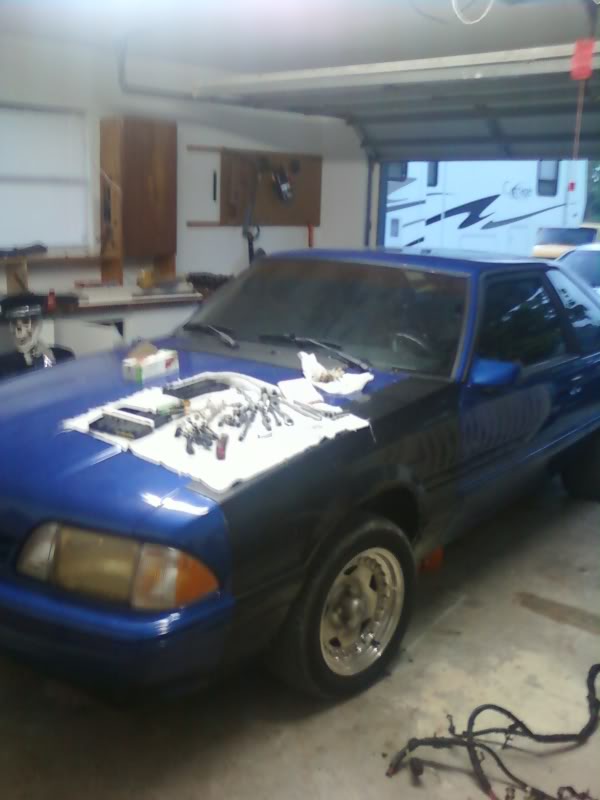

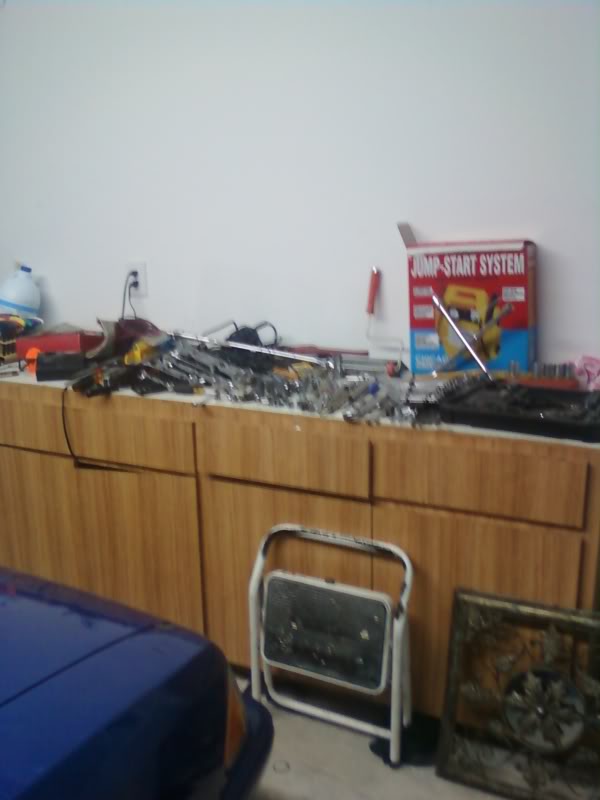

Sad workspace.. anyone need a mustang its for sale with 5.0L
Name:  SSPX0656.jpg
Views: 2
Size:  43.9 KB

Name:  SSPX0657.jpg
Views: 3
Size:  37.8 KB

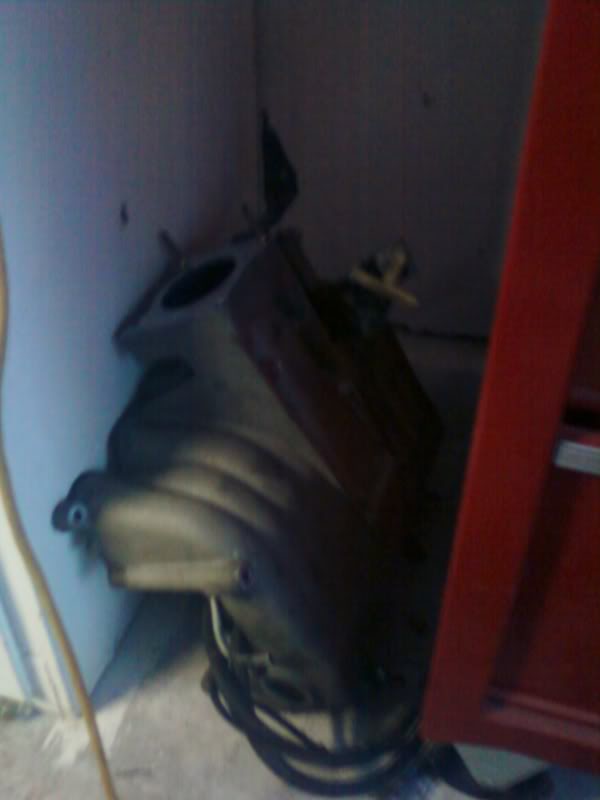

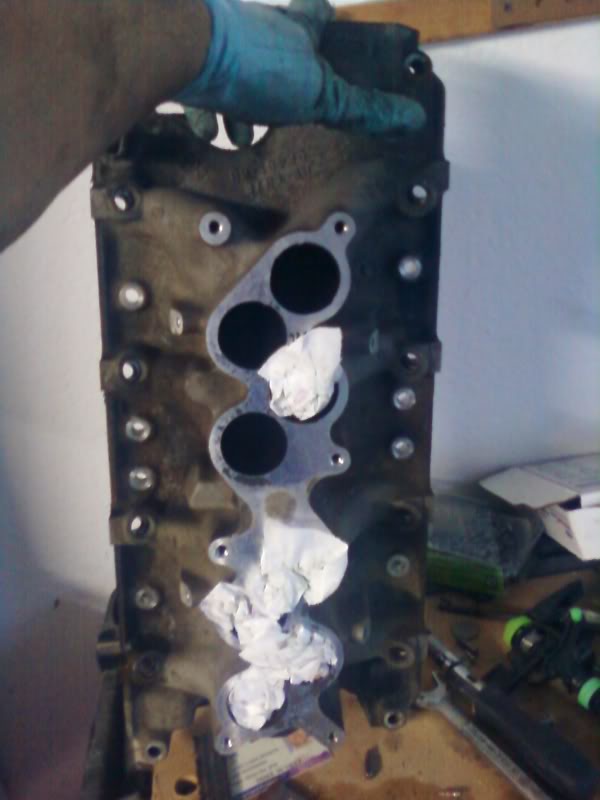

upper. lower intake
Name:  SSPX0659.jpg
Views: 2
Size:  26.6 KB
Name:  SSPX0660.jpg
Views: 2
Size:  41.2 KB

I know everyone is obsessed with pics so thats why im posting so many. Maybe ill remember my gf camera for once next time.
Reply With Quote
  #81
Old 10-18-2009
blueranger06's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Lake Worth, FL
Posts: 246
Nice looking truck and good luck with the build. When you get it done we should have a meet here in Palm Beach so everyone can see it.
Reply With Quote
  #82
Old 10-18-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
oh def lol
Reply With Quote
  #83
Old 10-20-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
any ideas on what the towing capacity is with a v8 ?? gonna get some work done today for sure. how far idk.
Reply With Quote
  #84
Old 10-20-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
should be about the same since the truck only weights so much. the towing capacity is based on the weight of the truck
Reply With Quote
  #85
Old 10-20-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I don't think it will change much. It doesn't have to do with just the engine, you still have the tranny, frame and axle to factor in. But I bet the tow rating of the expo with the 5.0 in it should be close.
Reply With Quote
  #86
Old 10-20-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice start.

Will putting the 5.0 in effect your coilovers, need heavier springs or something?
Reply With Quote
  #87
Old 10-20-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
i realized the towing thing after i posted but thatnks anyway.. yea im gonna have to switch to different coils.. sucks but no big deal. i have 650's now with 2wd n the 3.0 so im guessing the 750 or 800's maybe?
Reply With Quote
  #88
Old 10-20-2009
blueranger06's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Lake Worth, FL
Posts: 246
What kind of HP are you planning on this thing putting out?
Reply With Quote
  #89
Old 10-20-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
500hp
Reply With Quote
  #90
Old 10-20-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,763
Delete by Scrambler82
Reply With Quote
  #91
Old 10-20-2009
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Im still running my 750 coils they are doing fine but id suggest bumping up to 800s if you were to change anthing.. my 750's are almost maxed out and ill switch those out once I feel like doing it again lol....
Reply With Quote
  #92
Old 10-20-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
lol. i dunno, i think they were rating stock around 220? if im not mistaken. With the TM headers vs. the rediculous stock ones n 2 less cats n flowmaster muff, roller rockers, b cam, ported.polished heads, E3 plugs (theyve been proven to work), intake. im hopin thatl bump up to 275ish id hope
Reply With Quote
  #93
Old 10-20-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Quote:
Originally Posted by MudSlanger View Post
Im still running my 750 coils they are doing fine but id suggest bumping up to 800s if you were to change anthing.. my 750's are almost maxed out and ill switch those out once I feel like doing it again lol....
thanks man thats what i thought but confirmatinos is always a good thing
Reply With Quote
  #94
Old 10-20-2009
blueranger06's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Lake Worth, FL
Posts: 246
I was wondering because I found a 289 with a little over 300hp for $1500..Just needs a carb and the front assembly. I think that would be enough hp but wasn't sure what other people were getting with the 302.
Reply With Quote
  #95
Old 10-20-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,763
Quote:
Originally Posted by blueranger06 View Post
I was wondering because I found a 289 with a little over 300hp for $1500..Just needs a carb and the front assembly. I think that would be enough hp but wasn't sure what other people were getting with the 302.
First, i am not sure what you intend to do with the truck and if it is 4x4 or not, so these are things to think about in general.

You need to find out all of the specs on the engine, cam specs (lift duration, overlap), compression ratio, any head work.
When you talk 300 HP in a 289 ci engine you are talking high rpm range for the cam that means the engine could fall flat on its face on a trail or even DD.

A lot of people keep the OEM Cam in the Explorer engines because it is a good all around duration/lift package, just watch out you don't buy something that you can't use.
Reply With Quote
  #96
Old 10-20-2009
blueranger06's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Lake Worth, FL
Posts: 246
Thanks I'll check into it.



Last edited by blueranger06; 10-20-2009 at 07:41 PM. Reason: Picture
Reply With Quote
  #97
Old 10-20-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Quote:
Originally Posted by Scrambler82 View Post
First, i am not sure what you intend to do with the truck and if it is 4x4 or not, so these are things to think about in general.

You need to find out all of the specs on the engine, cam specs (lift duration, overlap), compression ratio, any head work.
When you talk 300 HP in a 289 ci engine you are talking high rpm range for the cam that means the engine could fall flat on its face on a trail or even DD.

A lot of people keep the OEM Cam in the Explorer engines because it is a good all around duration/lift package, just watch out you don't buy something that you can't use.
exactly

i do alot of highway driving mostly aroun 45-70 mph so b cam works for me
Reply With Quote
  #98
Old 10-23-2009
blueranger06's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Lake Worth, FL
Posts: 246
2 Day's and no update. What's going on? What is next or what are you planning?
Reply With Quote
  #99
Old 10-23-2009
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
ive been workin on a bunch of other stuff. had to prep side skirt for my gf car and clean the garage. next up is just cleaning really.gotta take off the heads pull the crank pulley. but this weekend ill be workin on it along with installing my coilovers! fun weekend at the house!
Reply With Quote
  #100
Old 10-23-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
chyeaaaa
Reply With Quote
