5/16 by 7". Take a look at your intake and see, my explorer intake was most definately different, but boy does it look sweet with a 1" spacer!
Reply With Quote
  #327
Old 04-12-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Im pretty sure thats gonna be the size i need. Im sure ill make a trip to the parts store a few times before its all over lol. Radiator and shims will be here today. hopefully get started on installing all the rocker arms tmw!
Reply With Quote
  #328
Old 04-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Guess who got stuff done tonight!!!

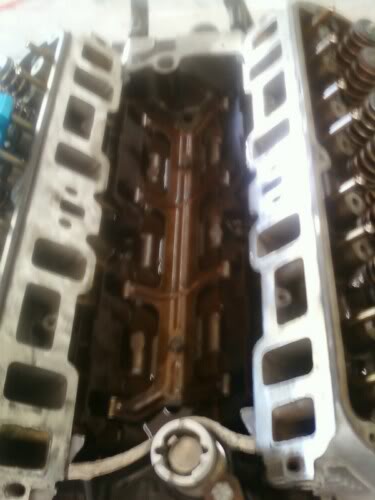

Lifters, plastic guide ( im assuming they reduce noise and vibration), and spider.
Name:  lifterspider.jpg
Views: 4
Size:  26.3 KB

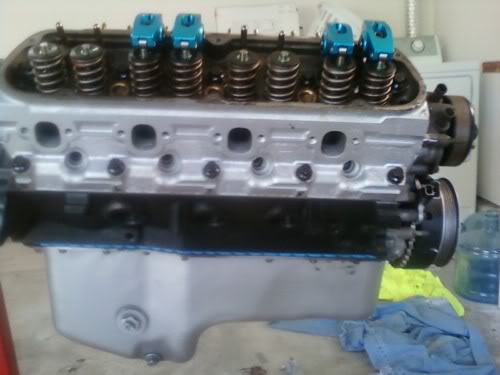

Rockers on #3 & #1 respectively
Name:  rr1.jpg
Views: 4
Size:  27.4 KB

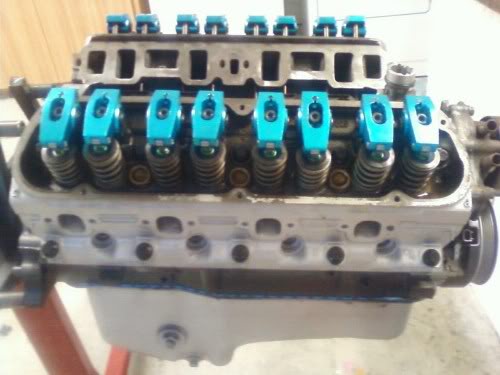

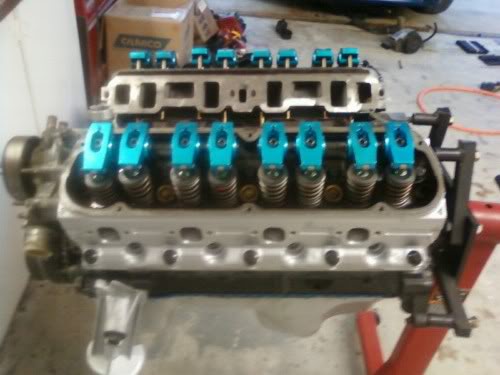

Finished!
Name:  rr5.jpg
Views: 4
Size:  30.7 KB
Name:  rr4.jpg
Views: 4
Size:  31.3 KB

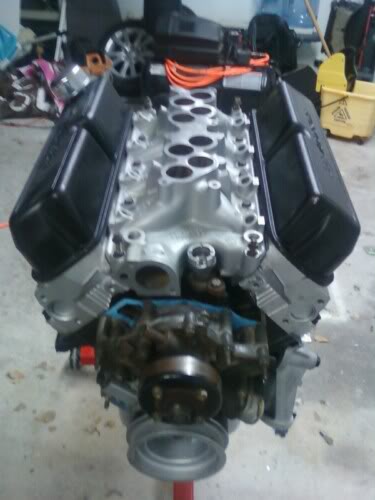

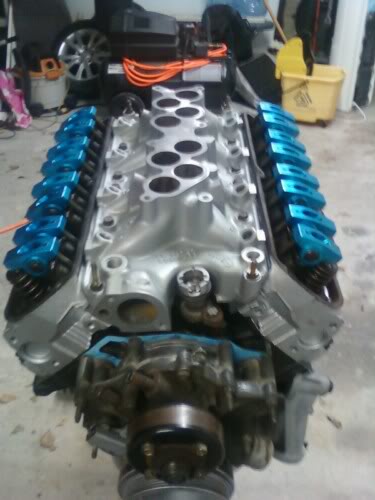

Didnt stop there. Installed Lower intake.
Name:  rr3.jpg
Views: 4
Size:  31.8 KB
Name:  lowerintake.jpg
Views: 4
Size:  28.7 KB

Def glad i ordered the shim kit. I used 0.30" on all except one which needed a 0.060"
Its finally coming together.

Radiator came in today. WOW this **** is thin!
Reply With Quote
  #329
Old 04-13-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn, sure looks purdy! I cant wait to take mine out now that I have another truck to use and go over it all like this.
Reply With Quote
  #330
Old 04-13-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
What radiator did you get? Oh if you need help installing your axle when the U bolts come LMK and I'll come up there and help you with it.
Reply With Quote
  #331
Old 04-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
I got a New OEM replacement.

ballistic just shipped out my U bold today after a week. so hopefully they will get here by fri but i highly doubt it.

New Summit order last night

1 Jet 180* thermostat
8 E3 Spark plugs
Reply With Quote
  #332
Old 04-14-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That thing is slick!
Reply With Quote
  #333
Old 04-14-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
someday, when i have the ***** to try to figure this out, and a blown V6, I'll do this.
Reply With Quote
  #334
Old 04-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
It really is not THAT hard. just have the right resources, materials, patience, organization, and be able to follow directions some with pics and some without. lol. the most important thing. RESEARCH!!!!!

I am really hoping to have the hole engine put together by Saturday. I still need to get the upper intake bolts lol.

Also, I dont know how much of a Finalized write up I am going to be doing, since there is already a few. But with ALL of the pictures I have taken I will be creating an Album or Thread with all the Pics with descriptions of the build and swap.

Trans opinions. I have taken the time to clean and paint everything else I might as well complete the trans also... What color should I go with. Black or the "Aluminum" color
Reply With Quote
  #335
Old 04-14-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
go "aluminum"
Reply With Quote
  #336
Old 04-14-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
What are my options for a manual tranny? I read in another V8 swap thread that the only reliable option was an auto. Couldn't I do a custom order manual tranny? It's cost some pennies but could it be done reliably?
Reply With Quote
  #337
Old 04-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
stephen, its been covered before. m50dr2 out of an f150
Reply With Quote
  #338
Old 04-14-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
My bad... Thank you... Sorry, haven't had my coffee yet... Shouldve searched...


Sorry about the thread jack. Back to you.
Reply With Quote
  #339
Old 04-14-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by mlw20lu View Post
Trans opinions. I have taken the time to clean and paint everything else I might as well complete the trans also... What color should I go with. Black or the "Aluminum" color
Chips in black paint over aluminum will be very obvious. My vote is for Duplicolor Ceramic Engine Paint DE 1650 "Cast Coat Aluminum". This paint looks a lot like new raw aluminum and it is very durable. I painted my intake manifolds and accessory brackets with it 3 years ago and they still look great.
Reply With Quote
  #340
Old 04-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
no worries steve!

Bob, thats the stuff i have used on the whole egnine and ya it rocks
Reply With Quote
  #341
Old 04-15-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Aight so thers a place around the corner from work "Florida bolt&nut" that has the bolts i need for intake and EGR. gonn ahve to cut the egr bold down i know for sure to clear header. While im at it please help with follow bolt sizes that i need and how many lol

Alternator
Transmission
Starter
Reply With Quote
  #342
Old 04-15-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Got some more done tonight

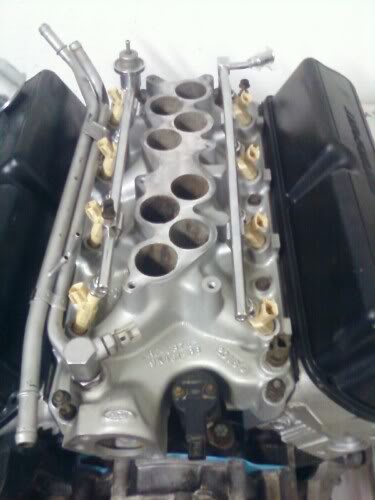

Fuel rai/injectors, heater tube, alternator bracket installed.
Name:  fuelrailinstall.jpg
Views: 4
Size:  27.7 KB

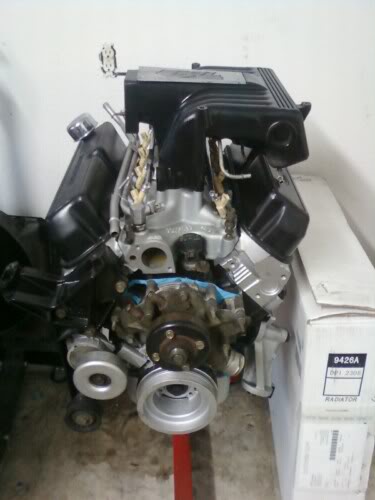

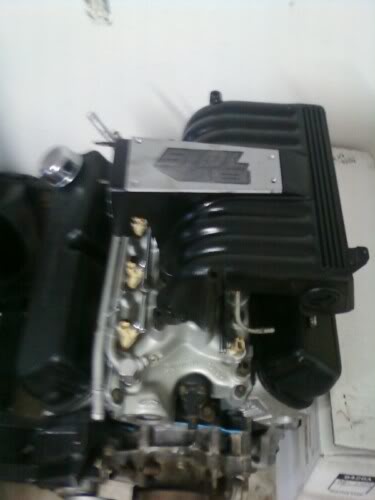

Some cool mock up picks
Name:  mock.jpg
Views: 4
Size:  26.6 KB
Name:  mocl.jpg
Views: 4
Size:  19.7 KB

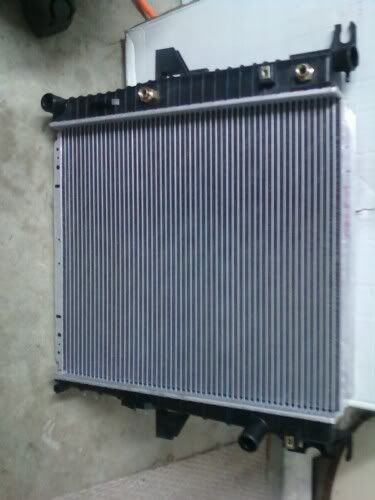

Thin radiator
Name:  radiator.jpg
Views: 4
Size:  26.9 KB

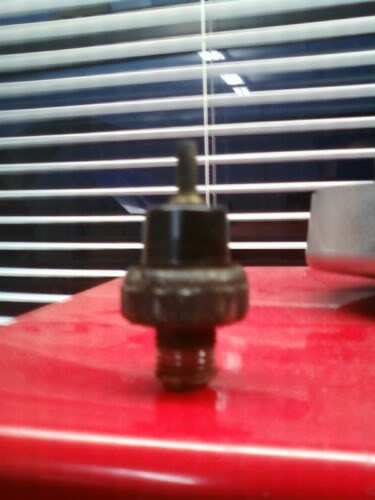

Wrong Oil pressure sensor from a 98
Name:  oilpressuresensor2.jpg
Views: 4
Size:  26.3 KB

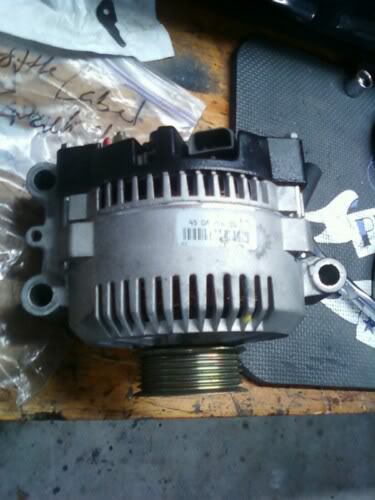

And another thing im peeved.. Been a while and my fault for not checkin but def got sent the WRONG Alternator!! def sucks. now I gotta add that one to the list
Name:  alternator.jpg
Views: 4
Size:  32.8 KB
Reply With Quote
  #343
Old 04-16-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825

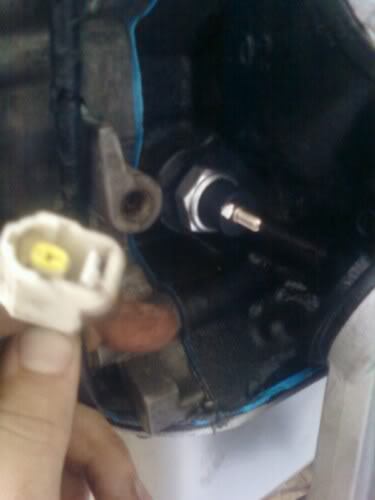

SO now im realy confused. I went to the autoparts store today and they pulled a 2001 explorer 5.0L oil pressure switch and gave me the save exact one i had. is there something going on? i know the connector on my harness does not match.. i found the right one on Rock Auto.com but why wouldnt they have it?
Reply With Quote
  #344
Old 04-16-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
AS SEEN HERE
Name:  oilpressuresensor3.jpg
Views: 4
Size:  15.6 KB
Reply With Quote
  #345
Old 04-17-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
being inspired by power blockon at 11 i woke up with the GF early and headed out to parts store and the depot for parts , nuts bolts etc.

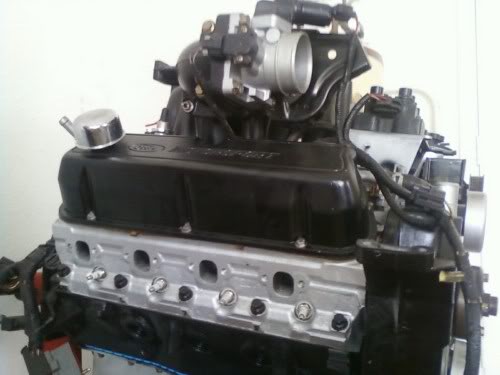

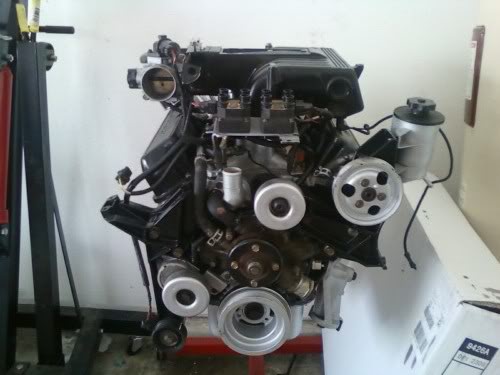

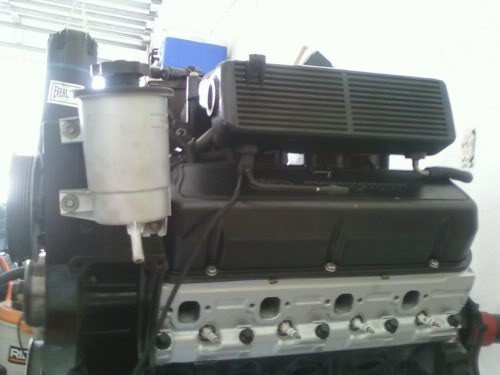

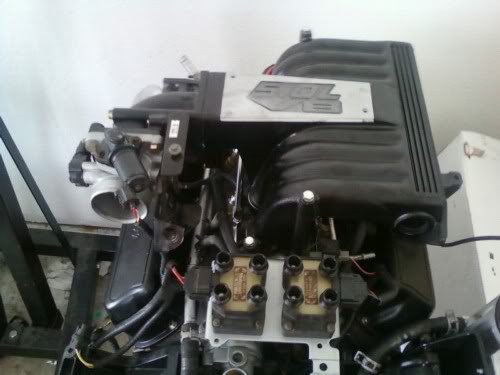

AND...... VIOLA!
Name:  finalassembly4.jpg
Views: 4
Size:  31.4 KB
Name:  finalassembly3.jpg
Views: 4
Size:  28.4 KB
Name:  finalassembly2.jpg
Views: 4
Size:  27.1 KB
Name:  finalassembly.jpg
Views: 4
Size:  23.2 KB

And more bad news and again my fault for not checking. they sent the wrong AC compressor. netiher the alternator or compressor fit the bracket. not even close. im thinking they sent a 4.0 =[ bastards
Reply With Quote
  #346
Old 04-17-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn son nice progress! **** I'd send you mine if you dont get it figured out
Reply With Quote
  #347
Old 04-17-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
I reused the factory A/C compressor from the original 2003 4.0L. 100% bolt on / plug & play.
AFAIK, the 5.0 Ex alternator is different from any Ranger - larger diameter, shorter case front to rear, different mounting bolt pattern.
Reply With Quote
  #348
Old 04-17-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
found a guy on ebay parting out one so already got a replacemtne alternator ac compressor
Reply With Quote
  #349
Old 04-19-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Sending out my ECM to get reflashed this week!!! SWAP WEEKEND will be either starting friday May14th or 21st!!!!!!!
Reply With Quote
  #350
Old 04-19-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
BAM!!!

Nice progress!
