10 days and counting!!! i cant wait
Reply With Quote
  #402
Old 05-12-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
OK so i did some extra work and got a bunch of the Ranger/Starter harness labeled up so i can figure out where to splice (and others)

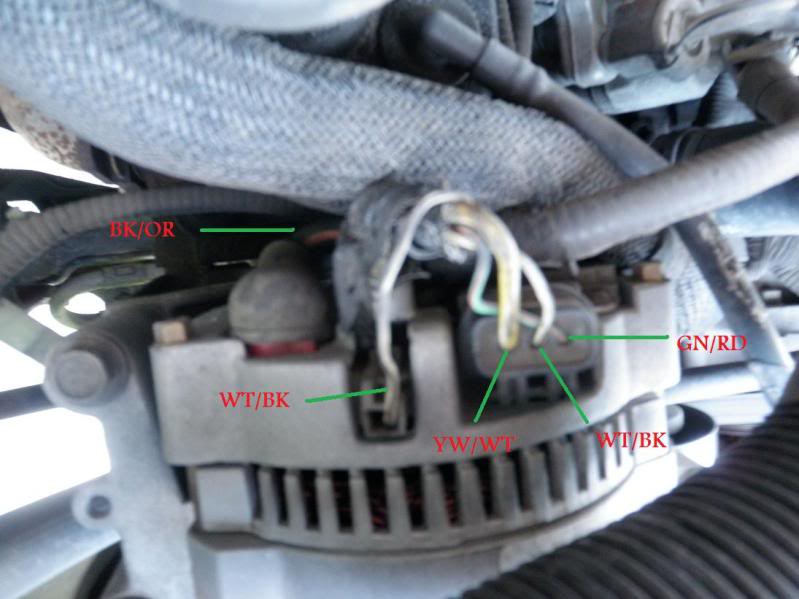

Ranger Alternator
Name:  P5120343-1.jpg
Views: 3
Size:  61.4 KB

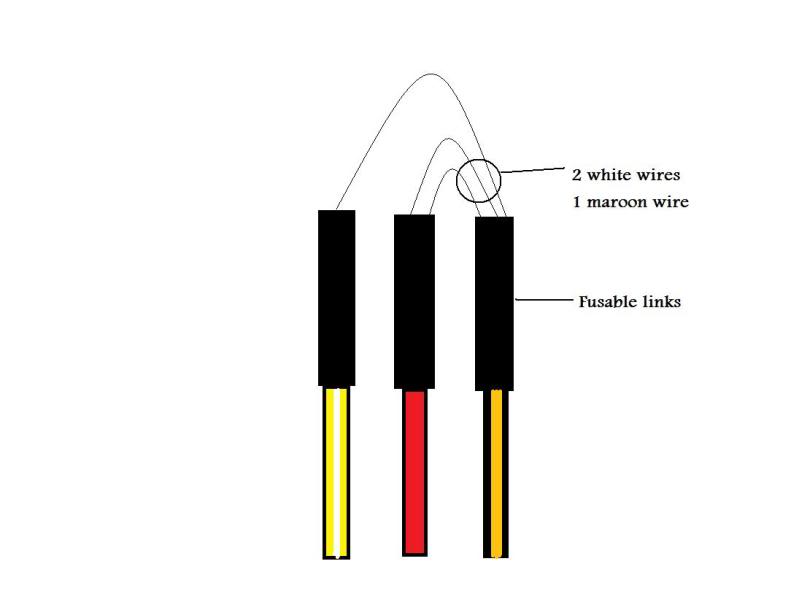

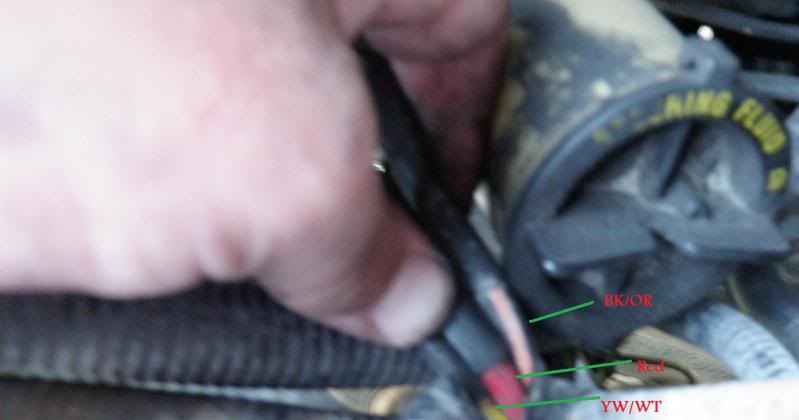

Fusable links
Name:  P5120347-1.jpg
Views: 8
Size:  35.1 KB
Name:  fuseablelinks.jpg
Views: 5
Size:  15.1 KB

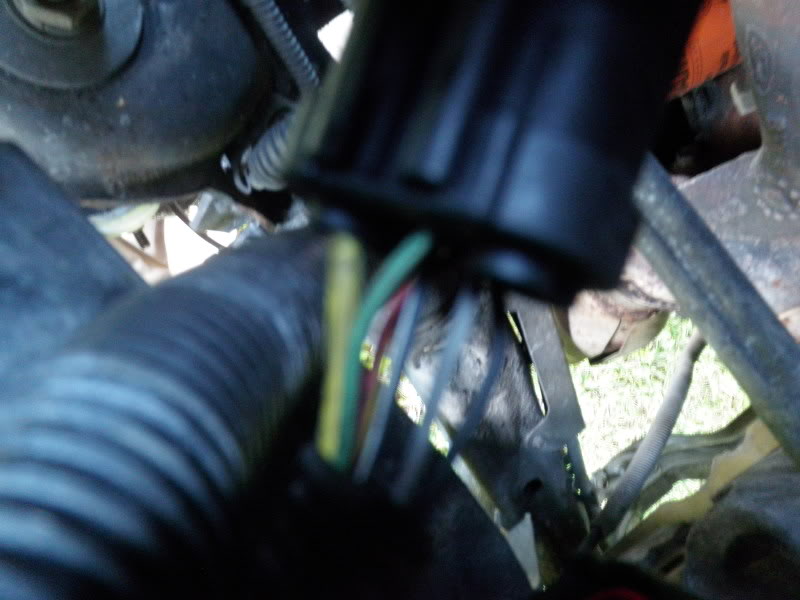

12 Pin Connector
Name:  P5120344.jpg
Views: 4
Size:  69.7 KB

12 Pin Connector Pinout
2. Red / Yellow - AC Condensor Switch
3. Black - AC Compressor
5. Black / White - AC Condensor Switch
6. Grey / White - AC Compressor
9. Yellow / Blue - Starter
11. Green / Red - Alternator
Reply With Quote
  #403
Old 05-13-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by mlw20lu View Post
Ranger Alternator
As shown in the picture, your V6 Ranger alternator has the external white/black that loops out of the alternator from the stator and back in to the regulator. The Ex V8 alternator that I used must have the equivalent of the WH/BK wire routed internally, so I just cut that unneeded wire off of the Ranger harness connector. It plugged right in and works fine.
Reply With Quote
  #404
Old 05-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
that explains alot!
Reply With Quote
  #405
Old 05-13-2010
Member

Join Date: Apr 2010
Location: Rapid City, SD
Posts: 78
Quote:
Originally Posted by mlw20lu View Post
Heres the next project. Starter/ Charging harness and how its integrated.




hope to have them labeled soon.
Ok, looks like your starter harness is from a 96-97. Anyways, what i did with it is kept the power wire to the starter, which i merged with the ranger's main power wire at the battery connection, The main ground, which i also merged with the ranger's main ground wire. Also, the starter signal wire, #2 on your top pic, merges at the battery tray with the yellow/blue (believe was yellow/white in my truck, but whatever) wire from the 12 pin connecter. The extraneous connectors, mainly #6 solenoid connection, can be traced back and deleted.

The second harness you show is the explorer charging harness, and i discarded that completely. It has the two alt control wires, the ac condenser, the ac compressor, and the main alt charging wire.
EDIT, on second thought, i believe the explorer ac condenser plug is part of its headlight harness, not on this cable. Irrelevant though, below procedure still works.
I used the ranger main charging wire, (i believe its integrated in the ranger main battery cable, but its been awhile), and the ranger's ac condenser and compressor plugs down harness from the 12 pin plug. I had to extend one or both, but they plugged right in.
That leaves just the small alternator wires. In mine, i made a custom harness using the ranger plug (as i have the ranger alt still, but i believe the plug is the same) and a yellow and a green wire. In my truck, both were integrated into the main chassis plug up by the computer, but it may be different in yours judging by the green wire in the 12 pin (i didnt have that).

So other than changes to the custom alternator harness, that should give you a good start.
Reply With Quote
  #406
Old 05-13-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
I did something similar.

5.0 Explorer positive battery cables to starter positive and the Distribution Box
5.0 Explorer negative battery cable grounded to front of engine block and radiator core support
Ranger alternator cable and wires
IIRC, I used most of the original Ranger subharness from the 12-pin on the DS inner fender to the AC compressor clutch, AC high pressure cutout switch and the LG/RD charge light wire and merged the Ranger YE/BU to the Ex YE/BU starter solenoid wire. Then bundled the whole mess into one harness.

Last edited by V8 Level II; 05-13-2010 at 10:40 PM.
Reply With Quote
  #407
Old 05-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
^ thats exactly whay im doing! Chris, thanks man! I knew the harness i had didnt seem right. Basically you use 90% of the original ranger plugs/harness and 10% Explorer starter wires, ground cables.
Reply With Quote
  #408
Old 05-13-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
This is what I ended up with:
Attached Thumbnails
5.0L plans-swap-harness-complete.jpg   5.0L plans-swap-haness-driver-side.jpg   5.0L plans-swap-haness-passenger-side.jpg
Reply With Quote
  #409
Old 05-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Dude ur awesome. thats exactly what i had in my head.

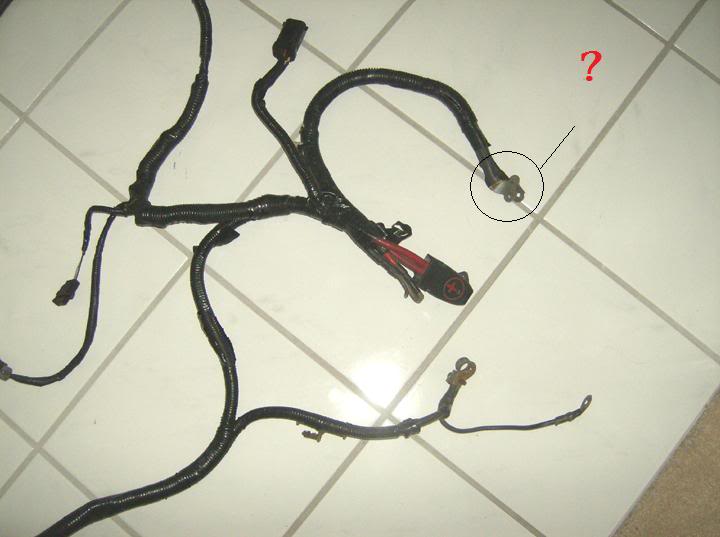

One question. is the "?" where it connects to the distribution fuse block?
Name:  swapharness1.jpg
Views: 5
Size:  35.2 KB
Reply With Quote
  #410
Old 05-13-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Two things bolt down at the front of the Distribution Box:

The original double bolt terminal from the factory Ranger cables is mounted in its original location on both of the two lugs.
The terminal on the end of the positive battery cable from the 5.0 Ex. mounts on one of the lugs.

It was just a convenient place that avoided splicing or adding a dedicated junction terminal lug somewhere else. A little trimming was necessary on the Explorer terminal to make it all fit together.

Attached Thumbnails
5.0L plans-swap-harness-distribution-box.jpg

Last edited by V8 Level II; 05-13-2010 at 10:26 PM.
Reply With Quote
  #411
Old 05-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
ok so run the starter wire from the ranger harness directly from the starter to the double lug? or is that one of the wires that gets tied into those fuseable links?
Reply With Quote
  #412
Old 05-13-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Um emergency.. .i dont think i have the spacer plate to mate the trans to the block!!!!

Anyone got a spare??
Reply With Quote
  #413
Old 05-13-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by mlw20lu View Post
ok so run the starter wire from the ranger harness directly from the starter to the double lug? or is that one of the wires that gets tied into those fuseable links?
OK, I've been digging into my harness to see how I actually did this three years ago.

First correction: I used the Explorer positive battery cable and starter cable, all one assembly joined at the positive battery terminal as in the original Ex. The short Explorer battery cable is the one that goes to the single lug bolted to the distribution box. I don't remember if the terminal was originally double bolt or single bolt but it has been trimmed somewhat and is a single bolt now. The 5.0 Ex starter harness assembly also contains the negative battery cable that grounds at the front of the engine and at the radiator core support. The negative part appears to be unmodified.

The double Ranger lug at the distribution block ORIGINALLY had two red cables attached, one that went to the battery positive post (and then to the starter) and one that went to the alternator by way of the fusible links. The Ranger cable from the double lug to the battery positive has been cut off and the short stub is heavily insulated with multiple layers of shrink tubing and then convolute and tape. That part is no longer needed because I'm using the Explorer positive battery cable instead.

As far as I can tell, the rest of the Ranger alternator branch with the cable, 2 wires and fusible links is unmodified (except for cutting off the white/black as discussed earlier).

So, the remaining Ranger positive red alternator cable and the Explorer positive red battery cable are joined by bolting down their terminals at the distribution box lugs because it was a convenient place to do so.

Last edited by V8 Level II; 05-14-2010 at 05:09 AM.
Reply With Quote
  #414
Old 05-14-2010
Member

Join Date: Apr 2010
Location: Rapid City, SD
Posts: 78
Quote:
Originally Posted by mlw20lu View Post
Um emergency.. .i dont think i have the spacer plate to mate the trans to the block!!!!

Anyone got a spare??
I might, I'll check the shop in the morning. Not sure if my parts motor has one or not. If so, i can ship it out to ya for, i dunno, hows $10 plus the ride sound?
Chris
Reply With Quote
  #415
Old 05-14-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
holllly hella tech!

great job so far......dont know how i never saw this haha

but when ur done im shipping you my truck so you can do mine just as clean as urs!
Reply With Quote
  #416
Old 05-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Bob, Awesome! thanks man again. that makes absolutely perfect sense.


Quote:
Originally Posted by rstangboi View Post
holllly hella tech!

great job so far......dont know how i never saw this haha

but when ur done im shipping you my truck so you can do mine just as clean as urs!
Dude, you are like the 5th person to say that so I might just do that. I would be happy to build anyone an engine in any configuration they want and help out. for a nominal fee of course. lol
Reply With Quote
  #417
Old 05-14-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Quote:
Originally Posted by mlw20lu View Post
Bob, Awesome! thanks man again. that makes absolutely perfect sense.
As always…


Quote:
Originally Posted by mlw20lu View Post
Dude, you are like the 5th person to say that so I might just do that. I would be happy to build anyone an engine in any configuration they want and help out. for a nominal fee of course. lol
Do you deliver ? LoL
Reply With Quote
  #418
Old 05-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Quote:
Originally Posted by Scrambler82 View Post




Do you deliver ? LoL
possibly depending on how far. I actually enjoy building engines and teardown etc. but If anyone is serious I would look into crating and shipping for those too far to drive or meet.

I would do custom paint scheme, parts, build it however anyone would want, create a parts list, breakdown of prices, invoice etc. Im looking for a lil side business anyway.
Reply With Quote
  #419
Old 05-14-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
R U tlkg an install package, say everything less the engine, all set up with instructions and a list of stuff to buy if necessary ????
THINKING HERE ! that could be worth soemthing.
Reply With Quote
  #420
Old 05-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
actually im talking i build everything and deliver to you or whoever to just drop right in. basically like "custom" entire v8 swap kit. charge a build fee instead of hrly labor to keep cost down.
Reply With Quote
  #421
Old 05-14-2010
96RpAaNjGoErR's Avatar
Member

Join Date: Mar 2005
Location: wellington
Posts: 417
how much mark?
Reply With Quote
  #422
Old 05-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Cost would depend on what people wanted ya know parts/ paint, gaskets etc.
Reply With Quote
  #423
Old 05-14-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
I like the idea but I have my engine already, need wiring, sensors, and anything that changes except the engine.
Reply With Quote
  #424
Old 05-14-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
I feel ya. but hey its a good idea for someone wholl want it lol
Reply With Quote
  #425
Old 05-14-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Even without the engine it is a great idea.
It would take some work to get it together.
Luck on the Swap...
Reply With Quote
