  #476
Old 05-25-2010
Topdog2007's Avatar
Level I Supporter
iTrader: (2)

Join Date: Aug 2009
Location: Blairsville, Ga
Posts: 466
Just a thought....Check your MAF sensor....I went thru 5....3 used and 2 new until I found a good one. Would idle fine then when I went into gear it would stall...Unplug it and if it stalls fire it back up and it will run fine...because the computer will go into limp mode.
Reply With Quote
  #477
Old 05-25-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
my problem is it stalls at idle. lil gas and its good.
Reply With Quote
  #478
Old 05-25-2010
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Clean your T/B and IAC?
Reply With Quote
  #479
Old 05-25-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
yeah maybe the IAC is bad
Reply With Quote
  #480
Old 05-26-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
thats tru. IM gonna wait until the exhaust is done and then read the codes to figure it out.
Reply With Quote
  #481
Old 05-26-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
OK lil down time at work heres some pics.

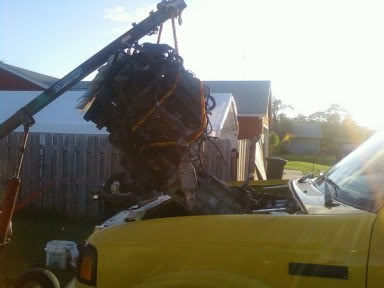

3.0 out
Name:  a34f912c.jpg
Views: 1
Size:  17.5 KB
Name:  bb223b9f.jpg
Views: 1
Size:  18.4 KB

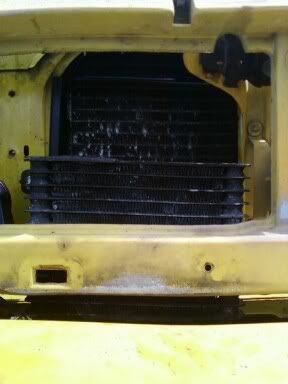

Trans cooler installed, minor i know lol
Name:  9c3dc15c.jpg
Views: 1
Size:  16.6 KB
5.0L
Name:  186a6bec.jpg
Views: 1
Size:  18.8 KB
5.0L IN
Name:  e77f9347.jpg
Views: 1
Size:  17.4 KB
Reply With Quote
  #482
Old 05-26-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good man -- hope you figure it all out and get the beast rolling down the road..
Reply With Quote
  #483
Old 05-26-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
loaded up on tow dolly today to tow to exhaust shop. fixed steering. truck started idling better today. thinkin i just need to drive it to get the ecm to learn n junk. Awesome!!! drive shaft should be done tmw. Friday at the latest!
Reply With Quote
  #484
Old 05-26-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Hell yeah!!!
Reply With Quote
  #485
Old 05-26-2010
96RpAaNjGoErR's Avatar
Member

Join Date: Mar 2005
Location: wellington
Posts: 417
nice man congrats, i still gotta come by
Reply With Quote
  #486
Old 05-27-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Just dropped off at exhaust shop. hopefully done today or tmw!
Reply With Quote
  #487
Old 05-27-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Well it better be done today or tmw cuz im leaving for a week to Tennessee on Saturday lol
Reply With Quote
  #488
Old 05-27-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Nice work! Ps you don't need those headers so give them to me. Steering shaft problem solved!
Reply With Quote
  #489
Old 05-27-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
wow.. once you got everything together, that was out and in fast! lewx gud!
Reply With Quote
  #490
Old 05-27-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Quote:
Originally Posted by INT3RC3PTOR View Post
Nice work! Ps you don't need those headers so give them to me. Steering shaft problem solved!
lol yeaaa but then i would be leaving the steering problem to you. haha

simple fix. chopped the bolt at the threads, and chopped the head off leaving the flange and just welded it in.. prolly need a lil more grinding but its good to me!
Reply With Quote
  #491
Old 05-27-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Good deal! Nah my body lift is gone dewd
Reply With Quote
  #492
Old 05-27-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
tru.

Exhaust done.. single exit in front pass tire. 3" 2 into 1 flowmaster 40 series.. sounds good.
ECM really needs to adapt, but i havent driven it so im sure its lil hard.
BIG crack in intake elbow where upper radiator hose connects. easy fix.
Need an o ring on high pressure power steering hose. ddint come with one but still leaks.
Fix my MAF intake.. easy.
get fan tool, install fan.. easy.
Change over Tach wire... havent put dash all back together so... easyish
Driveshaft will be done tmw. pick up on way home from work... easy
Do have a check engine light so either ill drive it to autozone and get the code read tmw evening (i doubt) or ill bring the one i have home from TN.
Reply With Quote
  #493
Old 05-27-2010
Topdog2007's Avatar
Level I Supporter
iTrader: (2)

Join Date: Aug 2009
Location: Blairsville, Ga
Posts: 466
Once I buttoned up the small stuff...I took off for a 40 mile round trip drive and it seemed to reset or take care of some "soft codes" because the engine smoothed out and I have not had any trouble other than my MAF issues. You should be fine..only codes I show are EGR and I believe I read earlier that you had those removed. Good Luck and have fun in TN.
Reply With Quote
  #494
Old 05-28-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
^ thats what i figured. Im almost positive im actually gonna drive it today and hopefully all goes well! lol
Reply With Quote
  #495
Old 05-28-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
That'd be sick! Pics an Video pleeeeease
Reply With Quote
  #496
Old 05-28-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Driveshaft is done!! well it was done yeserday but dude wrtoe my number down wrong. oh well.... i can get pics. Video might hae to wait cuz I dont have a video camera but my girls camera has video lol
Reply With Quote
  #497
Old 05-28-2010
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Fair enough!
Reply With Quote
  #498
Old 06-06-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
UPDATE!! unfortunately not good... Transmission is Screwed.
Codes-

P1747 - Electronic Pressure Control Solenoid
P0755 - Shift Solenoid B Malfunction

WRONG TRANSMISSION!!!!!!! unless i can get this to work... problem is i cant figure out what transmission it is.. it is a 4r70w aode.... had a different harness than the explorer... changed out the harness with the correct explorer one and the truck fired up no problem

If anyone has any ideas of what trans this is please pitch in.. heres som hints. It has the correct 12 pin range sensor, however it has a VSS in the tailhousing!!!

Im gona track down who i got it from and try to have them send me a new one. or im gonna have to eat it and just order a new one... sucks ***.

even worse news. im moving into my new place this upcoming saturday and work m-f 8-5.. YAY!!! working from time i get home to sundown is getting old real fast
Reply With Quote
  #499
Old 06-08-2010
mlw20lu's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Ok so Some good news!!!!

Transmission pulled quickly and very easily thanks to the help of Chris.

big ups it MPS auto salvage.. Turns out the place i got it off ebay is actually a Huge mustang parts supplier and salgaver in Atlanta. SO they are very nice folks and are getting the Correct trans missing that they found within hrs are getting it packed up to ship out Tmw and be here friday. All i have to cover is shipping with is just uner 90 bucks... im cool with that.

So Cross your fingers and hope Friday Nite ill finally be cruisin in this beast!!
Reply With Quote
  #500
Old 06-08-2010
Topdog2007's Avatar
Level I Supporter
iTrader: (2)

Join Date: Aug 2009
Location: Blairsville, Ga
Posts: 466
Good Deal..MPS is 30 Minutes from me and I have been buying from them for years!!! They are AA++!
Reply With Quote
