  #1076
Old 01-21-2014
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Very nice! I wish I could get back into working on mine.

Its gonna look clean with all that tube up front!
Reply With Quote
  #1077
Old 01-21-2014
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
oh wow, i need to copy you and get busy with my cut off wheel one of these days!

and nice setup man must be nice having a garage :p
Reply With Quote
  #1078
Old 01-21-2014
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
Haha, I just remembered how much crap was in your parents shed, how was moving and unpacking for ya?

Glad to see ya working on the truck already!
Reply With Quote
  #1079
Old 01-21-2014
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Looks good, I insulated mine but the gaps in the door don't help. I have one of those radiating fan heaters (looks like a fan) it doesn't do much tho.
Reply With Quote
  #1080
Old 01-21-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by zabeard View Post
Very nice! I wish I could get back into working on mine.

Its gonna look clean with all that tube up front!
yeah can't wait. I can't decide yet if I'm going to try and keep and mount the ranger lights or do some tube in the shape of the corner light in the fenders and hood and put some aftermarket lights in place of them. maybe like two round lights. one big one smaller on each side?
Quote:
Originally Posted by BLK02 View Post
oh wow, i need to copy you and get busy with my cut off wheel one of these days!

and nice setup man must be nice having a garage :p
yeah feels good cutting off old stuff making room for new awesomeness! it's so easy working on the motor etc. with no front end and fenders in the way haha
Quote:
Originally Posted by morris View Post
Looks good, I insulated mine but the gaps in the door don't help. I have one of those radiating fan heaters (looks like a fan) it doesn't do much tho.
sounds like it may be steam powered? you must be a time traveler cause I have no idea how you are on the forum with such goldrush tech
Reply With Quote
  #1081
Old 01-21-2014
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
*insert canadia joke*
Reply With Quote
  #1082
Old 01-21-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
I though about it..not gonna lie
Reply With Quote
  #1083
Old 02-03-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203

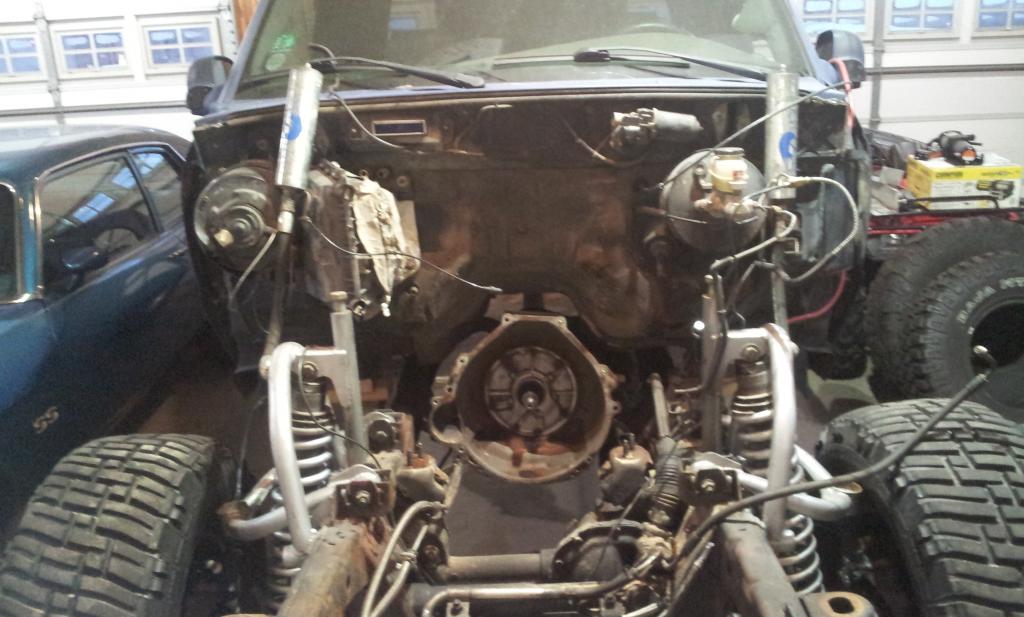

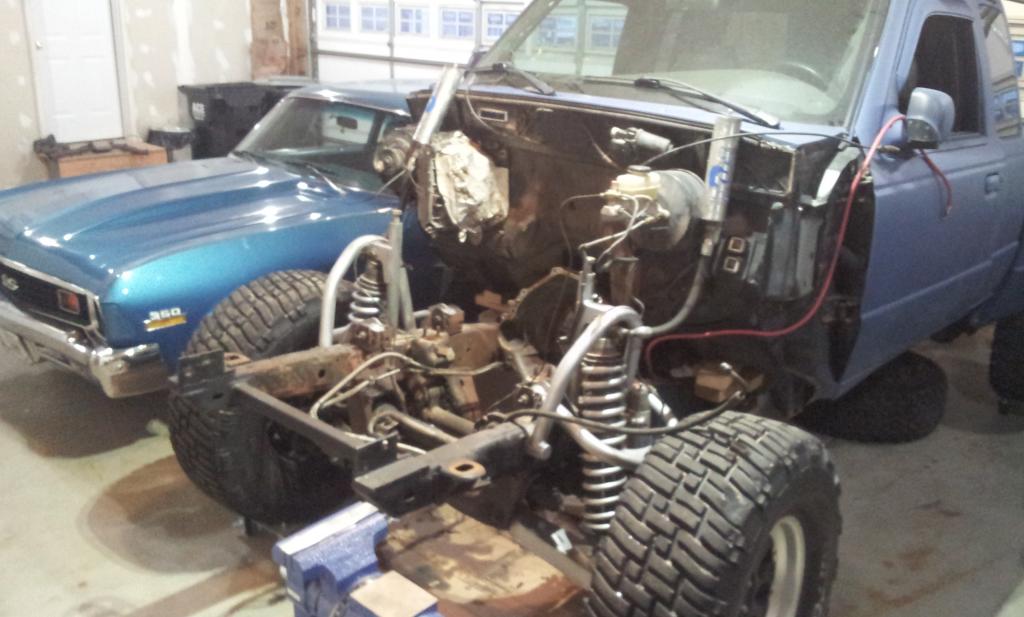

Got a little more done the other day. Got the motor out and planning on cleaning up the firewall and plating of things I don't need anymore. The f250 is finally asking for some attention and money so I've been kinda dealing with that.

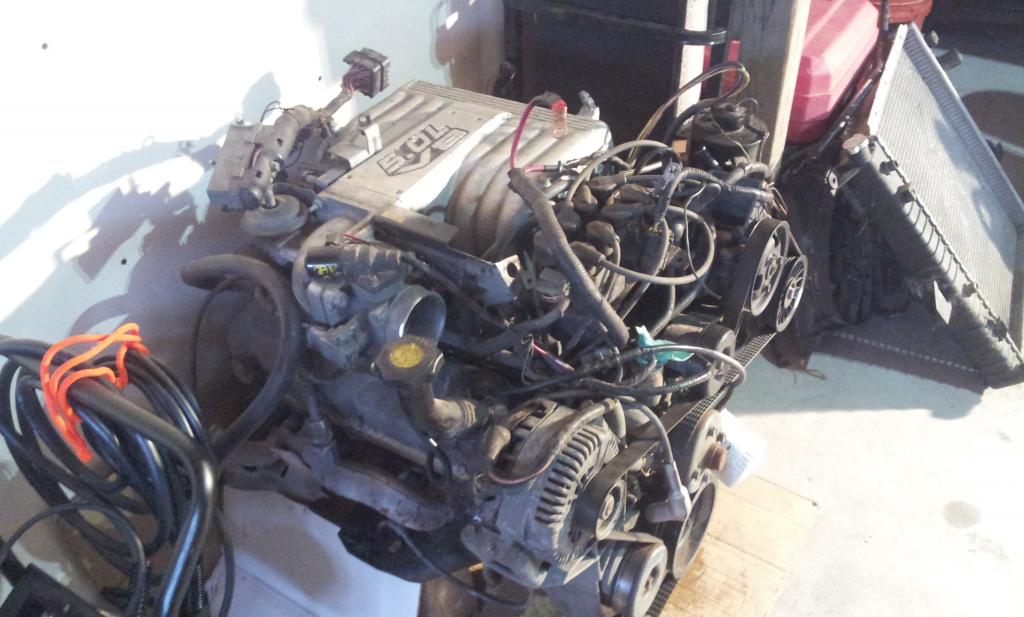

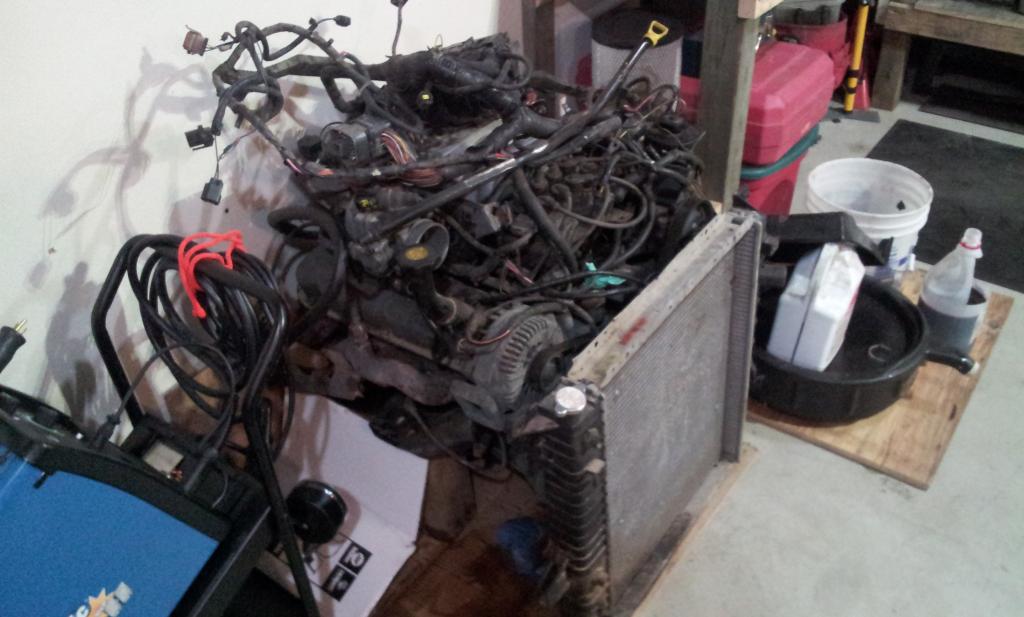

some random pics of the pull















been having problems with my 250 trans...found out why I was 4 quarts low and where it went. the T-case!...awesome. rear seal is gone and pretty sure it took out the torque converter...trans might be ok though.
Attached Thumbnails
DWB 4x4 LT-20140128_122438_zps1bbf2c90.jpg   DWB 4x4 LT-20140128_163530_zps3d8081d8.jpg   DWB 4x4 LT-20140128_172649_zps6d508e15.jpg   DWB 4x4 LT-20140128_172708_zps46aa1448.jpg   DWB 4x4 LT-20140128_172728_zps996ff227.jpg

DWB 4x4 LT-20140128_172745_zps2778f267.jpg   DWB 4x4 LT-20140128_172817_zpsa0623753.jpg   DWB 4x4 LT-20140203_184458_zps14a6635a.jpg
Reply With Quote
  #1084
Old 02-04-2014
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Looks good thus far! btw do not lose heat or remove it, Ive been dealing with no heat in my ranger for 3 years terrible.

What makes you think the tc is gone? Because you were low on fluid? Should be fun pulling the trans on that sucker. So heavy. lol
Reply With Quote
  #1085
Old 02-04-2014
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
I dont know the 4r100 as well as I know the E4OD but neither of them like being low on fluid.

4 low wont kill it, and considering they hold about 24 quarts including TC.

Zach is right though, full of fluid those transmissions are close to 300lbs to be careful.
Reply With Quote
  #1086
Old 02-04-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah I have to get a non a/c blower motor and panel swapped in. little lower profile, plus mine is toasted anyways. I would probably regret no heat as soon as I wanted to play on a frozen lake in the winter...or just the dunes in june lol.


The torque converter seems like its burned out, only because I'd been taking it easy stick driving it for a couple weeks now after it having just a slight slip starting out in drive. manually putting it in 1st it goes right in though. and the rest of the gears have no slip. But when I noticed it was low and I filled it up to the cold fill line(all the fluid I had on hand) after running through the gears it didn't seem to change how it acted. I'd just hate to tear it all down just to replace the rear seal and filter. fill it with all that fluid just to have it still slip on me. A HD Torque converter isn't too much so I should do that for sure if I have it down, but trans I was thinking maybe a rebuild since its out too. got a show in town that will do a 4r100 rebuild for 750, and free shift kit if you want. maybe a little more if I ask for beefier parts in it.
Reply With Quote
  #1087
Old 02-04-2014
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
I would be doing the same thing, no point taking that chance for all that work, cost of fluid, and having it screw off on you all over again. so that was the trouble you were having with it in the sand?

thats a beauty of a space you have got to work with, im trying to track down somwhere local where i can do the same thing till the prerunner invasion. Started a decent sized list that needs to get taken care of.

whats the motor plans, just a refreshed bottom end? i kinda liked the clacking lol.
Reply With Quote
  #1088
Old 02-04-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
dunno..x2 post
Reply With Quote
  #1089
Old 02-04-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
haha no the trans problem is in the f250..little off topic info.

Motor plans range from fresh bored over rebuild,to that plus charger/turbo, to lsx swap :)

I'm kind of at the stage where I'm going to be really putting a lot into it because I've been waiting to tear it down like this for a while. so I may not be able to make a few trips early summer. but it'll be bitchen by the end of summer I hope!
Reply With Quote
  #1090
Old 02-04-2014
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
awesome! just got straight to the lsx, skip the little **** lol
Reply With Quote
  #1091
Old 02-04-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
ford lovers will hate...but at this point my truck is a toy...and I love easy power!

plus I have a buddy that's pretty good with those motors
Reply With Quote
  #1092
Old 02-04-2014
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
Reply With Quote
  #1093
Old 02-04-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah pretty sweet, 5.3 turbo.
Reply With Quote
  #1094
Old 02-05-2014
doyouquaxu's Avatar
Member

Join Date: Apr 2010
Location: Orange County, CA
Posts: 73
LS & boost, can't go wrong with that!

Attached Thumbnails
DWB 4x4 LT-giphy.gif
Reply With Quote
  #1095
Old 02-25-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203

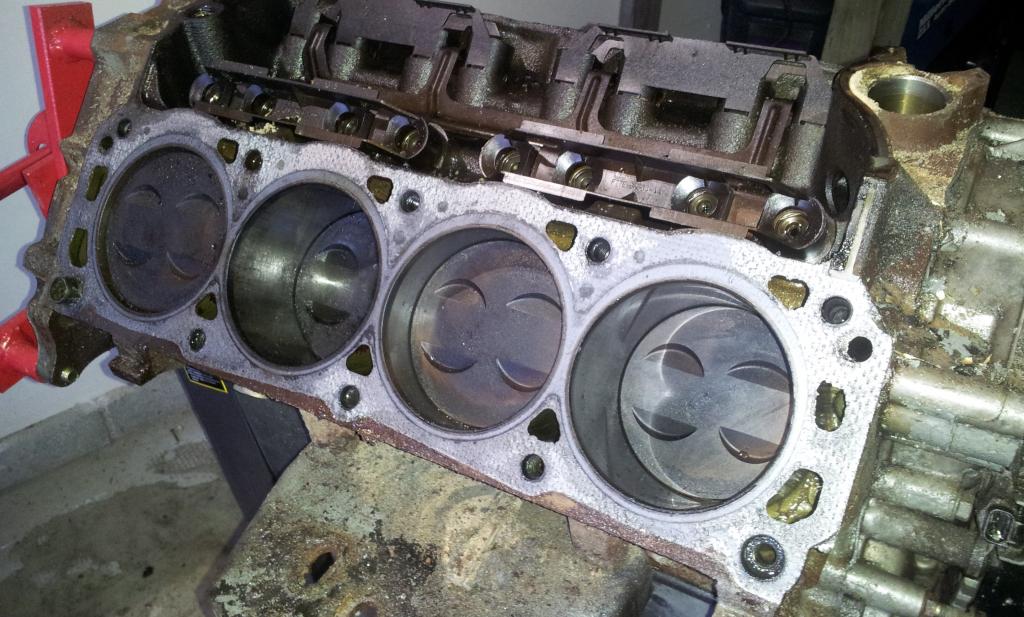

Got the motor torn down to the short block. I really haven't found yet where any of the noise was coming from. pistons and heads actually look really good, crosshatched still and not much carbon. have not checked out the cam yet. but the rods seem tight. so idk. what the huge knock was yet. Also I noticed the rods/caps have numbers stamped in them like they were rebuilt. that's not done stock is it?

And I have all the diagrams to start hacking into my wiring harnesses and get rid of all the crap I don't need. Just needs to get a little warmer out so I can be in the garage and feel better about working on a wiring harness :)

build for the motor is really up in the air. ranges from standard rebuild with aftermarket here and there. to 347 with aluminum heads, new intake, bigger TB, big MAF, injectors etc. I do really want to get this thing in the 400hp range

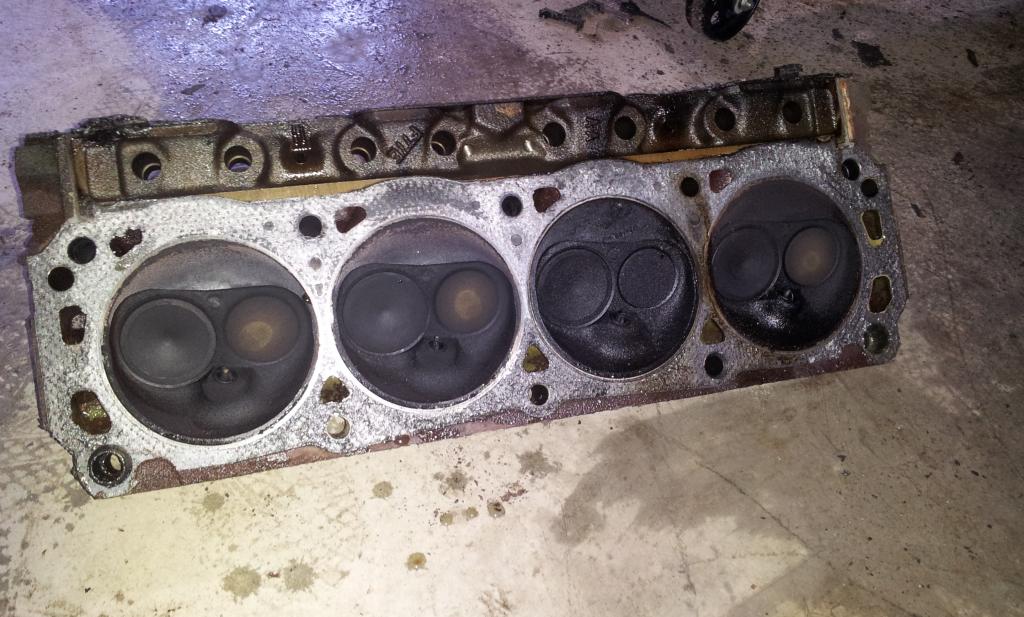

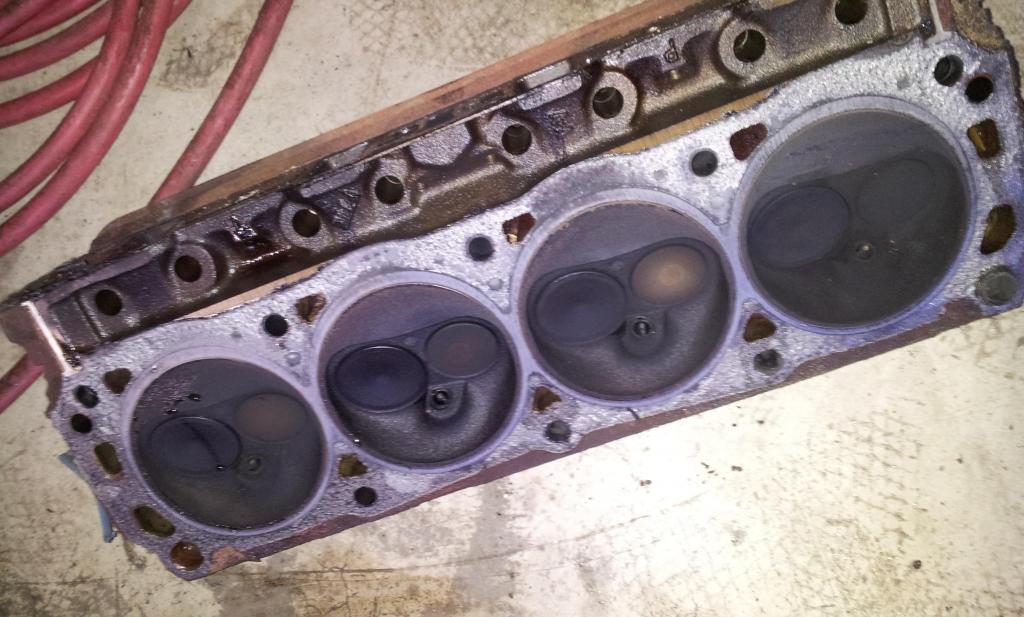

now that it's all apart..sand is in the thing top to bottom lol










And the possible save pile. the Accessory drives for sure, but intakes are up in the air.
Attached Thumbnails
DWB 4x4 LT-20140225_151037_zps7f83515c.jpg   DWB 4x4 LT-20140225_151057_zpsf35233b1.jpg   DWB 4x4 LT-20140225_153606_zps02f99dfc.jpg   DWB 4x4 LT-20140225_153642_zps1f2c0b85.jpg   DWB 4x4 LT-20140225_153648_zps3050e8df.jpg

Reply With Quote
  #1096
Old 02-26-2014
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
May as well go all out at this point!
Reply With Quote
  #1097
Old 02-26-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
What I'm thinking so far:

-stock block,machined,stock crank,rods,pistons (maybe .030 over,306)
-AFR 165cc Heads
-Anderson N-41 or N-21 Cam
-Stock GT40 intakes
-75mm MAF
-30lb injectors
-billet fuel rails
-1.6 or 1.7 rockers depending on the cam

should all work together quite well and make 350-400hp, giving room for ecu tuning etc.
Reply With Quote
  #1098
Old 02-26-2014
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
I would have though for sure that was a rod knock with the way its sounded. Either way! Go big! You got a May deadline!
Reply With Quote
  #1099
Old 02-26-2014
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
I'm gonna do either an n91 or an n111 next. Don't know if I wanna turbo my truck or not. That n41 is supposed to be a good mild cam
Reply With Quote
  #1100
Old 02-26-2014
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by StxDangerRanger View Post
I would have though for sure that was a rod knock with the way its sounded. Either way! Go big! You got a May deadline!
yeah I really don't know what it is yet. everything seems pretty damn tight. but who knows when true torque is thrown at it. but when I look it over or even turn it over by hand quick I hear nothing.

Quote:
Originally Posted by bigandrw View Post
I'm gonna do either an n91 or an n111 next. Don't know if I wanna turbo my truck or not. That n41 is supposed to be a good mild cam
Yeah for what I'm doing for now the 41 will work great. If I was going 347 or a stroked 351 I would go bigger.
Reply With Quote
