  #926
Old 04-19-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I'll probably do it there to see how ballsy I am.
Reply With Quote
  #927
Old 04-20-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Didn't get as much done as I wanted to,but its progress. I cleaned up the back half for paint and started that. After the paint then I can start thrown the fuel system together and start her up. I got side tracked a bit adding some tube that I had meant to do a while back, I "X" braced the shock towers. Also I may add some tube back to the bedcage from the bedside mounts,just kinda realized yeah those are kinda just hanging out there and may like some support

So far I have all the parts I need so only thing stopping me is..me.

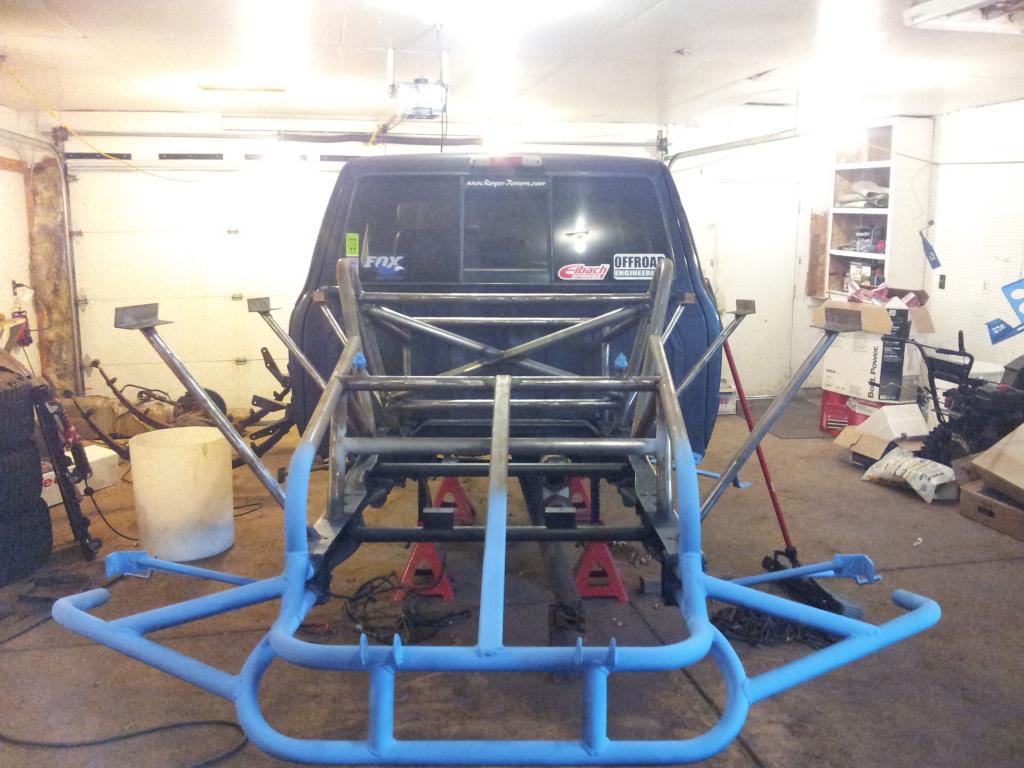

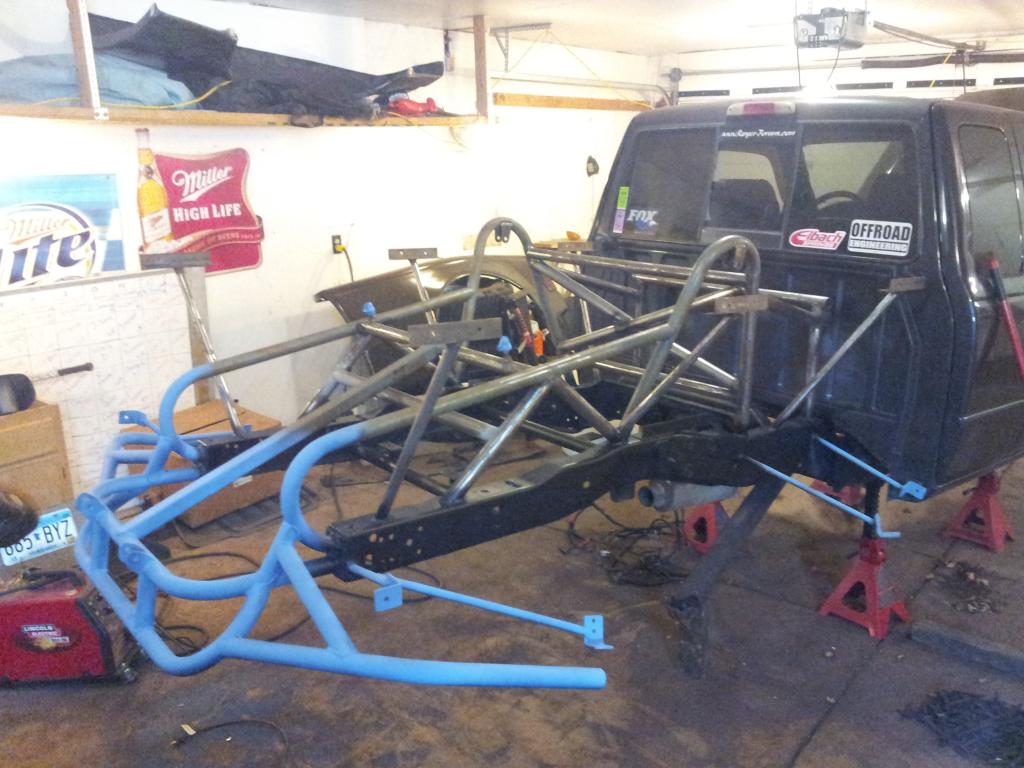

few pics of the bracing and fresh paint starting.





Attached Thumbnails
DWB 4x4 LT-20130420_182331_zps4c873c35.jpg   DWB 4x4 LT-20130420_182541_zpsf7c7840b.jpg   DWB 4x4 LT-20130420_182634_zps6e6350d4.jpg
Reply With Quote
  #928
Old 04-20-2013
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Did a hell of a lot more than me this weekend!
Reply With Quote
  #929
Old 04-20-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
FFS. still waiting on UPS......

:/
Reply With Quote
  #930
Old 04-20-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah waiting sucks!
Reply With Quote
  #931
Old 04-21-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
but the truck looks good!
Reply With Quote
  #932
Old 04-21-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Baby blue eh?
Reply With Quote
  #933
Old 04-21-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
that's flat blue header paint
Reply With Quote
  #934
Old 04-21-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
suuurreee it is.
Reply With Quote
  #935
Old 04-22-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
hate hate hate
Reply With Quote
  #936
Old 04-22-2013
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Dude you shoulda por-15 then paint! Cause then you get rust proofing plus por-15 makes it glossy...followed by header paint = never rust...

Because we know in MN it'll be rusting thru next year. Well maybe not if it's not really a DD..

Also, just so ya know, our spring in Alaska is looking as much like winter as it is in Minnesota. Still 2 feet of snow on the ground but at least roads are dry..
Reply With Quote
  #937
Old 04-22-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
We got some snow this weekend. A dusting here and up in Niagara Falls too.
Reply With Quote
  #938
Old 04-22-2013
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by morris View Post
We got some snow this weekend. A dusting here and up in Niagara Falls too.
Yah well give it a month or two and you'll be in the 90s, right? We'll never get there haha :(
Reply With Quote
  #939
Old 04-22-2013
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Is the blue just as a primer?
Reply With Quote
  #940
Old 04-22-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
we are still getn snow,just got 14" last Thursday and getn 4-8 tonight. ***** crazy..the lake might still have ice on it for walleye opener may 11th..that's insane.

por15 aint cheap..and i don't like it's finish. plus it won't see salt so I'm not worried. I'd maybe get a small can for the frame some day.

the blue was me seeing how it would look. my colors were going to be gunmetal grey or flat black plastidiped body with blaze blue accents. I have blaze blue plasti for the wheel lips,over the machined lip. so i was maybe going to do the tube the same. i may just do the wheels and my coils blaze blue and do the tube flat black or silver to not have too much blue. I'll figure out something cool don't worry..just want it to be different.
Reply With Quote
  #941
Old 04-22-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
seriously..fix this double post problem

Last edited by INT3RC3PTOR; 04-22-2013 at 05:13 PM.
Reply With Quote
  #942
Old 04-22-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Chevy Orange or bust.
Reply With Quote
  #943
Old 04-22-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
maybe,cause I aint getn no Ford blue love! lol
Reply With Quote
  #944
Old 04-22-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
ive had great luck with rust check primer and a black rust paint. its almost like a powder coat when done right on my bumper/frame
Reply With Quote
  #945
Old 04-28-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
little update:

It was super nice here this weekend so I was able to get some work done with the garage door open..but also hard to get work done cause I wanted to also be outside and grill and have some beers. And also drive the nova some

- Made my UCA gussets and welded them on
- Got most of the paint done so I could get the fuel system mounted and plumbed
- Got my optima battery box mounted
- Got my fuel pump mounted on the frame rail. Was a little tricky finding a good spot to mount it within the 2ft or less of the cell that's recommended. Now I can start to get my fuel lines made and plumb it all up and be ready to start it up soon.

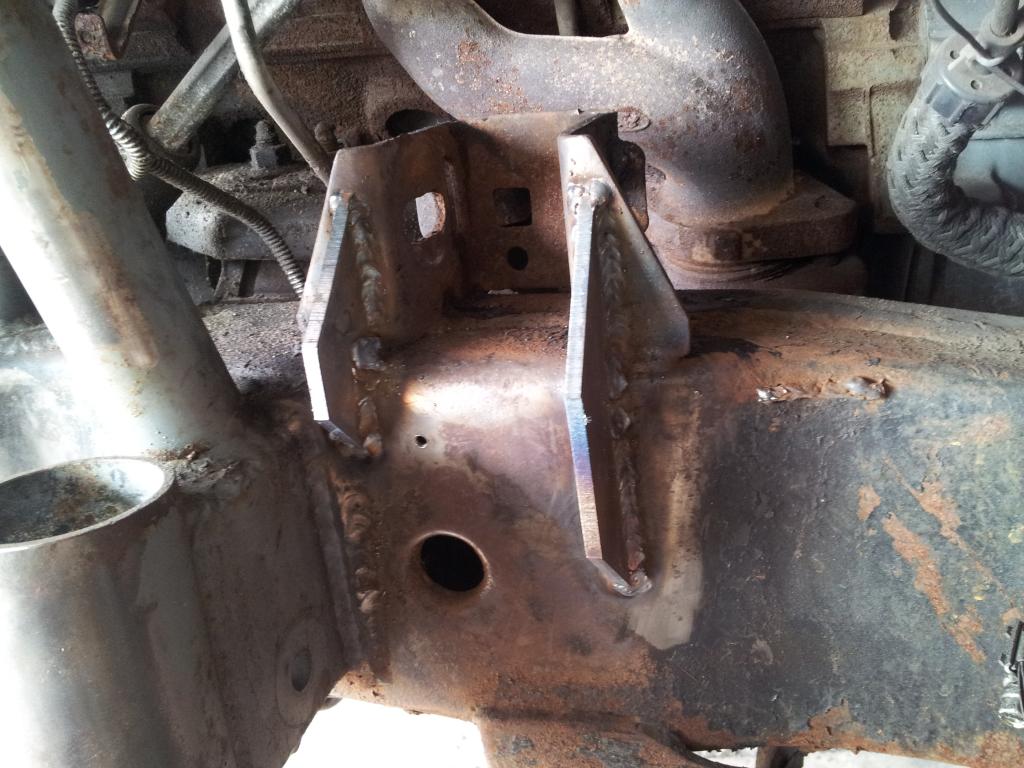

UCA Gussets

Gussets welded on

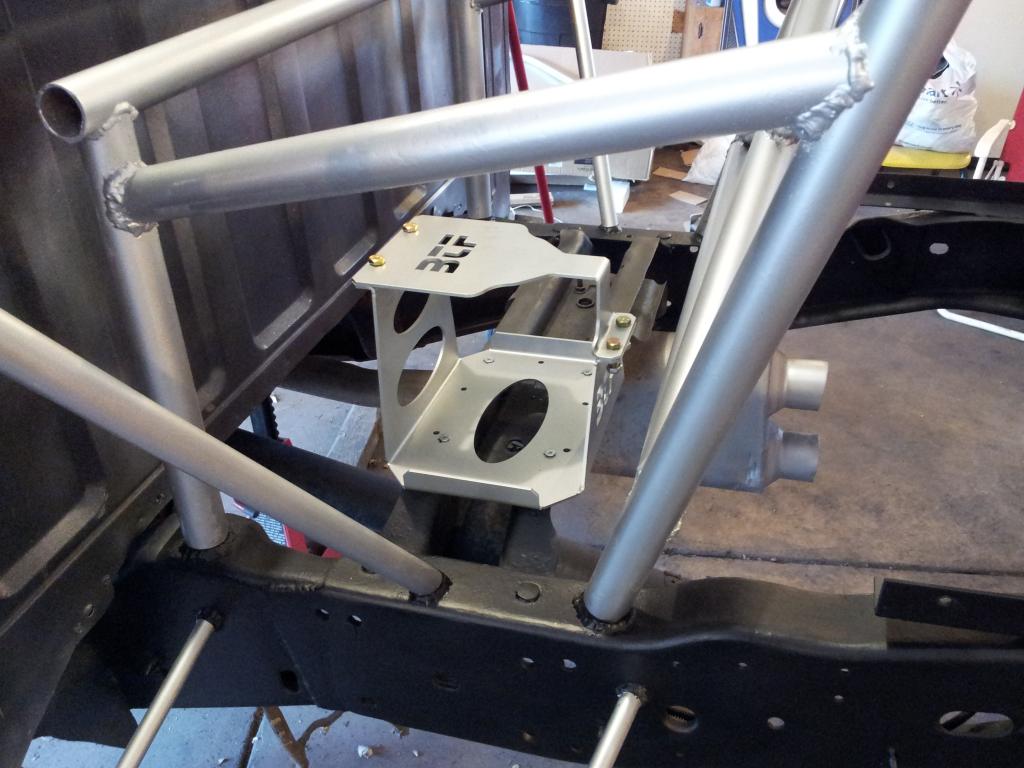

Battery box mounted

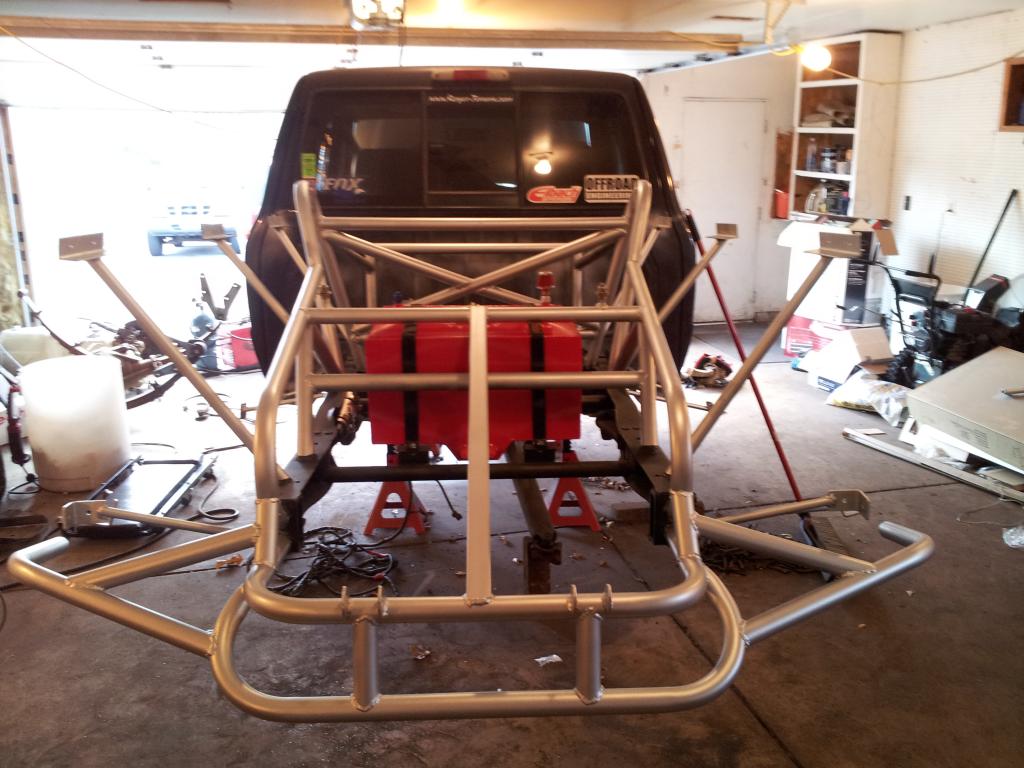

All painted and ready for re-assembly. I just need to get the suspension parts re-painted as well and thrown back on. I also need to order some CV boots


Fuel pump mounted inside frame rail next to the fuel cell.
Attached Thumbnails
DWB 4x4 LT-854dd34e-c153-4463-bbf8-022ec01134f4_zpsd6ed1952.jpg   DWB 4x4 LT-20130428_130308_zps78dc3bb4.jpg   DWB 4x4 LT-20130428_171050_zps33d8ab1c.jpg   DWB 4x4 LT-20130428_171038_zpsff971685.jpg   DWB 4x4 LT-20130428_171245_zpse9e1cf17.jpg

DWB 4x4 LT-20130428_171113_zpsbaca04e2.jpg   DWB 4x4 LT-20130428_130324_zpsafaefbf8.jpg
Reply With Quote
  #946
Old 04-28-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Good work. I installed a garage door opener. (Yay to me!)
Reply With Quote
  #947
Old 04-28-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
You both beat me. I watched Netflix all weekend.

Trucks looking good Andy. What'd you use to paint the frame?
Reply With Quote
  #948
Old 04-28-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
I used Dupli-color ceramic engine enamel for both colors. I like how it covers and its pretty strong. I also like the spray nozzels they have.
Reply With Quote
  #949
Old 04-29-2013
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Daaaamn! Looking good
Reply With Quote
  #950
Old 04-29-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by INT3RC3PTOR View Post
I used Dupli-color ceramic engine enamel for both colors. I like how it covers and its pretty strong. I also like the spray nozzels they have.
Those nozzles are pretty nuts. I've got a few cans of their trim paint. Works well.
Reply With Quote
