  #951
Old 04-29-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
that looks awesome! nice work on the gussets. what is that 1/4"?
Reply With Quote
  #952
Old 04-29-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah 1/4 or 3/16 can't remember. i had a pile of 5" triangle lazer drops from a steel vendor i used for them and cut the points off.
Reply With Quote
  #953
Old 04-29-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
nice! i still need to get my frame plates cut out.

gonna have a BUSY few weeks.
Reply With Quote
  #954
Old 04-29-2013
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Looking good! Nice to see it all cleaned up ago
Reply With Quote
  #955
Old 04-29-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good bud! i like the silver!
Reply With Quote
  #956
Old 04-29-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Thanks Doods!

Started plumbing tonight. But I realized I should have got some -8AN 90* fittings to hug the fuel cell and stay out of the way better. I was short 2 -8AN fittings anyways becuase I got 2 more -6AN fittings than I needed so I'm going to order up the 90s and it should fit and look real nice. Had to get a little creative making a mount for the bypass regulator to fit where I wanted. Since the bypass exits at the bottom and the adjustment is at the top. Because I wanted it inside the frame rail I had to make a mount to push it out enough to gain access to it.

Anyways..here are a couple pics of the start. should have a lot more to show in the next couple days.

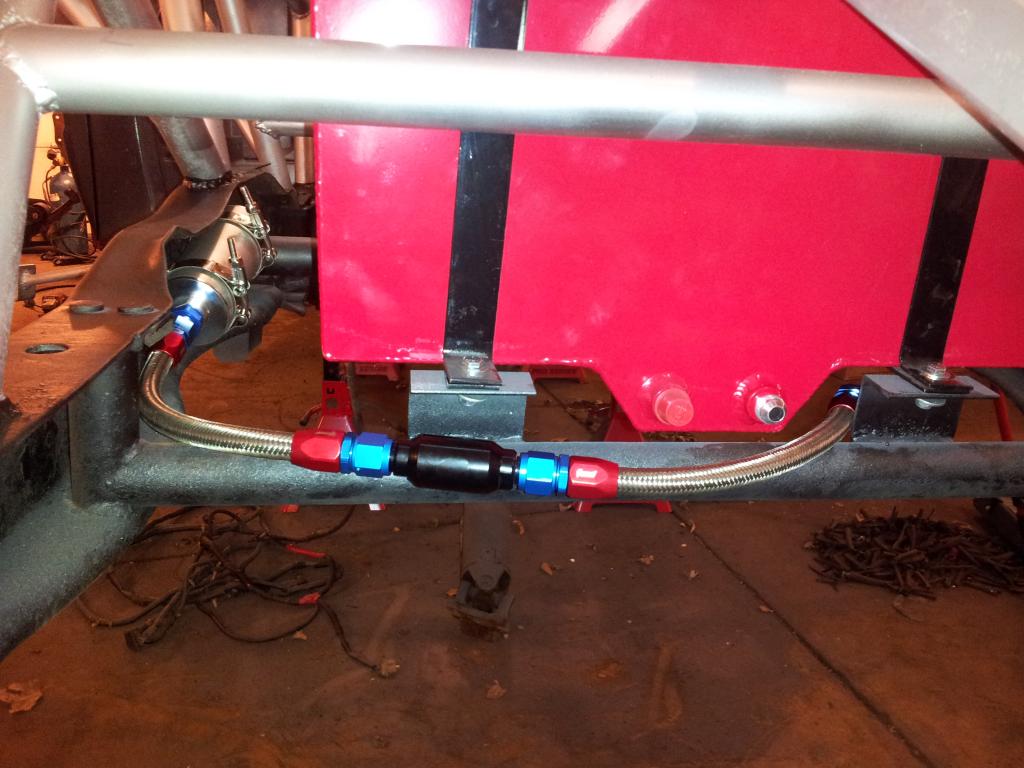

Where I need my 90's to hug that tube and the cell. Also need one for the bottom of the regulator for returning back down the frame rail into back around into the sump. The pump mounts look crooked because I had to tweak the mounting tabs to follow the funny round area in the frame rail.


Just a pic of the regulator all ready to go with the gauge attached.
Attached Thumbnails
DWB 4x4 LT-20130429_204425_zps00144a96.jpg
Reply With Quote
  #957
Old 04-29-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
i think your pictures are making me more anxious waiting for parts. cant wait for SL!
Reply With Quote
  #958
Old 04-29-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah I can't wait! cause I got some friends going for the first time too, plus I havn't been there in a couple years!

I just hope my motor holds out for the trip till I can rebuild it. It's going to knock a little and burn some oil..but the truck will look good haha
Reply With Quote
  #959
Old 04-29-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
i hope my transmission stays in one piece... its shifting weird, and flaring between gears at random times.

i really want to swap it over to a stick
Reply With Quote
  #960
Old 04-30-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 06RangerXLT View Post
i hope my transmission stays in one piece... its shifting weird, and flaring between gears at random times.

i really want to swap it over to a stick
Have the guys in the body shop stick the IDS on it and take it for a ride. they'll see right away if somethings up.

you might also want to change fluid and add a bit of TransTune to it.
Reply With Quote
  #961
Old 04-30-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
is that fuel line rated for ethanol? Just curious.
Reply With Quote
  #962
Old 04-30-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by zabeard View Post
is that fuel line rated for ethanol? Just curious.
I think so,but not 100% sure.
Reply With Quote
  #963
Old 04-30-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by 06RangerXLT View Post
i hope my transmission stays in one piece... its shifting weird, and flaring between gears at random times.

i really want to swap it over to a stick
Us manual guys have issues too... Slave FML.
Reply With Quote
  #964
Old 04-30-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
yea..
something tells me ill blow out 3rd in the dunes. or first...

gonna be ready for june ya think?
Reply With Quote
  #965
Old 05-01-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
4x4 Low in second when hill climbing.

4x4 high in regular drive (not OD) when regular driving around.
Reply With Quote
  #966
Old 05-01-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
4x4? who needs 4x4?


watch... those words are going to haunt me. someone is going to find this post, take a pic of my sunk in SL, and quote it with the shot attached. i know it...
Reply With Quote
  #967
Old 05-01-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 06RangerXLT View Post
4x4? who needs 4x4?


watch... those words are going to haunt me. someone is going to find this post, take a pic of my sunk in SL, and quote it with the shot attached. i know it...
you don't actually.

I did the majority of SL in 2wd because of a busted vacuum line
Reply With Quote
  #968
Old 05-01-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
Thread Starter
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah every truck is different. rob could get around as good as me in 4x4 when he was 2wd. depending on the drag of your front end,the real soft sand you can't get anywhere in 2wd. it's all in the wheel spin...and perfect tire pressure..tires etc. seems like you either need paddles or an A/T. sometimes an M/T will get you stuck more than help
Reply With Quote
  #969
Old 05-01-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
When in doubt, skinny out.
Reply With Quote
  #970
Old 05-01-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
thats my problem... lol
Reply With Quote
  #971
Old 05-02-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 06RangerXLT View Post
thats my problem... lol
you only catch a little bit of air going on test. you'll be ok. everyone does it.
Reply With Quote
  #972
Old 05-02-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
hey man, i dont have deavers and fox shocks to catch "a little air"

im just glad there will be a car hauler there!
Reply With Quote
  #973
Old 05-02-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I got air on a stock tbar setup. Twice. It's not the end of the world, it's just something you don't wanna do over and over. It sounds like you are going out there to jump your truck over everything. Just drive natural we have guys going (not including me) who have gone the last 5 years. Listen to what they say and you'll be driving your truck home in one piece. The sand is constantly changing so pay attention to it and you'll be fine.
Reply With Quote
  #974
Old 05-02-2013
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Sounds like someone will be towing home
Reply With Quote
  #975
Old 05-02-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
10-4.

unless the trans give out on me, i think i should be alright.
Reply With Quote
