  #551
Old 05-03-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Thanks Casey.

I got the shock tabs off both sides, the upper coil bracket off the driver's side, and half of the panhard mount off.

Here's the coil bracket in it's proposed new position.


The coil sitting in it's proposed new position, lots more room for the new panhard mount.
Reply With Quote
  #552
Old 05-03-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Nice work. That steering looks a lot better
Reply With Quote
  #553
Old 05-04-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Thanks. I think it'll be a big improvement overall. I thought about notching the frame for the coils like you did while I'm in there but I'd have to rework the whole hoop and I'm not sure I wanna get that deep into it. I'm already deeper in than I wanted to be lol.
Reply With Quote
  #554
Old 05-04-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Quote:
Originally Posted by RazorsEDGE View Post
Thanks. I think it'll be a big improvement overall. I thought about notching the frame for the coils like you did while I'm in there but I'd have to rework the whole hoop and I'm not sure I wanna get that deep into it. I'm already deeper in than I wanted to be lol.
I hear ya, you've got a nice setup with that hoop anyway
Reply With Quote
  #555
Old 05-04-2015
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,486
why not just throw a set of coilover shocks to take up less space? be easy to mount up some tabs on the axle and shock hoop.

progress looks great!
Reply With Quote
  #556
Old 05-05-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Thanks. Coilovers would be awesome but I don't wanna spend that much especially since there's a high probability of putting it up for sale.
Reply With Quote
  #557
Old 05-05-2015
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,486
Quote:
Originally Posted by RazorsEDGE View Post
Thanks. Coilovers would be awesome but I don't wanna spend that much especially since there's a high probability of putting it up for sale.
Gotcha that makes sense, will be sad to see it go if you decide to sell but it's understandable when toys just sit.
Reply With Quote
  #558
Old 05-05-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Got the other coil mount off and the other half of the panhard bracket off. Also got some of the old welds cleaned off. I think tomorrow I might be able to get the lower coil brackets cleaned up and clearanced for the tie rod. I've got a plan in my head to integrate the lower panhard mount into the coil bracket so we'll see how that plays out.


Reply With Quote
  #559
Old 05-05-2015
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
good stuff brotha... sucks your going to sell it... well... not for who ever buys it I guess...
Reply With Quote
  #560
Old 05-06-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Yeah I don't know 100% if I'll sell it. We'll just have to see if I drive it more after this.
Reply With Quote
  #561
Old 05-06-2015
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,025
Quote:
Originally Posted by RazorsEDGE View Post
Yeah I don't know 100% if I'll sell it. We'll just have to see if I drive it more after this.
If you get it to drive better than maybe you will. You need to head west and find a place off in the mountains.
Reply With Quote
  #562
Old 05-06-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Quote:
Originally Posted by camodown View Post
If you get it to drive better than maybe you will. You need to head west and find a place off in the mountains.
Yeah I picked a horrible thing to build since there's no where to use it here lol.


Got the lower coil brackets cut down on the front end for tie rod clearance. Plenty of room now.


This is where I'm going with the panhard bracket. I notched the coil bracket so it would fit inside it. It's not in the final position yet but I'll weld it all together so it's one piece. It's still going to be tight but it's the best position I could come up with to get the longest panhard possible.



Reply With Quote
  #563
Old 05-06-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,628
I'm learning so much from your mistakes. Thank you :) Hope it rides better so you can enjoy it a bit more.
Reply With Quote
  #564
Old 05-07-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Quote:
Originally Posted by RLong31 View Post
I'm learning so much from your mistakes. Thank you :)


Does that mean you'll be SAS'ing yours soon?
Reply With Quote
  #565
Old 05-07-2015
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,579
Looking good. Hope you get it fixed up and get to drive it more.
Reply With Quote
  #566
Old 05-07-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Quote:
Originally Posted by seed60 View Post
Looking good. Hope you get it fixed up and get to drive it more.
Thanks, I hope so too!.



I tacked the panhard brackets in place this evening, the upper bracket is gonna stay where it's at while the lower bracket still needs a small amount of tweaking. I really wanted to have a look at the angle compared to the drag link and it's real close, when the lower bracket is in it's final position it should be spot on.



Reply With Quote
  #567
Old 05-07-2015
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
looks like its going to work out nicely
Reply With Quote
  #568
Old 05-09-2015
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice work! its getting there. hopefully it drives nice for you after this.

Also someone online is selling KING shocks with springs for like 540 each! That isnt too bad. lol
Reply With Quote
  #569
Old 05-09-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Quote:
Originally Posted by zabeard View Post
nice work! its getting there. hopefully it drives nice for you after this.

Also someone online is selling KING shocks with springs for like 540 each! That isnt too bad. lol
Filthy Motorsports has the King 2.0 Emulsion coilovers with springs for $440 each. I've really really been thinking about it but it's still a bunch of money that I hadn't planned on throwing at the truck. Then I'd have to redo the hoops which is also more work then I planned on lol.

And trying to come up with the correct spring rates is driving me insane. If I want a 12" coilover with 5" showing at ride height I'm coming up with like a 150/200 rate which seems way lighter than what anyone else is running. Everyone else seems to be super cabs with the 4.0 though. Ugh.


Anyway, I got the panhard bar done. Now I've gotta actually start welding some stuff.





Anyone have a recommendation for a place to order 3/4" grade 8 bolts? Can't seem to find anything bigger than 5/8 locally.
Reply With Quote
  #570
Old 05-09-2015
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,025
I know some places in midland/odessa that would have those bolts. I don't know if Hobbs has any nut & bolt shops or not.
Reply With Quote
  #571
Old 05-09-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,113
Try McMaster-Carr. They have everything.
Reply With Quote
  #572
Old 05-11-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Quote:
Originally Posted by bravetitan24 View Post
Try McMaster-Carr. They have everything.
Thanks, should have them by the end of the week.

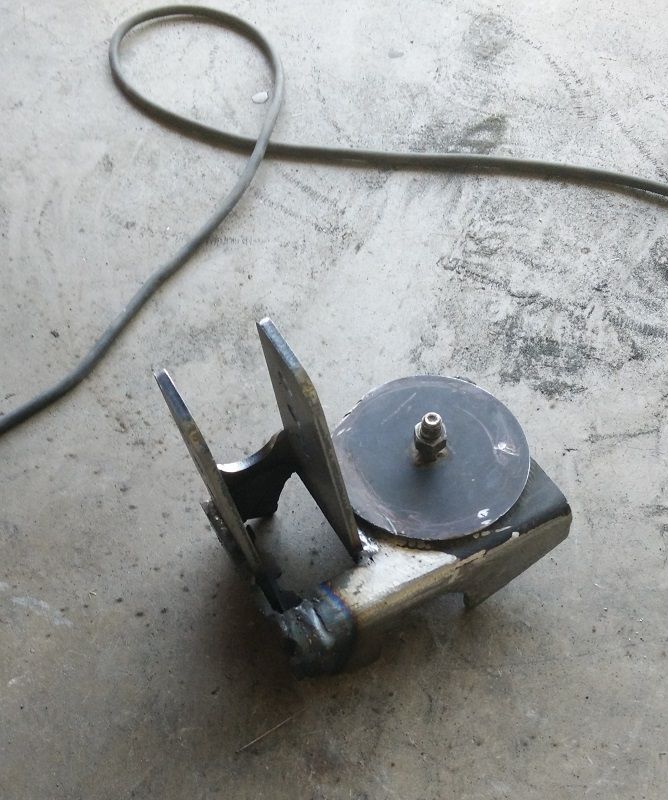

So I got the panhard mount fully welded. I completely closed it in the coil mount, should be plenty strong now.

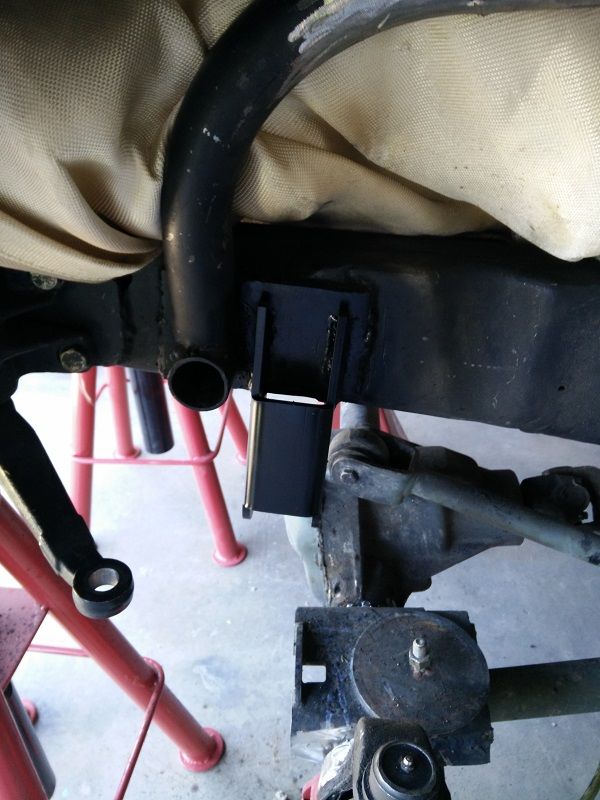

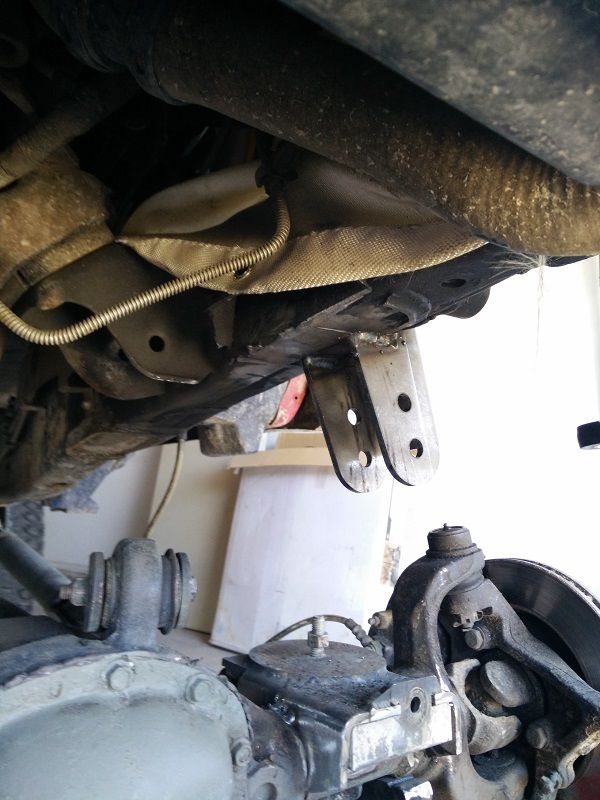

Also got the upper panhard mount all done.

And even painted it!

Both spring mounts welded on the axle.



Now I've gotta deviate from the plan, I'll be cutting the hoops off soon to make room for the new King coilovers I ordered. I still have to discuss valving and spring rates with the vendor so I can do the free coil exchange program if I'm not happy with 'em. Once I've settled on valving and springs it'll be like 2 weeks for King to build them.


In the meantime what color should I paint the steering links and control arms? I'm thinking silver maybe? Nothing flashy, but don't want black. They've been OD green for 5 years now so it's time to change it up.
Reply With Quote
  #573
Old 05-11-2015
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,332
Decided to go with coil overs? Right on man!
Reply With Quote
  #574
Old 05-11-2015
Fordzilla80's Avatar
YZ
iTrader: (1)

Join Date: Dec 2010
Location: Florida
Posts: 969
Silver errryyyttthhhaannnggg.
Reply With Quote
  #575
Old 05-11-2015
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,417
Does plastidip come in silver?
