  #301
Old 11-03-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
or do the sensible thing and flip the shackles to the back...... or get some coils, tube and another 3" Ballistic joint and swap to coils and extended Radius arms.
Reply With Quote
  #302
Old 11-03-2009
cory07ranger4x4's Avatar
Member
iTrader: (2)

Join Date: Apr 2007
Location: Corvallis,OR
Posts: 502
Quote:
Originally Posted by 99ranger4x4 View Post
or do the sensible thing and flip the shackles to the back...... or get some coils, tube and another 3" Ballistic joint and swap to coils and extended Radius arms.
option #2 :)
Reply With Quote
  #303
Old 11-03-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
but radius arms suck a big one.. never understood why till i paid attention to a bronco and my buddies Jeep a few weeks ago.. violent wheel shake is no bueno.

I'll hold off for now until i can do a 3 link. or find a new project.. until then i'll just ride my bump stops lol
Reply With Quote
  #304
Old 11-04-2009
cory07ranger4x4's Avatar
Member
iTrader: (2)

Join Date: Apr 2007
Location: Corvallis,OR
Posts: 502
lol okay... I figured it was a step above what you have now... But if you're going to change it, why not do it right...
Reply With Quote
  #305
Old 11-04-2009
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
I say get it running right first.
Reply With Quote
  #306
Old 11-04-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
but radius arms suck a big one.. never understood why till i paid attention to a bronco and my buddies Jeep a few weeks ago.. violent wheel shake is no bueno.

I'll hold off for now until i can do a 3 link. or find a new project.. until then i'll just ride my bump stops lol
if the radius arms are setup properly then no wheel shake.
Reply With Quote
  #307
Old 11-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by ranger View Post
I say get it running right first.
it runs

/jack
Reply With Quote
  #308
Old 11-04-2009
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Reply With Quote
  #309
Old 11-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Got the steering shaft made and bled the steering system. Dont tell anyone but I made the steering shaft the weak way, mating the ranger shaft straight to the toyota shaft. I made sure not to destroy any parts of the shaft I can use later because as soon as I can get the intermediate shaft that I need I'll order the pillow block bearing and get the shaft made......the right way. I'm aware that its not the best way to do it and that several ppl have had them break but I'm going to change it ASAP, I just wanted to get everything functional. I still have to bleed the brakes and torque all the bolts and paint all the raw areas but its almost driveable now.......

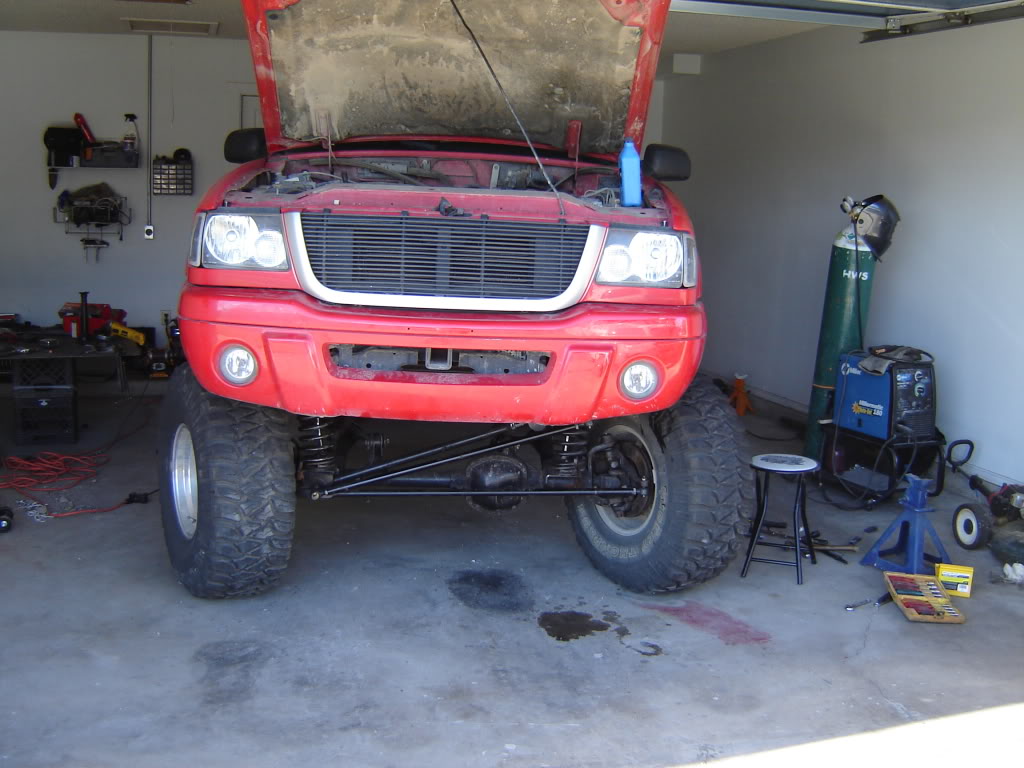

Name:  DSC01498.jpg
Views: 6
Size:  124.0 KB

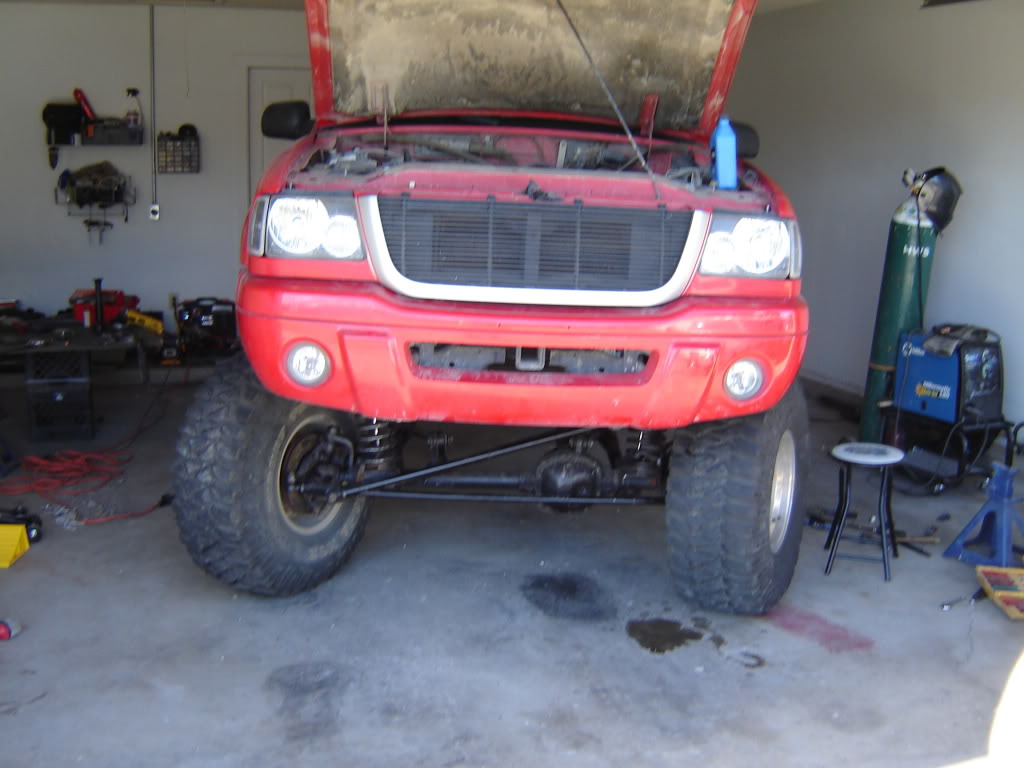

Name:  DSC01499.jpg
Views: 6
Size:  98.3 KB
Reply With Quote
  #310
Old 11-05-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good Ryan...

wanna show some pics of that shaft?
Reply With Quote
  #311
Old 11-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Sure. I'll grab some tomorrow. I'm about to head to work now and it gonna be just a tad dark when I get off tonight.
Reply With Quote
  #312
Old 11-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481

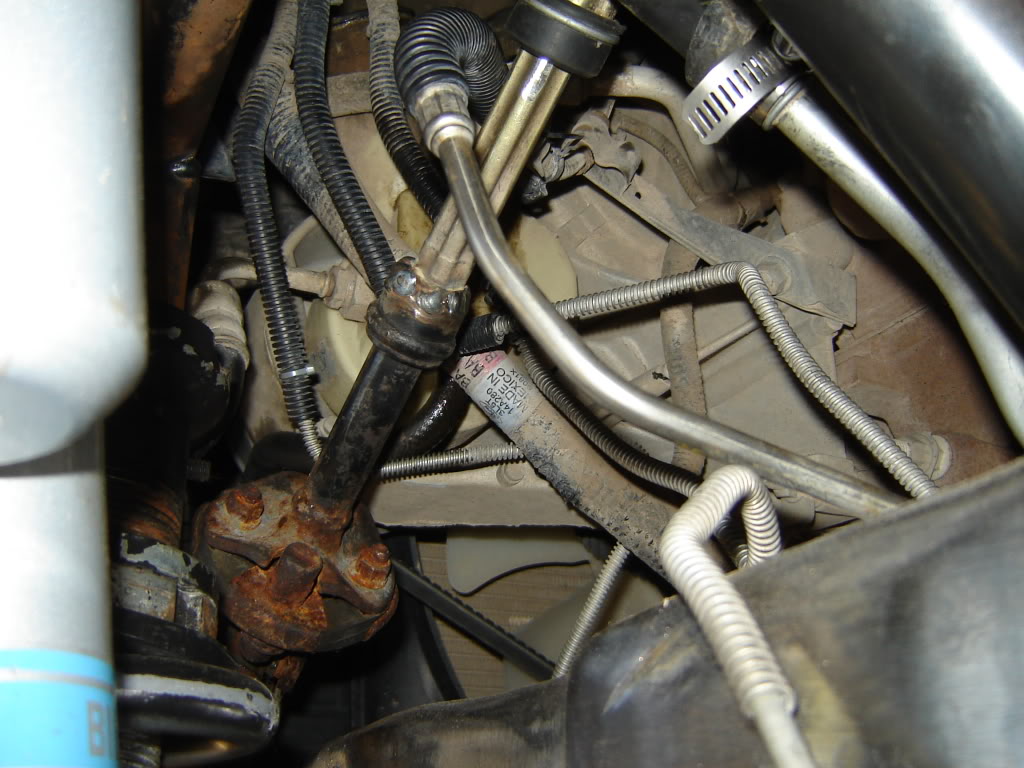

Here. I cut the ranger shaft right before the double cardan joint at the rack and pinion, theres a fat end part thing there. Not sure how to describe it, although I'm sure you'll know what I'm talking about if you've ever looked at that part of the shaft. I cut the yota shaft right before that hollow metal part so I could weld to the solid part of the yota shaft. Not ideal, but it will get the job done temporarily.

Name:  DSC01504.jpg
Views: 6
Size:  137.9 KB
Reply With Quote
  #313
Old 11-05-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
need flex pics
Reply With Quote
  #314
Old 11-05-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Hard to flex when it doesn't drive yet.
Reply With Quote
  #315
Old 11-05-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I put a 3/4" DD u-joint on the part that comes through the firewall, then welded 3/4" solid stock to the rag joint. its held so far.
Reply With Quote
  #316
Old 11-05-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good so far man. but just make sure you change it. i know you said you will but i have heard that 100 times!

everyone says its fine until it breaks, lol its the scariest thing i have ever experienced... not something i ever want to happen again.
Reply With Quote
  #317
Old 11-05-2009
SB05EDGE's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Midland, Texas
Posts: 534
lookin good ryan......cant wait to see this thing goin in person
Reply With Quote
  #318
Old 11-06-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Quote:
Originally Posted by zabeard View Post
looks good so far man. but just make sure you change it. i know you said you will but i have heard that 100 times!

everyone says its fine until it breaks, lol its the scariest thing i have ever experienced... not something i ever want to happen again.
Yeah man I know its easy to get content with stuff, but I'm getting a pop from somewhere in the steering shaft. I went through and torqued everything today but the pop is still there so I think its coming from the steering shaft itself. Itll be real hard to get content with the steering shaft setup like that if I have a pop there to remind me everytime I turn the wheel haha.

Quote:
Originally Posted by 99ranger4x4 View Post
I put a 3/4" DD u-joint on the part that comes through the firewall, then welded 3/4" solid stock to the rag joint. its held so far.
I'd rather use the E250 or astro shaft but I'm having trouble finding what I need, so this might be something I need to look into.


Quote:
Originally Posted by SB05EDGE View Post
lookin good ryan......cant wait to see this thing goin in person
Thanks. I can't wait to see it going in person either.






As it sits right now the truck is done except for bleeding the brakes. My Dad is gonna come over and give me hand tomorrow night and when thats done I should be able to pull the truck out.
Reply With Quote
  #319
Old 11-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sweet!

btw idk if i would use solid rod, tube is stronger than solid rod...

btw doesnt the shaft rub the firewall?
Reply With Quote
  #320
Old 11-06-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Well I didn't think it did, it might though, I'll have to look closer while I'm looking for whatever is popping.
Reply With Quote
  #321
Old 11-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sometimes you can feel the play in the panhard from the steering wheel. I had that D30 setup dialed in, it was nearly perfect no extra sounds and such, but it takes time to get all those tweaks taken care of.
Reply With Quote
  #322
Old 11-06-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Nice work Ryan
Reply With Quote
  #323
Old 11-06-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
Thread Starter
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Quote:
Originally Posted by zabeard View Post
sometimes you can feel the play in the panhard from the steering wheel. I had that D30 setup dialed in, it was nearly perfect no extra sounds and such, but it takes time to get all those tweaks taken care of.

I'll check that too. I tightened it all down but I may not have gotten it tight enough. As soon as I have someone here to turn the wheel while I look I'm sure I'll have a better idea of what exactly it is.


Quote:
Originally Posted by Redneckstone View Post
Nice work Ryan
Thanks.
Reply With Quote
  #324
Old 11-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah you want those bolts TIGHT! Since you dont have a Ujoint in the steering shaft up by the firewall, my guess is the shaft is pinched against the firewall, like mine used to be.
Reply With Quote
  #325
Old 11-07-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
you running a pillow block on that shaft for slop?
