  #101
Old 05-11-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Yea, don't worry about the notch. The back is completely plated in. And besides that, the frame won't actually be doing anything once the tube work is done. If I so desired I could have just chopped the frame off, but I chose not to.

Edit: See page 3 for photo...
Reply With Quote
  #102
Old 05-11-2007
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Nice, the finished product should look awesome.
Reply With Quote
  #103
Old 05-11-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453

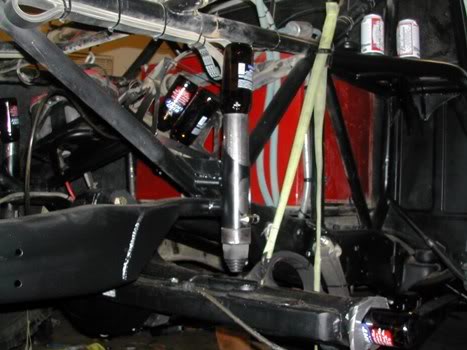

Here is a basic idea with the tubework...

Name:  popicholo_004_298.jpg
Views: 6
Size:  34.7 KB
Reply With Quote
  #104
Old 05-11-2007
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Are you including the Budwiser setup on yours as well?
Reply With Quote
  #105
Old 05-11-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by winks
Are you including the Budwiser setup on yours as well?
Nope. I think I'm going to use the Corona setup on mine, I've heard its stronger and lasts longer
Reply With Quote
  #106
Old 05-11-2007
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
I did used the Rolling Rock setup on mine... that's why there's nothing done at all.
Reply With Quote
  #107
Old 05-11-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice notch, but i would be concerned using that hitch after the notch.
Reply With Quote
  #108
Old 05-11-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by zabeard
nice notch, but i would be concerned using that hitch after the notch.
You read what I wrote right?

Hitch is ONLY on there for recovery purposes, not to tow anything. AND like I just said, the frame is no longer the structural part of the chassis. The tube structure that will be forming above it will be.

So yea, no concern about the hitch on this end.
Reply With Quote
  #109
Old 05-11-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
looking good man, MORE PROGRESS
Reply With Quote
  #110
Old 05-11-2007
Rangerboy03lvl2's Avatar
Member

Join Date: Jun 2004
Location: Colorado, Lone Tree
Posts: 891
looks awesome!
Reply With Quote
  #111
Old 05-11-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by rngprerunner
You read what I wrote right?

Hitch is ONLY on there for recovery purposes, not to tow anything. AND like I just said, the frame is no longer the structural part of the chassis. The tube structure that will be forming above it will be.

So yea, no concern about the hitch on this end.

ha sorry i must have missed that on the first or second day.
Reply With Quote
  #112
Old 05-12-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
I'm anxious to see how the tube turns out then! I see what you're saying about it, but I still wanna see how it all ties together. Does the tube mount to the frame closer to the cab? Will it tie into a roll cage inside the cab? I'm just curious.

What size tube are you going with?
Reply With Quote
  #113
Old 05-12-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by Gearhead61
I'm anxious to see how the tube turns out then! I see what you're saying about it, but I still wanna see how it all ties together. Does the tube mount to the frame closer to the cab? Will it tie into a roll cage inside the cab? I'm just curious.

What size tube are you going with?
The tube is going to mount to the frame in several places, probably like 6 places at least on each rail. It is also going to connect to the cab in, if I get my way, 7 places.

The tube is 1 3/4" .120wall DOM

Quote:
Originally Posted by Zach
ha sorry i must have missed that on the first or second day.
No Worries..
Reply With Quote
  #114
Old 05-14-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Day's 7 8 & 9 are now up!

Click HERE

or here

http://blogs.off-roadweb.com/6207793...ild/index.html

or here

http://blogs.off-roadweb.com

As always, comments are appreciated! So let me know what you think!

Reply With Quote
  #115
Old 05-14-2007
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
great fab man..

thats all i gotta say bout that
Reply With Quote
  #116
Old 05-14-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
battery boxes are rad
Reply With Quote
  #117
Old 05-14-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by INT3RC3PTOR
battery boxes are rad
Yea they are!

And for clarification... I didn't actually build the boxes for the batteries, I bought those.
Reply With Quote
  #118
Old 05-14-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
beefy. i like it man. looks good.

also looks like a busy weekend!
Reply With Quote
  #119
Old 05-14-2007
JoshK's Avatar
Member

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Maybe this is a stupid question..but why 2 batterys?
Reply With Quote
  #120
Old 05-14-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by firefighterjosh
Maybe this is a stupid question..but why 2 batterys?
In case one dies or my alternator dies I won't be left stranded in the middle of the desert.

Or

In the case I need to winch at night I can use both batteries at once. (Yea yea I know.. I still need the winch... lol)
Reply With Quote
  #121
Old 05-14-2007
JoshK's Avatar
Member

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Quote:
Originally Posted by rngprerunner
In case one dies or my alternator dies I won't be left stranded in the middle of the desert.

Or

In the case I need to winch at night I can use both batteries at once. (Yea yea I know.. I still need the winch... lol)
Good idea. Thought maybe you where pushing 4 12s or something
Reply With Quote
  #122
Old 05-14-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
How much did those battery boxes run you?

Do you have any info on setting up a dual battery system? Are you going to have the secondary battery isolated? I've done a little bit of research about them but not enough to where I feel comfortable putting one on my truck or my samurai.
Reply With Quote
  #123
Old 05-15-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Quote:
Originally Posted by Gearhead61
How much did those battery boxes run you?

Do you have any info on setting up a dual battery system? Are you going to have the secondary battery isolated? I've done a little bit of research about them but not enough to where I feel comfortable putting one on my truck or my samurai.
I think they were like $60 each.

I don't have much info about a two battery set up because well its pretty simple to begin with the way I am doing it.

I am running a "Perko" switch normally used on boats. I have a four position switch, 1, 2, 1-2, OFF. Simply I can run either battery individually or both together or both off. The switch is rated at some stupid amount of amps. Simply run the (+) of each battery to the switch, run the (-) to the frame, run a (+) cable to the engine compartment and run the (-) in the engine compartment to the frame. Do I make sense or no?
Reply With Quote
  #124
Old 05-15-2007
rngprerunner's Avatar
Member
Thread Starter

Join Date: Jun 2004
Location: Long Beach CA
Posts: 3,453
Day 10 Update is here at last!

You can click HERE

or here

http://blogs.off-roadweb.com/6208613...ild/index.html

or here

http://blogs.off-roadweb.com

Reply With Quote
  #125
Old 05-15-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
nice progress jason def need that gusset there..BEEF :) , and $60 for those battery boxes is a good deal. ive seen some ****y plastic ones for $40
