2008's lower ride height, need to get to the bottom of this - Page 14 - Ranger-Forums - The Ultimate Ford Ranger Resource


Suspension Tech General discussion of suspension for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #326
Old 04-15-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by 808danger View Post
just to make sure is this the correct part number for the prekey mod for my 09 ranger?
F57Z5B328B
I believe so. I just order a set of them from TascaParts.com. Paid $79.20 for the pair + shipping and taxes. Exact part # F57Z5B328B. I'm in Canada and should have them in 10-7 busniess days. If you want to wait. I can let you know for sure when I get them if thier the right ones or not.
Reply With Quote
  #327
Old 04-16-2010
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
I have an 08 FX4, and im wanting to preblock, but im not sure how to tell if I have a 31 or 28 spline axle. I want to make sure I get the right blocks and ubolts. I know it used to be the level II's had them, but in 08 there is no level II. My window sticker doesnt say anything about having the Torsen diff, so I kinda assume its a 28. My axle code is R7. Any help is appreicated.
Reply With Quote
  #328
Old 04-16-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by mj550 View Post
I have an 08 FX4, and im wanting to preblock, but im not sure how to tell if I have a 31 or 28 spline axle. I want to make sure I get the right blocks and ubolts. I know it used to be the level II's had them, but in 08 there is no level II. My window sticker doesnt say anything about having the Torsen diff, so I kinda assume its a 28. My axle code is R7. Any help is appreicated.
This is what I was able to find out for you, hope it helps.

08-09 FX4 Off Road the 31spline+Torsen was an option. So you could have it or not.

Axle Code R7 is a L/S (limited slip) 8.8", 4:10 gears. There is no way to tell which axle it is by the axle code. The only way to tell without pulling the differential cover is to measure the tube diameters of the axle housing. The 28 spline tubes are 3.25" and a 31 spline tubes are 3.5".

Last edited by NightmareFX4; 04-16-2010 at 10:10 PM.
Reply With Quote
  #329
Old 04-16-2010
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
Thanks, I'll have to measure it when I get a chance. Once I find out for sure, I assume just tell the dealer 07 or down fx4 supercab blocks, or of course level II fx4 if I do have a 31 spline.
Reply With Quote
  #330
Old 04-17-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by mj550 View Post
Thanks, I'll have to measure it when I get a chance. Once I find out for sure, I assume just tell the dealer 07 or down fx4 supercab blocks, or of course level II fx4 if I do have a 31 spline.
No probs. May I suggest this option to ya:

Belltech 6400 shackles for an extra 1 3/4" lift with your allready 1 1/4" stock blocks with spring bolt in bottom shackle hole.
or
Belltech 6400 shackles for an extra 3/4" lift with your allready 1 1/4" stock blocks with spring bolt in second from bottom shackle hole.

Belltech 6400 shackles are $40 to $60 a pair new if you search around a bit (cheaper than ubolts, nuts and blocks / unless their used of course).

You will gain more rear articulation with the Belltech 6400 shackles (over stock shackles with preblocks) .


The 2" or 2 1/2" Preblocks will give you lift as well.

But with your 1 1/4" stock blocks gone and replaced with 2 or 2 1/2" Preblocks. Lift would be:

2 1/2" preblocks for an extra 1 1/4" lift (1/2" less than Belltech 6400 shackles with spring bolt in bottom shackle hole).
or
2" preblocks for an extra 3/4" lift (same as Belltech 6400 shackles with spring bolt in second from bottom shackle hole).

There is more potential of axle rap to worry about with larger preblocks.

Last edited by NightmareFX4; 04-17-2010 at 01:45 AM.
Reply With Quote
  #331
Old 04-17-2010
Member

Join Date: Apr 2010
Location: Sherbrooke, Qc
Posts: 18
$0 - 60$ for beltech 6400?!? Tell me where now! The cheapest I found was 100$ with shipping...
Reply With Quote
  #332
Old 04-17-2010
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
I know about the shackle to, but i think id rather go with the preblocks. the 2inch one was on regular cabs, and the 2.5inch was on the supercabs correct?
Reply With Quote
  #333
Old 04-17-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by m_falafel View Post
$0 - 60$ for beltech 6400?!? Tell me where now! The cheapest I found was 100$ with shipping...
Canadian dollar is on par or just over the US dollar right now (apples to apples).
Everybody pays taxes, don't they? lol. Find a local dealer if you don't want to pay shipping. Like I did. Here's were I got mine locally in Canada for $70 taxes in (I did this because they are not that far from me / but you may be able to find a local guy for less, check your local speed shops):

Hinton Automotive - 129 Walgreen Road RR 3, Carp, ON

Other online examples:

Belltech Sport Trucks 6400 - Belltech Sport Trucks Rear Shackle Kits - Overview - SummitRacing.com for$53.95

Amazon.com: Belltech 6400 Shackle Kit: Automotive for$42.40

Auto Part Seek - Automotive : Belltech 6400 Shackle Kit at autopartseek.com for$42.40

Bell Tech - R.LOWERING KT GM1500-3500 6400 - StreetSideAuto for$52.08

And I could go on. Look around, Google is your friend (I didn't really look all that hard either / if ordered on line shipping and taxes is a given). Used I've seen for $35 to $50 (no taxes, just add shipping).

Last edited by NightmareFX4; 04-17-2010 at 11:58 AM.
Reply With Quote
  #334
Old 04-17-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by mj550 View Post
I know about the shackle to, but i think id rather go with the preblocks. the 2inch one was on regular cabs, and the 2.5inch was on the supercabs correct?
Shackles were a suggestion for your truck. It's your truck and we do what we think is best for our situation / truck. Personally I'm not going that way with my truck, so I'm not sure what they came on (thier of no interest to me, so I have not researched trucks that had them). But I know the factory 2" and 2 1/2" blocks are available used and new for your preblock application (as I to was thinking of going preblocks before as well, before I decided on shackles / after what I had researched). I decided to go with shackles for the added 1/2" lift over the 2 1/2" preblocks and added articulation. I don't want the potential axle rap and 1'2" less lift.

In the future I will be removing the Belltech 6400 shackles (and selling them) and going with AAL's (before the springs get old and sag). My springs are new now so the shackles arn't that bad when it comes to pinion angle. Shackles are just temporary (cheaper) until I go AAL's. Oh I am doing a 1"PA BL AND Prekey mod as well (have BL parts allready / Prekeys ordered allready) with 32" or 33" MTR's.

Last edited by NightmareFX4; 04-17-2010 at 01:32 PM.
Reply With Quote
  #335
Old 04-17-2010
Member
iTrader: (1)

Join Date: Mar 2010
Location: hawaii
Posts: 48
The cheapest that I found was at amazon no tax and free shipping.
Reply With Quote
  #336
Old 04-18-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
Quote:
Originally Posted by NightmareFX4 View Post
Oh I am doing a 1"PA BL AND Prekey mod as well (have BL parts allready / Prekeys ordered allready) with 32" or 33" MTR's.
just go with the 3".. you wont regret it.
Reply With Quote
  #337
Old 04-18-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Quote:
Originally Posted by Billy4x420 View Post
just go with the 3".. you wont regret it.
I looked at them and didn't like the 3" gap in the frame or the gap guard look. And it's my daily driver so I just want enough lift for 32's or 33's (my 4:10 gears go well with either of these tire combos to).

Front: 1"BL's + Prekeys = 3" or more lift + tires

Rear: 1" BL's + 6400 Shackles = 2 3/4" lift + tires
Reply With Quote
  #338
Old 04-25-2010
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
I went to the motorcraft parts webside and looked up some blocks for a pre 08 4x4 supercab. My main question is, when you look up blocks for an 08 supercab 4x4, it just shows one part number, but on the older years it shows seperate part numbers for right and left, anyone that has gotten the blocks know why that is? Im just curious.

Last edited by mj550; 04-25-2010 at 04:25 PM.
Reply With Quote
  #339
Old 05-06-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19

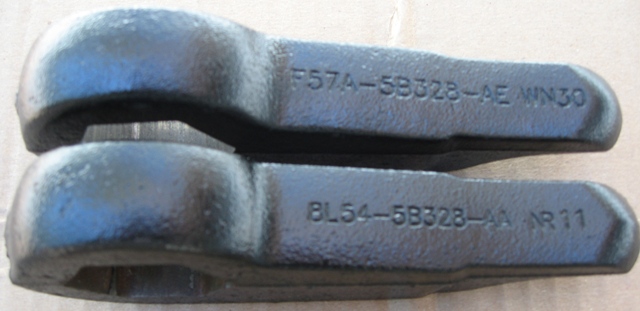

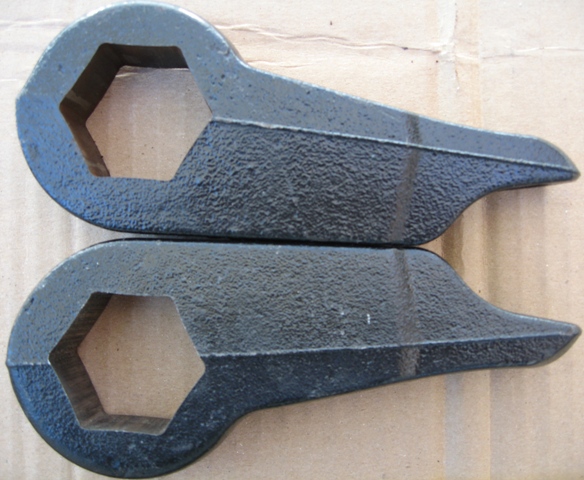

Part # F57Z5B328B (Genuine Ford Part from TascaParts) is definatley the right torsion keys for 08+ Ranger PreKey mod. See Pics.
Attached Thumbnails
2008's lower ride height, need to get to the bottom of this-picture-010.jpg   2008's lower ride height, need to get to the bottom of this-picture-019.jpg
Reply With Quote
  #340
Old 01-01-2011
Member

Join Date: Jun 2010
Location: columbia city
Posts: 1
FX4

Will putting the old style keys raise the 08 FX4, or does it allready set higher than other models?
Reply With Quote
  #341
Old 08-10-2011
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
Quote:
Originally Posted by jalyn View Post
Will putting the old style keys raise the 08 FX4, or does it allready set higher than other models?
yes.. 2008 was the first year they started using different torsion keys. I have an 08 and using the 'prekeys' and a mild torsion crank i gained 2"
Reply With Quote
  #342
Old 09-28-2011
Member

Join Date: Sep 2011
Location: buena park, ca
Posts: 1
Can someone elaborate on exactly what is the purpose of using prekeys, Im having some confusion on the reason to get prekeys if it is not recommended to go any higher than 2 inches on a tbar crank. Is it strictly so you don't have to crank the bolt as much?

My 08 t bar bolts have plenty of threads left on them, so say i give them 4 to 5 turns and hopefully get a close to 2" lift, would this simply be the same as getting some pre 07 keys and giving the bolts only 2 to 3 turns maybe?

Or are you guys with the prekeys giving the bolt just as many turns as you would without the keys therefore getting maybe 2.5 to 3 inches of total lift in the front?

thanks for any help you can provide.
Reply With Quote
  #343
Old 11-13-2011
woo woo is offline
Member

Join Date: Nov 2011
Location: Halifax NS
Posts: 42
When comparing ride heights between vehicles it is useful to have some measurements, but the question is what measurements? Here is my suggestion.

The distance from fender lip to the centre of the hub.

The distance from the hub centre to the ground.

The advantage of this is that the effects of suspension changes are separated from the effects of tire size changes.

If you change ride height by adjusting the torsion bar it will show only in the first measurement.

If you change ride height by changing tire diameter it will show only in the second measurement.
Reply With Quote
  #344
Old 11-13-2011
woo woo is offline
Member

Join Date: Nov 2011
Location: Halifax NS
Posts: 42
Quote:
Originally Posted by woo View Post
...The distance from fender lip to the centre of the hub.
The distance from the hub centre to the ground. ...
More to that.

On my unmodified 2011 SuperCab 4x4 XLT, with the 2710# front axle, i.e. the B torsion bar those measurements are :-

Front 19.5", 14.3";
Rear 20.0", 14.3".

Having recorded those measurements I can now detect any future sag.
Reply With Quote
  #345
Old 01-12-2012
Member

Join Date: Dec 2011
Location: Bothell WA
Posts: 13
2008 FX4 Very Low

I agree my FX4 seemed to be very low....The first week I got it I put in Pro Comp Keys. I did not max it out. In the back I put Super Springs. I got 3" in the front and 2.5" in the back.

Here is how it looks now.....





I am going to try to get 32's or 33's in there....
Reply With Quote
  #346
Old 04-11-2012
Member

Join Date: Feb 2012
Location: Casper, WY
Posts: 40
The torsion Keys GUYS!!!!! All Ranger 4x4 suspension is the same if it is IFS. FORD redesigned the torsion keys to not have as much height to them. All of a sudden the warranty work went down and Ford stopped having so many complaints about ride height. Crappy deal with the rangers is when you do crank the Tbars they typically will allow the front end to be nose high after a day or two of driving getting the new settings to settle in. All new IFS vehicles are extremely limited to ride height change( New 2012 GM HD' trucks are PATHETIC, Any one who thinks its great should be slapped ). Manufactures DONT want you to be able to modify the suspension in anyway. Thats why they are always changing the over all designs of the front end.

AfterMarket torsion keys should solve the issue. Procomps stuff is trash for leveling kits, so is ReadyLift. Look into Tuff country if you do. They have not failed me yet and the price is good.
Reply With Quote
  #347
Old 04-15-2012
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
Quote:
Originally Posted by Slammed03 View Post
The torsion Keys GUYS!!!!! All Ranger 4x4 suspension is the same if it is IFS. FORD redesigned the torsion keys to not have as much height to them. All of a sudden the warranty work went down and Ford stopped having so many complaints about ride height. Crappy deal with the rangers is when you do crank the Tbars they typically will allow the front end to be nose high after a day or two of driving getting the new settings to settle in. All new IFS vehicles are extremely limited to ride height change( New 2012 GM HD' trucks are PATHETIC, Any one who thinks its great should be slapped ). Manufactures DONT want you to be able to modify the suspension in anyway. Thats why they are always changing the over all designs of the front end.

AfterMarket torsion keys should solve the issue. Procomps stuff is trash for leveling kits, so is ReadyLift. Look into Tuff country if you do. They have not failed me yet and the price is good.

If you had taken the time to sift through this thread, you would know that the issue has been resolved..

Ford reindexed the torsion keys starting in 2008+ to lower the ride height. Many of us (08+ owners) have grabbed a set of torsion keys from a 98-07 Ranger to reclaim the height.
I used keys from a 2007 Ranger and with a mild crank, gained 2"..

There is much debate about aftermarket keys and the problems they can cause.. Some use them, and some wouldn't even think about it..
Reply With Quote
  #348
Old 01-06-2013
2008RangerSport's Avatar
Member

Join Date: Dec 2011
Location: Warner Robins, GA
Posts: 150

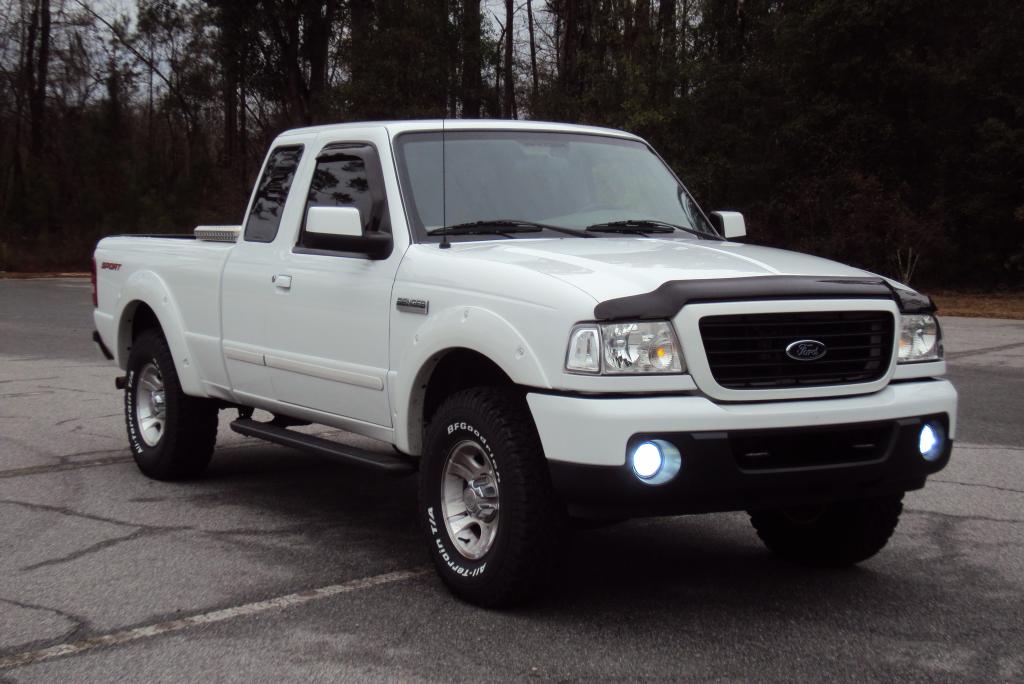

did my prekey install this weekend install was very simple and this thread helped me a lot. I got 1" out of the keys themselves and then cranked the bars for another 1". so 2" total lift and I am level so im happy lol

Attached Thumbnails
2008's lower ride height, need to get to the bottom of this-rangerand4runnerliftinstall001_zps56f1c202.jpg
Reply With Quote
  #349
Old 01-06-2013
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Looking good sir, do you want to trade?
Reply With Quote
  #350
Old 01-07-2013
2008RangerSport's Avatar
Member

Join Date: Dec 2011
Location: Warner Robins, GA
Posts: 150
Quote:
Originally Posted by <TX>TORKiT View Post
Looking good sir, do you want to trade?
lol you have a sick truck but im gonna have to pass
Reply With Quote
