  #151
Old 02-16-2011
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
look'n fresh and clean!
Reply With Quote
  #152
Old 02-16-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
didnt you pack grease in there? I jamb mine full, yours looks too clean!
Reply With Quote
  #153
Old 02-17-2011
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
^ditto
Reply With Quote
  #154
Old 02-17-2011
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
cool, Ill come by later so you can install it on my truck, k thanx! haha looks sick dude, cant wait to see it finished!
Reply With Quote
  #155
Old 02-17-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
thanks every body

Quote:
Originally Posted by zabeard View Post
didnt you pack grease in there? I jamb mine full, yours looks too clean!
no I did'nt pack the lock outs full, they are greased but not packed, I will thoe, thanks for the heads up
should I pack the whole hub full or just the lockouts?

I like the new avitar by the way...lol
Reply With Quote
  #156
Old 02-17-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I pack the bearings then pretty much fill the whole hub. You surely packed the roller bearings right?
Reply With Quote
  #157
Old 02-17-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
yeah I packed the inner and outer wheel bearings realy good

I put more in befor I put the seals on
this is just after I droped the bearing in

Name:  cf336a65.jpg
Views: 17
Size:  89.0 KB

Last edited by BILTRITE BULLIES; 02-17-2011 at 03:43 PM.
Reply With Quote
  #158
Old 02-17-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
ok good, i usually put a nice hand full in each end of the hub too. its alteast 1/2 full of grease if not more.
Reply With Quote
  #159
Old 02-17-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557

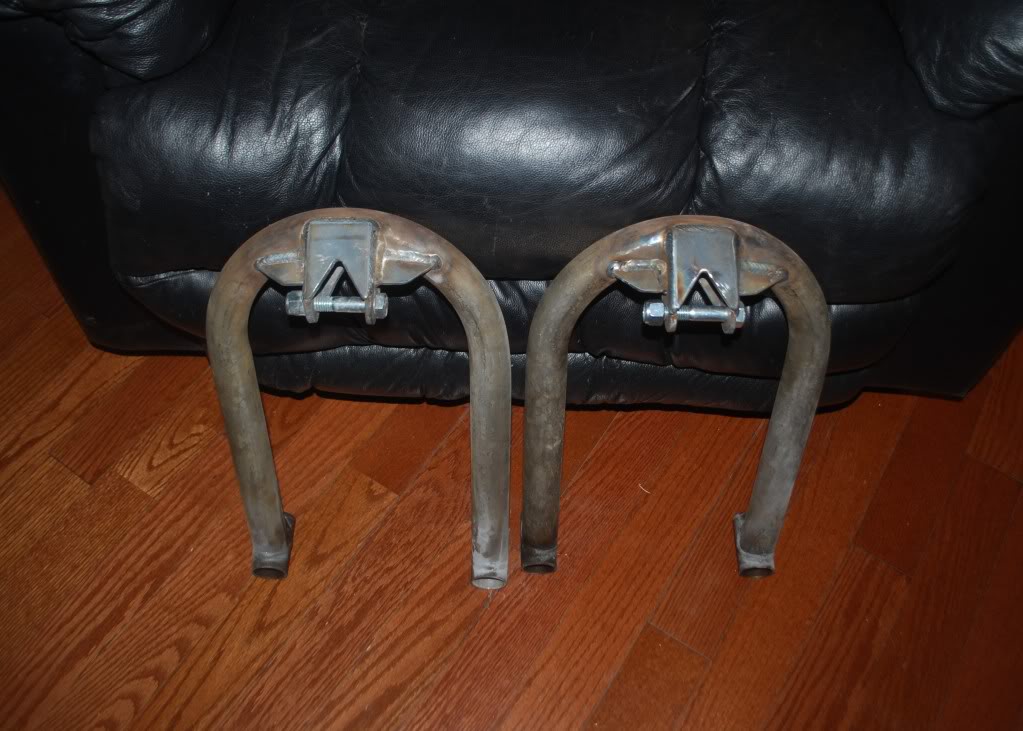

I met a new neighbor that is a welder, so I let him burn in the shock hoop and panhard mount gussets
the guy throws a pretty decent weld

Name:  172006d6.jpg
Views: 17
Size:  101.4 KB

Name:  fe8dd306.jpg
Views: 18
Size:  80.5 KB

Name:  d9eef1b1.jpg
Views: 18
Size:  98.6 KB
Reply With Quote
  #160
Old 02-17-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks great!
Reply With Quote
  #161
Old 02-17-2011
HillPrideRanger's Avatar
Member

Join Date: Mar 2009
Location: Aurora, Colorado
Posts: 442
pretty!!
Reply With Quote
  #162
Old 02-17-2011
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
nice welds now it looks beefy!
Reply With Quote
  #163
Old 02-17-2011
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Good work man! Almost done with this hot rod! lol
Reply With Quote
  #164
Old 02-18-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
thanks every body
Reply With Quote
  #165
Old 02-18-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
So when do we get to see it under your Ranger?
Reply With Quote
  #166
Old 02-18-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by KLC View Post
So when do we get to see it under your Ranger?
I still got a few little parts to get and fab befor Im ready to tear my truck apart
hope to have every thing ready by the end of the month but you never know
Reply With Quote
  #167
Old 02-18-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
maybe if i get off my butt. :)
Reply With Quote
  #168
Old 03-05-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
not much of an update, I have been real busy
but I did get another nice piece of metal:
3/4 less than stock drop pitman arm, tapered for the chevy drag link end

Name:  b07b33a7.jpg
Views: 17
Size:  134.5 KB

Name:  bc950a14.jpg
Views: 18
Size:  69.5 KB
Reply With Quote
  #169
Old 03-05-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
o yeah and got the ps hoses....thanks again Zach

Name:  81cd4f7d.jpg
Views: 18
Size:  132.2 KB
Reply With Quote
  #170
Old 03-05-2011
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Those hoses look money!
Reply With Quote
  #171
Old 03-05-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
I also did a little reworking of the panhard bar, when using some pvc as a tierod (mines still not made) I could see there may be some rubbing issues at full bump,

Name:  66cefdc7.jpg
Views: 18
Size:  99.1 KB

I also wanted hiems on both ends of the panhard so with minimal grinding I was able to get the rod end to move freely any direction on the back side of the mount

Name:  e448eaca.jpg
Views: 17
Size:  63.3 KB

it puts the panhard directly over top the axle, and gives me alot more room
so I ordered new cromo rod ends for both sides, that will also give me more ajustability

Name:  e47dbbfd.jpg
Views: 17
Size:  98.9 KB

Last edited by BILTRITE BULLIES; 03-08-2011 at 03:09 PM.
Reply With Quote
  #172
Old 03-05-2011
Foxracin's Avatar
Member

Join Date: Oct 2005
Location: Mount Holly, NC
Posts: 42
Looks good man.

If you dont mind me asking where did you get the RCV axles for and how much did you pay for them. Got the cash saved up for a set and looking for the best deal.
Reply With Quote
  #173
Old 03-06-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by Foxracin View Post
Looks good man.

If you dont mind me asking where did you get the RCV axles for and how much did you pay for them. Got the cash saved up for a set and looking for the best deal.
I ordered mine directly from rcv, they cost $1200
Reply With Quote
  #174
Old 03-08-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
finaly got a real tierod done and one end of the draglink

Name:  9a72553b.jpg
Views: 18
Size:  82.4 KB

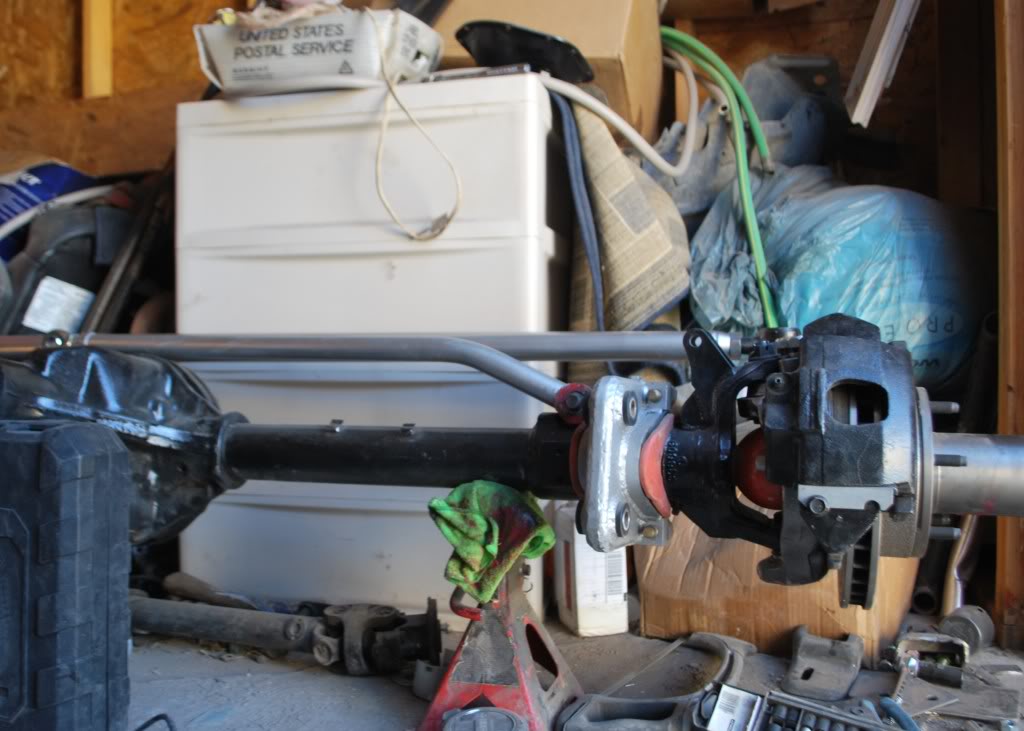

looks like the panhard/trackbar is a little shorter on the axle side but I will be able to fix that with the rodend

Name:  b0ad9a98.jpg
Views: 17
Size:  90.8 KB

Name:  60a724bf.jpg
Views: 17
Size:  79.3 KB

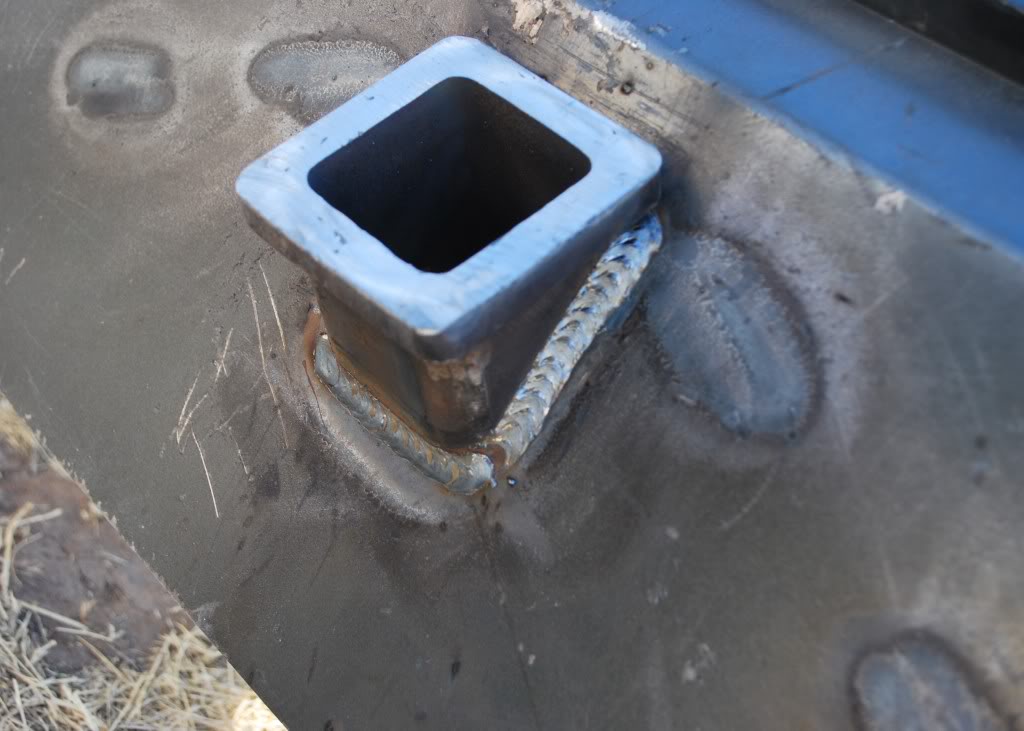

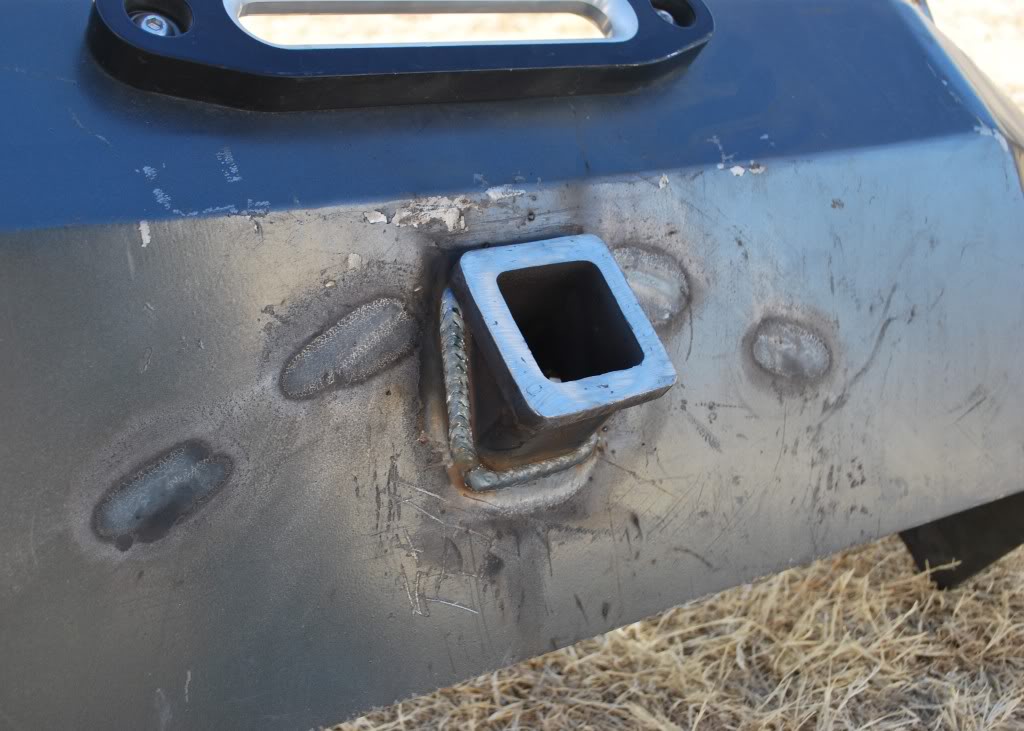

I also did some work to the bumper

Name:  cf7ed293.jpg
Views: 17
Size:  80.1 KB

Name:  2bbebd15.jpg
Views: 17
Size:  99.4 KB

back side, I think it will be a hell of a lot stronger than them weld on d-ring deals for a tow point

Name:  f40c3e2f.jpg
Views: 18
Size:  68.7 KB

Name:  6a1d8d68.jpg
Views: 18
Size:  59.7 KB

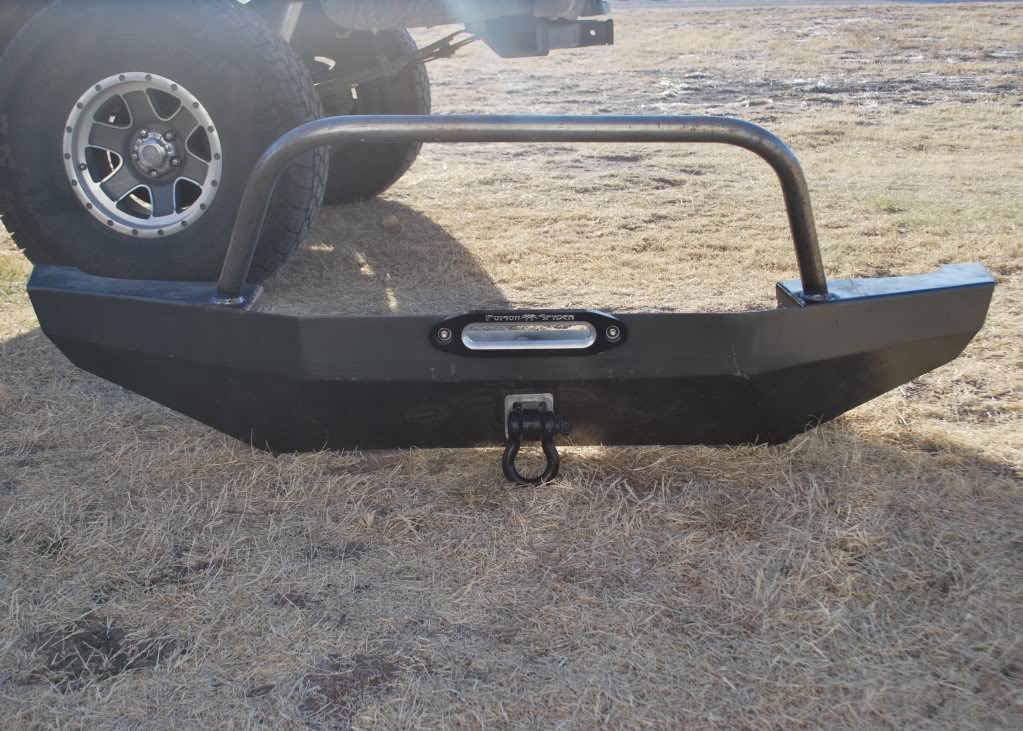

need to sand it back down and repaint it now

Name:  a73e39ed.jpg
Views: 17
Size:  235.9 KB

Name:  316fa4e9.jpg
Views: 17
Size:  181.0 KB

Last edited by BILTRITE BULLIES; 03-08-2011 at 08:34 PM.
Reply With Quote
  #175
Old 03-08-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
also painted the shock hoops to keep the rust down

Name:  91a932bf.jpg
Views: 17
Size:  97.3 KB
Reply With Quote
