  #201
Old 03-31-2011
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
box looks CLEAN!
Reply With Quote
  #202
Old 03-31-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
All of your parts sure look nice. I can tell you aren't cutting any corners. Some big $$$$.
Reply With Quote
  #203
Old 03-31-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
thanks every one

I just made another big purchase 37x12.50R17 rocker radials
now I got to get me some 17 inch rims...lol
Reply With Quote
  #204
Old 03-31-2011
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Looking great Koyn. Where did you get that yota box? It looks brand new. Once you get everything thrown under could you take a few pictures of your high dollar steering setup?
Reply With Quote
  #205
Old 03-31-2011
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
You're gonna mount it on the frame without having the axle setup first? Ballsy....

Quote:
Originally Posted by BILTRITE BULLIES View Post
thanks every one

I just made another big purchase 37x12.50R17 rocker radials
now I got to get me some 17 inch rims...lol
Welcome to the 37's and 17's club! Kewl kids wilcome! LUL!

Quote:
Originally Posted by bigandrw View Post
Looking great Koyn. Where did you get that yota box? It looks brand new. Once you get everything thrown under could you take a few pictures of your high dollar steering setup?
Marlin Crawler sells em if you can't find them. Mine's actually the $400 Marlin box from their site, but it came with my axle when I bought it, got lucky! :-)
Reply With Quote
  #206
Old 04-01-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by bigandrw View Post
Looking great Koyn. Where did you get that yota box? It looks brand new. Once you get everything thrown under could you take a few pictures of your high dollar steering setup?
sure thing...lol

Quote:
Originally Posted by TrePaul86 View Post
You're gonna mount it on the frame without having the axle setup first? Ballsy....



Welcome to the 37's and 17's club! Kewl kids wilcome! LUL!



Marlin Crawler sells em if you can't find them. Mine's actually the $400 Marlin box from their site, but it came with my axle when I bought it, got lucky! :-)
no Im not gona weld the mounts to the skid until I have the axle under there

but I have measured everything out so I know the mounts will end up almost dead center of the skid

I went threw frontier 4x4 for the box, but marlin, datin fab, addicted offroad ect. they all get them from trail gear, TG is who rebuilds them

Last edited by BILTRITE BULLIES; 04-01-2011 at 12:28 AM.
Reply With Quote
  #207
Old 04-01-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nothing wrong with mounting the box before the axle. it only goes in one place. As far forward as possible.
Reply With Quote
  #208
Old 04-01-2011
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Quote:
Originally Posted by zabeard View Post
nothing wrong with mounting the box before the axle. it only goes in one place. As far forward as possible.
Yup get it against that front body mount and thats it lol. Shouldn't matter if the axle is in there yet or not.

And I also got my steering box from Trail Gear. Much better to know you have a good box then to get a crap one from a junkyard. Especially with the caliber of Koyn's build, there's no reason to cheap out on the box.
Reply With Quote
  #209
Old 04-01-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I bought a reman from Napa. I got screwed because I didnt realize the box was junk until it was at the alignment shop and they showed me. So i quick rushed to napa and bought one.
Reply With Quote
  #210
Old 04-01-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by zabeard View Post
nothing wrong with mounting the box before the axle. it only goes in one place. As far forward as possible.
Quote:
Originally Posted by RazorsEDGE View Post
Yup get it against that front body mount and thats it lol. Shouldn't matter if the axle is in there yet or not.

And I also got my steering box from Trail Gear. Much better to know you have a good box then to get a crap one from a junkyard. Especially with the caliber of Koyn's build, there's no reason to cheap out on the box.
Yeah I thought he was talking about mounting the radius arm brackets

if he was talking about the box then yes I plan on mounting it first

I wanted to mount the box almost touching the body mount but the top of the box hits the radiator mount a couple inches befor then
Reply With Quote
  #211
Old 04-01-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Yeah its the same for all of us, well it was for me but not any more. you have it as far as possible without moving the radiator.
Reply With Quote
  #212
Old 04-02-2011
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
on that transfer case skid when you go to brace it just remember to make it where dry grass and stuff we have around can blow out of there. Like with mine I have that lip to brace it up and it would hold grass in there like crazy, then you have your cat right there just asking for a fire. That is why I had to cut holes out of it. Don't have any problems now.

oh and my rockers are getting a little louder but it still isn't near way as bad as swampers.
Reply With Quote
  #213
Old 04-02-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Quote:
Originally Posted by zabeard View Post
Yeah its the same for all of us, well it was for me but not any more. you have it as far as possible without moving the radiator.
yes Sir. but theres no need to rub it in

Quote:
Originally Posted by camodown View Post
on that transfer case skid when you go to brace it just remember to make it where dry grass and stuff we have around can blow out of there. Like with mine I have that lip to brace it up and it would hold grass in there like crazy, then you have your cat right there just asking for a fire. That is why I had to cut holes out of it. Don't have any problems now.

oh and my rockers are getting a little louder but it still isn't near way as bad as swampers.
thanks for the advice

Im excited to get the tires, I kept trying to get 37x12.50R15's, even paid for them then got my money back
because they were on back order, and no body could tell me when they would be ready
all they would say is "it could be a month or maybe two or three" ...lol

but Im glad I chose to forked out a little more cash for the 17's instead of getting somthing else
Reply With Quote
  #214
Old 04-02-2011
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
yeah, I got set on wanting them and that is all I wanted after that haha
Reply With Quote
  #215
Old 04-02-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
I was going to save up for some nice alloy beadlocks or somthing but...
I think Im just going to get some cheaper wheels, so I can get this show on the road

with free shipping and a discount code I can get these to my door for $380
I was thinking about getting them with 2.5 inch back spacing, because I want the truck to be as wide as possible

should only help with clearance right? shouldnt have any ill effects???

http://www.4wheelparts.com/Wheels/Ro...PCW98-7985R2.5
Reply With Quote
  #216
Old 04-02-2011
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
how wide is it going to be with those wheels?
Reply With Quote
  #217
Old 04-02-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
wrong backspacing... its going to be crazy wide! its a full width axle now right?
Reply With Quote
  #218
Old 04-02-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
Yeah 65 WMS but I have fiberglass fenders that need to be filled
Reply With Quote
  #219
Old 04-02-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
my rear axle has a 61 inch wms (the super 88 kit adds a couple inches)

I could make it the same width as the front with some 2 inch wheel spacers
but my buddy told me its better to have the front a little wider?
I may still get 1.5 inchers so the front would only be an inch wider

those wheels would only be 2 inches wider than what I got now ( 8 inch rim 3.75 BS)
but I may back off 1 inch to 3.5 BS
Reply With Quote
  #220
Old 04-03-2011
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Helped Koyn mount the steering box today. One more task done before the real work starts.

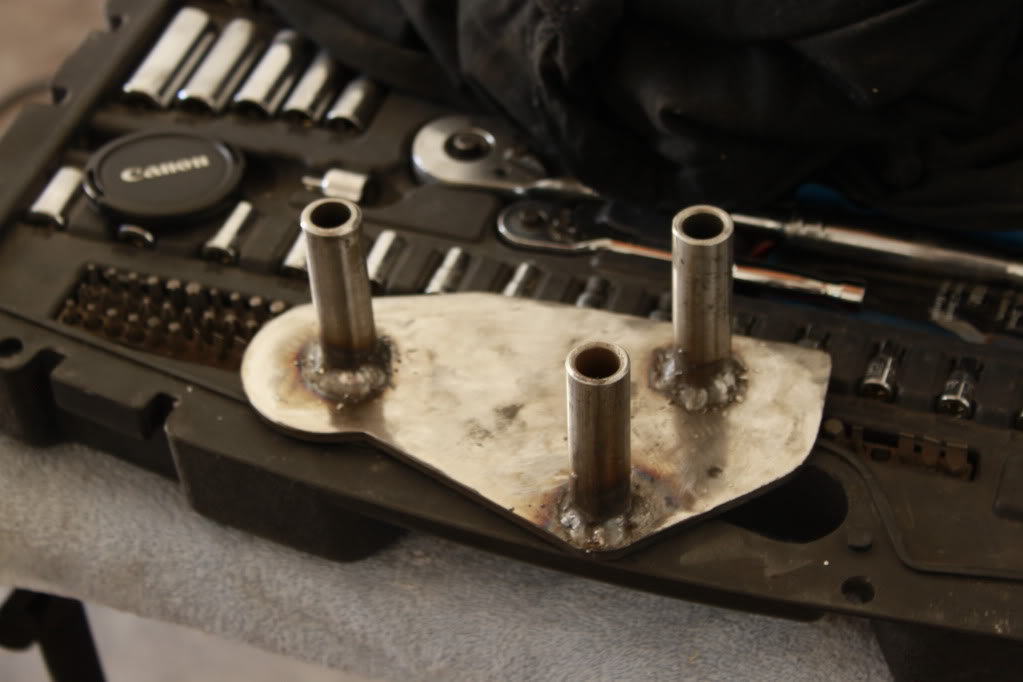

Name:  _MG_1088.jpg
Views: 12
Size:  62.6 KB

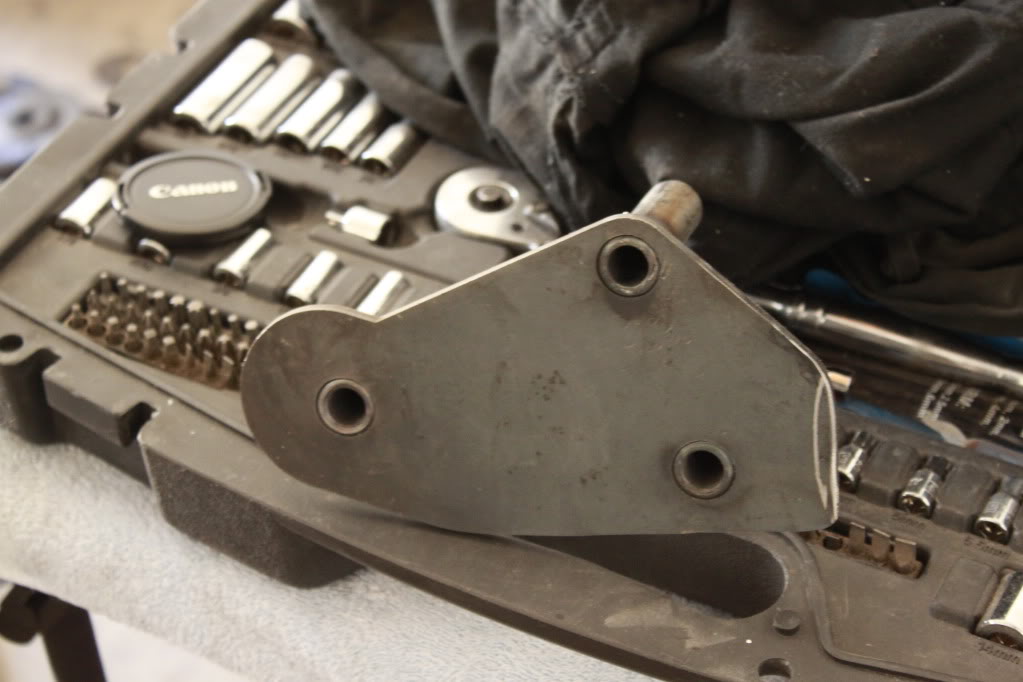

Name:  _MG_1092.jpg
Views: 11
Size:  72.1 KB
Name:  _MG_1093.jpg
Views: 12
Size:  96.0 KB

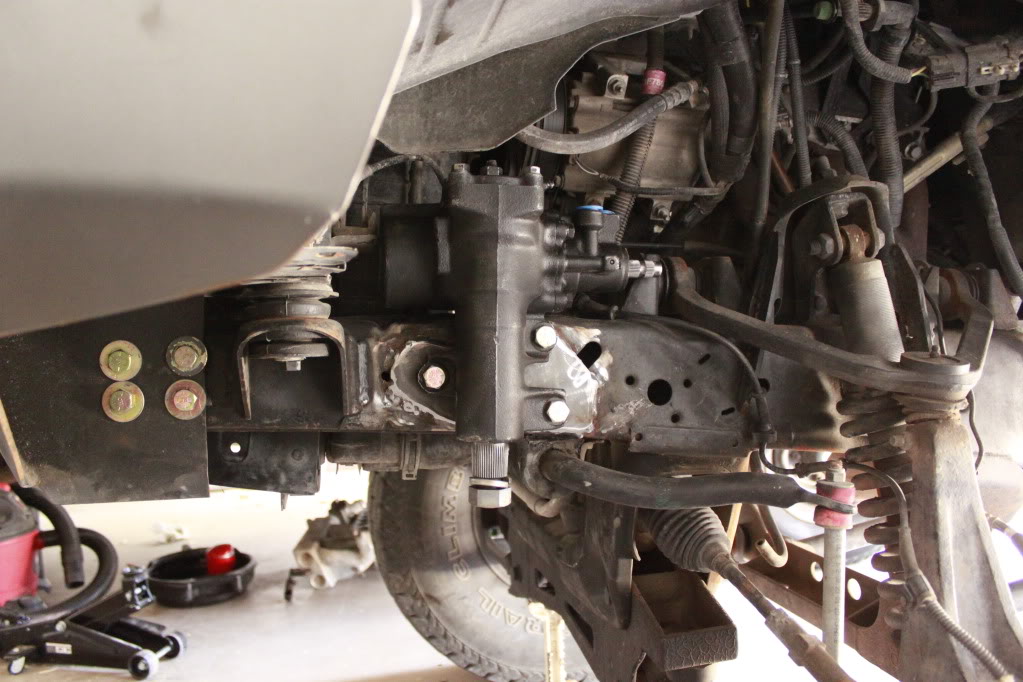

Name:  _MG_1098.jpg
Views: 11
Size:  117.8 KB
Reply With Quote
  #221
Old 04-03-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks great!
Reply With Quote
  #222
Old 04-03-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looking good! I like all the detailed pics... it'll help me out with my own SAS hopefully a few months down the road!
Reply With Quote
  #223
Old 04-03-2011
BILTRITE BULLIES's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
thanks for the help today Ryan, I appreciate it bro
Reply With Quote
  #224
Old 04-05-2011
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Takes ***** to mount that before the axle man... Good work.
Reply With Quote
  #225
Old 04-05-2011
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
this is amazing, I love the idea and the execution of it
Reply With Quote
