Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 09-25-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
just hit it with a hammer, make sure you don't hit the knuckle.
Reply With Quote
  #27
Old 09-25-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay i think ill heat it up with a torch i already beat the crap out of it with a big hammer. Just wanted to make sure that they werent threaded in or somthing stupid.
Will these TRE's fit on ford 3/4 ton knuckles or do you have to ream the holes? http://www.ballisticfabrication.com/..._113-1338.html
Reply With Quote
  #28
Old 09-27-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

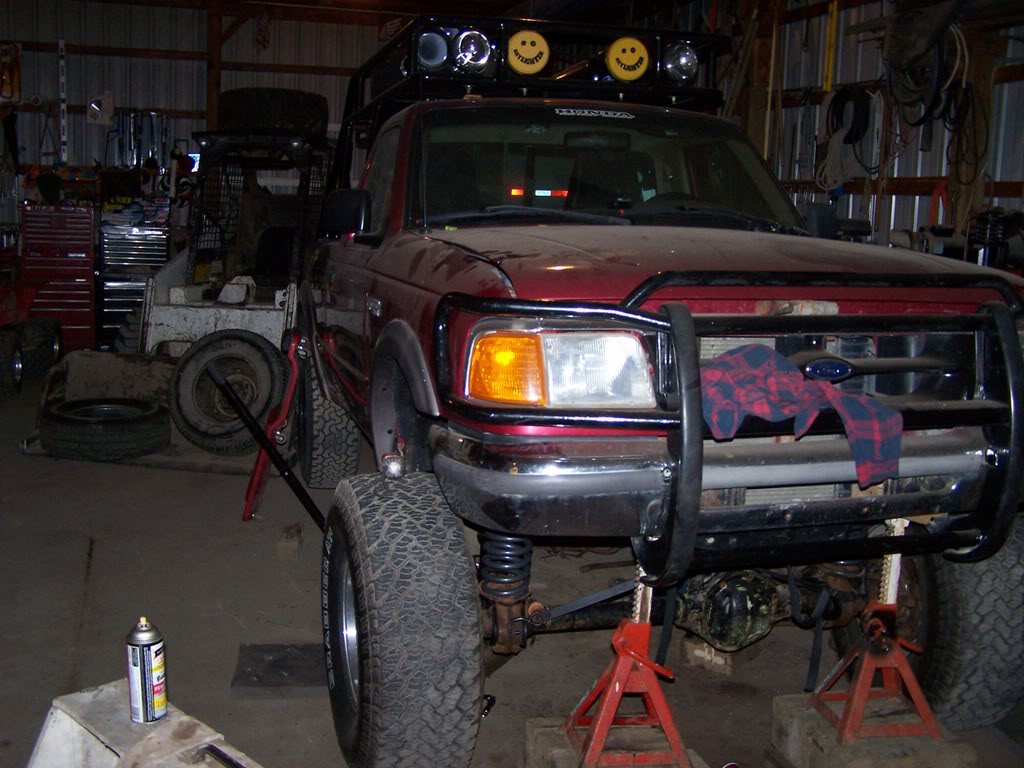

Just a teaser
Name:  100_1760.jpg
Views: 35
Size:  122.0 KB
Reply With Quote
  #29
Old 09-28-2008
Member

Join Date: Jun 2005
Posts: 148
Quote:
Originally Posted by ford rules View Post
Okay i think ill heat it up with a torch i already beat the crap out of it with a big hammer. Just wanted to make sure that they werent threaded in or somthing stupid.
Will these TRE's fit on ford 3/4 ton knuckles or do you have to ream the holes? http://www.ballisticfabrication.com/..._113-1338.html

They'll fit under the knuckle just fine, but if you want to flip the tie-rod over the knuckle you'll need to ream.
Reply With Quote
  #30
Old 09-28-2008
Member

Join Date: Jun 2005
Posts: 148
The steering arm on the knuckle can be pounded off with a hammer, but it'll probably put up a good fight.
Reply With Quote
  #31
Old 09-28-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay thanks ya i already figured that stuff out but thanks for the reply.
Heres some teasers.
Heres the progress pics of yesterday.

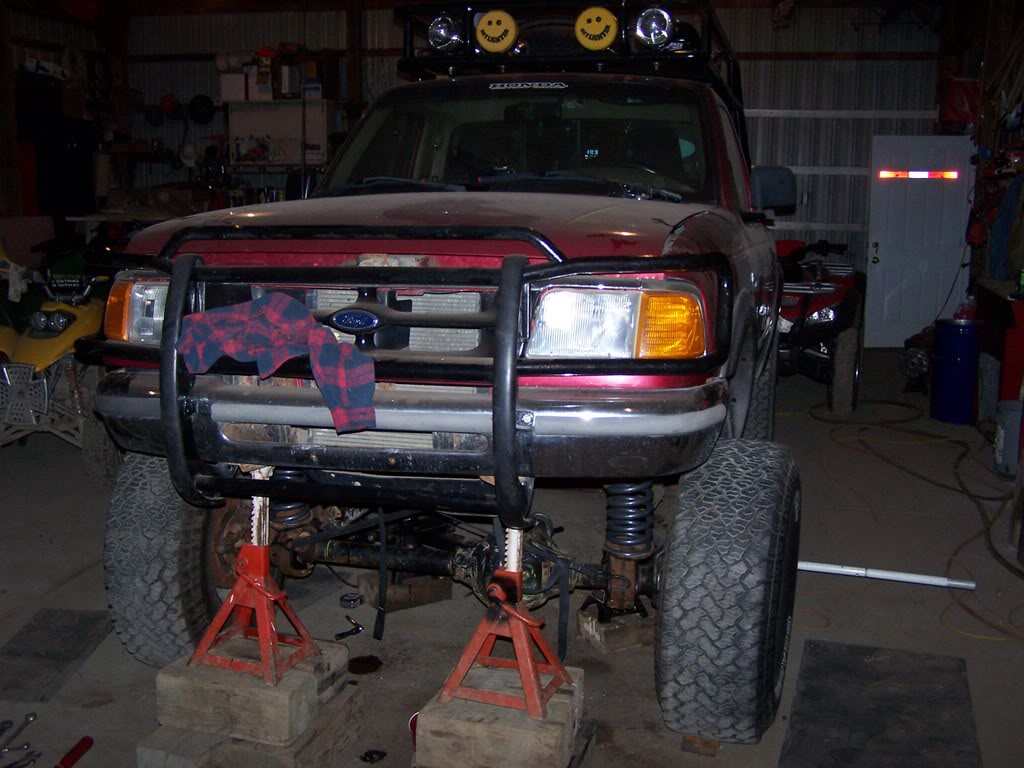

Name:  100_1759.jpg
Views: 35
Size:  115.9 KB
Name:  100_1758.jpg
Views: 36
Size:  190.6 KB

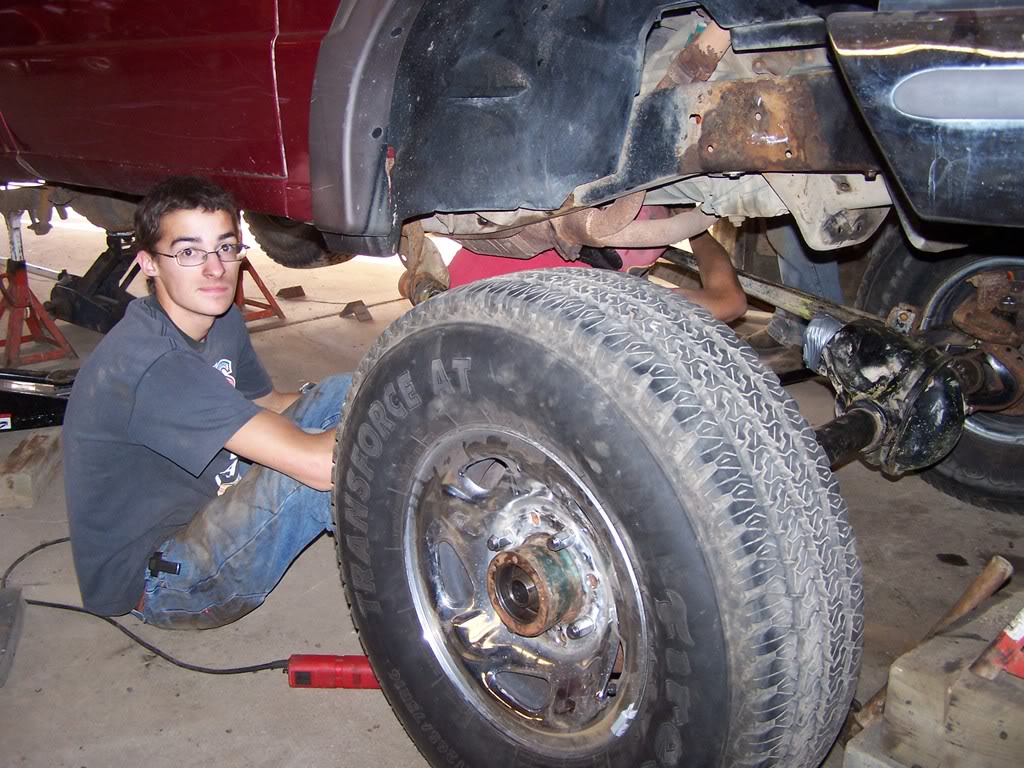

Name:  100_1757.jpg
Views: 34
Size:  168.1 KB
Name:  100_1756.jpg
Views: 34
Size:  129.4 KB
Name:  100_1755.jpg
Views: 38
Size:  121.7 KB
Name:  100_1754.jpg
Views: 36
Size:  152.2 KB
Name:  100_1753.jpg
Views: 39
Size:  112.0 KB
Reply With Quote
  #32
Old 10-06-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
More progress if anyone wants to see.

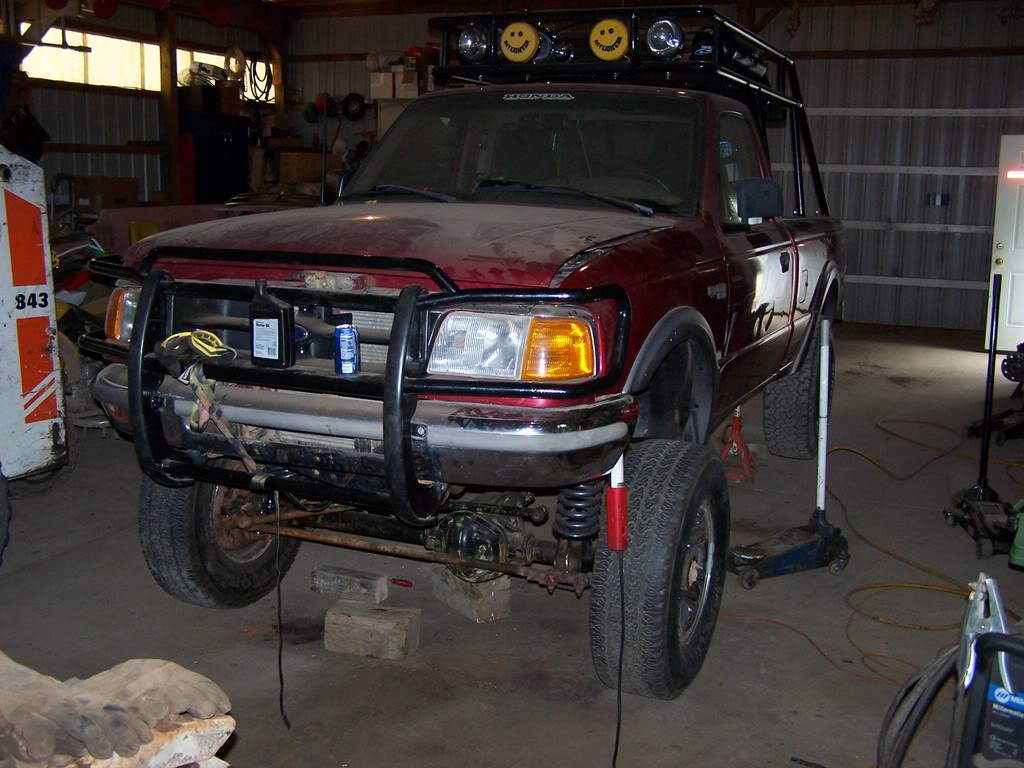

Name:  100_1761.jpg
Views: 30
Size:  126.9 KB

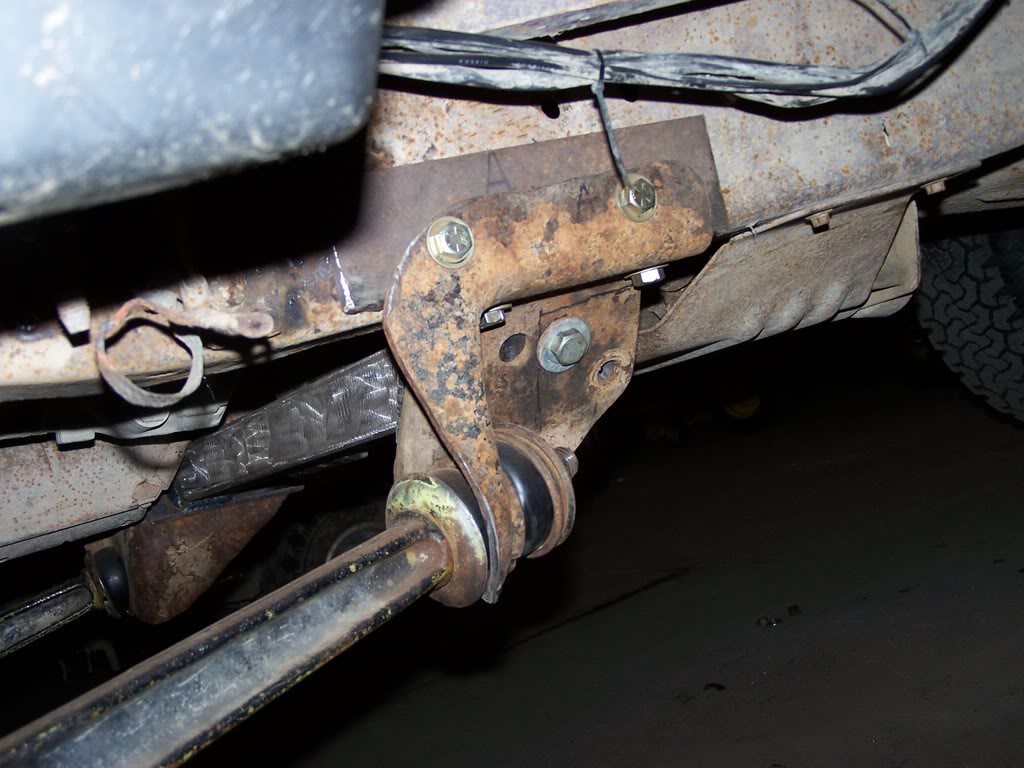

Name:  100_1770.jpg
Views: 31
Size:  114.0 KB

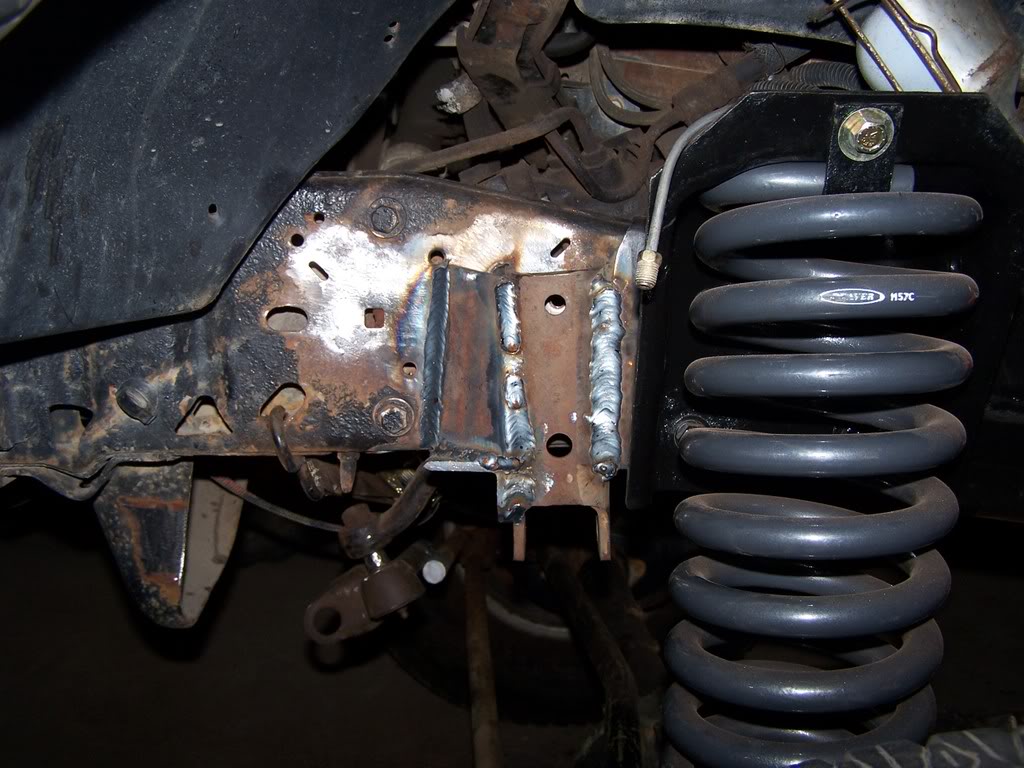

Name:  100_1765.jpg
Views: 30
Size:  123.7 KB

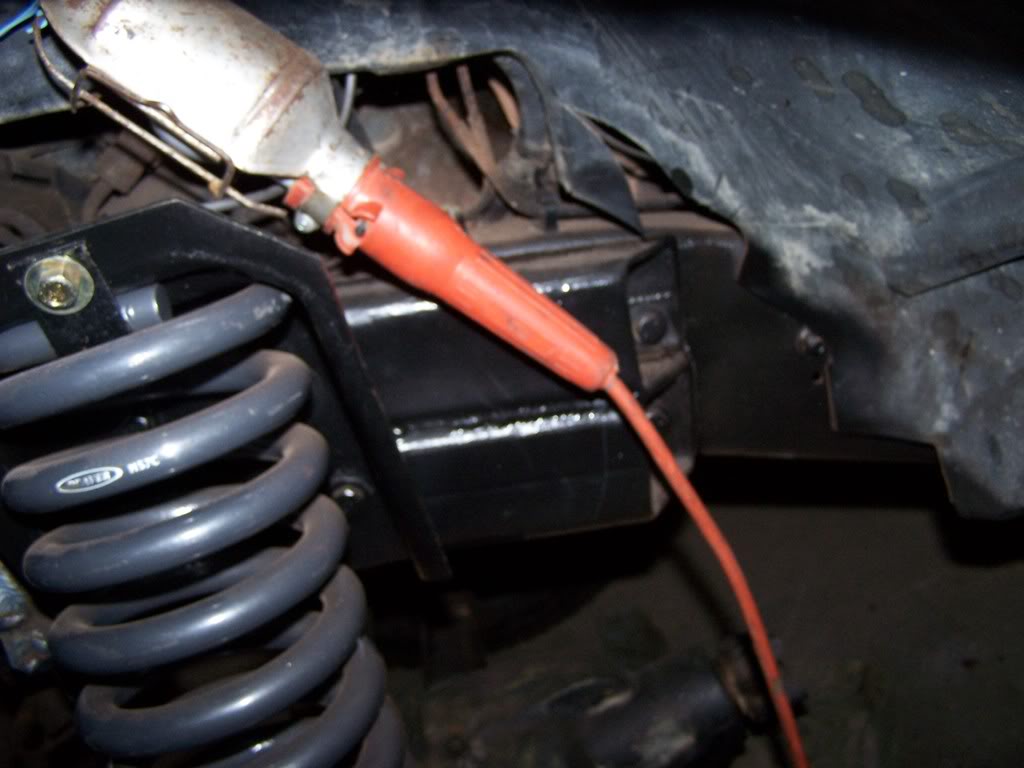

Name:  100_1766.jpg
Views: 29
Size:  72.4 KB

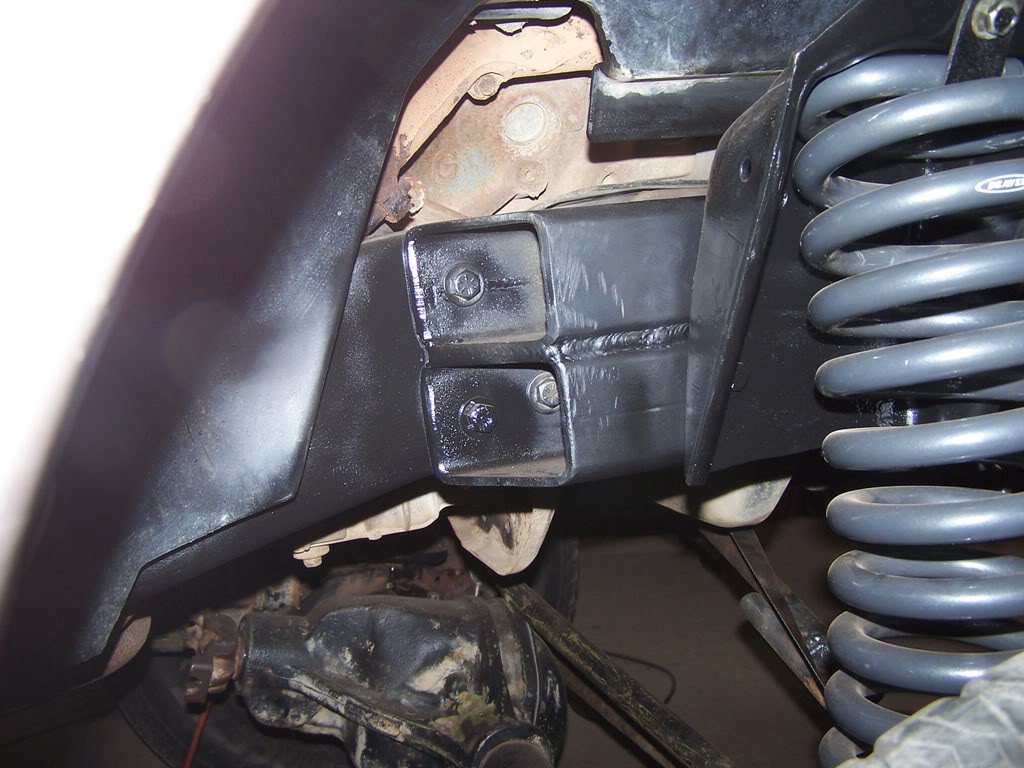

Name:  100_1764.jpg
Views: 30
Size:  118.6 KB

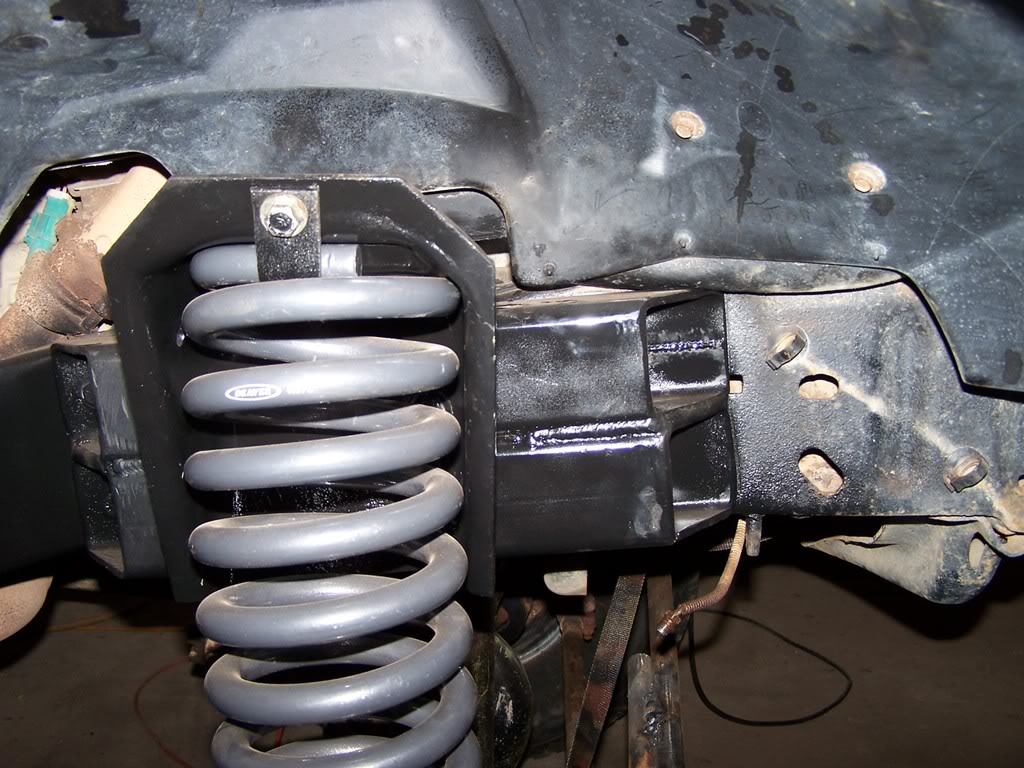

Name:  100_1763.jpg
Views: 31
Size:  152.8 KB

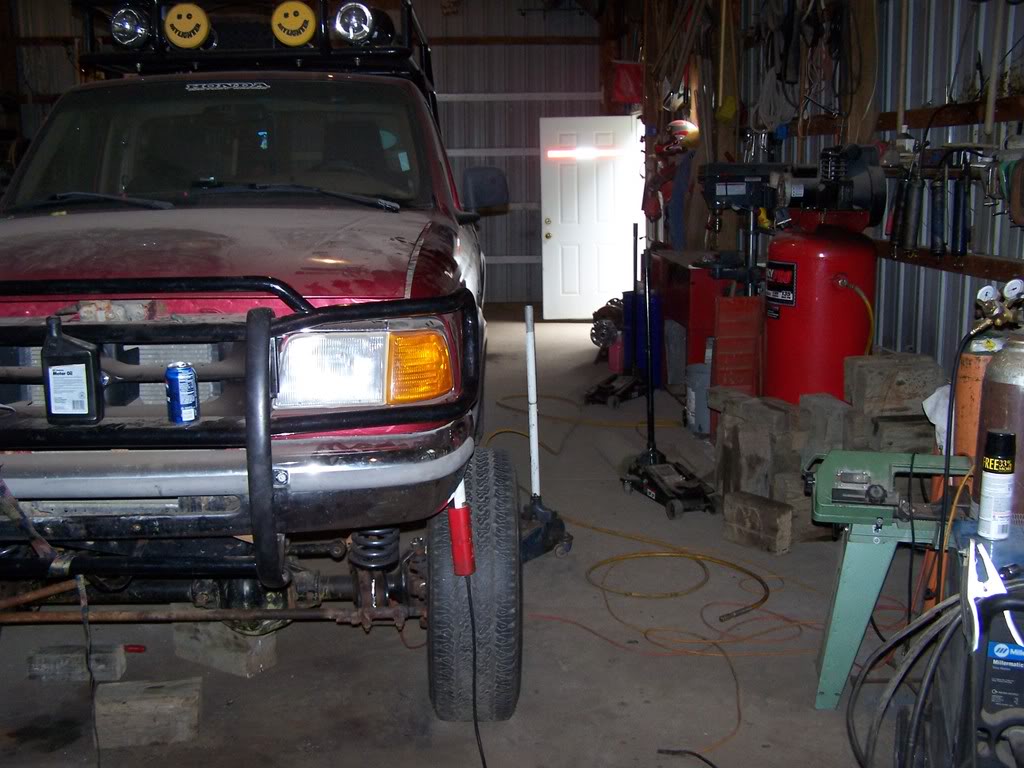

Name:  100_1762.jpg
Views: 29
Size:  125.9 KB
Name:  100_1761.jpg
Views: 30
Size:  126.9 KB
The steering is just to turn it around outside.
Attached Images
File Type: jpg 100_1761.jpg (126.9 KB, 2 views)
Reply With Quote
  #33
Old 10-06-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks pretty good.

whats your caster with those arms like that? i hope atleast 5 or 6 degrees
Reply With Quote
  #34
Old 10-07-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Zabeard, what's the best way to check caster for a good angle other than an alignment shop... even a 4wd shop can't tell me how to get a realiable measurement without puttin it on a rack...

also get some pics of your trac bar set up please! i'm in need of redoing mine!
Reply With Quote
  #35
Old 10-07-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Great progress. That thing is gonna be beast!!
Reply With Quote
  #36
Old 10-07-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by stRanger View Post
Zabeard, what's the best way to check caster for a good angle other than an alignment shop... even a 4wd shop can't tell me how to get a realiable measurement without puttin it on a rack...

also get some pics of your trac bar set up please! i'm in need of redoing mine!
stick an angle finder on the flat part of the C where the upper balljoint nut is. its accurate enough.

I put mine within 6-7 and on the rack it measured out to 6.xxx

Make sure its on its wheels and tires though.
Reply With Quote
  #37
Old 10-07-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
maybe i'm slow or stooooopid, but there isn't any flat area to where i can put an angle finder on the C... maybe 1/4" of material then toward the diff side it slopes downward.... would on the balljoint nut/stud work?
Reply With Quote
  #38
Old 10-07-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
it probably would if you can get it to seat ok.

i have to hold it on the flat edge by the nut. sometimes i read it off the highsteer arm
Reply With Quote
  #39
Old 10-07-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ill try to get ahold of an angle finder and see what its gonna be i think that i might have to make some radius arm drop brackets. Shocks and heims for steering should be here by the end of the week zach do you have any pics of you steering stabalizer setup?
Thanks
Steering kit http://www.ballisticfabrication.com/..._113-1335.html
Reply With Quote
  #40
Old 10-20-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
An update

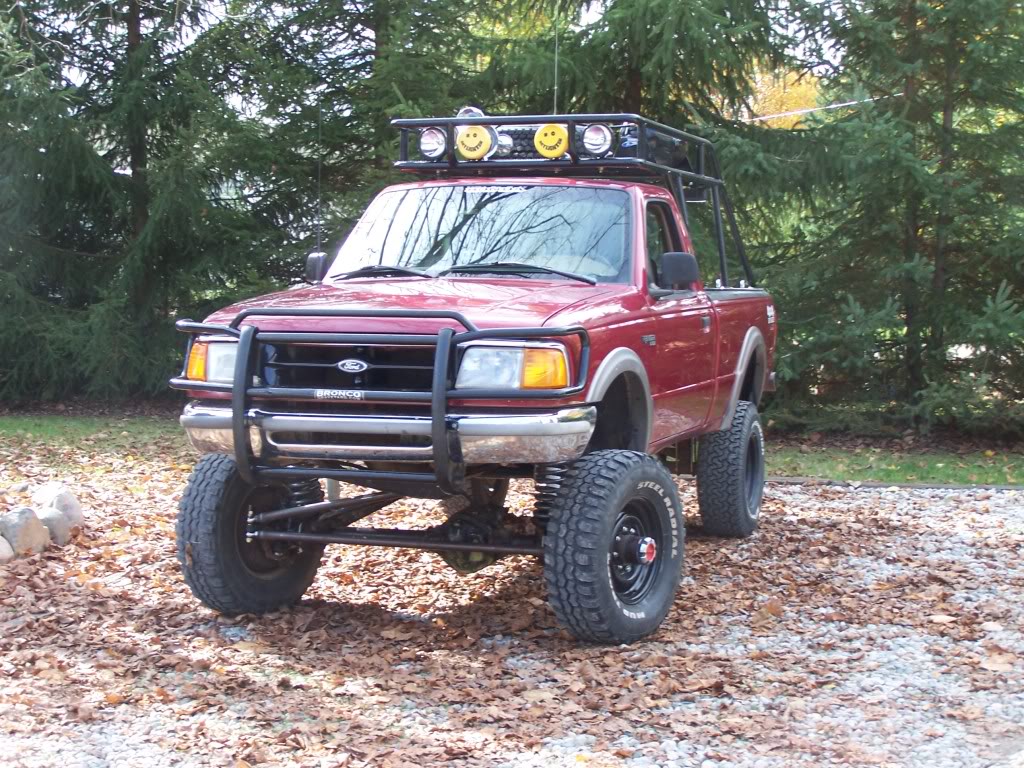

Name:  100_1788.jpg
Views: 29
Size:  234.8 KB

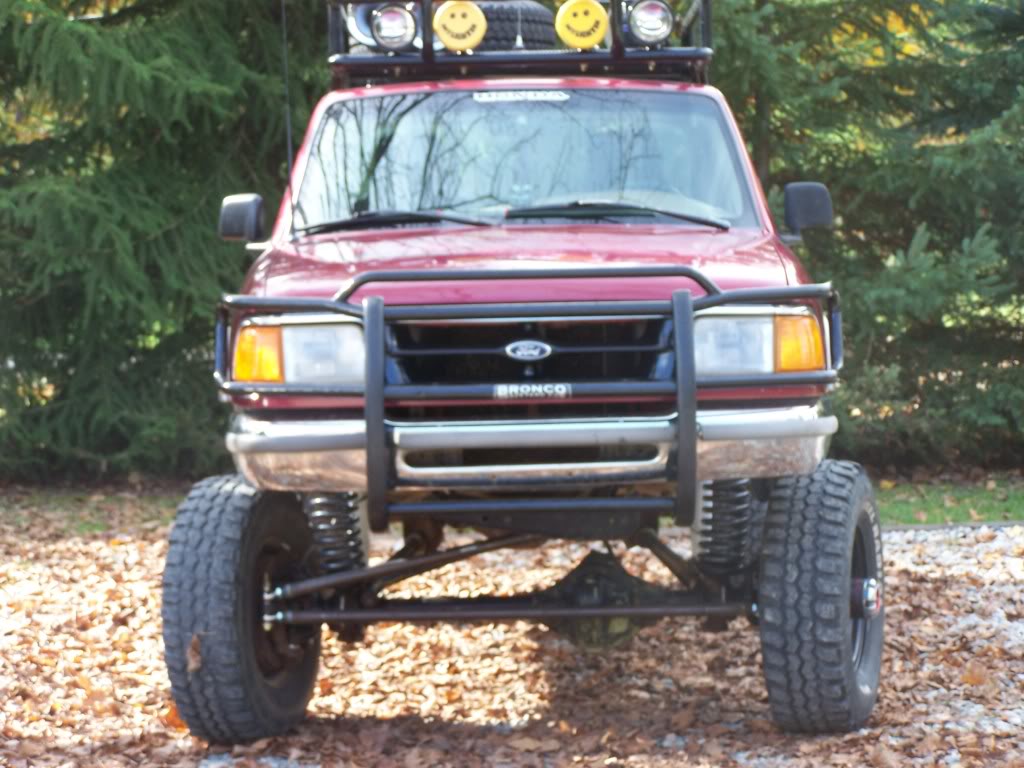

Name:  100_1789.jpg
Views: 29
Size:  120.6 KB

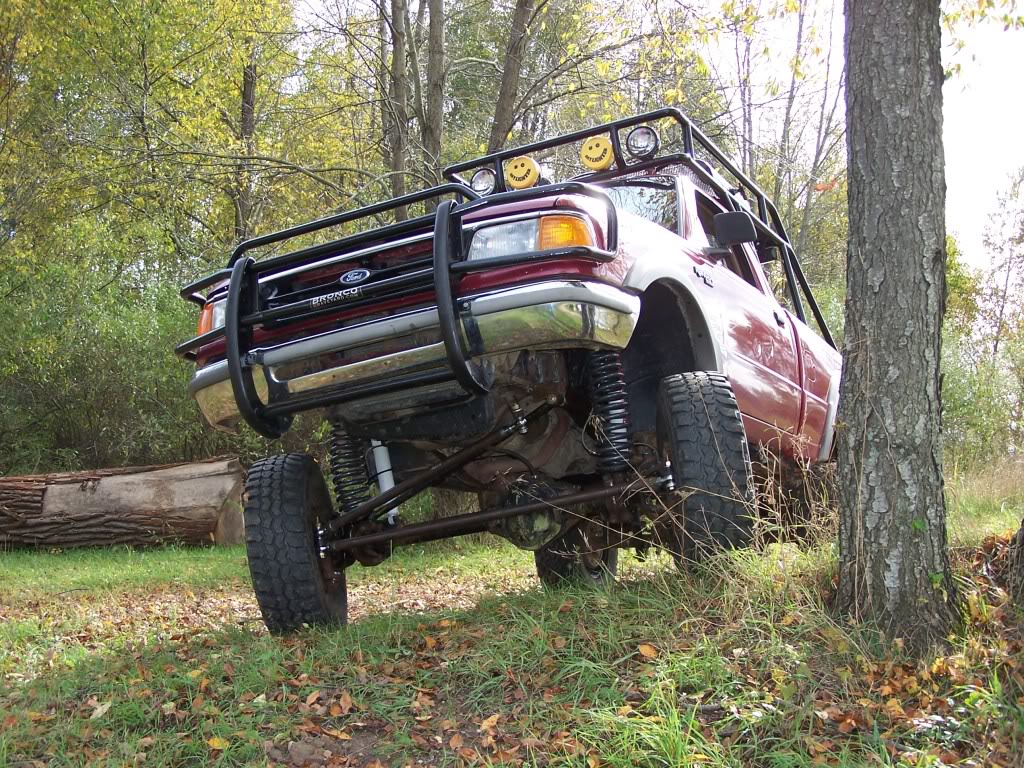

Name:  100_1791.jpg
Views: 30
Size:  310.9 KB

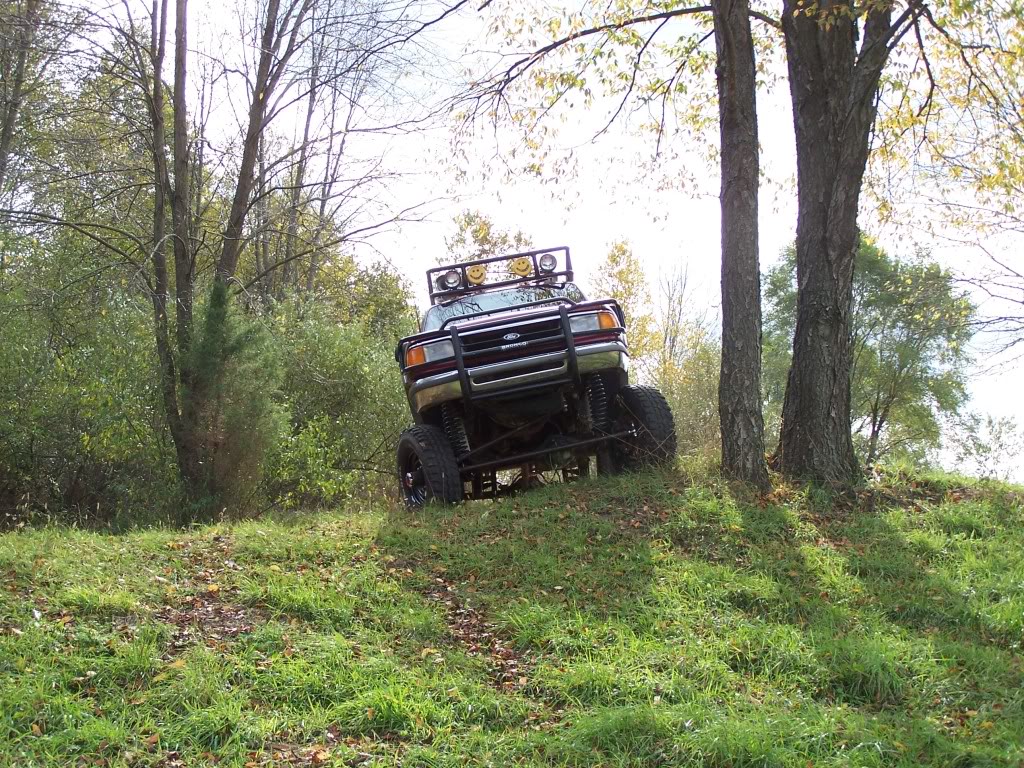

Name:  100_1792.jpg
Views: 29
Size:  314.5 KB

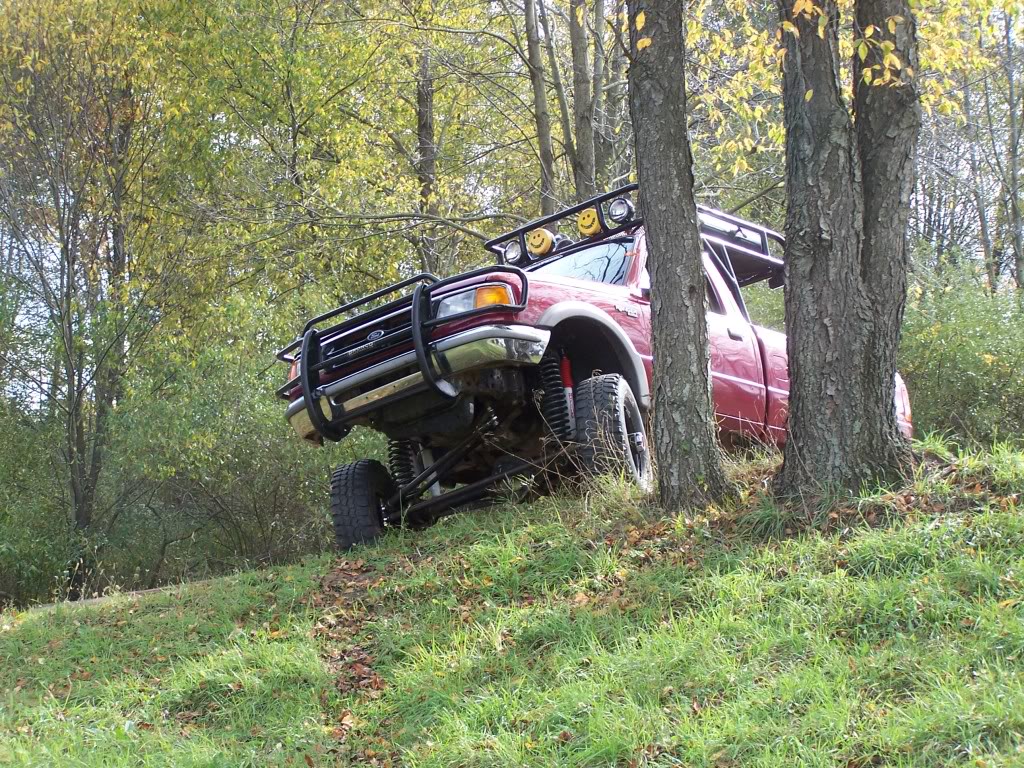

Name:  100_1793.jpg
Views: 29
Size:  329.9 KB

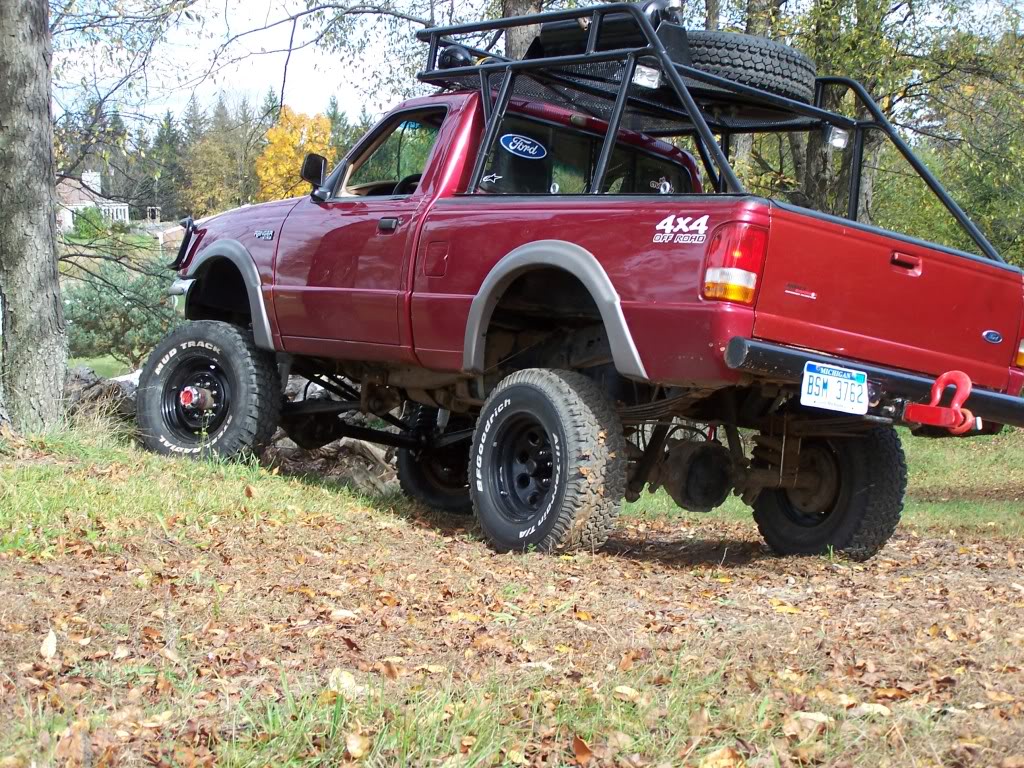

Name:  100_1794.jpg
Views: 32
Size:  269.8 KB

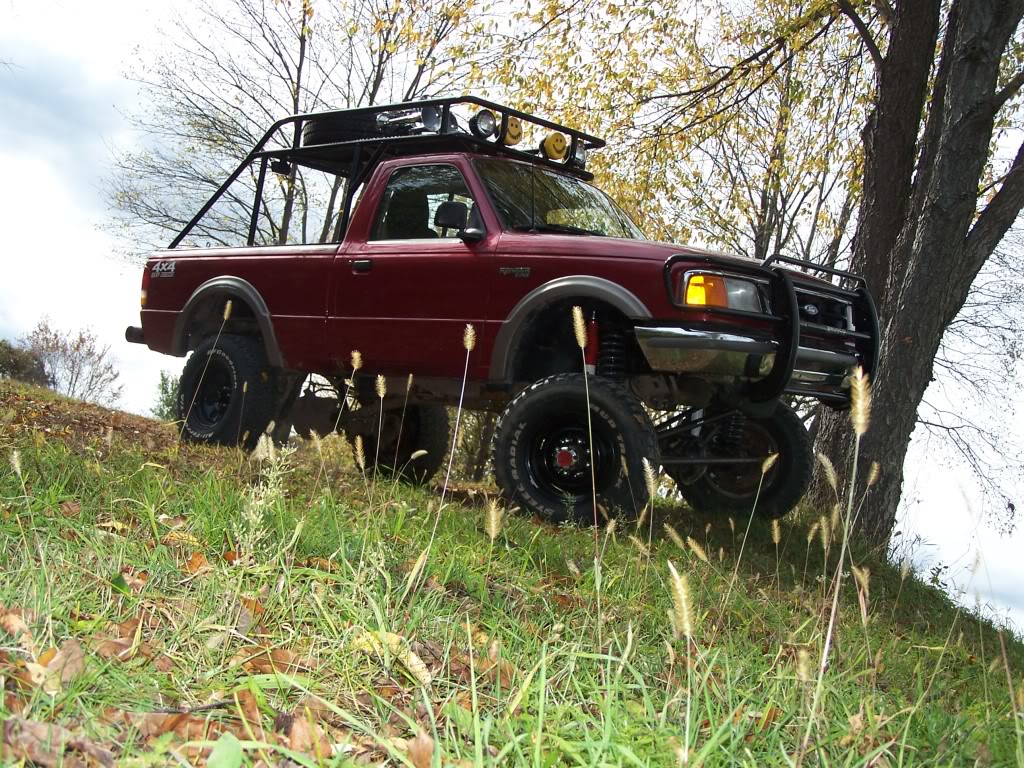

Name:  100_1795.jpg
Views: 29
Size:  282.2 KB

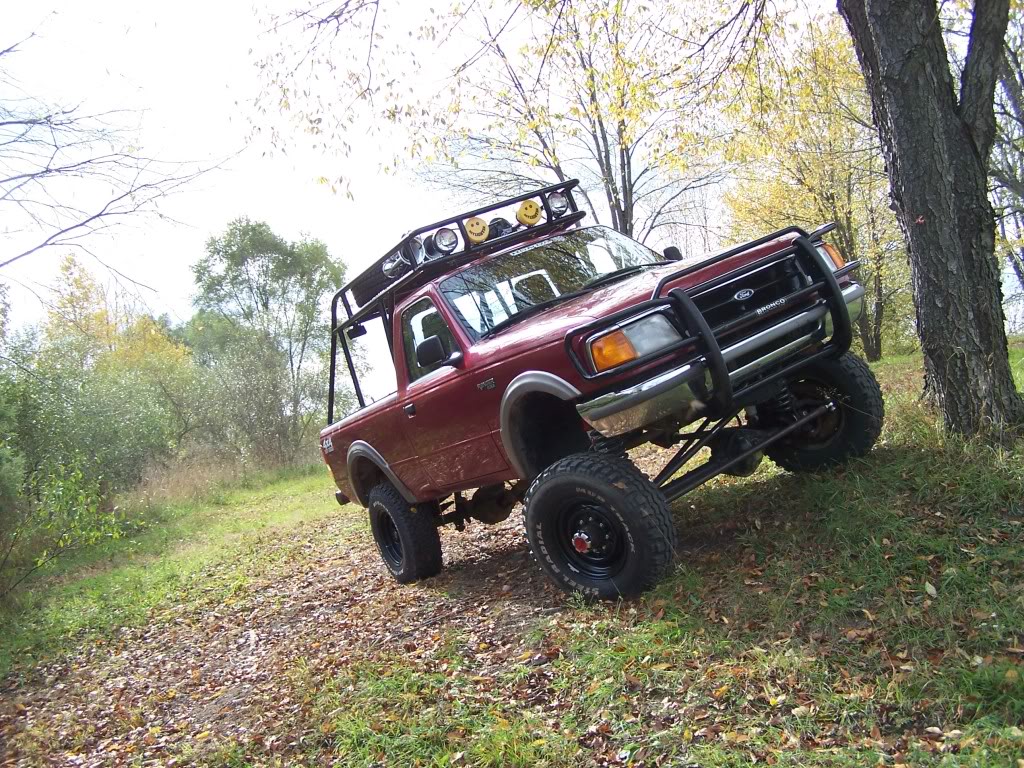

Name:  100_1796.jpg
Views: 31
Size:  286.0 KB
Reply With Quote
  #41
Old 10-20-2008
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Whoa. That thing is sick. Build me one now lol. I really like that rack. Is that an airtank up there for the horns?
Reply With Quote
  #42
Old 10-20-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
you need a track bar. lol those coils are doin funky things, but i love how it turned out..

Congrats on all the hard work.



and is it just me or did it say "Fragile" on the box with the coils? a coil is something I wouldn't really consider "fragile"
Reply With Quote
  #43
Old 10-20-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by karrbass4life View Post
Whoa. That thing is sick. Build me one now lol. I really like that rack. Is that an airtank up there for the horns?
Yes sir
Reply With Quote
  #44
Old 10-20-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by 99ranger4x4 View Post
you need a track bar. lol those coils are doin funky things, but i love how it turned out..

Congrats on all the hard work.



and is it just me or did it say "Fragile" on the box with the coils? a coil is something I wouldn't really consider "fragile"
What do you mean i need a track bar i got one and its all mounted up and yes you are right on the fragile thing.
Well im not using the 60 cause i would have to buy 300 dolar shafts but i just got a free sterling 10.25.
Reply With Quote
  #45
Old 10-20-2008
Motorcraft's Avatar
Member

Join Date: Jul 2005
Location: Franklin MA
Posts: 240
trucks looking good, but the springs look kinda scary IMO. and your in need of a idler and track bar.

Reply With Quote
  #46
Old 10-20-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by Motorcraft View Post
trucks looking good, but the springs look kinda scary IMO. and your in need of a idler and track bar.


Uhm.. no. Please explain how he would use an idler arm, your illustration is for independent suspension.
Track bar yes
Reply With Quote
  #47
Old 10-20-2008
Motorcraft's Avatar
Member

Join Date: Jul 2005
Location: Franklin MA
Posts: 240
My B on the illustation its what i found with a quick Google search, I see my mistake on the idler arm also, but the steering seems off to me with the lack of a good hardy track bar. and toe adjustment.
Reply With Quote
  #48
Old 10-20-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
the steering looks fine to me, its far better than mine.

He said he has a track bar. but I'm with Motorcraft, why are your coils doin funky things?
Reply With Quote
  #49
Old 10-20-2008
D.
Unregistered User

Posts: n/a
Good to see a bunch of folks working together on a project! Keep at it Rob!
Reply With Quote
  #50
Old 10-20-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good but defiantly need some bigger meats and those coils do look a little scary!!
Reply With Quote
