  #276
Old 04-20-2011
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn.. so close to ours. we are going the next weekend
Reply With Quote
  #277
Old 04-21-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I know, you should just change it to the 16-19... hehe
Reply With Quote
  #278
Old 04-21-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Hmm ill try to talk my buddys into that...
Reply With Quote
  #279
Old 04-22-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

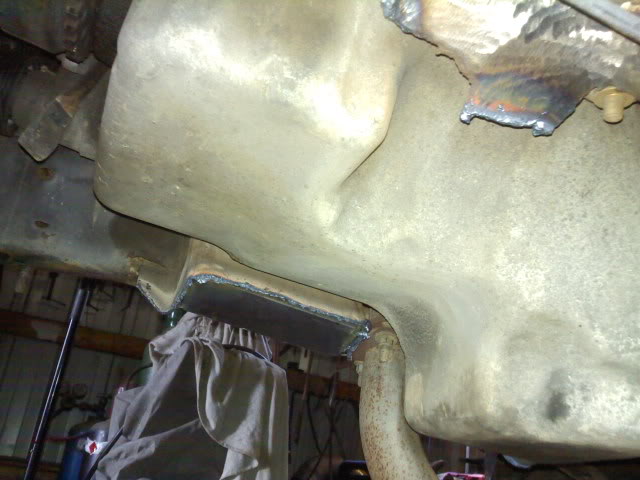

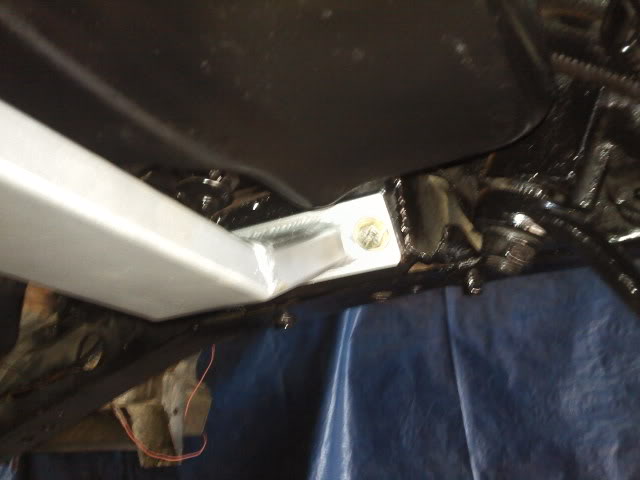

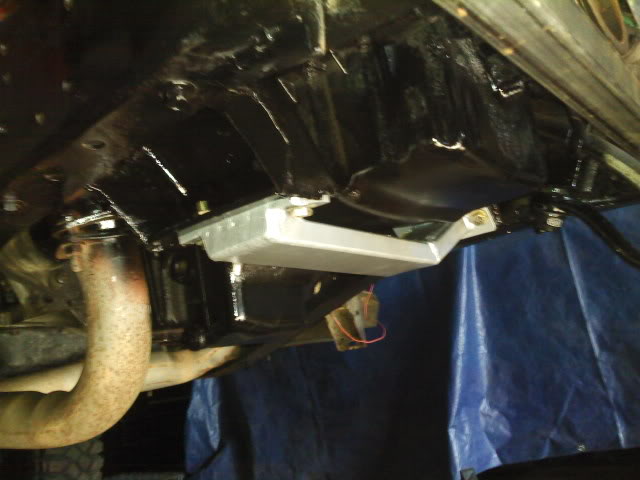

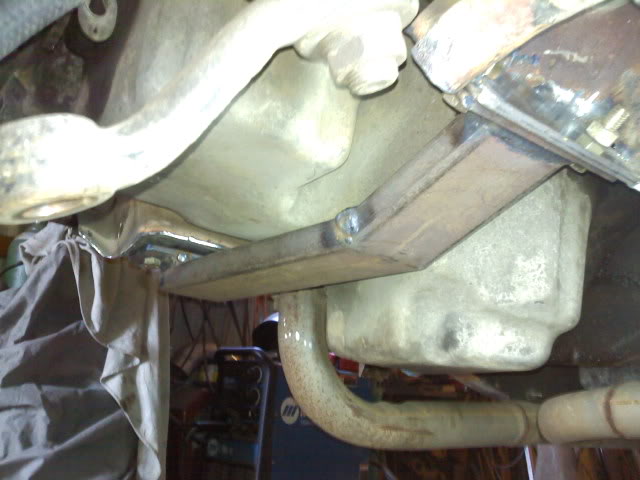

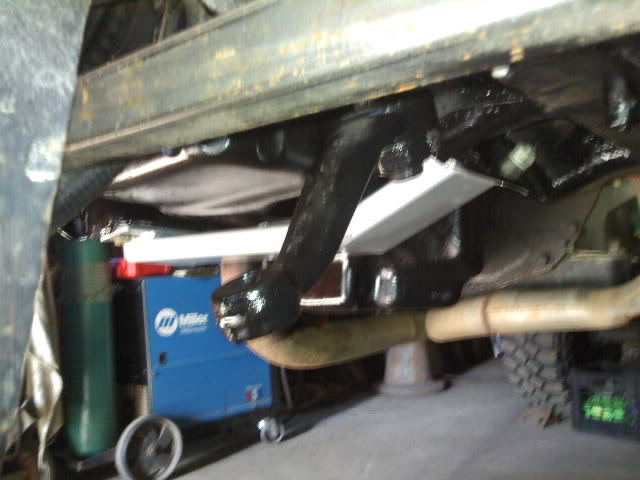

Built a new engine crossmember thursday heres a few pics. Hoping to have links cut and set tmrw we will see.
Name:  0421111227.jpg
Views: 6
Size:  46.3 KB
Name:  0421111503.jpg
Views: 5
Size:  42.9 KB
Name:  0421111816.jpg
Views: 5
Size:  38.9 KB
Name:  0421111817.jpg
Views: 5
Size:  41.5 KB
Name:  0421111817a.jpg
Views: 5
Size:  29.7 KB
Reply With Quote
  #280
Old 04-24-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

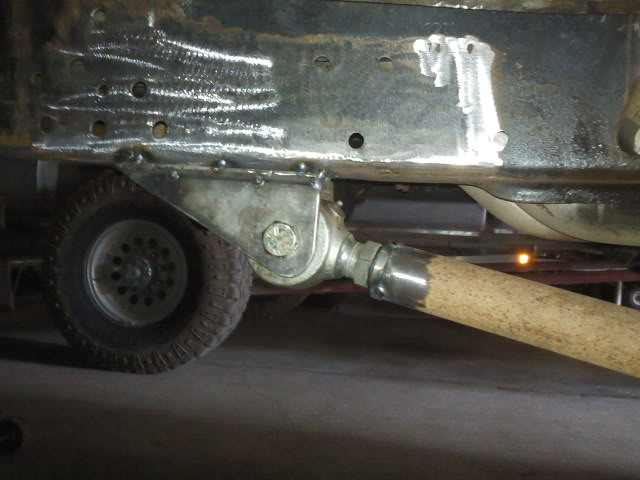

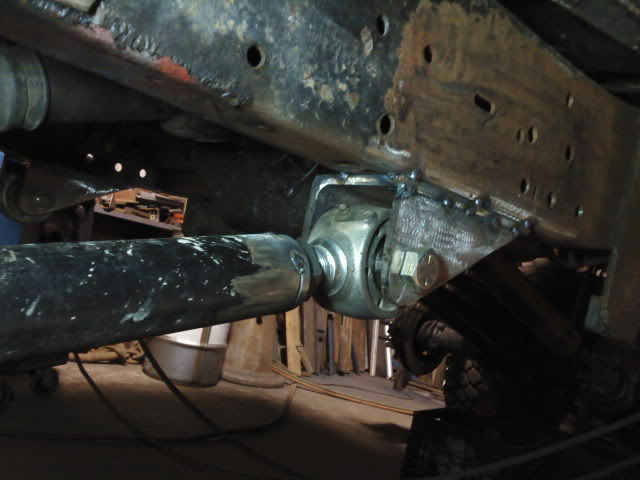

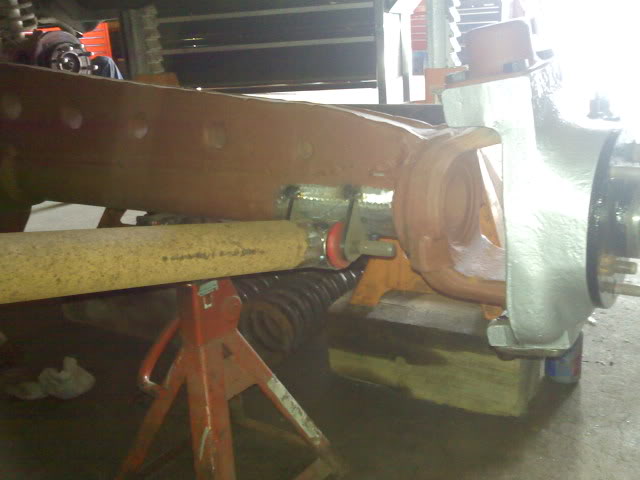

Lower links are started tubing is just for mock up! havent cut the dom yet once its all mocked up and cycled then i will.
What are your guys opinions on running the upper link on the outside of the frame?
Heres some pics
Name:  0424110125a.jpg
Views: 5
Size:  40.4 KB
Name:  0424110125.jpg
Views: 5
Size:  40.7 KB
Name:  0423111606a.jpg
Views: 5
Size:  43.3 KB

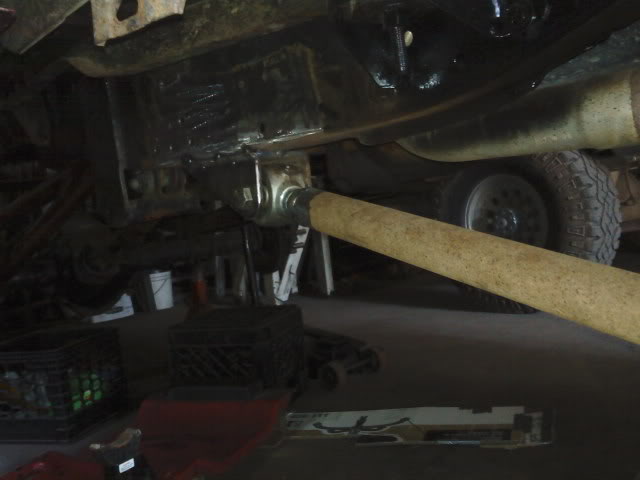

Name:  0423111606.jpg
Views: 5
Size:  28.2 KB
Name:  0423111605.jpg
Views: 6
Size:  35.0 KB
Reply With Quote
  #281
Old 04-25-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
So went and looked at the truck for about 4 hrs tonight and i thinkkkkk i have a plan.
Problem one is upper link mount to engine crossmember/side of frame clerance-im thinking i can just barley sneak the upper link in where i only have to do minimul trimming if any.
Problem two-trac bar and mounting it. Looks like the only place to fit it is in front of the draglink not to big of a deal but just gonna take some time making a mount beefy enough to handle the abuse.
Got a question also, where can i find some pitman arms for a ranger gearbox i need one close to flat or with about a 1'' to .5'' drop if i had this i could squeeze the trac bar between the draglink and axle if not i have clerance issues.
No pics for tonight hoping to get the upper link mocked in this weekend though.
Thanks
Reply With Quote
  #282
Old 04-26-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
make sure you turn the tires and they dont hit those links. that would be my only concern on the lowers.

also i have no idea how you will beef up a panhard mount to go infront of the axle... that should be interesting.
Reply With Quote
  #283
Old 04-26-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
They clear with the 37's at full lock. Ive seen a few builds with the panhard out front big gnarley mount lol.
Reply With Quote
  #284
Old 04-26-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah you are going to need one. lol
Reply With Quote
  #285
Old 04-26-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Reply With Quote
  #286
Old 04-26-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
What do you guys suggest for spring rates on my truck?
Trent fab said to go with a 250 over 400 just looking for more opinions?
Thanks
Reply With Quote
  #287
Old 04-26-2011
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by ford rules View Post
thats a wicked mount!
Reply With Quote
  #288
Old 05-08-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

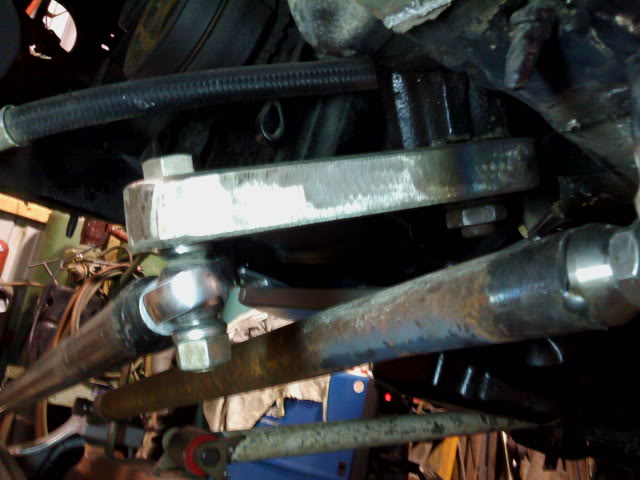

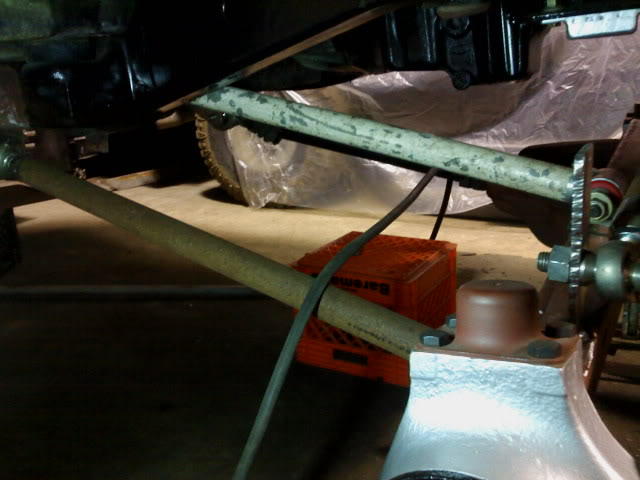

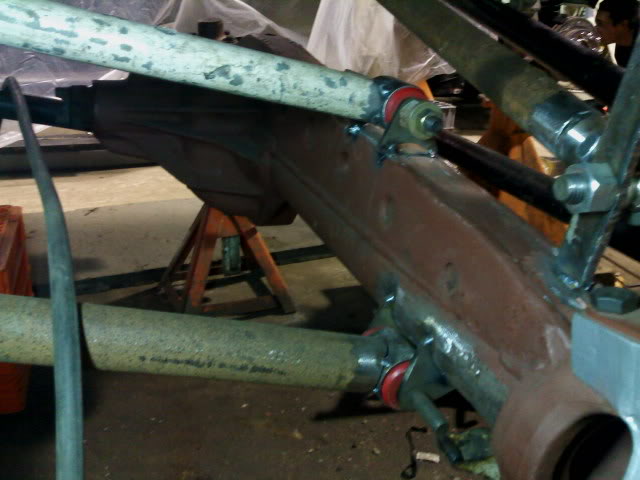

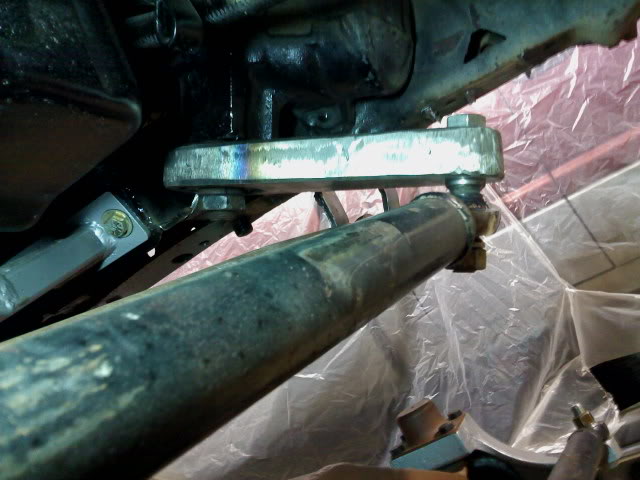

3 link is all mocked up coilovers are ordered just waiting to get my coilovers so i can get everything mocked up then cut my DOM and finish everything else.
Name:  0506112243c.jpg
Views: 5
Size:  46.2 KB
Name:  0506112243b.jpg
Views: 4
Size:  50.0 KB
Name:  0506112243a.jpg
Views: 5
Size:  42.5 KB
Name:  0506112243.jpg
Views: 4
Size:  43.0 KB

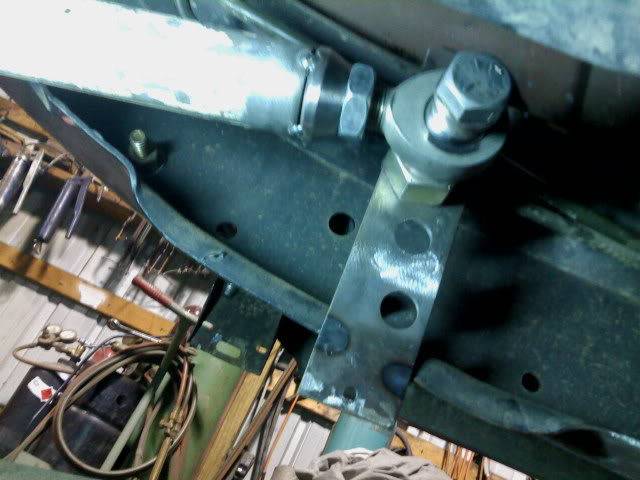

Name:  0506112242b.jpg
Views: 5
Size:  50.1 KB
And got some hair dryers a BOV and intercooler for free...
Name:  0506111213.jpg
Views: 4
Size:  48.7 KB
Reply With Quote
  #289
Old 06-05-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

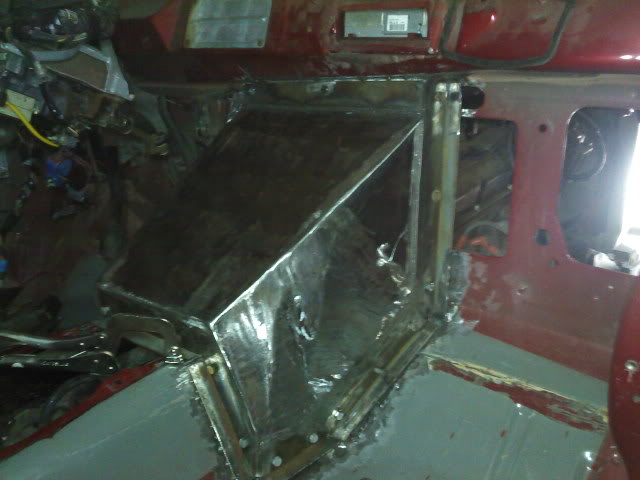

Well got a lil done today got the tunnel just about finished up finally just a lil more welding, the stupid thing fought the whole way!

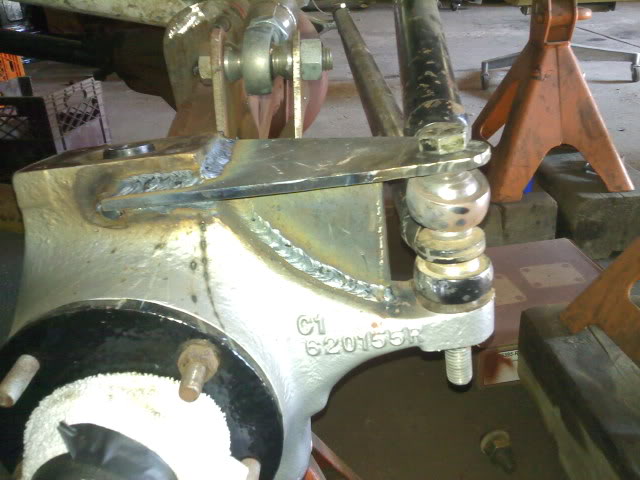

Also double sheared the pass side knuckle for the steering links melted my new king pin bushing ... ooh well have to get another.
Talked to trent fab yesterday my coil overs were supposed to be here in 7-10 days and 10 days was last friday still no coilovers so called and now its 2-3 weeks so im hoping to have them next week.
Name:  0605111743.jpg
Views: 4
Size:  39.4 KB
Name:  0605111713a.jpg
Views: 7
Size:  51.1 KB
Name:  0605111713.jpg
Views: 4
Size:  52.0 KB
Name:  0531111920a-1.jpg
Views: 6
Size:  35.4 KB

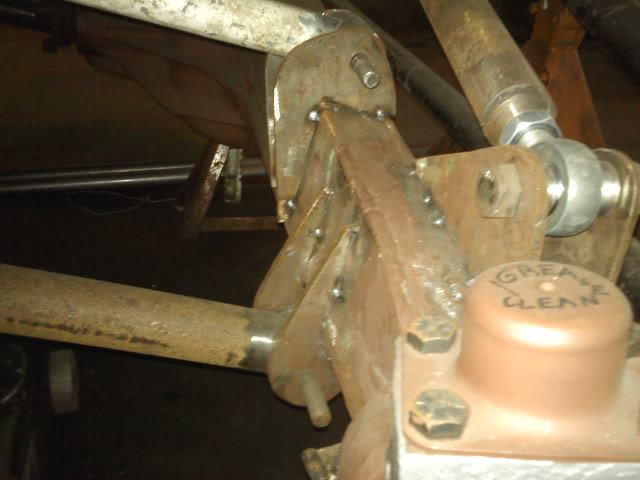

Name:  0531111920a.jpg
Views: 4
Size:  35.4 KB

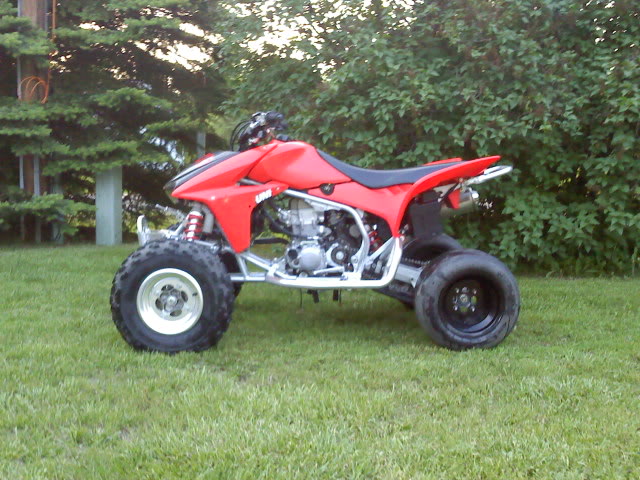

Few pics of my new 08 450ER with my lawn tires on it lol
Name:  0603112043a.jpg
Views: 5
Size:  111.2 KB
Name:  0603112043.jpg
Views: 4
Size:  91.1 KB
Reply With Quote
  #290
Old 06-05-2011
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
looking good, beef for sure. nice quad too
Reply With Quote
  #291
Old 06-05-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by INT3RC3PTOR View Post
looking good, beef for sure. nice quad too
x2

I wanna see a burn out with that 4 wheeler!!
Reply With Quote
  #292
Old 06-06-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thanks guys, it just pushes the front end with those tires lol hooks hard on pavement.
I figure if I'm buildin it I'm gonna over build it most of the brackets are all 3/8 thick haha.
Reply With Quote
  #293
Old 06-07-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

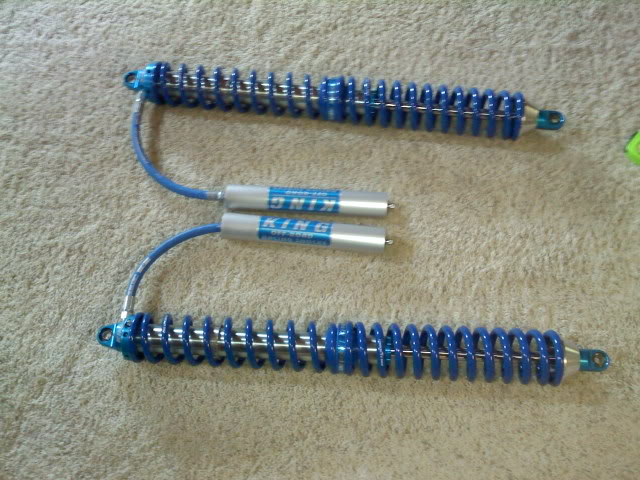

Name:  0607111836.jpg
Views: 4
Size:  75.7 KB
Reply With Quote
  #294
Old 06-07-2011
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407


16" ?
Reply With Quote
  #295
Old 06-07-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
2.0x14
Reply With Quote
  #296
Old 06-07-2011
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Quote:
Originally Posted by ford rules View Post
2.0x14
Very nice.

whats your main and your tender set at?
Reply With Quote
  #297
Old 06-07-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
250/400
Reply With Quote
  #298
Old 06-07-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
NOICE!!!
Reply With Quote
  #299
Old 06-08-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Bling!
Reply With Quote
  #300
Old 06-08-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Heck yea cant wait to get em mounted up.
Anyone have tips as far as mounting them they will be mounted on the back side of the truss and tipped in and back so as not to go past 90* when flexed/bumped thats what ive always read and been told.
Also got my tunnel all done today its 100% bolt on so tranny swaps will be real easy im happy its finally done!
Reply With Quote
