  #301
Old 06-12-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Got both coilovers mocked up today and finally used my tube bender after having it for a year. Hoping to get everything welded in on tuesday. all thats left is cut the dom for the links finish my upper link mount frame side and charge the shocks.
How much nitrogen is supposed to be in the shocks?
Few pics

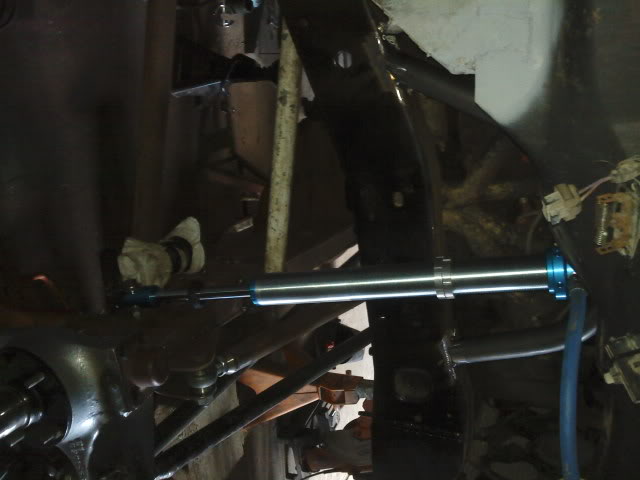

Name:  0612111844b.jpg
Views: 6
Size:  32.2 KB

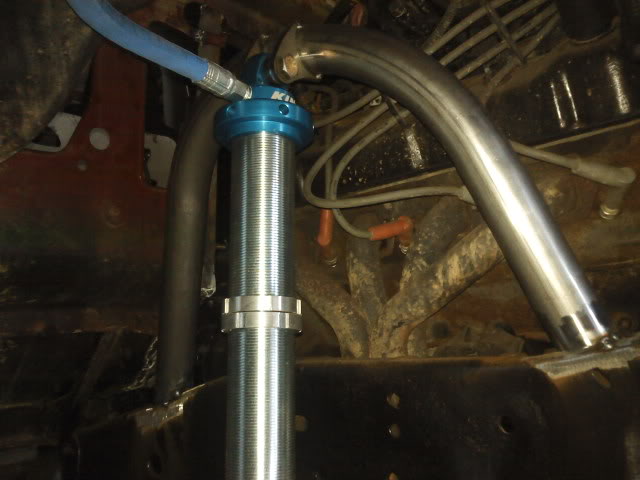

Name:  0612111844a.jpg
Views: 5
Size:  39.8 KB
Reply With Quote
  #302
Old 06-12-2011
fredfx4's Avatar
Member

Join Date: Jun 2006
Location: quebec canada
Posts: 203
finish the arm before you place the tower for the shock and travel the suspension to see how high the mount needs to be. Put mine 2 inch too low so the truck sits too high and just have 4 inch of uptravel and 10 inch downtravel. Will have to order 12 inch shock for the front and install the 14 on the rear when i go 4 link rear.
Reply With Quote
  #303
Old 06-13-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
200 psi typically.

looks good man! nice choice in shocks!

i tipped mine in 5 degress and back 5. bolts always run perpendicular to the axle.

400 seems like a lot for the main spring no?

what are your travel numbers based on your specs for the coilover excel sheet off pirate? 60/40? 70/30?

ive always tried to shoot for 4-5 up travel on my front end. but its because i do an all around wheeling/road conditions.
Reply With Quote
  #304
Old 06-13-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by fredfx4 View Post
finish the arm before you place the tower for the shock and travel the suspension to see how high the mount needs to be. Put mine 2 inch too low so the truck sits too high and just have 4 inch of uptravel and 10 inch downtravel. Will have to order 12 inch shock for the front and install the 14 on the rear when i go 4 link rear.
you only want 2" of up travel? you could change your spring rates on your tender to get there without buying shorter shocks. would be a good setup for crawling.
Reply With Quote
  #305
Old 06-13-2011
fredfx4's Avatar
Member

Join Date: Jun 2006
Location: quebec canada
Posts: 203
want more up travel but lower truck, without modifing my tower the only way is shorter shock and coil. If i new at first i would have went 3 inch higher in the engine bay.
Reply With Quote
  #306
Old 06-13-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by zabeard View Post
200 psi typically.

looks good man! nice choice in shocks!

i tipped mine in 5 degress and back 5. bolts always run perpendicular to the axle.

400 seems like a lot for the main spring no?

what are your travel numbers based on your specs for the coilover excel sheet off pirate? 60/40? 70/30?

ive always tried to shoot for 4-5 up travel on my front end. but its because i do an all around wheeling/road conditions.
Thanks,
the shocks werent as much as i had planned $945 shipped, i was expecting more.

Shocks are tipped in 10 and bk 10

Dave at trent fab recomended the 250/400 combo with the shocks mounted how they are, there king so i can do the spring exchange though.

Coilover excel spreadsheet? last i checked i was right about 6'' uptravel prollay gonna be more like 5'' all said and done as i dont want to bottom out the shock hard.

Lower coilover mounts are done, uppers are in place just gotta make my cross tube for support. Upperlink mount is made and in place just need some gussets on it. Weld everything up and the front will be about done still need to add bumps and straps also. Pics tmrw!
Reply With Quote
  #307
Old 06-14-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by fredfx4 View Post
want more up travel but lower truck, without modifing my tower the only way is shorter shock and coil. If i new at first i would have went 3 inch higher in the engine bay.
wouldnt it be cheaper to just cut off the hoops and make new ones? lol
Reply With Quote
  #308
Old 06-14-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

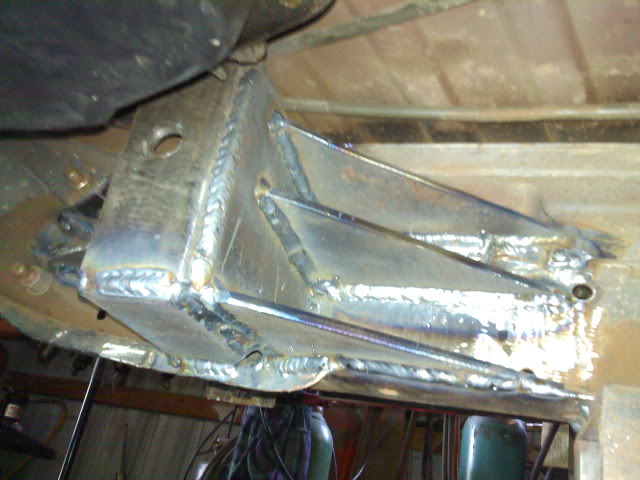

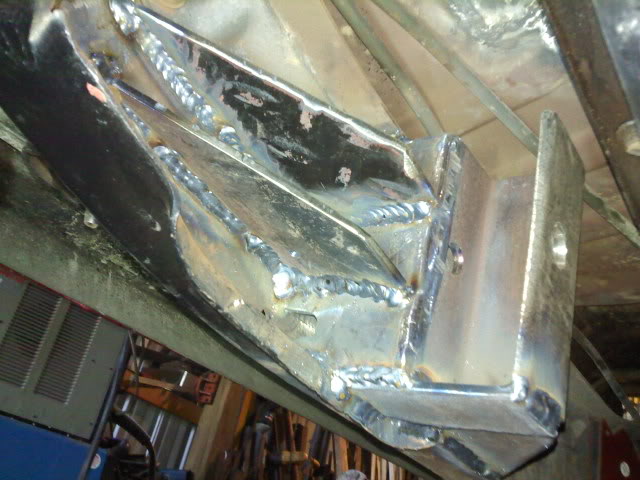

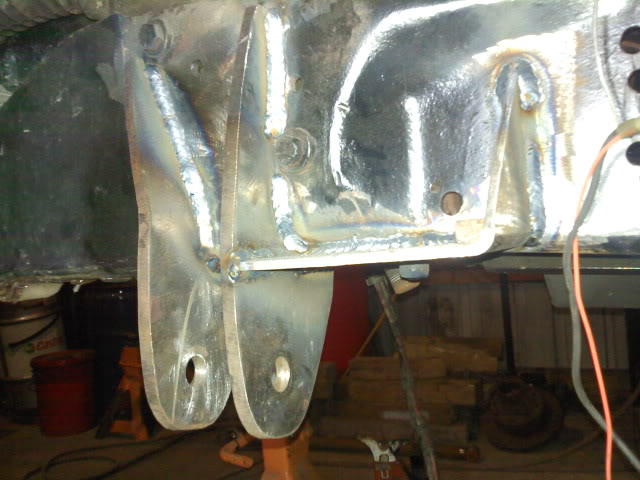

Upper link mount is complete lower link mounts frame side are welded up on the frame just need a few gussets and there done then weld everything on the axle!
Its all starting to fall together pretty nicley!
Reply With Quote
  #309
Old 06-14-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

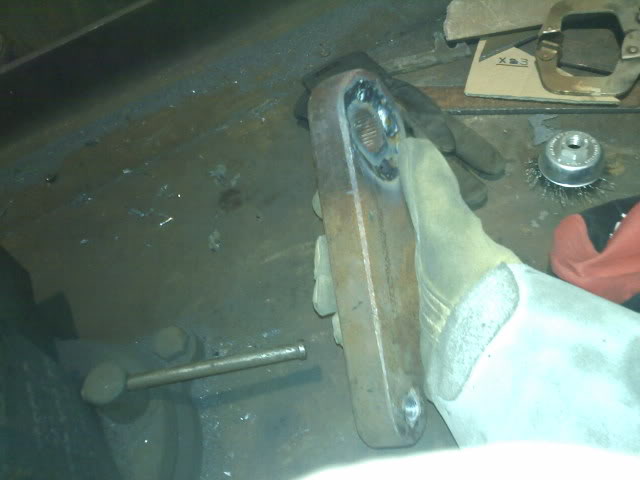

Name:  0614112145-1.jpg
Views: 5
Size:  31.1 KB
Name:  0614111056a-1.jpg
Views: 5
Size:  57.4 KB

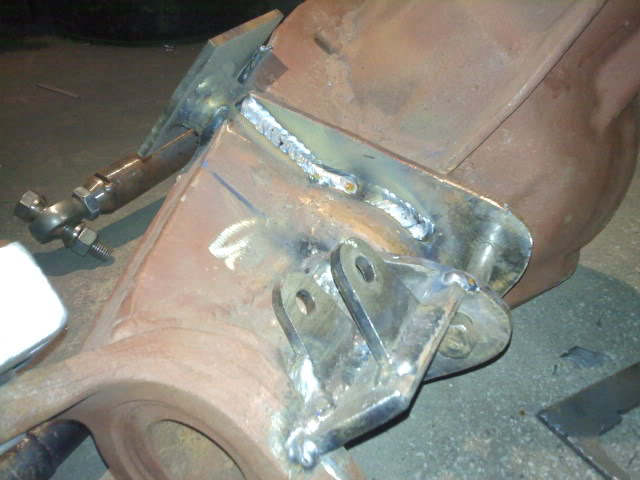

Name:  0614112143c.jpg
Views: 6
Size:  44.9 KB

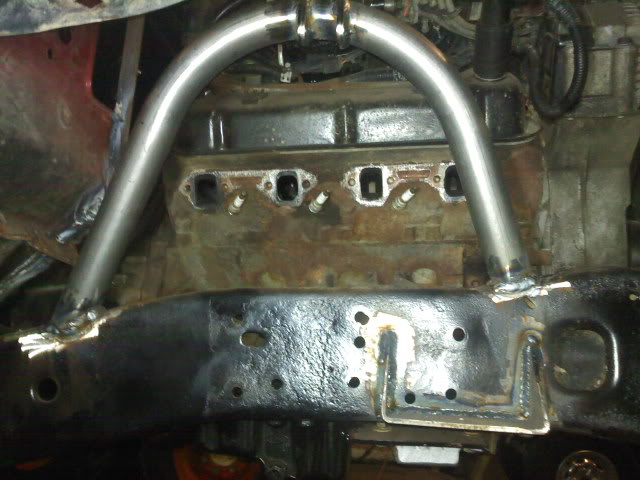

Name:  0614112142.jpg
Views: 4
Size:  54.0 KB
Name:  0614112141b.jpg
Views: 5
Size:  52.2 KB

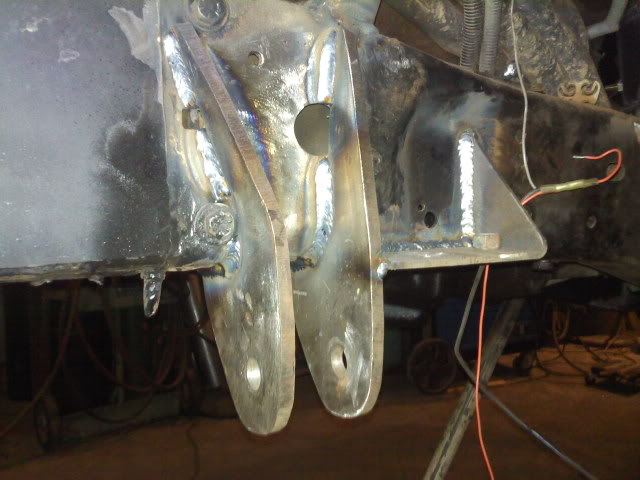

Name:  0614112141a.jpg
Views: 5
Size:  49.6 KB
Name:  0614111056.jpg
Views: 5
Size:  47.4 KB
Reply With Quote
  #310
Old 06-14-2011
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Looking good Rob. Super clean welds man.
Reply With Quote
  #311
Old 06-15-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thanks, i definatley got alot better at overhead welding just wish i had a leather welding jacket ive got burns everywhere from the hots!
Reply With Quote
  #312
Old 06-15-2011
BILTRITE BULLIES's Avatar
Member
iTrader: (4)

Join Date: Jun 2009
Location: NM
Posts: 557
good work, its coming along nicely
Reply With Quote
  #313
Old 06-15-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thanks your trucks lokin nice to!
Reply With Quote
  #314
Old 06-17-2011
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by ford rules View Post
Thanks, i definatley got alot better at overhead welding just wish i had a leather welding jacket ive got burns everywhere from the hots!
That takes some cojones man. Haha... overhead without leathers. Hell, even with my leathers I still get a spark down my neck every once in a while. Haha... looking good for sure man.
Reply With Quote
  #315
Old 06-17-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Lol I bought a leather jacket yesterday for weldin. Hopin to get my gears in next week sometime!
Reply With Quote
  #316
Old 06-17-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

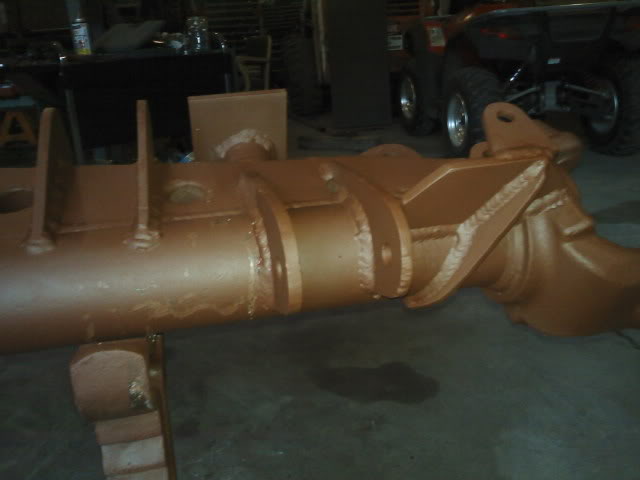

Name:  0616112112.jpg
Views: 6
Size:  24.7 KB

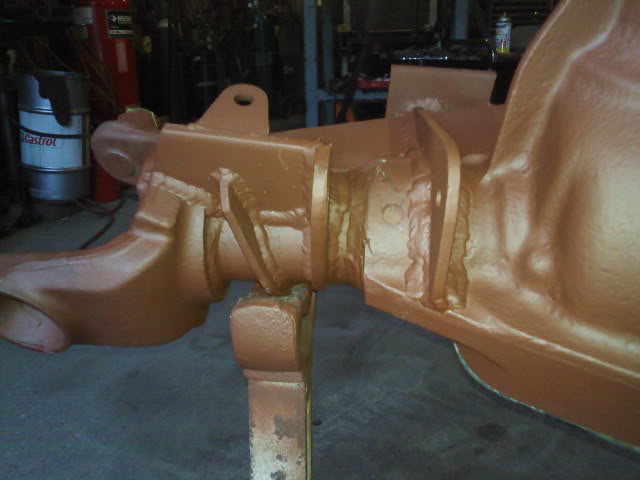

Name:  0616112111c.jpg
Views: 5
Size:  34.3 KB
Name:  0616112111b.jpg
Views: 6
Size:  25.4 KB

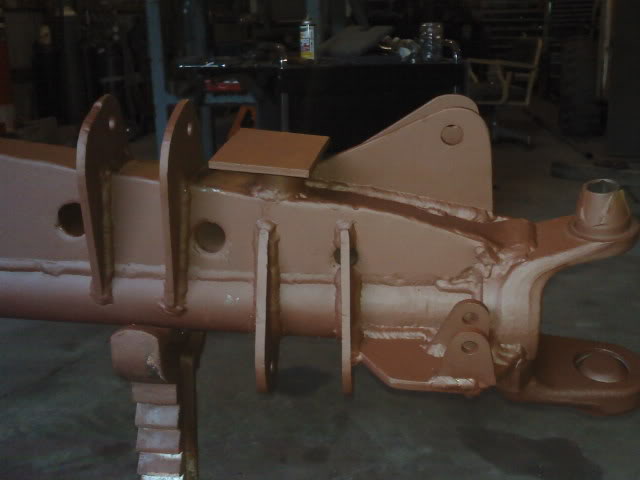

Name:  0616112111a.jpg
Views: 4
Size:  27.6 KB
Name:  0616112111.jpg
Views: 4
Size:  36.3 KB
Few more pics.
Reply With Quote
  #317
Old 06-17-2011
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
looking great! thats beefy for sure!
Reply With Quote
  #318
Old 06-17-2011
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Well.. I mean it looks clean.. but I'm hoping that brown is just a primer.
Reply With Quote
  #319
Old 06-17-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

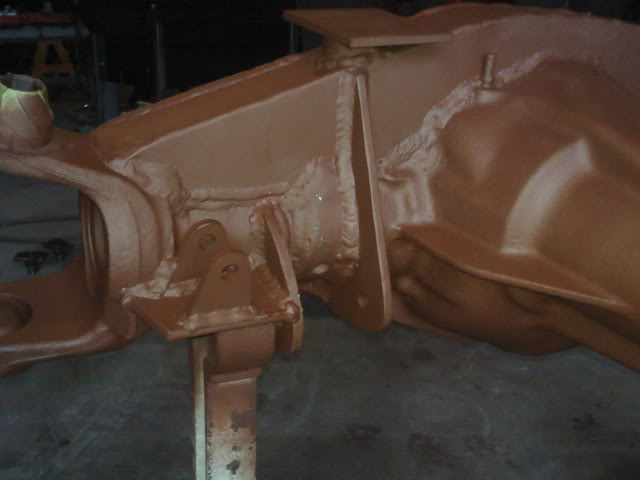

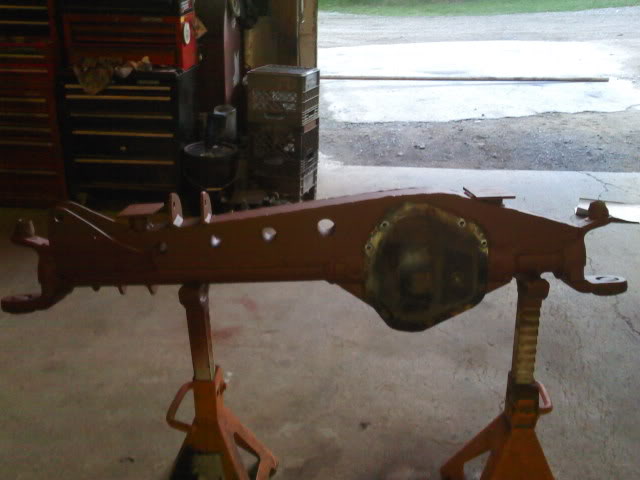

Front suspension will be all black and silver when finished thats just primer.
Reply With Quote
  #320
Old 06-29-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

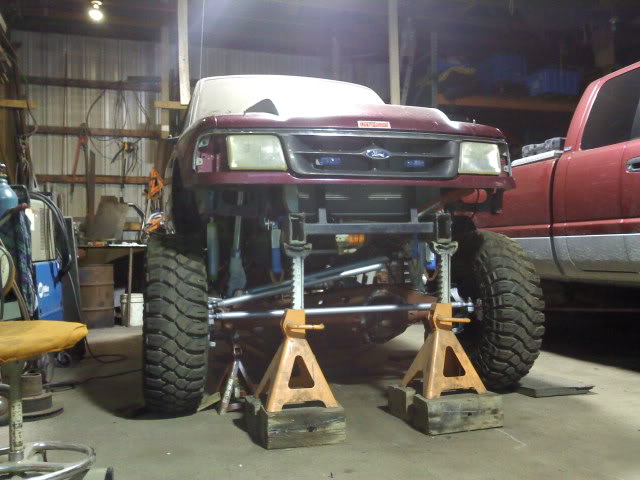

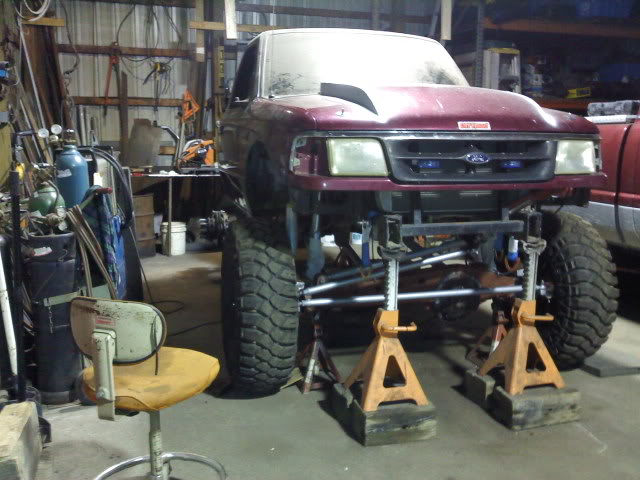

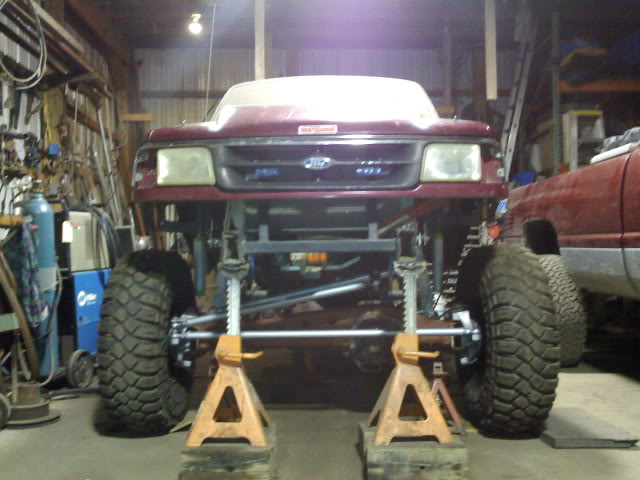

Few more pics front clip is mounted back up its getting closer.
Name:  0628112117a.jpg
Views: 6
Size:  51.4 KB
Name:  0628112117.jpg
Views: 4
Size:  54.3 KB
Name:  0628112116a.jpg
Views: 5
Size:  60.6 KB
Name:  0628112116.jpg
Views: 6
Size:  65.1 KB

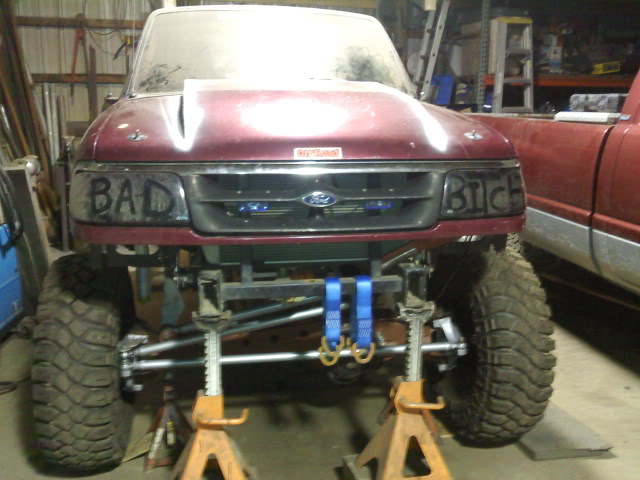

Name:  0628112123.jpg
Views: 5
Size:  51.0 KB
Buddy of mine had fun with the light covers.
Reply With Quote
  #321
Old 06-30-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Looks good so far!

Leather for welding? ha... I dont even wear gloves when I weld. I just lay under there and go at it.
Reply With Quote
  #322
Old 06-30-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looks great. Beefcake!
Reply With Quote
  #323
Old 06-30-2011
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thanks guys im hoping to have it back together nexy week gears will be done this weekend hopefully.
Reply With Quote
  #324
Old 06-30-2011
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn that thing looks like it weighs a little lol..

Quote:
Originally Posted by zabeard View Post
Looks good so far!

Leather for welding? ha... I dont even wear gloves when I weld. I just lay under there and go at it.
yeah I go bare hand but I learned never to wear any pants or shorts that can burn through easy. I wore some basketball shorts one day welding my exhaust and an ember went right through the shorts and my underwear right past the jewels and out the other side. It was close enough to burn me a little..couldnt imagine a direct hit
Reply With Quote
  #325
Old 06-30-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Yet another project thread that I didnt suscribe to. My loss.

Everything looks awesome. That sucker must be heavy.

Oh yeah, dont weld in sandals or flip flops....it hurts.
Reply With Quote
