  #76
Old 11-27-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i don't understand

where do these things go?
Reply With Quote
  #77
Old 11-28-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

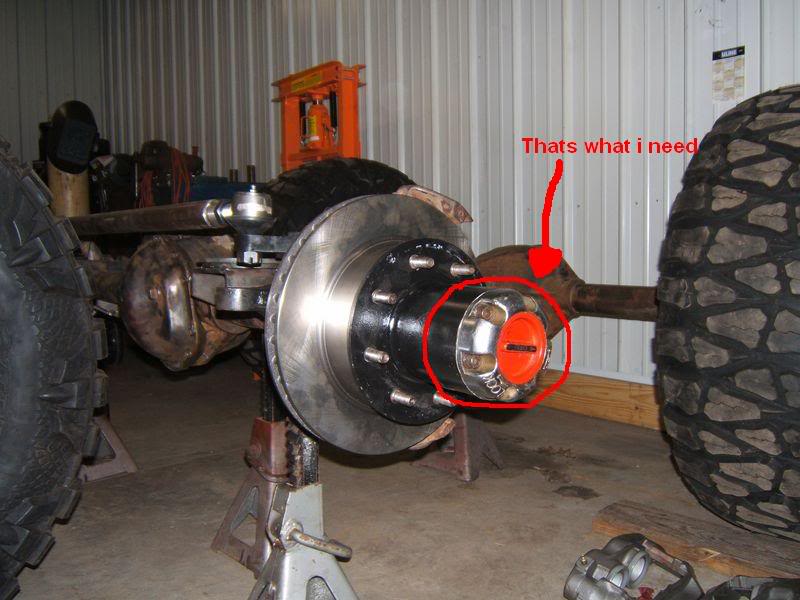

Name:  DSCF2379.jpg
Views: 11
Size:  69.6 KB
There just the red caps on a lock out hub ill get some pics of the insides gears and such sometime soon.
Reply With Quote
  #78
Old 11-30-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
So i figured out today that my rear end is a dana 70 and not a 10.25, It should be in soon.
Reply With Quote
  #79
Old 11-30-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by ford rules View Post
So i figured out today that my rear end is a dana 70 and not a 10.25, It should be in soon.
Got a good picture of it? Which 70 is it? 70hd, 70B, 70U......
Reply With Quote
  #80
Old 11-30-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Its either the u or just a regular 70 judging by what i read on randys ring and pinion, its hard to tell cause the guy i got it from forgot what it was out of and you cant read the tag either.
Reply With Quote
  #81
Old 12-02-2008
Member

Join Date: Jun 2005
Posts: 148
Quote:
Originally Posted by ford rules View Post
Its either the u or just a regular 70 judging by what i read on randys ring and pinion, its hard to tell cause the guy i got it from forgot what it was out of and you cant read the tag either.
What about the BOM number on the axle tube? Pics would be helpful too.
Reply With Quote
  #82
Old 12-02-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
I couldnt find any numbers but ill get pics tomorrow
Reply With Quote
  #83
Old 12-03-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Heres a couple pics.

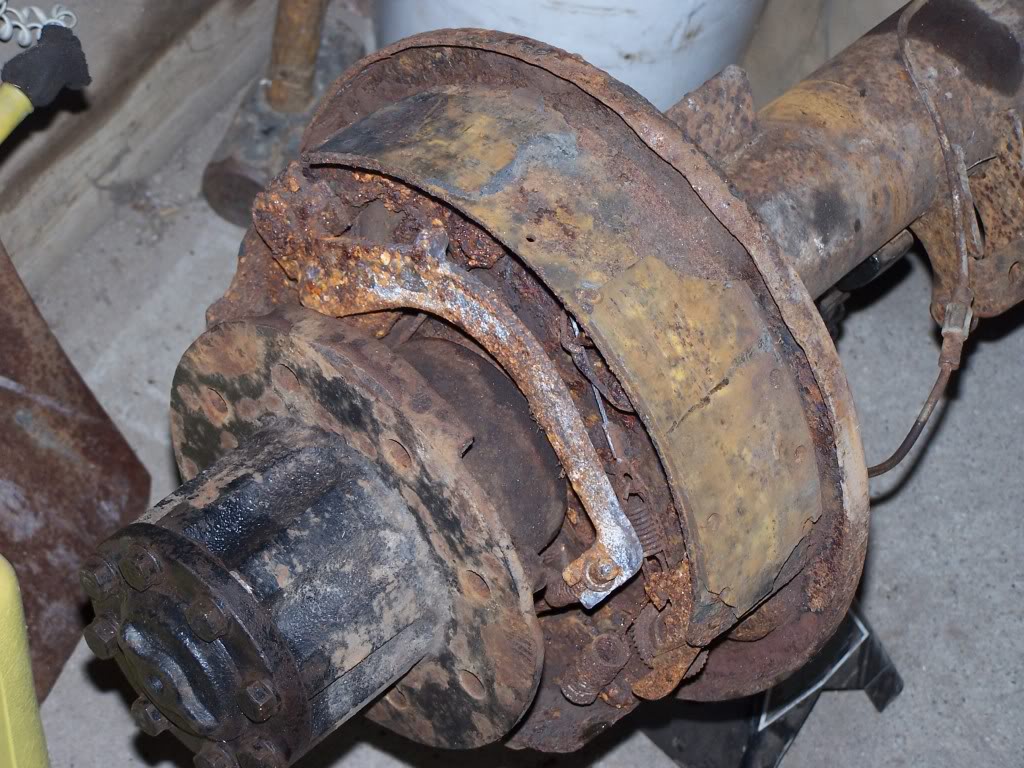

Name:  100_2515.jpg
Views: 11
Size:  167.6 KB

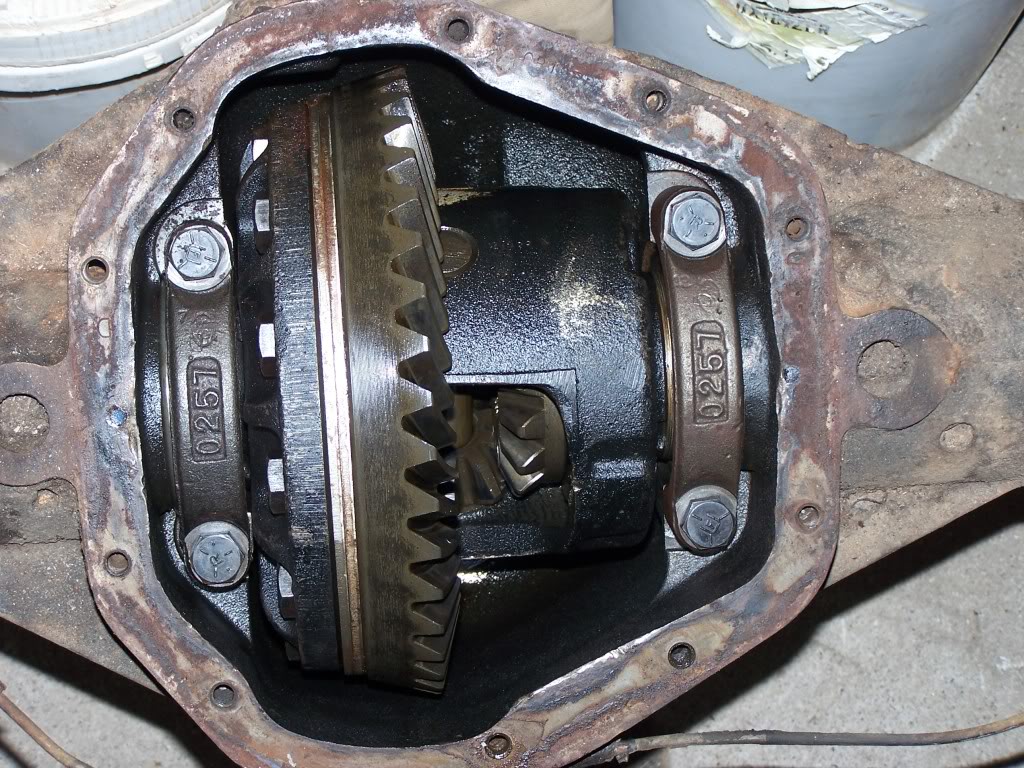

Name:  100_2514.jpg
Views: 11
Size:  223.0 KB
Reply With Quote
  #84
Old 12-04-2008
Member

Join Date: Jun 2005
Posts: 148
Try wire wheeling the axle tube to the left of the differential and see if you can find anything there.
Reply With Quote
  #85
Old 12-11-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay so the axle is a dana 61 ive never heard of it but randys ring and pinion said that i can run a 4.88 gear on it but i will have to buy a thiner race for one side and shim the crap out of it, they dont make a 4.88 for the 61 but if you do all that stuff then you can use a dana 60 ring gear and pinion im not sure that im gonna do it but i already have all the brakes and the things spotless now but it just seems like its gunna wear out to fast but i dont know what do you guys think?
Reply With Quote
  #86
Old 12-11-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
find a dana60, they are a dime a dozen. or a 14 bolt.
Reply With Quote
  #87
Old 12-11-2008
MXranger489's Avatar
Member

Join Date: Jan 2007
Location: Newington CT
Posts: 142
Quote:
Originally Posted by zabeard View Post
find a dana60, they are a dime a dozen. or a 14 bolt.
14 bolts are more common/ more cheap than 60's, get one. But unless you plan on shaving it or running larger than 35's it can be somewhat of an anchor in the rocks
Reply With Quote
  #88
Old 12-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Before you do anything I would get the BOM and check exactly what that thing is out of. Have you pulled one of the shafts out to check the spline count yet?
Reply With Quote
  #89
Old 12-11-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
it almost looks like a 70.
Reply With Quote
  #90
Old 12-11-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Well i thought it was a 70 to because all my brake parts and drums fit no broblem and same thing with the hub seals. I got the bom number and jermy at randys ring and pinion said that it was a dana 61 but then i talked to a guy named stacy and he said that he came up with a dana 70 but the numbers on the ring gear were from a dana 61 but then i told him that it had a 9.75" ring gear and a 70 would be a 10.5" ring gear so it has to be a 61 unless some one switched the carrier from a 70 to a 61 but i doubt that it would fit. Idk what im gonna do im pretty pissed right. I also noticed one of my hubs were locked in so my clutch packs are probably gone cause that one has been turning, but idk.
Thanks for the help guys and i would love a 14 B or even some dana 60 shafts for mine.
Reply With Quote
  #91
Old 12-20-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Does any one know what the sensor on the top off the differential on my stock 8.8 is? Is it the wheel speed,ABS do i need it?
Thanks
Reply With Quote
  #92
Old 12-20-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
thats the VSS. Vehicle Speed Sensor IIRC. It does different things on different year trucks. Some its just for the ABS others its used for the speedometer as well.
Reply With Quote
  #93
Old 12-20-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
My trucks a 95 4.0 5 speed 4x4 if that helps
Reply With Quote
  #94
Old 12-21-2008
Member

Join Date: Jun 2005
Posts: 148
I'd look for a D60 rear out of a E250 or E350. Factory VSS equipped, old 8x6.5 lug pattern, and the more recent models have disc brakes
Reply With Quote
  #95
Old 01-01-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Well i got a 14 bolt got it all apart got the disks, calipers, and pads just waiting on the brackets to mount them up ill get pics later today.
Reply With Quote
  #96
Old 01-01-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice. That's some serious beef!!
Reply With Quote
  #97
Old 01-01-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sweet, cant wait to see it
Reply With Quote
  #98
Old 01-01-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
o0 a disc brake 14B.. Nice! that takes like 70 pounds off the axle lol.
Reply With Quote
  #99
Old 01-02-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay so im going disk brakes in the rear so will i need to change anything in the braking system or is it all the same and just connect the hard line to the calipers. Will i need a new master cylinder or anything like that?
Reply With Quote
  #100
Old 01-02-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you need rubber/stainless steel braided lines to the calipers from the axle tube. otherwise the hard lines will break over time. The calipers move.

I bought a 1996 F250 master cylinder for mine.

You will also need a proportioning valve for the rear or the rear brakes will lock up on you.
Reply With Quote
