  #101
Old 01-02-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
What kind of proportioning valve? Where did you get yours any part #'s do i have to get a new master cylinder?
Reply With Quote
  #102
Old 01-02-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
your brakes will be mushy because your current master cylinder cannot move enough fluid to put good pressure on the calipers.

http://store.summitracing.com/partde...5&autoview=sku
Reply With Quote
  #103
Old 01-02-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
So what exactly does the valve do? Is there any specific spots to mount it closer the the master cylinder of further away you just splice this into the old brakeline somewhere?
Reply With Quote
  #104
Old 01-03-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Just ordered some drop shackles and that valve the axle should be in soon i hope.
Reply With Quote
  #105
Old 01-03-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
put it whereever. the valve lets you back the pressure off on the rear brakes so they dont lock up.
Reply With Quote
  #106
Old 01-04-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thats what i thought to but i just wanted to make sure, but summit just told me that yesterday. So all im waiting on is my brake brakets and get the tabs welded back on then ill be back in business. The 14 bolt has 4.10 L/S to.
Reply With Quote
  #107
Old 01-14-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Love that pic of your truck in the front page. Good stuff, let's get some more!
Reply With Quote
  #108
Old 01-14-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by seed60 View Post
Love that pic of your truck in the front page. Good stuff, let's get some more!
And like burger king you can have it your way haha so i got the shackles on and my brake brackets got here yesterday to.
Pics

Name:  100_2559.jpg
Views: 5
Size:  157.8 KB
Name:  100_2554.jpg
Views: 5
Size:  208.2 KB

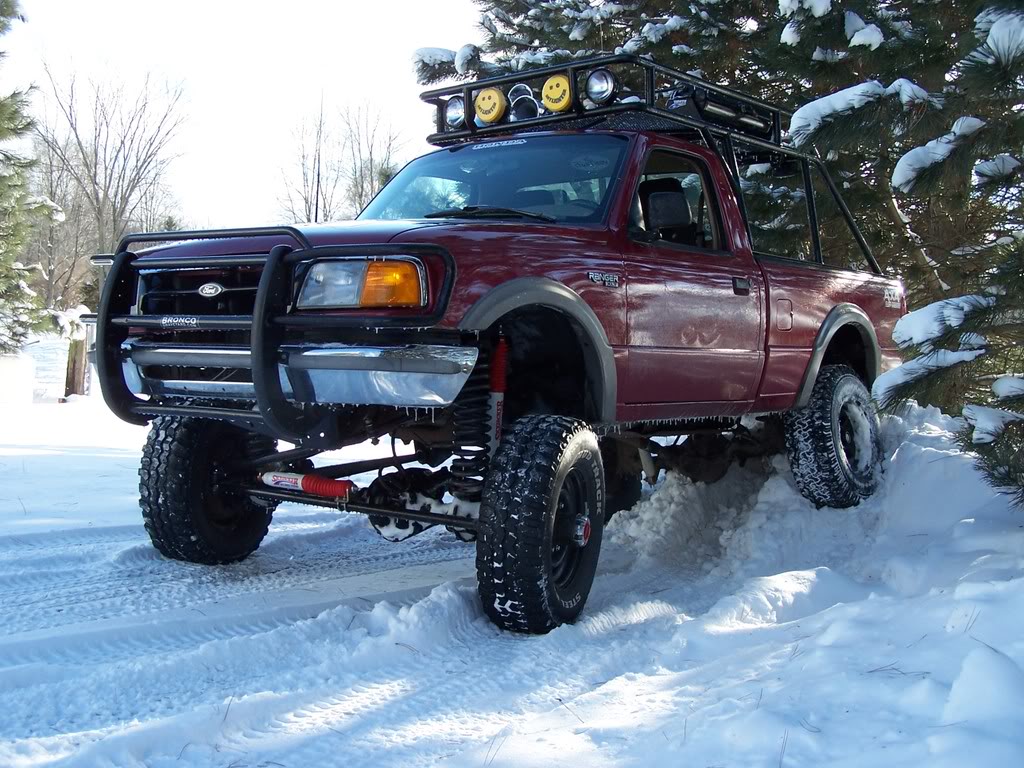

Name:  100_2555.jpg
Views: 5
Size:  186.5 KB
Name:  100_2556.jpg
Views: 5
Size:  218.7 KB

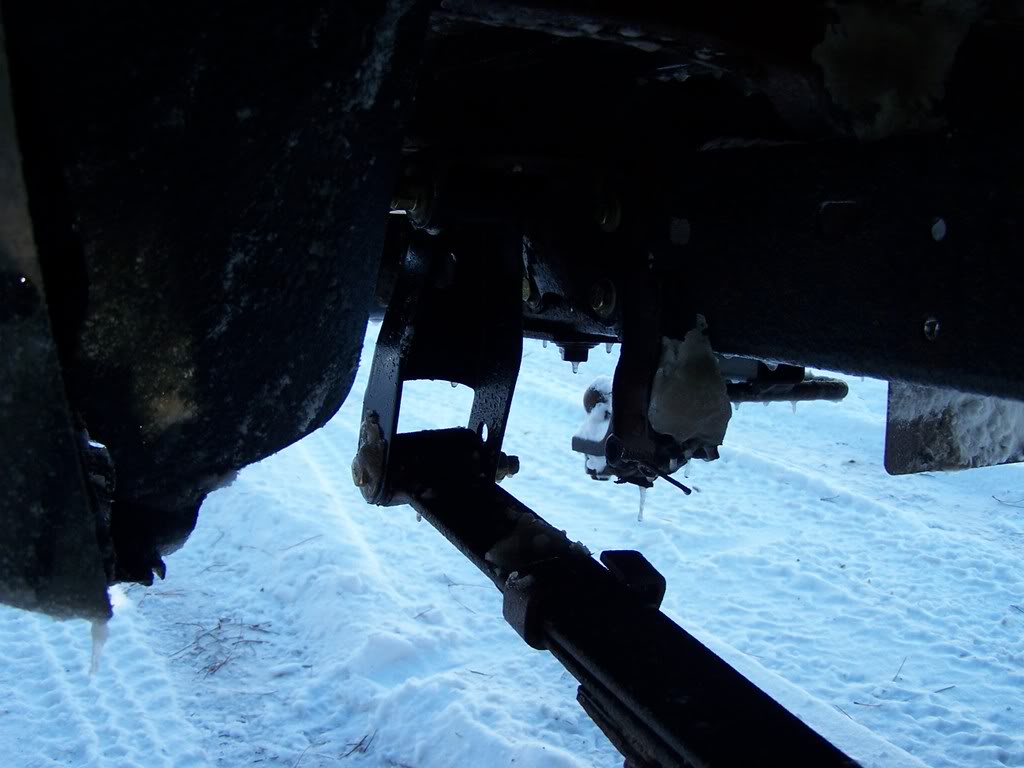

Name:  100_2557.jpg
Views: 5
Size:  79.9 KB

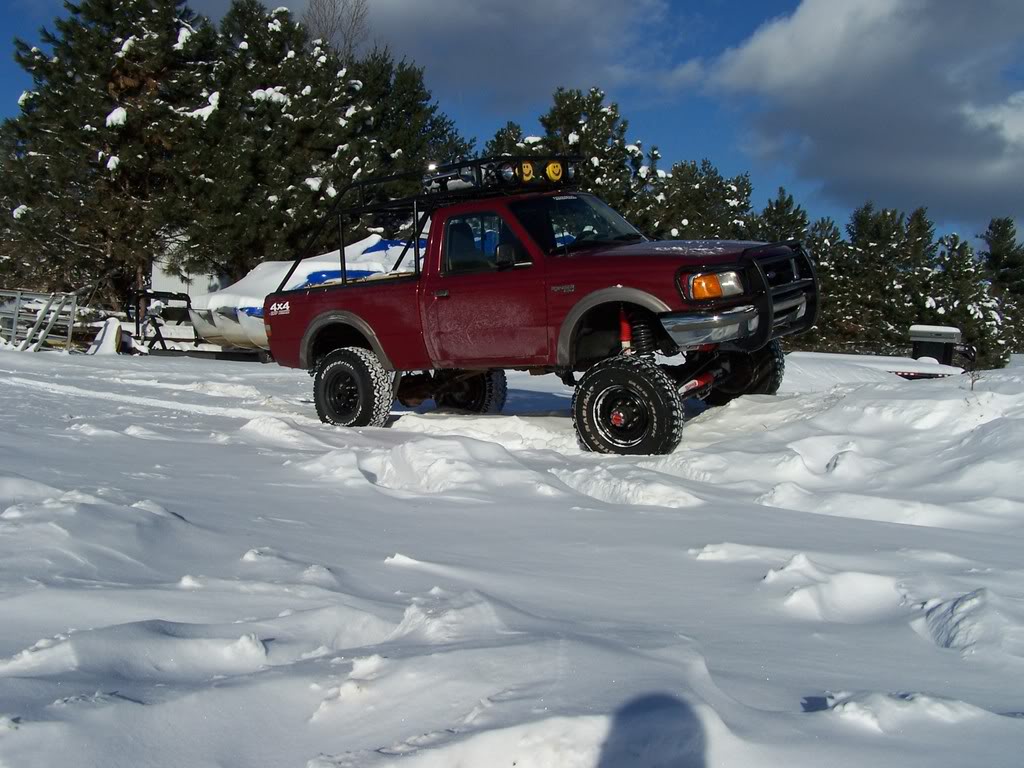

Name:  100_2558.jpg
Views: 5
Size:  136.9 KB

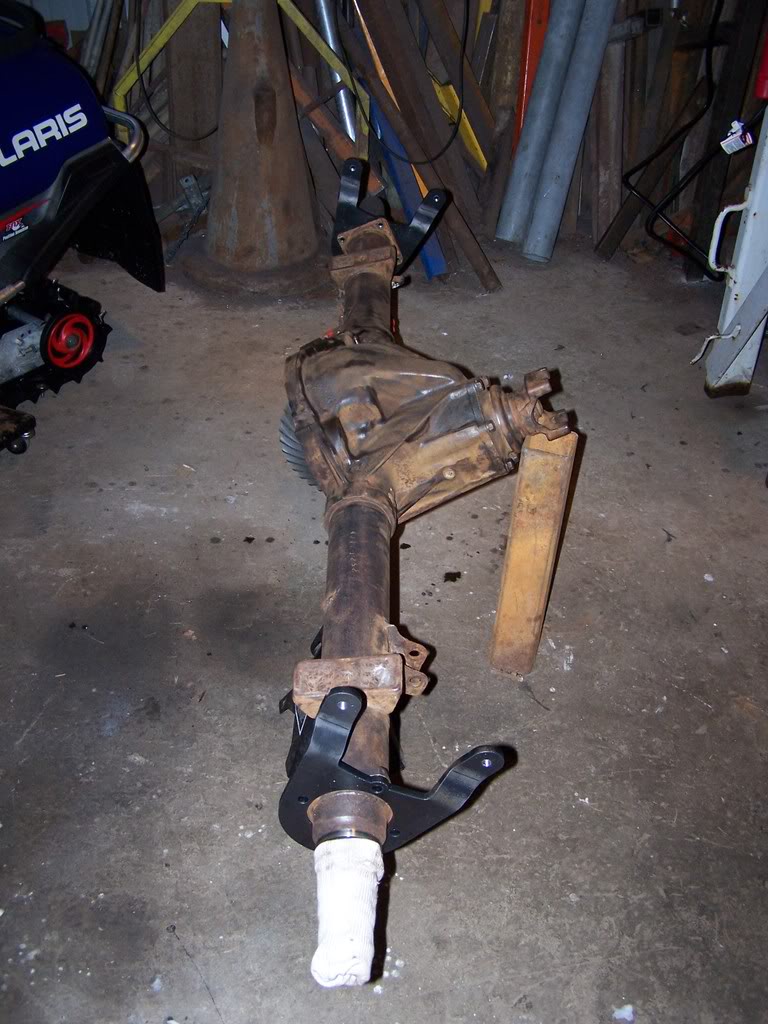

Name:  100_2560.jpg
Views: 5
Size:  132.0 KB
Name:  100_2561.jpg
Views: 5
Size:  127.7 KB
Name:  100_2562.jpg
Views: 5
Size:  65.7 KB

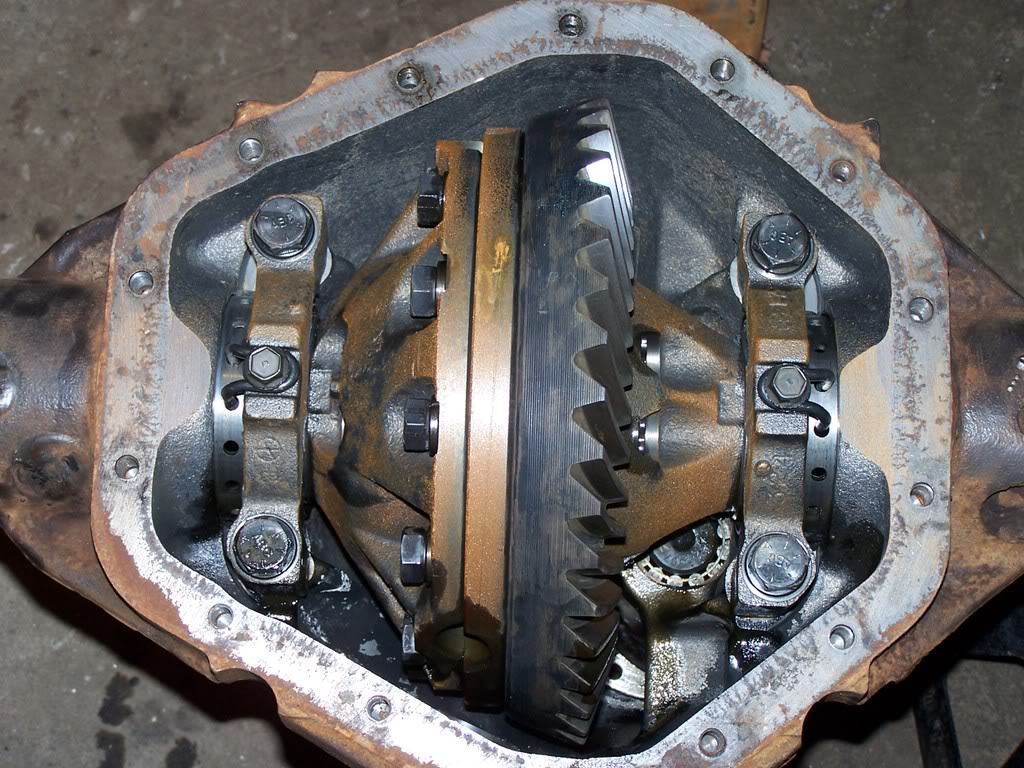

Name:  100_2563.jpg
Views: 5
Size:  196.4 KB
Reply With Quote
  #109
Old 01-15-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Name:  100_2569.jpg
Views: 5
Size:  232.3 KB

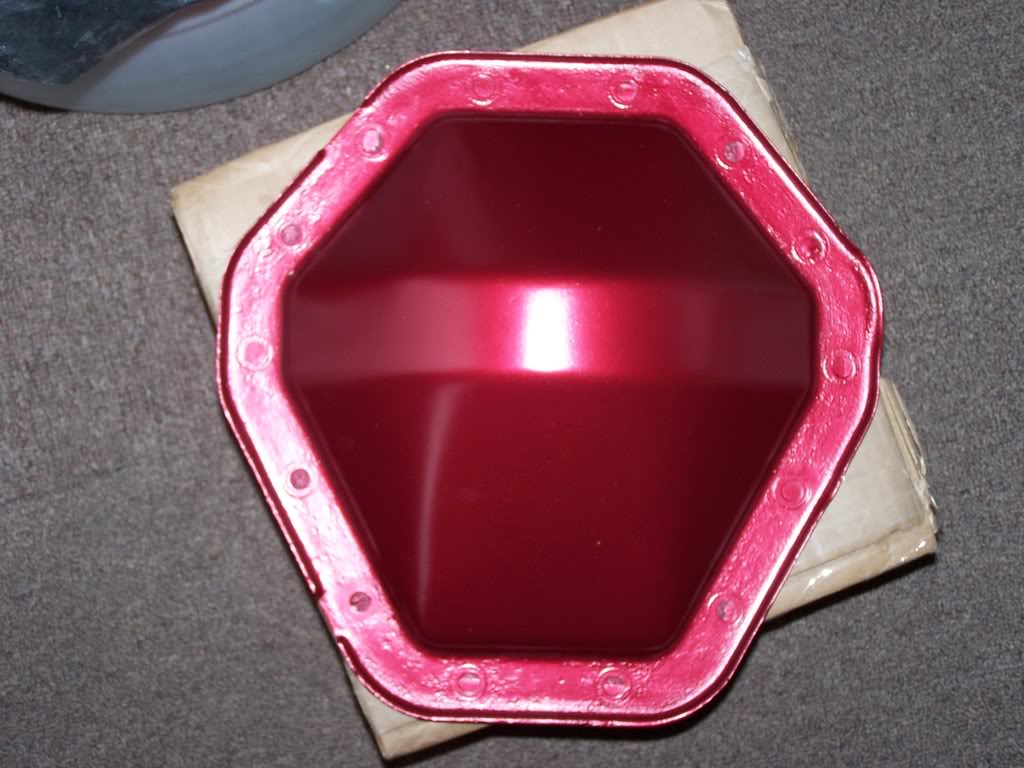

Name:  100_2567.jpg
Views: 5
Size:  108.8 KB

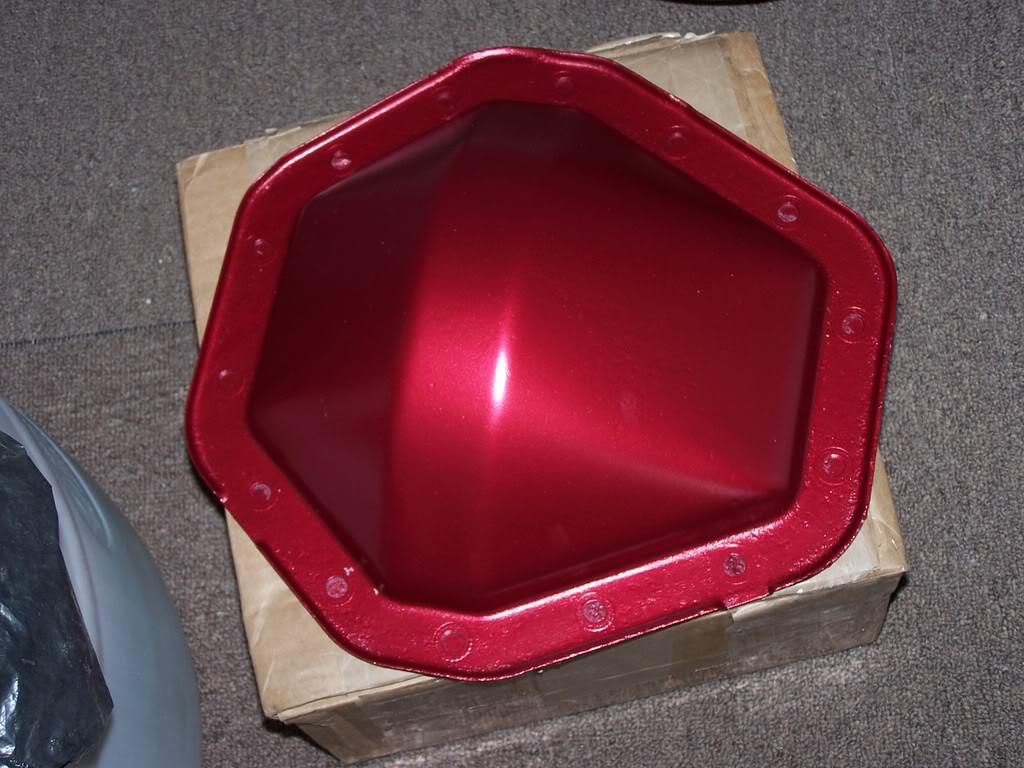

Name:  100_2566.jpg
Views: 5
Size:  128.1 KB
Reply With Quote
  #110
Old 01-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i would much rather have my rear brakes lock up before the front.. but thats just me.


do those brackets make the caliper go on the bottom side of the axle?
Reply With Quote
  #111
Old 01-15-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
what axle is that?
Reply With Quote
  #112
Old 01-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Corp. 14 bolt Full floater

basically its a beast, and if i ever get rid of my 9" thats what i'll be getting.
Reply With Quote
  #113
Old 01-15-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Nope the caliper will be mounted above the axle but you can make them go on the bottom side to but im gonna run them up top.
Reply With Quote
  #114
Old 01-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hm.. i saw one setup on a 14B and he had the caliper under the axle, he said that was the only place the bracket would go..


so he was gonna wait to rip a caliper off then redo it haha
Reply With Quote
  #115
Old 01-15-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ya id end up getting it torn off or somthing stupid it really dosent matter the brackets fit the holes all the way around the axle not a different pattern or anything at least with these ones.
Reply With Quote
  #116
Old 01-15-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
hm.. i saw one setup on a 14B and he had the caliper under the axle, he said that was the only place the bracket would go..


so he was gonna wait to rip a caliper off then redo it haha
flip sides? lol

none of them should be designed to go on the bottom.
Reply With Quote
  #117
Old 01-15-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
i would much rather have my rear brakes lock up before the front.. but thats just me.
not in snowy or wet conditions you dont. its crazy!
Reply With Quote
  #118
Old 01-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zabeard View Post
flip sides? lol

none of them should be designed to go on the bottom.
...i'm just going off what he said.

Quote:
Originally Posted by zabeard View Post
not in snowy or wet conditions you dont. its crazy!
oh, in rain i can lock up all 4 easily...


but once the fronts lock you lose steering, as your well aware of.
Reply With Quote
  #119
Old 01-15-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
if you can stop without locking them up the faster you will stop
Reply With Quote
  #120
Old 01-15-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thats what i was thinking to
Reply With Quote
  #121
Old 01-15-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
where did you get your brush guard i want one that style but cant find any for our year trucks. or did you make custom brackets
Reply With Quote
  #122
Old 01-20-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Its for an explorer and i got it at a local junkyard. If you want it ill sell it.
Reply With Quote
  #123
Old 01-20-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by zabeard View Post
not in snowy or wet conditions you dont. its crazy!
i spun a 360 a week ago because of that. ******* cutting in front of you last second is fun. but i wouldnt take abs back for my life
Reply With Quote
  #124
Old 01-20-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Well boys i looks like the rear end is gonna have to wait till spring the d-shaft isnt going to clear the gas tank. So once its starts to get 50 or 60 out then i will pull the old tank buy a fuel cell and get-r-done.
Any input on how to install a cell would be very helpful and what kind of setup your running would be great.
Thanks
Reply With Quote
  #125
Old 01-22-2009
spaz1879's Avatar
Member

Join Date: Jun 2008
Location: lumberton, nj
Posts: 74
How To: Plumbing a Fuel Cell
it was posted in the how to section it took me a while to find it i couldn't remember what website i saw it on.
