  #151
Old 03-28-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Hell yeah!!

Is the rear 4-linked now?
Reply With Quote
  #152
Old 03-28-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
sweet pics asap
Reply With Quote
  #153
Old 03-28-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by seed60 View Post
Hell yeah!!

Is the rear 4-linked now?
hes got springs...
Reply With Quote
  #154
Old 03-28-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
no just chevy springs to get me by for a couple years then i want to link the front and back just gotta do a tone of research on that stuff.
Reply With Quote
  #155
Old 03-28-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
hows the height?
Reply With Quote
  #156
Old 03-28-2009
Member

Join Date: Feb 2009
Location: Austin/College Station, TX
Posts: 24
Quote:
Originally Posted by zainyD View Post
What is the spline count on the rear axle shafts? If it truly did come out of a 70 F250 it should have coarse 16 spline shafts.

I would STRONGLY suggest locking at least the rear axle. The Powerlock is not a very good limited slip and leaving the front open is really gonna suck when you try to go off-road. Buy a set of Lockrights or Aussie lockers, better yet, weld the front or back if you don't have any $$.

I would suggest 4* bushings for the front. 7* bushings will most likely give you too much caster.
sorry to dig up an old post..

your supposed to be at 5-7* aren't you?


...this is 99ranger again.. my bad.
Reply With Quote
  #157
Old 03-28-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by bootstrapbill View Post
sorry to dig up an old post..

your supposed to be at 5-7* aren't you?


...this is 99ranger again.. my bad.
Correct.
Reply With Quote
  #158
Old 03-28-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I am only running 4 maybe 5 and its great. I have discussed this with a few good alignment shops in town they all say 3-4 but i read online 5-7 ??
Reply With Quote
  #159
Old 03-28-2009
Member

Join Date: Feb 2009
Location: Austin/College Station, TX
Posts: 24
I think 3-4 for road vehicles. with off road trucks 5-7 is the magic number I think..

mine is set at about 5


argh i need to log out of his account.
Reply With Quote
  #160
Old 03-28-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
what would it matter? mine does fine off the road as it does on the road. you want it to track correctly and drive correctly on the road as well as off the road.
Reply With Quote
  #161
Old 03-28-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Its sits level with no blocks in the back and thats what i wanted and, i have no idea what im running for caster i just caled it good with the 7* caster bushings it will change when i extend my arms though.
Hey Zach you got that JJ still?
Reply With Quote
  #162
Old 03-28-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I think I have it on lock down.. *i hope* as soon as my tax return comes through I'm getting him to extend the arms lol


they're on sale right now for like $7 off..
Reply With Quote
  #163
Old 03-29-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Zach, where was your caster when you were having all those issues with death wobble?
Reply With Quote
  #164
Old 03-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Heres some pics, and i also might get 4 procomp x-all terrains bran new for $600.

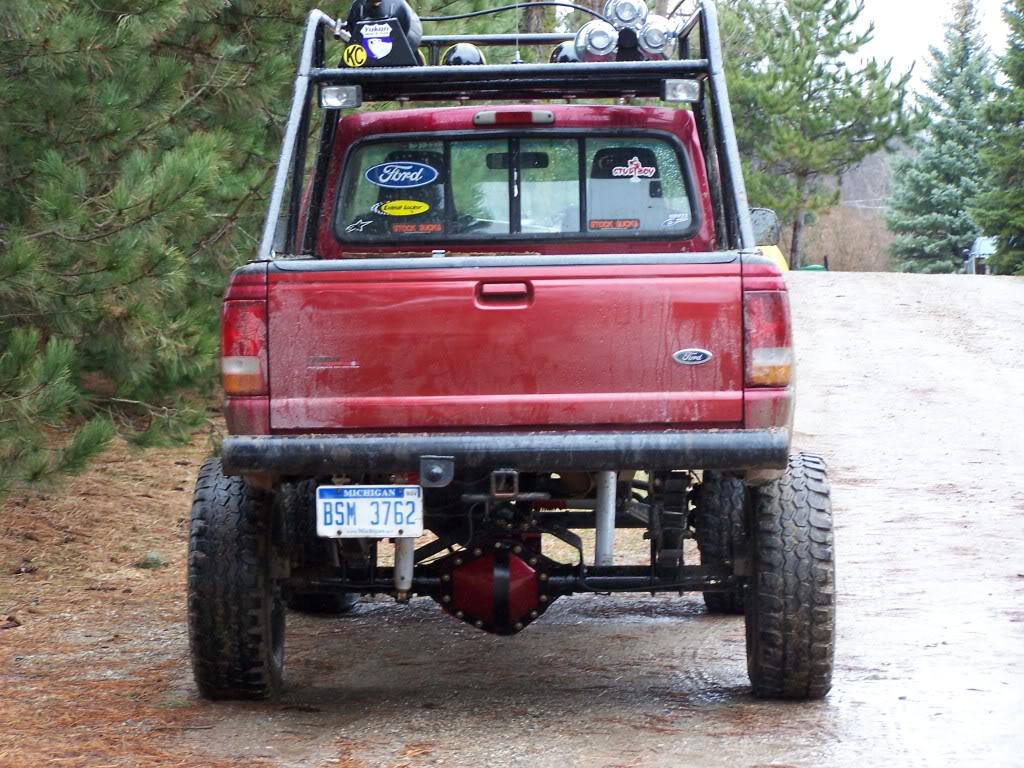

Name:  100_2635.jpg
Views: 4
Size:  187.2 KB

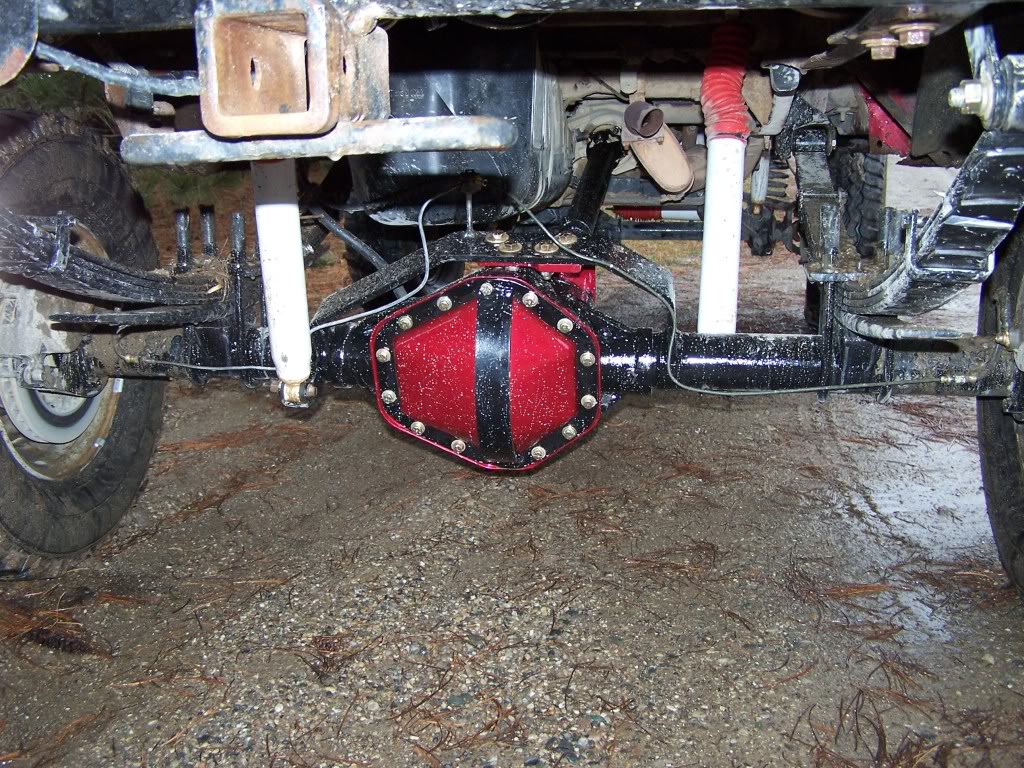

Name:  100_2636.jpg
Views: 4
Size:  264.4 KB

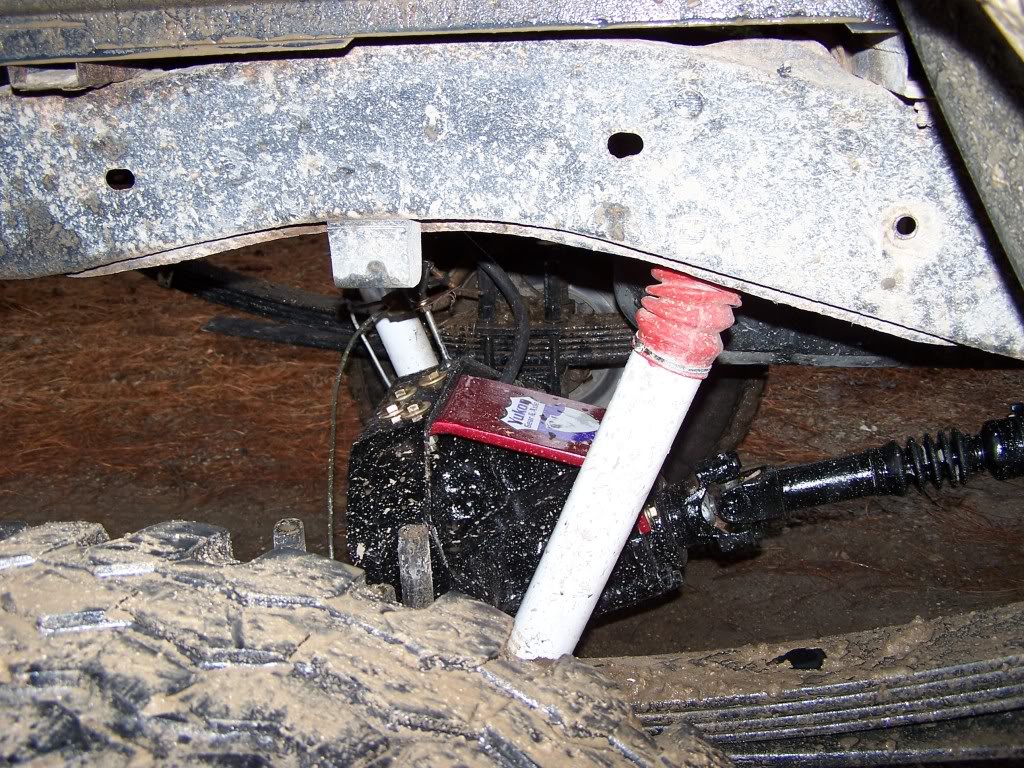

Name:  100_2637.jpg
Views: 4
Size:  247.8 KB
Name:  100_2637-1.jpg
Views: 4
Size:  247.8 KB

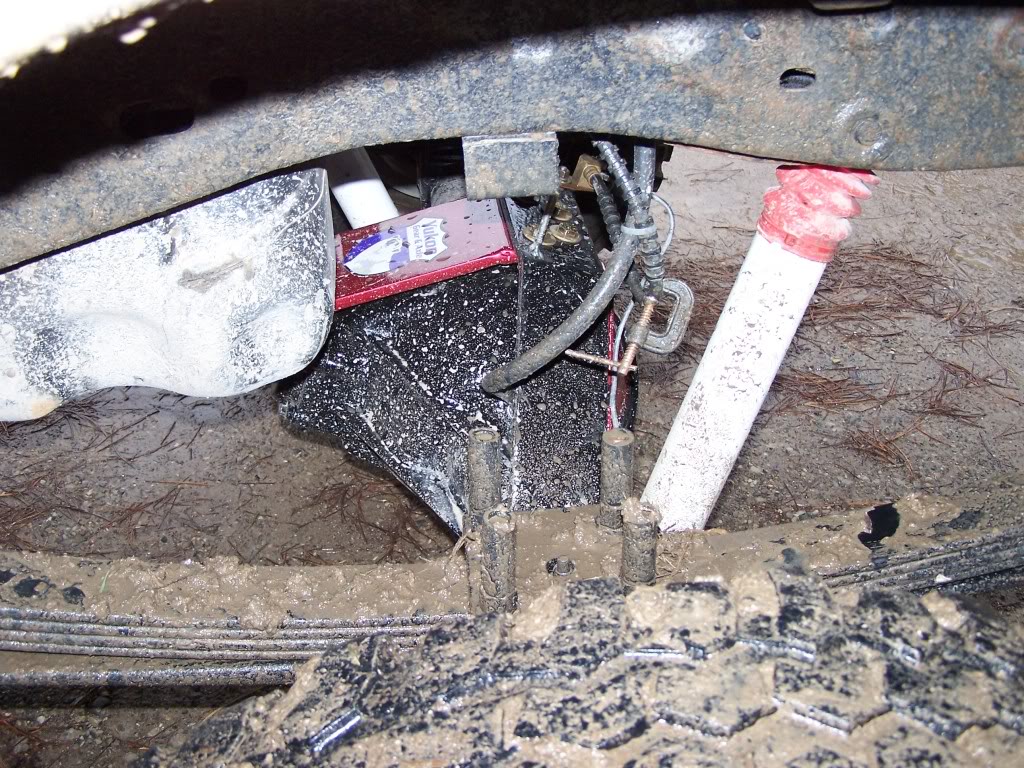

Name:  100_2638.jpg
Views: 4
Size:  252.3 KB

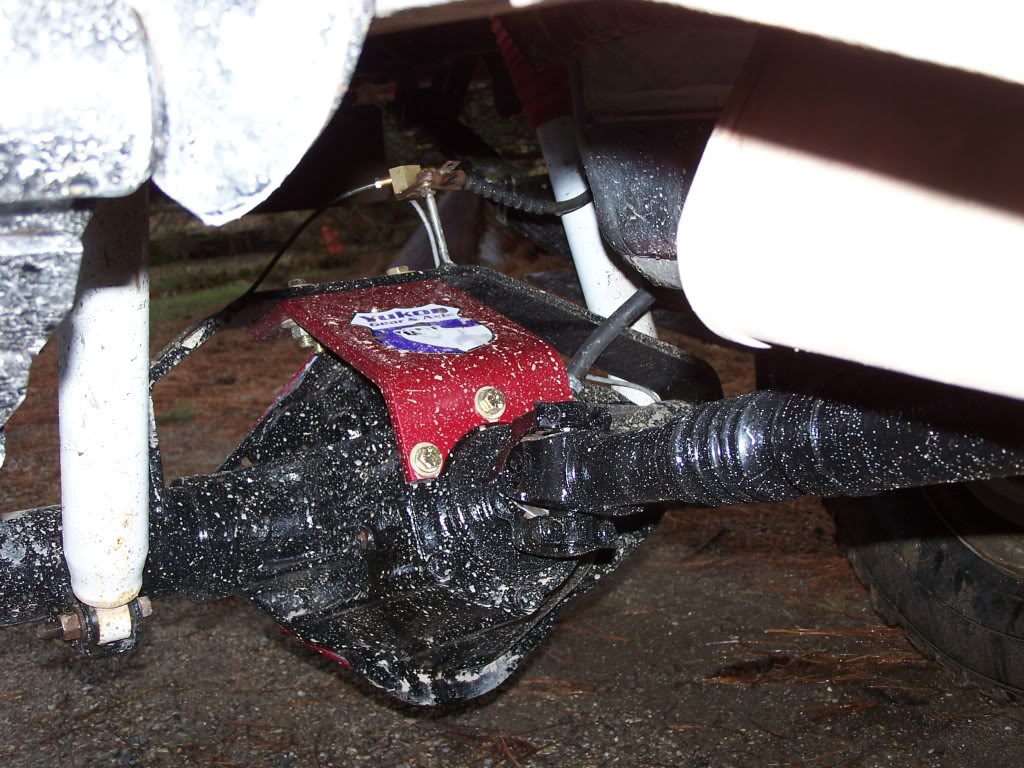

Name:  100_2639.jpg
Views: 4
Size:  172.5 KB
Reply With Quote
  #165
Old 03-29-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That looks great! You've really got this truck going!
Reply With Quote
  #166
Old 03-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Does pretty good in the mud and looks sweet shootin mud 15 foot in the air, that was fun (:
Reply With Quote
  #167
Old 03-29-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Trim those u-bolts and aim the pinion down a couple degrees. So as you get on the gas and the pinion rotates up it won't be putting a steeper angle on the u-joint.

Do you have a double cardan on the back of the t-case? I can't tell in the pics.
Reply With Quote
  #168
Old 03-29-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
nice brake line thing you got going on that pumpkin
Reply With Quote
  #169
Old 03-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by 034x4 View Post
Trim those u-bolts and aim the pinion down a couple degrees. So as you get on the gas and the pinion rotates up it won't be putting a steeper angle on the u-joint.

Do you have a double cardan on the back of the t-case? I can't tell in the pics.
Yes it is double cardon and if i have funny u-joint wear im going to take the wedges off of the leafs.
And i will have new brake line from the MC back next weekend that spacer is temporary.
Reply With Quote
  #170
Old 03-29-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by ford rules View Post
Yes it is double cardon and if i have funny u-joint wear im going to take the wedges off of the leafs.
If anything you might have a driveline vibe. For a double cardan you want the pinion to be a few degrees down from straight at the t-case, so as the axle wraps and raises the pinion it will be moving torward the t-case out-put instead of away.
Reply With Quote
  #171
Old 03-29-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
Zach, where was your caster when you were having all those issues with death wobble?
7-8
Reply With Quote
  #172
Old 03-29-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by ford rules View Post
Heres some pics, and i also might get 4 procomp x-all terrains bran new for $600.
Pass, They are the worst tires Ive ever had on my truck.
Reply With Quote
  #173
Old 03-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
What tire do you suggest?
Also my rear end seams to axle hop on dirt roads and such when you get on the gas does anyone else have this problem?
Also i took the wedges off the leaf springs, pinion angle is better now but not perfect.
Reply With Quote
  #174
Old 03-30-2009
Member

Join Date: Jun 2005
Posts: 148
No trim on the 14b? Looks good otherwise....oh to have a clean bed and tailgate again.
Reply With Quote
  #175
Old 03-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Just a little grind for mud and sand it doesnt really need a trim to bad.
Reply With Quote
