  #51
Old 10-20-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
thats a very common problem with fullwidth axles on the ranger frames. The buckets arent lined up correctly.
Reply With Quote
  #52
Old 10-20-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah the coils look fine too me.

also if you had no panhard (track bar), there is no way it would even drive, let alone sit on the springs.


looks good man. need some bigger tires!
Reply With Quote
  #53
Old 10-21-2008
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
they look scary to me but i will believe zabeard he has only done like 5 or how many have you done now beard?
Reply With Quote
  #54
Old 10-21-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
2, well 3 counting his twice
Reply With Quote
  #55
Old 10-21-2008
ShoNuff82's Avatar
Member

Join Date: Oct 2006
Location: Novi, Mi
Posts: 69
Name:  100_1791.jpg
Views: 18
Size:  310.9 KB

looks like it has a track bar. You can see it in this pic.

Those coils look fine as long as they are captured at the top and bottom.

The new dodge ram actualy runs the coils arc'd like that on their new coiled rear 5 link. The claim it gives them a variable rate feel without having to spend the money on a variable rate spring.

What kind of meats are you planning on running?
Reply With Quote
  #56
Old 10-22-2008
MXranger489's Avatar
Member

Join Date: Jan 2007
Location: Newington CT
Posts: 142
He has a trac bar, wouldnt be able to drive without it, in the pic you cant really see it cause its behind the drag link. Thats a good thing, they are paralell. Coils bow out if you dont relocate the bucks. They even bow out on EB44 swaps if you dont relocate nevermind fullwidth. They look ok though, shouldnt cause any problems. Looks good man
Reply With Quote
  #57
Old 10-22-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
We've established that, and I saw it long ago, thanks for the reinforcement.
Reply With Quote
  #58
Old 10-23-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ya trucks fine and coils aint goin no where either now just gotta get the back done.
Reply With Quote
  #59
Old 10-23-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
pssst... we want flex shots
Reply With Quote
  #60
Old 10-24-2008
Member

Join Date: Jun 2005
Posts: 148
When's the D60 rear go in?
Reply With Quote
  #61
Old 10-24-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Flex whats that haha with 3 1 ton cheby leafs and 4in blocks, the back dont flex to much but i did but a jack under the front diff with a 6x6 block on top of the jack and maxed out the jack once i get the 1500 chevs under it i think ill be happy with it. One question on the chevy leaf swap? Wont the new leafs push the axle forward more cause the center hole will be farther forward?
And the rear end wont get done till prollay next year. Im only 16 and the buschs meat dept. dosent pay to well.
Reply With Quote
  #62
Old 10-24-2008
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
no, it stays in the same place as long as you only move the front hanger 6". here's some pics of mine.


Reply With Quote
  #63
Old 10-25-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
woods rider What size lift are your leafs and do you have shackles to if so where did you get them? About how much lift do you think you have in the rear?
Reply With Quote
  #64
Old 10-25-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
they have a whole write up on TRS i think, you grind/drill/hammer the old rivets out and move it forward.
Reply With Quote
  #65
Old 11-15-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
I gotta bump this thread.

This truck is incredible. Do you think you could get more pictures of your rack? That thing looks awesome.





















And I don't mean your boobies.
Reply With Quote
  #66
Old 11-15-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Here you go and thanks for the compliment
Name:  100_1656.jpg
Views: 15
Size:  193.7 KB

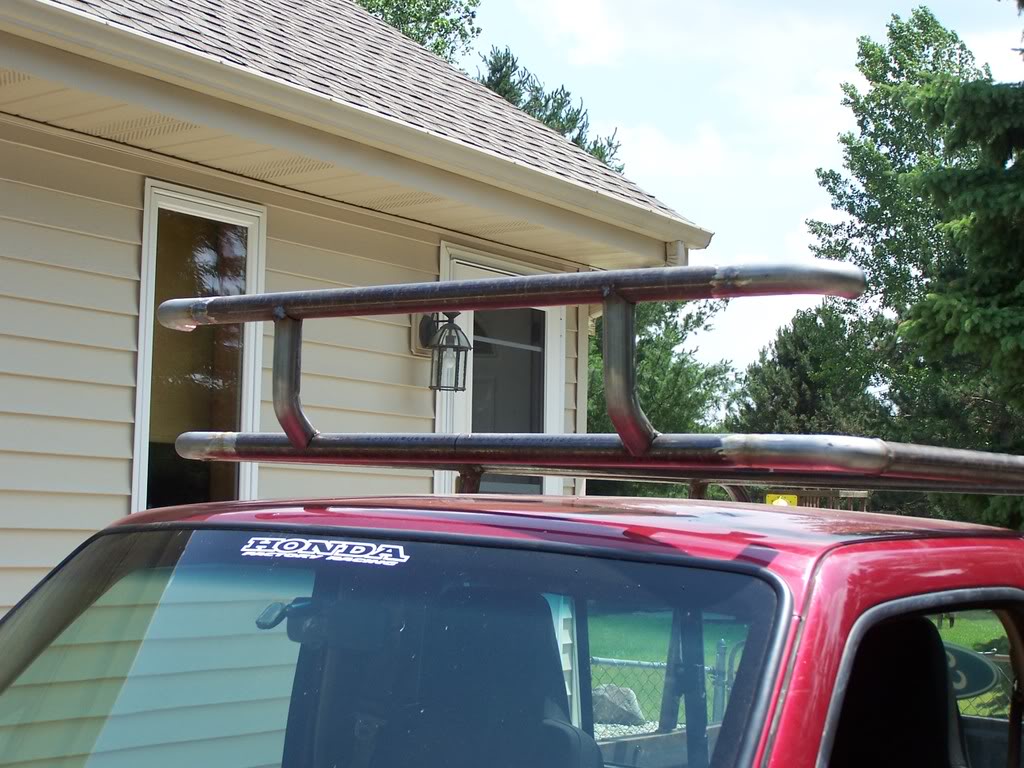

Name:  100_1655.jpg
Views: 15
Size:  146.8 KB
Name:  100_1654.jpg
Views: 15
Size:  73.8 KB

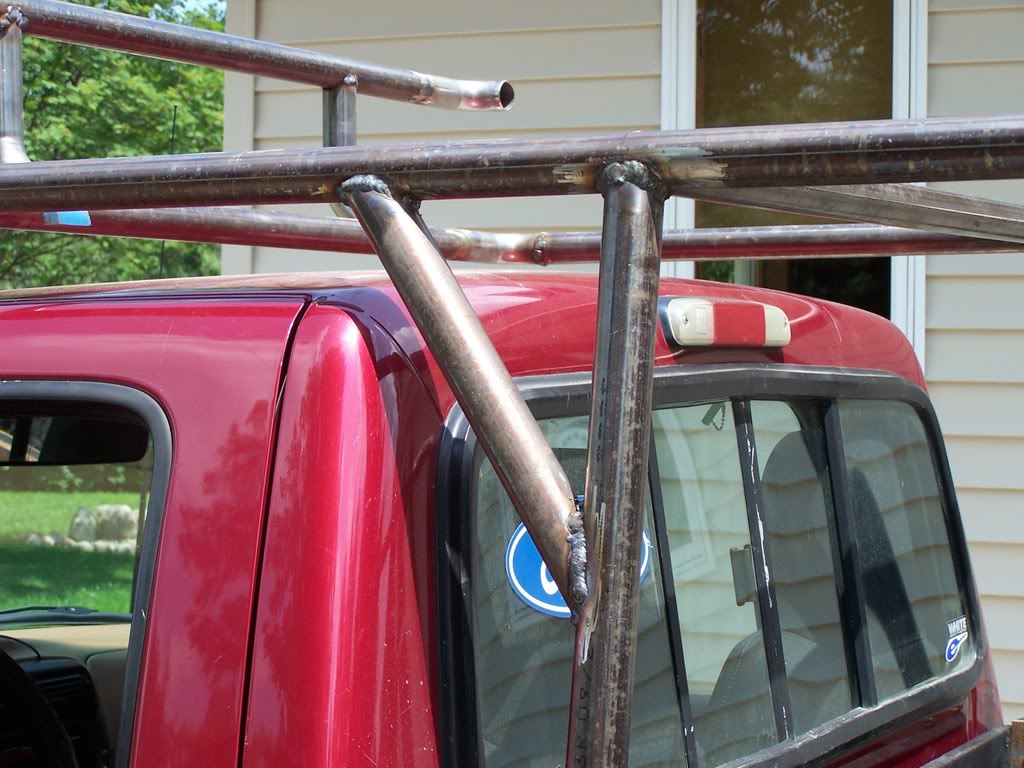

Name:  100_1653.jpg
Views: 16
Size:  126.6 KB
Name:  100_1652.jpg
Views: 15
Size:  222.1 KB
Name:  100_1650.jpg
Views: 15
Size:  203.4 KB

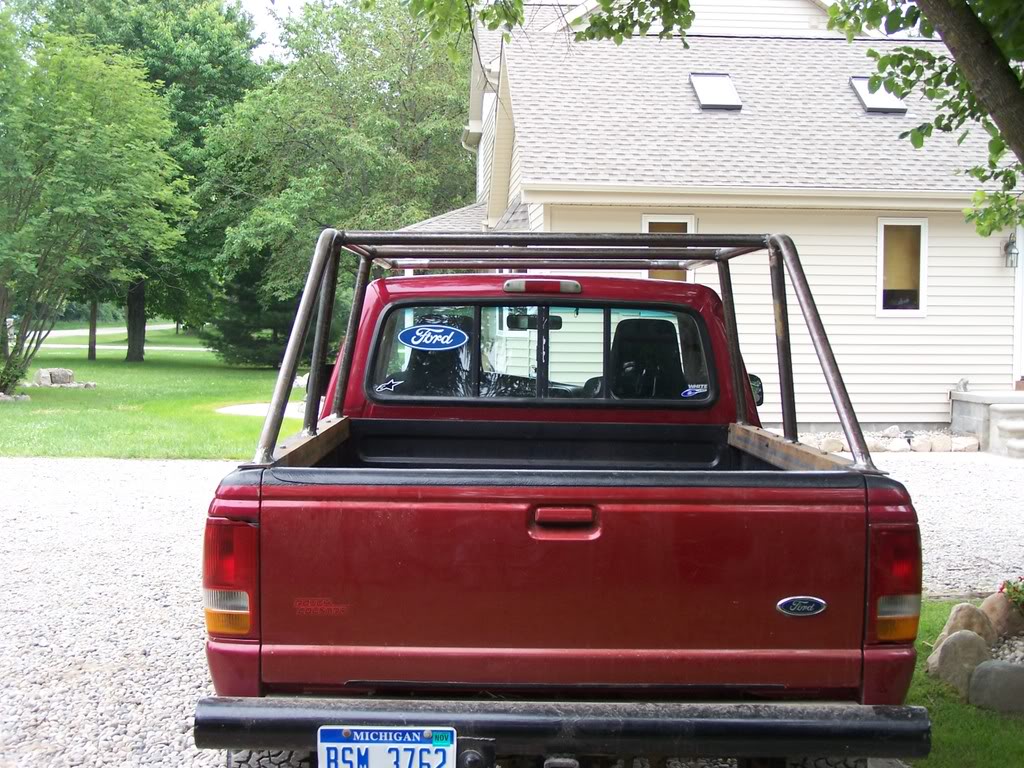

Name:  100_1649.jpg
Views: 15
Size:  192.7 KB

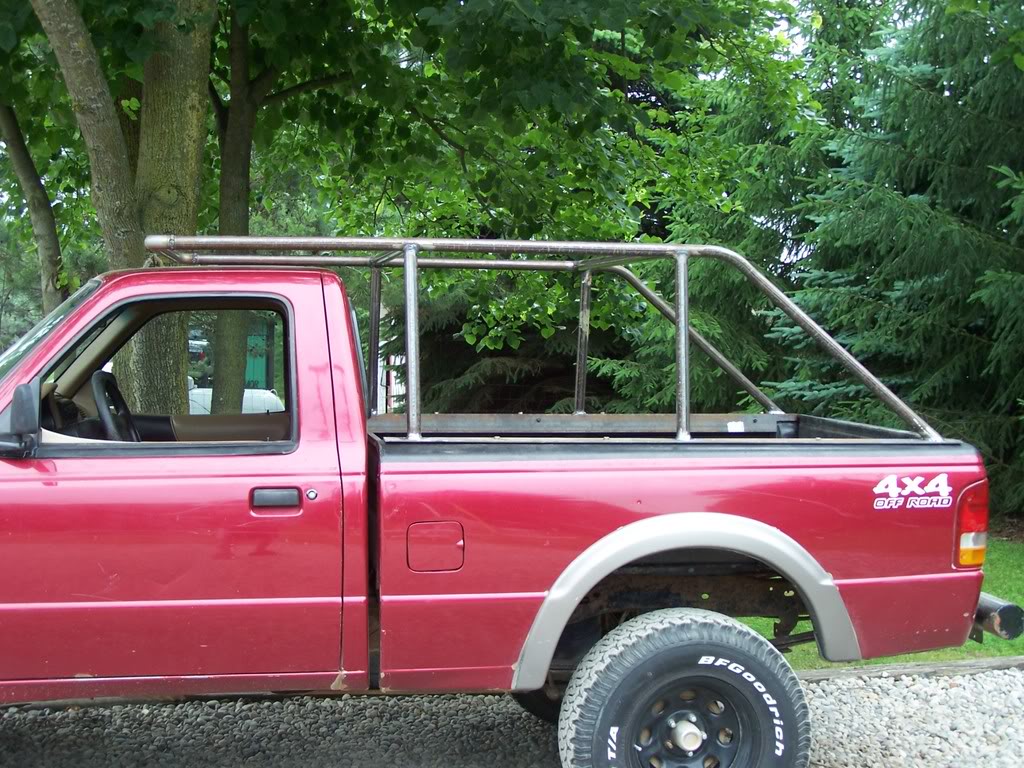

Name:  100_1648.jpg
Views: 15
Size:  197.5 KB
Name:  100_1647.jpg
Views: 17
Size:  225.1 KB

All the fab work and welding was done by me.
Reply With Quote
  #67
Old 11-15-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Looks good.

Wanna build me one that I can fit a topper under?
Reply With Quote
  #68
Old 11-15-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Haha i think that shipping would be kinda expensive maybe if you were closer and its to cold out now i dont even wanna work on my own stuff anymore haha
Reply With Quote
  #69
Old 11-18-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay so does anybody have any 1976 or older ford 3/4 ton hubs all i need from them is the red caps let me know if you have any thanks.
Reply With Quote
  #70
Old 11-18-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
did you break one already or whats the deal?
Reply With Quote
  #71
Old 11-18-2008
Member

Join Date: Jun 2005
Posts: 148
I would check Ebay. I have a set, but I wanted to keep the outers complete and together.
Reply With Quote
  #72
Old 11-18-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
No i didnt break one yet but they were broke when i got them out of the 4 sets that i have all were bad the red cap has a pin going through it on the inside and 2 little **** hold it in and they are all broke. i will get a pic tomorrow
If any one has a set i will buy them as a complete set to if you dont want to seperate them pm me with the info if you have em thanks.
Reply With Quote
  #73
Old 11-18-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i have an extra set, but i paid 60 for them plus shipping, not sure i want to get rid of them.
Reply With Quote
  #74
Old 11-18-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Ya i understand but if you do want to sell them anytime soon let me know i really need them.
Reply With Quote
  #75
Old 11-27-2008
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay so i think that i got my hub problem under control heres my fix.
Name:  100_2508.jpg
Views: 15
Size:  62.9 KB
Name:  100_2507.jpg
Views: 15
Size:  52.2 KB
Name:  100_2506.jpg
Views: 15
Size:  64.0 KB
Its a piece of PVC pipe shoved in it and then a little pin goes all the way through it, it should work and i geuss ill find out.
Reply With Quote
