Not much progess. I took the fender off and managed to soak everything in atf starting the truck up. But everything is ground down just waiting on parts. Leafsprings and sliders are on the way.

Attached Thumbnails
Big Nasty!-p1010342.jpg
Reply With Quote
  #77
Old 03-25-2012
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn never seen those things yet, pretty wicked Idea. Going to be sweet to see how they do when its together!
Reply With Quote
  #78
Old 03-27-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Everything showed up today. These things are nice!

Finally feel like I'm making some progress instead of just tearing my truck up.





One of the clamps busted in shipping even though these things were packaged awesome. Gotta figure out how to fix that.
Attached Thumbnails
Big Nasty!-p1010345.jpg   Big Nasty!-p1010343.jpg   Big Nasty!-p1010344.jpg   Big Nasty!-p1010347.jpg
Reply With Quote
  #79
Old 03-27-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice!

Do you still have the other piece of the clamp? You might be able to have it welded back together (or weld it yourself)

Contact Rancho and see what they can do for you.
Reply With Quote
  #80
Old 03-27-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Taylor View Post
Nice!

Do you still have the other piece of the clamp? You might be able to have it welded back together (or weld it yourself)

Contact Rancho and see what they can do for you.
I've got the other piece but I bought these privately. I'm going to take it to work and see if they can weld it. It almost looks likes cast.

Last edited by seed60; 03-28-2012 at 07:41 AM.
Reply With Quote
  #81
Old 03-27-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
They shouldn't be cast. Just mild steel. I don't have that clamp at the front and my springs and they pop and move around a lot. I'm putting some on soon so they don't move as much. I'm curiouser how those spring sliders are going to work looks kinda neat.
Reply With Quote
  #82
Old 03-28-2012
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
So do you just weld those spring hangers right to the bottom of the frame? Seems like a really interesting idea.
Reply With Quote
  #83
Old 03-28-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Rooks View Post
So do you just weld those spring hangers right to the bottom of the frame? Seems like a really interesting idea.
Pretty much but I'm going to have to outboard them. Frame is around 31" and perches are 36.5".

Last edited by seed60; 03-29-2012 at 12:32 PM.
Reply With Quote
  #84
Old 03-29-2012
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
IIRC the spring perch with is 36.5" but i may be wrong
Reply With Quote
  #85
Old 03-29-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by ranger View Post
IIRC the spring perch with is 36.5" but i may be wrong
That's correct. I was too lazy to type it out.
Reply With Quote
  #86
Old 03-29-2012
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Reply With Quote
  #87
Old 03-29-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Rigged this up for measuring. 4x4x5/16 outboarded.


[
Attached Thumbnails
Big Nasty!-p1010348.jpg   Big Nasty!-p1010350.jpg

Last edited by seed60; 03-29-2012 at 10:30 PM.
Reply With Quote
  #88
Old 03-29-2012
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
lol..whats the spanner for?
Reply With Quote
  #89
Old 03-30-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by INT3RC3PTOR View Post
lol..whats the spanner for?
Just using it as a spacer.
Reply With Quote
  #90
Old 03-30-2012
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Those brackets come welded?
Reply With Quote
  #91
Old 03-31-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by HighRollerII View Post
Those brackets come welded?
Yes and they are beef!


Got a set of Ruffstuff hangers on the way and flip kit.

http://www.rme4x4.com/showthread.php...t-flip-options

Last edited by seed60; 03-31-2012 at 08:48 PM.
Reply With Quote
  #92
Old 04-01-2012
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
Looking good!
Reply With Quote
  #93
Old 04-03-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584

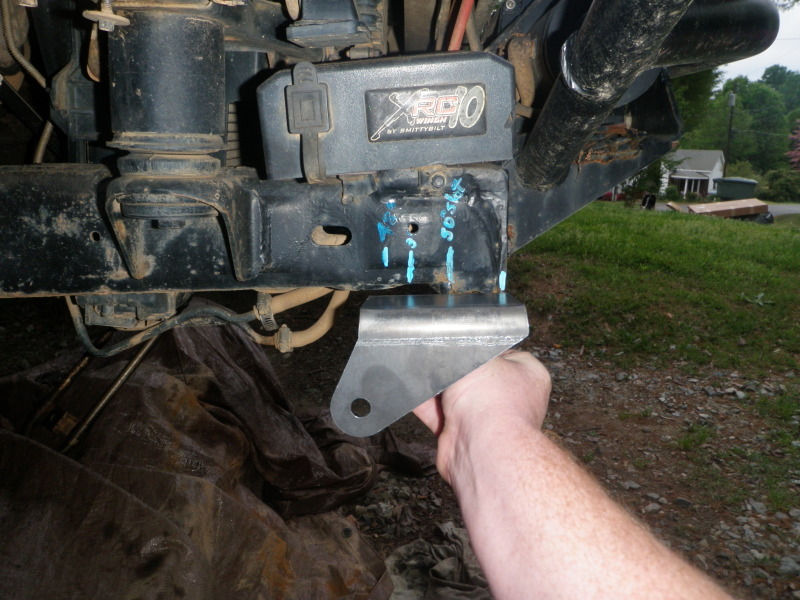

Ordered some wrong stuff from Ruffstuff. So I got these from Barnes and they were here fast.

Looks like I'll have 48" or so to the back of the slider slot with it jammed up against the body mount. The springs look like they are 47" eye to eye. So hopefully I won't have to cut that body mount in the back.

Attached Thumbnails
Big Nasty!-p1010351.jpg
Reply With Quote
  #94
Old 04-06-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
More legit stuff from Barnes, ubolt flip kit and shock mounts. Looks like it's gonna work well. Finally have everything I need to mount the springs and axle.

Hopefully this weekend I can get the brackets cut off the axle and get the truck at ride height. It's sitting level but it needs to be higher and I need extra hands for that so it won't fall over.

Ubolts are upside down because of those brackets.


Attached Thumbnails
Big Nasty!-p1010352.jpg   Big Nasty!-p1010353.jpg   Big Nasty!-p1010354.jpg   Big Nasty!-p1010352.jpg   Big Nasty!-p1010353.jpg

Big Nasty!-p1010354.jpg
Reply With Quote
  #95
Old 04-06-2012
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
looking good dude. cant wait to see it on all fours
Reply With Quote
  #96
Old 04-07-2012
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Barnes is wicked quick!
Reply With Quote
  #97
Old 04-13-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Picked up some 2.5x2.5x1/4 and finally got the axle cleaned up. But after some more measuring I think it needs to be skinnier and wider. Maybe some 2x4.


Attached Thumbnails
Big Nasty!-p1010355.jpg   Big Nasty!-p1010356.jpg

Last edited by seed60; 04-13-2012 at 08:43 PM.
Reply With Quote
  #98
Old 04-16-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
The 2.5x2.5 is definitely not gonna work. Have the axle at ride height and its gonna be huge. But it looks like I'll be able to clear the slider bolt.


Attached Thumbnails
Big Nasty!-p1010371.jpg   Big Nasty!-p1010377.jpg   Big Nasty!-p1010371.jpg   Big Nasty!-p1010377.jpg
Reply With Quote
  #99
Old 04-21-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Bam!!

Reply With Quote
  #100
Old 04-23-2012
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
what are those off of?
