Project Logs For detailed builds specific to the Ford Ranger, one thread per vehicle please.

Reply

LinkBack Thread Tools Search this Thread
  #176
Old 09-18-2012
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Looks really good! How did u like those traction bars?
That's what I did with mine, just get it 2wd and work on the rest when I had the cash.
Reply With Quote
  #177
Old 09-18-2012
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
yeah dont worry bout 4wd i had the same for a while after sas :P

how youd lie the trac bars?
Reply With Quote
  #178
Old 09-19-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I really like the traction bars. They really seem to make the back end squat down and go instead of jumping all around when you get on it.
Reply With Quote
  #179
Old 09-19-2012
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
do they limit the travel of the axle? btw whats the width of ur sliders? the inside diameter if you could please! thanks!
Reply With Quote
  #180
Old 09-20-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by comunistico View Post
do they limit the travel of the axle? btw whats the width of ur sliders? the inside diameter if you could please! thanks!
I haven't ever measured the difference with or without them. If they do I don't think it's much.

These sliders are 3" inside.
Reply With Quote
  #181
Old 09-20-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Not to go off topic or anything....

...but you DID beef up your e-brake system....right?



HAAAhahaha (thats not funny though)
Reply With Quote
  #182
Old 09-21-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Taylor View Post
Not to go off topic or anything....

...but you DID beef up your e-brake system....right?



HAAAhahaha (thats not funny though)
This axle does not have an e-brake with the disc brake conversion kit. Still trying to research what I can do to get one. I know some people do line locks for cutting brakes, could be used as an e-brake too I think.

Last edited by seed60; 09-21-2012 at 10:00 AM.
Reply With Quote
  #183
Old 09-22-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
what calipers does it use? i know with 14 bolt dbc's you can use stock 3/4 ton front chevy calipers or 78-79 cadillac eldorado rear calipers which have an ebrake on them. you could also use a pair of hydraulic hand brakes for drift cars like im going to. they could be set up as cutting brakes and they also have a flip down lock. Hydraulic handbrake Picture - More Detailed Picture about Universal hydraulic handbrake drift E BRAKE Picture from kkrspeed performance store's store i wouldnt rely on them as ebrakes since hydraulics can bleed back through the system but for cutting brakes or temporary ebrakes im gonna run em.

just a thought.
Reply With Quote
  #184
Old 09-22-2012
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
It's getting there.
Reply With Quote
  #185
Old 09-22-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by camodown View Post
It's getting there.
AAannnnddd Casey out of nowhere.
Reply With Quote
  #186
Old 09-22-2012
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Quote:
Originally Posted by Taylor View Post
AAannnnddd Casey out of nowhere.
I know right. My last login was in June
Reply With Quote
  #187
Old 09-27-2012
2002edge4x4's Avatar
Member

Join Date: Nov 2011
Location: Oak Island, NC
Posts: 88
I'll have to make a trip up to see this thing when it's done!
Reply With Quote
  #188
Old 09-30-2012
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by camodown View Post
I know right. My last login was in June
I hear ya man, I've been pretty bad about keeping up on the forum. I need like R-F Activia to keep me regular
Reply With Quote
  #189
Old 10-16-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Thanks for tip. I was reading about that on pirate. I may try to find some eventually to setup a mechanical e-brake.

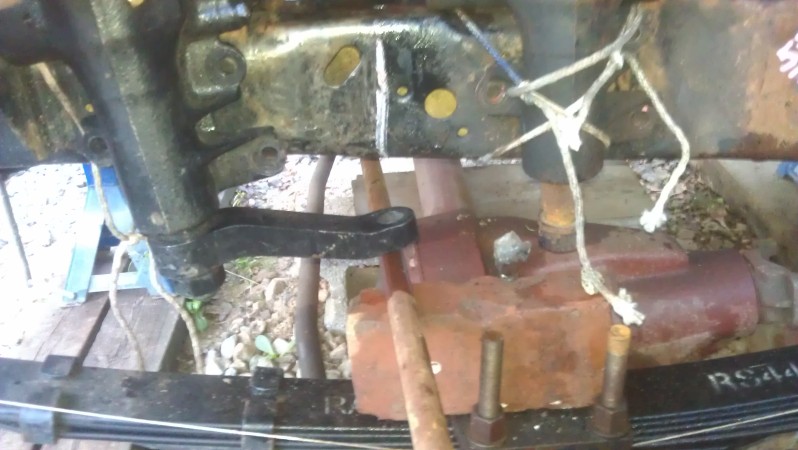

Still trying to setup the steering. It doesn't look like there will be enough room for the toyota box. So I found a fj60 box that throws forward and should clear everything but the radiator hose.

Toyota box.


Setup for fj60 box.

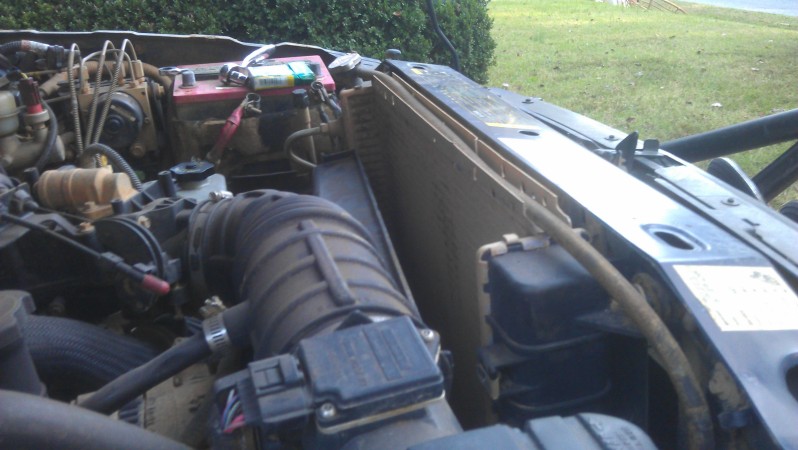

Drag link is close to the radiator hose. So I moved the radiator to it's original spot. Still need to clearance the trans cooler lines and gonna try to flip the shroud. Hopefully it still cools good.




Attached Thumbnails
Big Nasty!-imag0459.jpg   Big Nasty!-imag0465.jpg   Big Nasty!-imag0474.jpg   Big Nasty!-imag0479.jpg   Big Nasty!-imag0482.jpg

Big Nasty!-imag0476.jpg   Big Nasty!-imag0481.jpg
Reply With Quote
  #190
Old 10-22-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Scratch that. After a little hammer time I think the yota box will work good.
Attached Thumbnails
Big Nasty!-imag0485.jpg
Reply With Quote
  #191
Old 10-23-2012
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
Bout ----in time haha

Maybe I shouldn't be talkin haha, my ***** been out of commish for 2.5 years haha
Reply With Quote
  #192
Old 10-30-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That thing even on the road yet?


My steering showed up and finally picked up some tires. The powdercoating on the rims is really rough and the tread is jacked on one tire but I stole them.



Attached Thumbnails
Big Nasty!-p1010470.jpg   Big Nasty!-p1010469.jpg

Last edited by seed60; 10-30-2012 at 09:47 PM.
Reply With Quote
  #193
Old 11-02-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
The steering ended up a little closer but it think it'll still work. It's only got 3 1/2" uptravel but tons of down. We'll have to see how it works.





Attached Thumbnails
Big Nasty!-p1010484.jpg   Big Nasty!-p1010473.jpg   Big Nasty!-p1010482.jpg   Big Nasty!-p1010478.jpg   Big Nasty!-p1010476.jpg

Reply With Quote
  #194
Old 11-02-2012
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Looks good! Looks like u are getting close to being done, what u have left?
I have about the same distance between My steering arm And spring, u should be fine. Cant wait to see it back on all four again.
Reply With Quote
  #195
Old 11-02-2012
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
looks great man
Reply With Quote
  #196
Old 11-03-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
nice jackstands!! you do plan on putting safety washers on those single shear steering heims right?
Reply With Quote
  #197
Old 11-03-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Ford78 View Post
Looks good! Looks like u are getting close to being done, what u have left?
I have about the same distance between My steering arm And spring, u should be fine. Cant wait to see it back on all four again.
Thanks for the help. I still have a lot to do to just get it 2wd.

Brake lines and turn rotors
Finish the steering and order hi steer arm
Finish welding on the front
Fix driveshaft

Today I drilled the axle to flip the ubolt and got the steering mount halfway drilled out. The top hole is above the frame.




Attached Thumbnails
Big Nasty!-p1010489.jpg   Big Nasty!-p1010490.jpg

Last edited by seed60; 11-04-2012 at 12:58 PM.
Reply With Quote
  #198
Old 11-07-2012
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
looks great
Reply With Quote
  #199
Old 11-09-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Thanks. Hi steer arm ready to go on and got eveything cleaned up for welding tomorrow. Looks like it'll work so I just have to cut a little bit on the front of the wheel well. Gonna change up the paint on the bumper too.



Attached Thumbnails
Big Nasty!-p1010499.jpg   Big Nasty!-p1010500.jpg   Big Nasty!-p1010501.jpg
Reply With Quote
  #200
Old 11-10-2012
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584

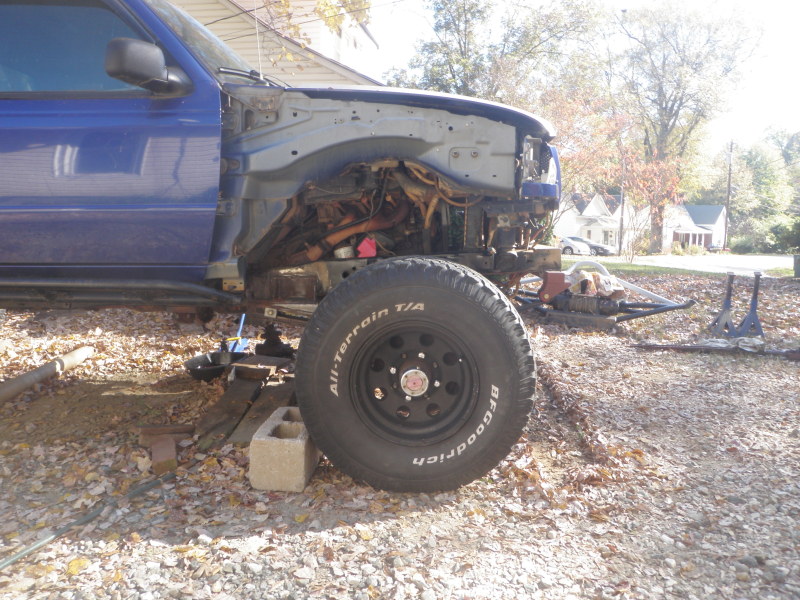

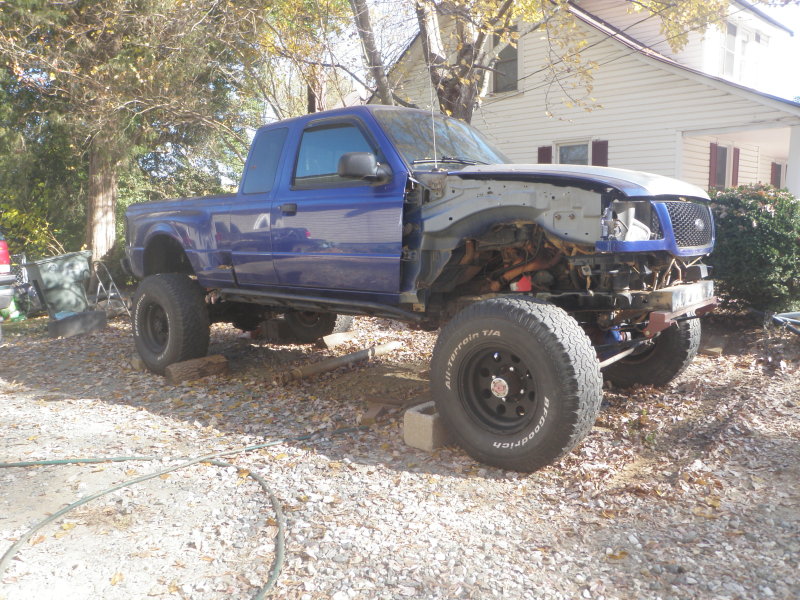

Welded the rest of the front this morning. Looks good without jackstands.






Attached Thumbnails
Big Nasty!-p1010503.jpg   Big Nasty!-p1010506.jpg   Big Nasty!-p1010507.jpg   Big Nasty!-p1010505.jpg   Big Nasty!-p1010508.jpg

Big Nasty!-p1010509.jpg
Reply With Quote
